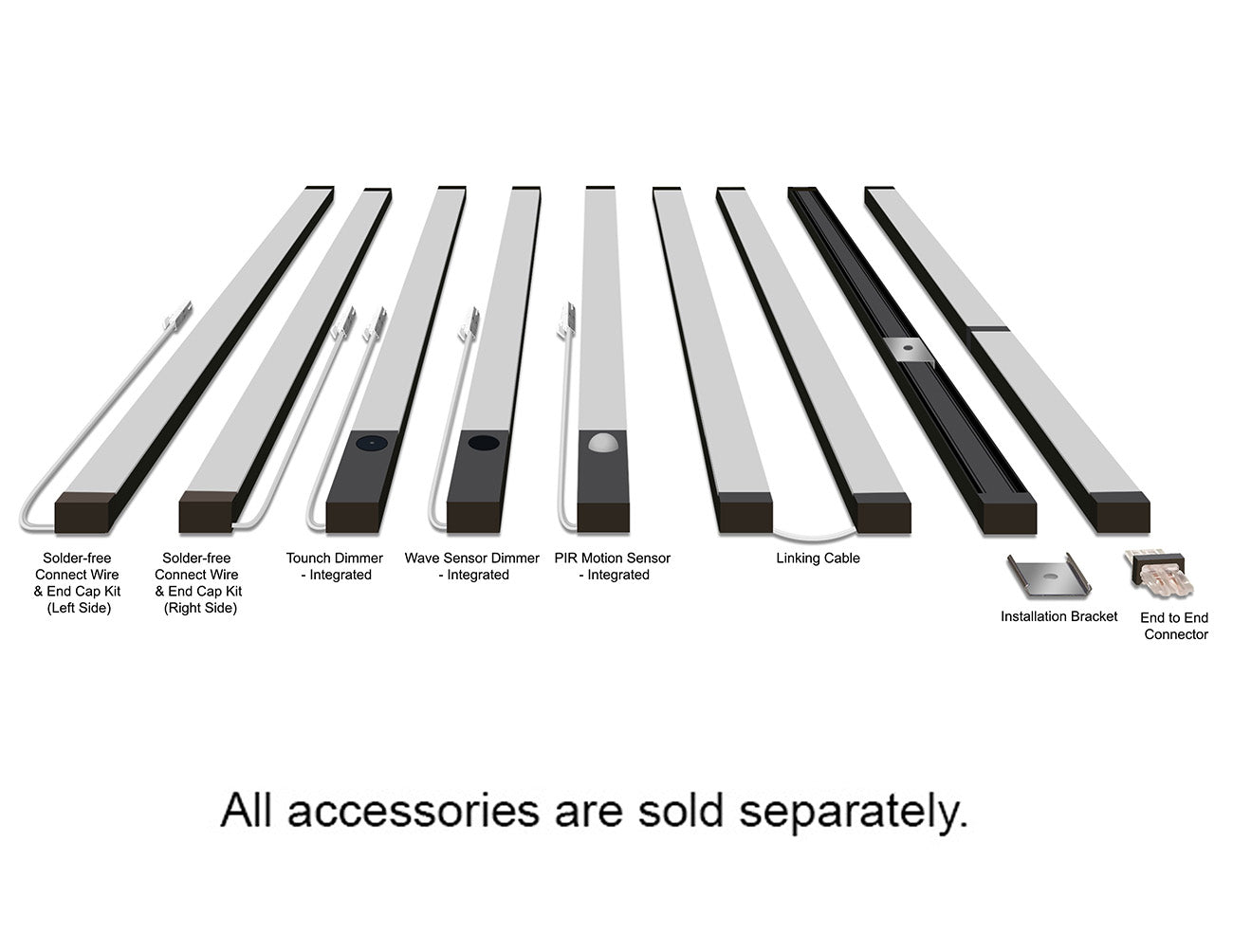

31134 Surface-Mounted Linear Light– infinite cutting, plug-and-play design with no soldering required; supports seamless connection and optional hand-sweep, motion, or touch-dimming switches. Widely used for under-cabinet lighting, toe-kick illumination, and island accent lighting in American-style Cabinets.
Product Details
- Plug & play fast connection free of wire welding, with optional sensor control for different application

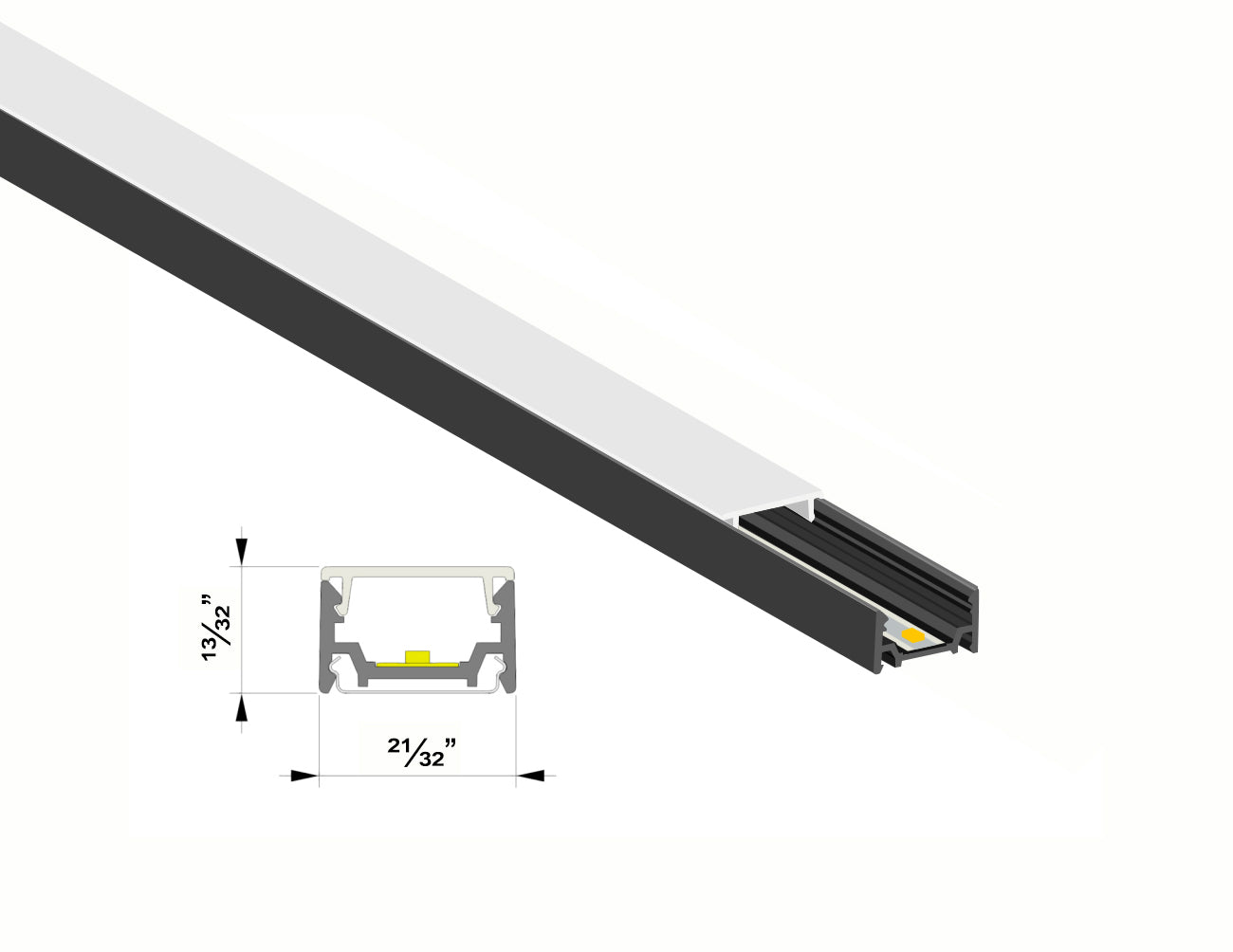

- Surface mounting W16.3*H10.5mm for easy DIY without drilling.
- High performance strip, every single LED chip cuttable to make precise length & reduce dark area.
- Transparent middle connector for direct connection and length extension.
- Popular anthracite finish color to fit high-end furniture.
This product includes:
· Surface Mount Solder Free LED Linear Light Aluminum Channel 31134 – 24"*1pc
· Surface Mount Solder Free LED Linear Light Aluminum Channel 31134 – 94"*1pc
· Strip Light L6.8-2025-150-3000-1500-WW-12W/M-24V 9.84ft*1pc

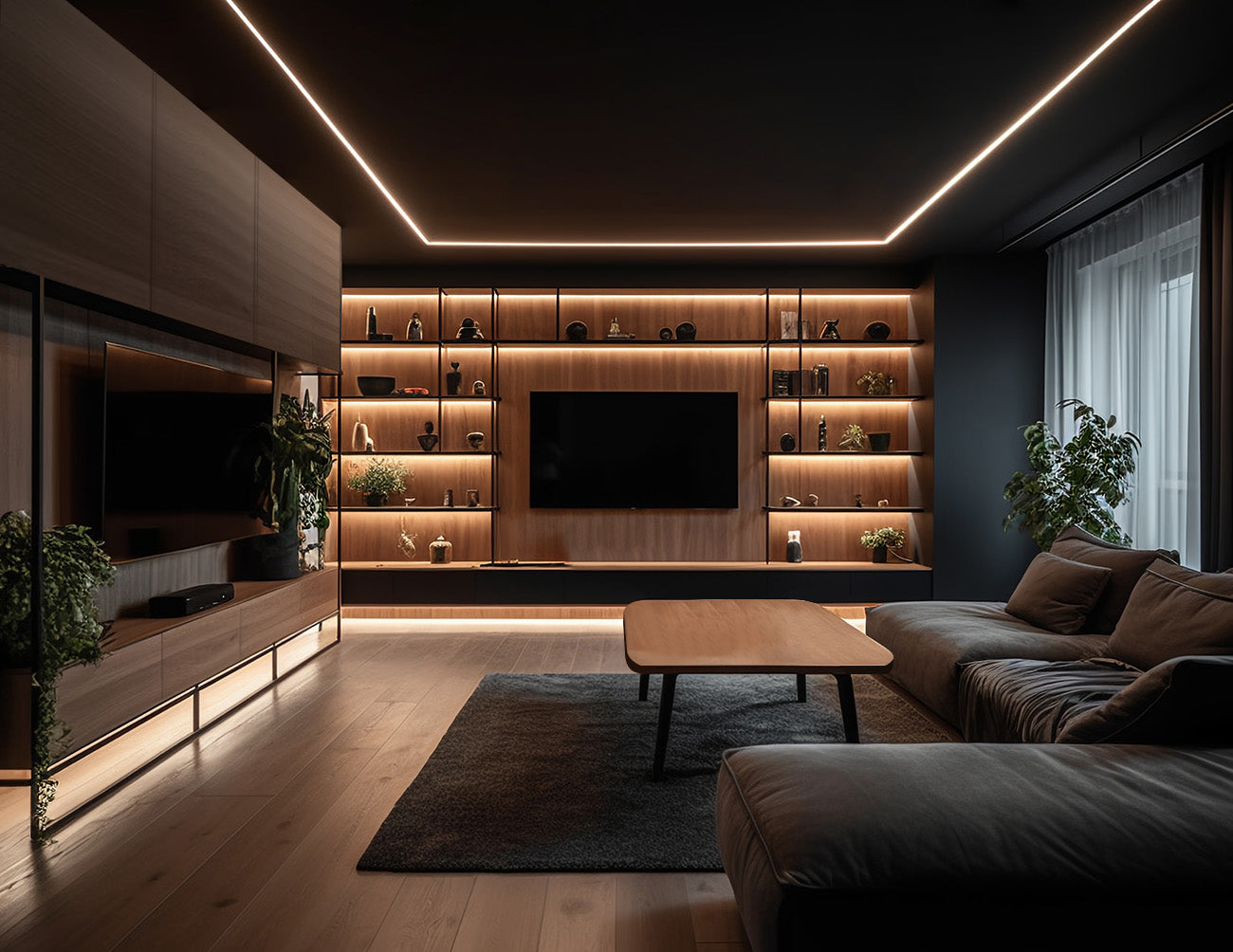

Applications
- Under cabinet.
- Display shelves.

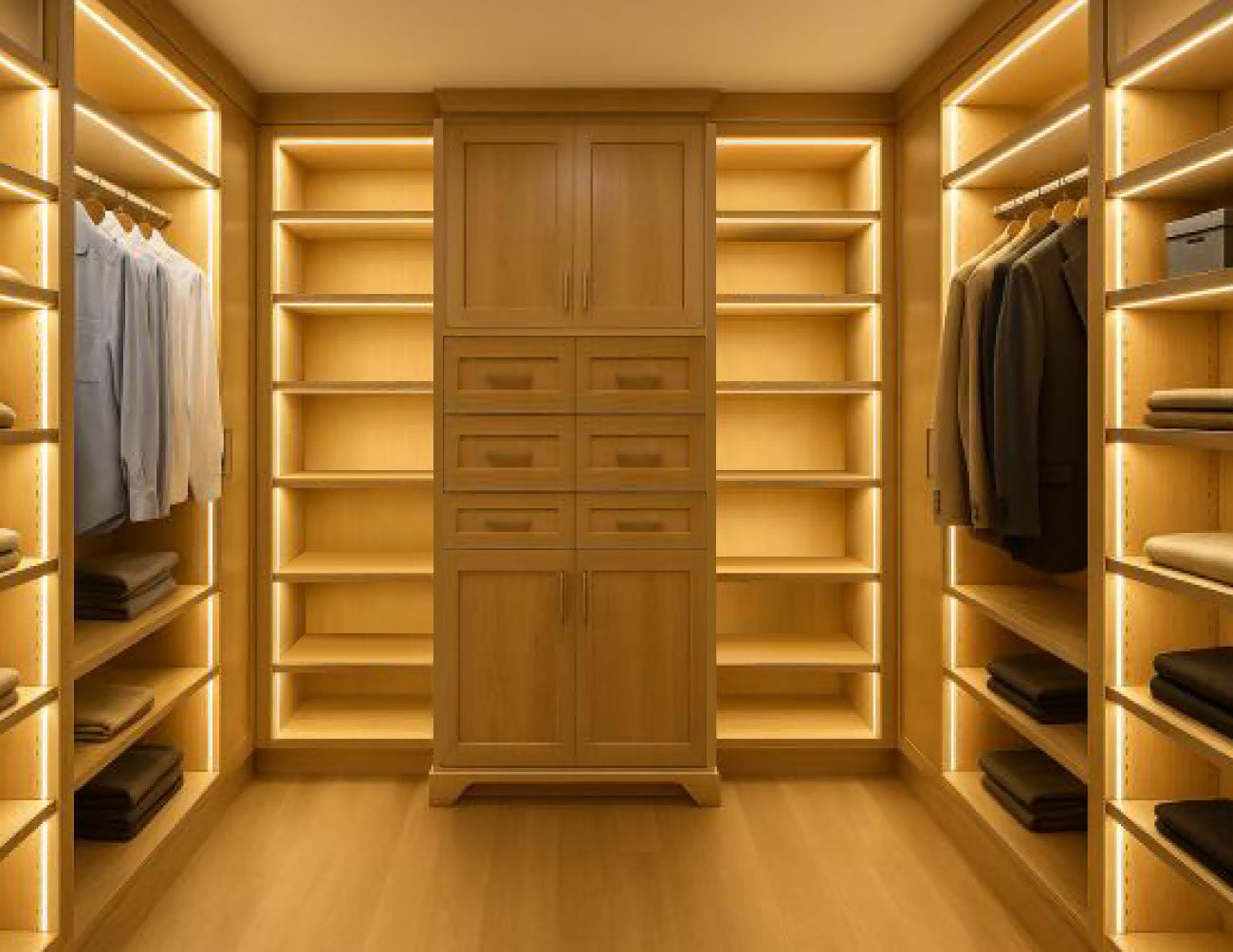

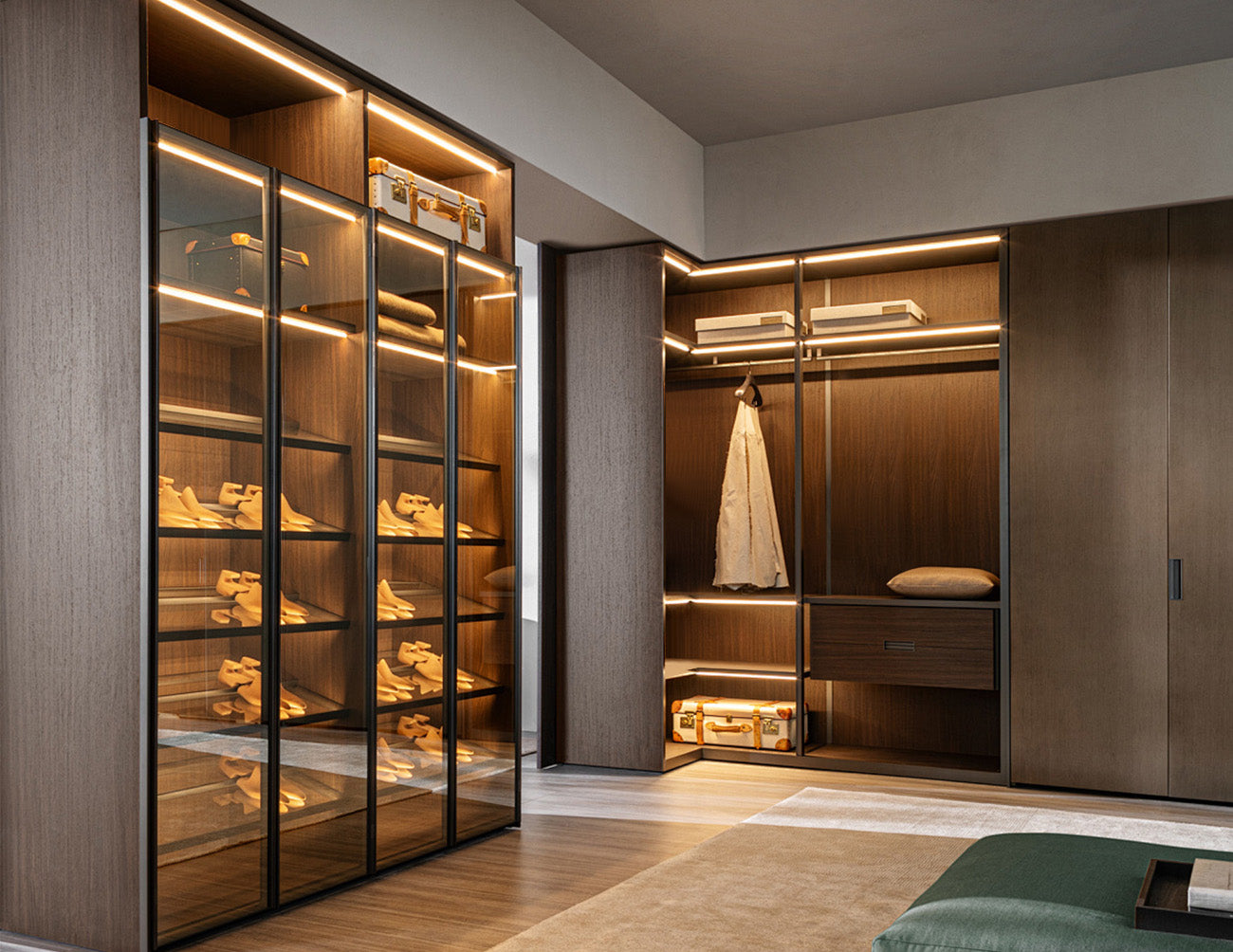

- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | 31134-S | 31134-H | 31134-C |
| Input Voltage | 24VDC | ||
| LED Quantity | 45 LEDs/ft | 72 LEDs/ft | 45 LEDs/ft |
| LED Chip | 2025 | 2216 | 2025 |
| Color Temperature | 2700K/3000K/4000K | 2700K-4000K(Tunable White) | |
| Brightness | 138.2lm/ft | 255.1lm/ft | 138.2lm/ft |
| Light Efficacy | 40.1lm/W | 58.2lm/W | 40.1lm/W |
| Color Rendering Index (CRI) | 90+ | ||
| Power Consumption | 3.6W/ft | 4.4W/ft | 3.6W/ft |
| Max Run (ft.) | 19.7ft | 9.85ft | 19.7ft |
| IP Rating | IP20 (Dry location) | ||
| Certificate | UL listed | ||
| Dimension | L: 94" W: 0.64" D: 0.41" | ||
Documents
Surface Mount Solder Free LED Linear Light Aluminum Channel-31134_Specification
Instruction Video
Modular Cabinet Lighting - Cabinet Light |
