Solder-free Connect Wire & End Cap Kit with Touch Dimmer for Under Cabinet Light 31134

Product Description

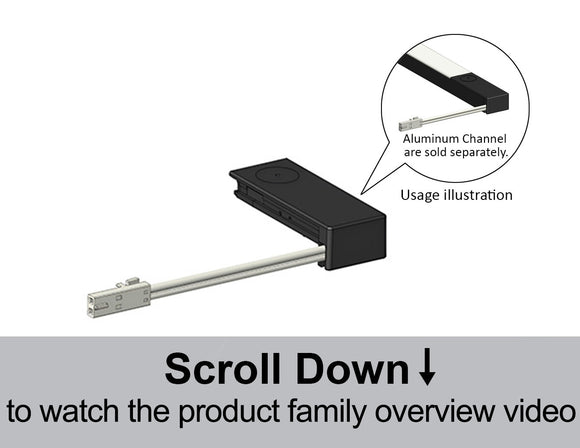

The Touch Dimmer for Under Cabinet Light 31134 is an integrated lighting controller designed specifically for the 31134 under cabinet light. It inserts directly into the light to provide power connection, ON/OFF control, and continuous dimming in one compact component.

Tap the controller to turn the light ON or OFF, or touch and hold to adjust the brightness. Its integrated design eliminates the need for a separate control component at the light, helping create a clean and convenient lighting setup for kitchens, cabinets, shelves, closets, wardrobes, and display applications.

Key Features

• Touch ON/OFF Control - Tap to turn the connected 31134 light on or off.
• Continuous Dimming - Touch and hold to adjust the brightness.
• Integrated Controller - Combines power connection and lighting control in one component.
• Designed for 31134 - Fits directly into the compatible 31134 under cabinet light.
• Clean Installation - Integrates into the light for a neat, low-profile appearance.

Product Specifications

Documents

Cabinet Lighting Control System Manual

How to Install the Touch Dimmer for Under Cabinet Light 31134

Step 1 - Disconnect Power
Turn off and disconnect power before installation.

Step 2 - Prepare the Light
Measure the controller length and cut out the required section of the 31134 light surface to create an opening for the touch dimmer.

Step 3 - Insert the Touch Dimmer
Place the controller into the prepared opening and make sure it is properly positioned.

Step 4 - Connect Power
Complete the required power connection for the 31134 lighting system.

Step 5 - Test the Controls
Restore power. Tap the controller to turn the light ON/OFF, or touch and hold to adjust brightness.

Important:
Measure the controller and required opening carefully before cutting the light surface.

FAQ

Is this touch dimmer compatible with other under cabinet lights?
This touch dimmer is designed specifically for the 31134 Under Cabinet Light. Compatibility with other LED lights or lighting systems has not been specified.

Does the touch dimmer turn the light ON/OFF as well as dim it?
Yes. Tap the touch dimmer to turn the 31134 under cabinet light ON or OFF. Touch and hold the controller to continuously adjust the brightness.

Does the 31134 light need to be modified before installing the touch dimmer?
Yes. Before inserting the controller, a section of the 31134 light surface must be cut to the required length to provide space for the integrated touch dimmer. Measure the controller and required opening before cutting.

Where can the 31134 touch dimmer be used?
The controller is designed for the 31134 under cabinet lighting system, making it suitable for kitchen cabinets, shelves, closets, wardrobes, display cabinets, and similar integrated cabinet lighting applications.
