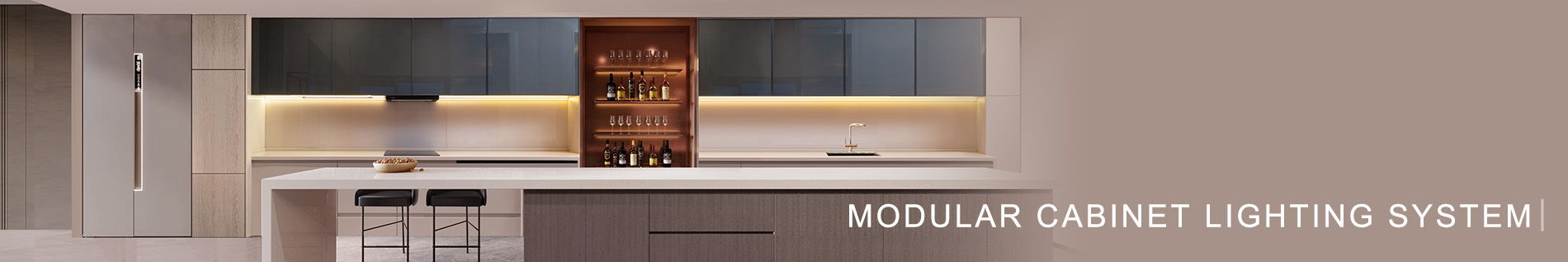

Modular Cabinet Lighting System
The GL LED Modular Cabinet Lighting System combines 24V LED fixtures, power supplies, controls, sensors, and plug-and-play connections into one compatible lighting platform for cabinets, closets, shelving, displays, furniture, and custom millwork.
Why Choose a Cabinet Lighting System ?
Traditional cabinet lighting often involves complicated wiring, inconsistent performance, and difficult installation. A system-based approach simplifies everything:
Pre-matched components for reliable performance
Plug-and-play connections for faster installation
Centralized control for multiple lighting points
Scalable design for larger projects
Cabinet Light Fixtures

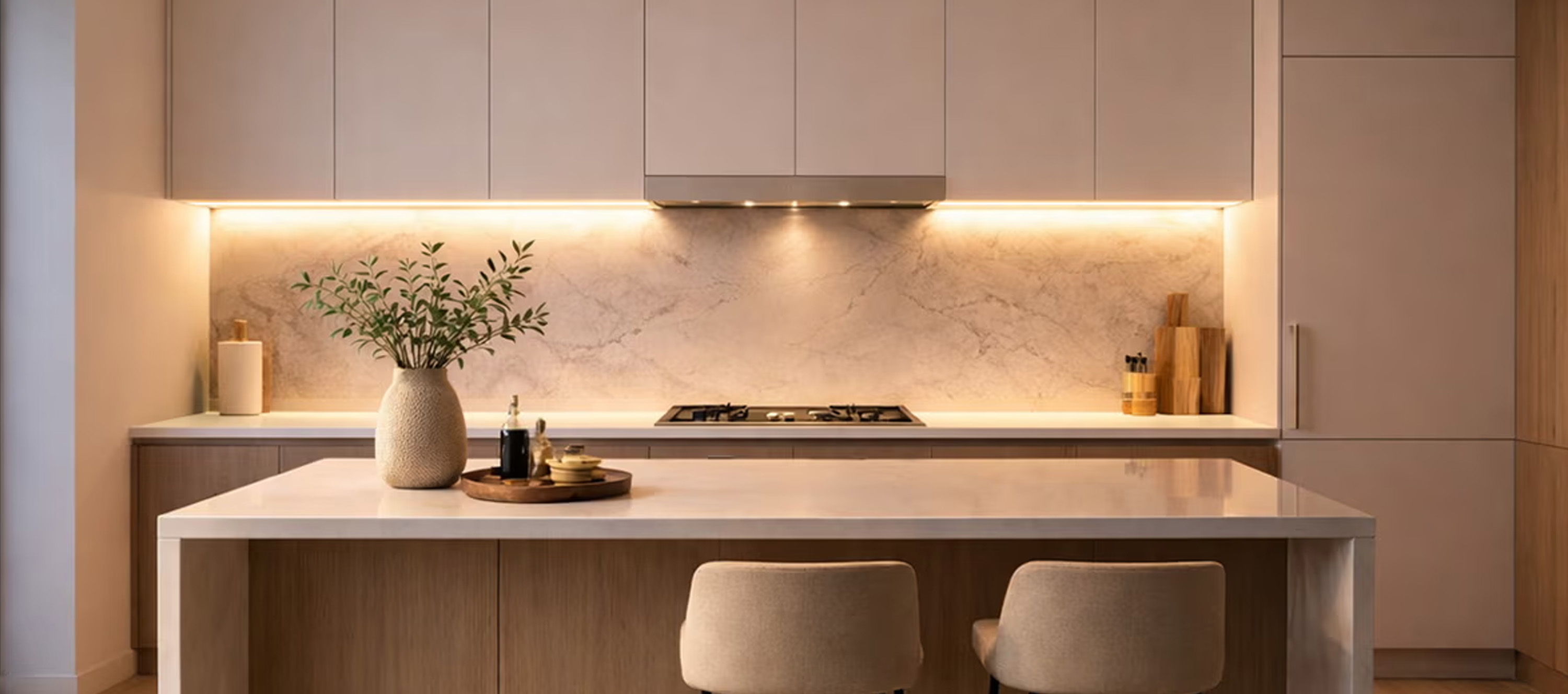

Explore our modular 24V LED cabinet lighting fixtures designed for under-cabinet, millwork, furniture, shelving, closet, and display lighting applications.
The system features cut-to-size linear fixtures, plug-and-play connections, and integrated control options, making installation and system configuration simple and flexible.

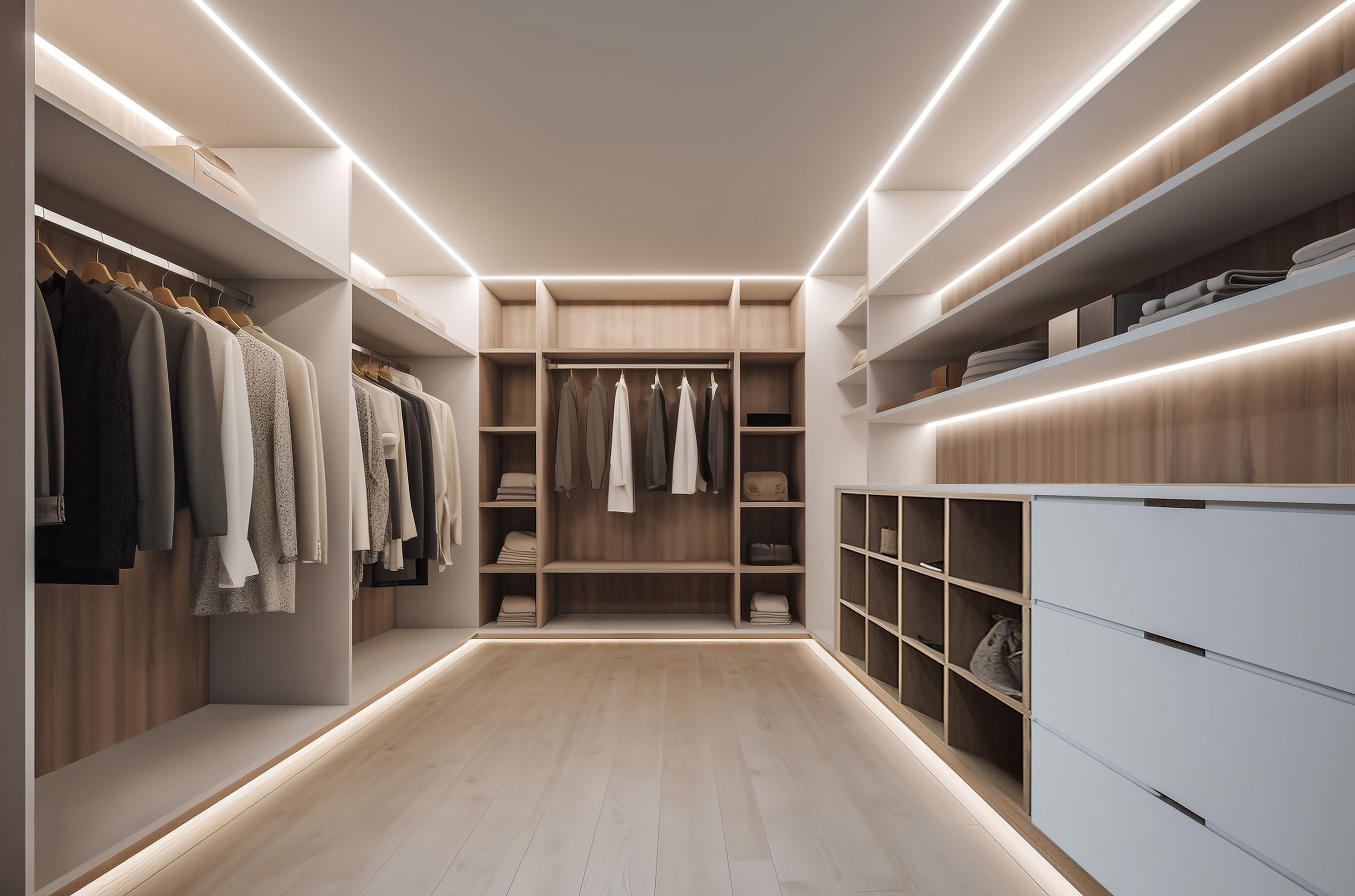

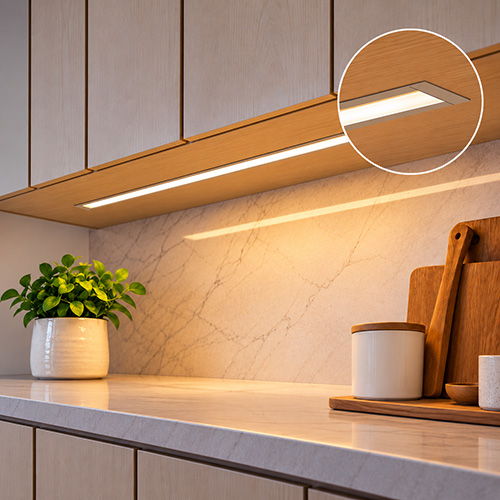

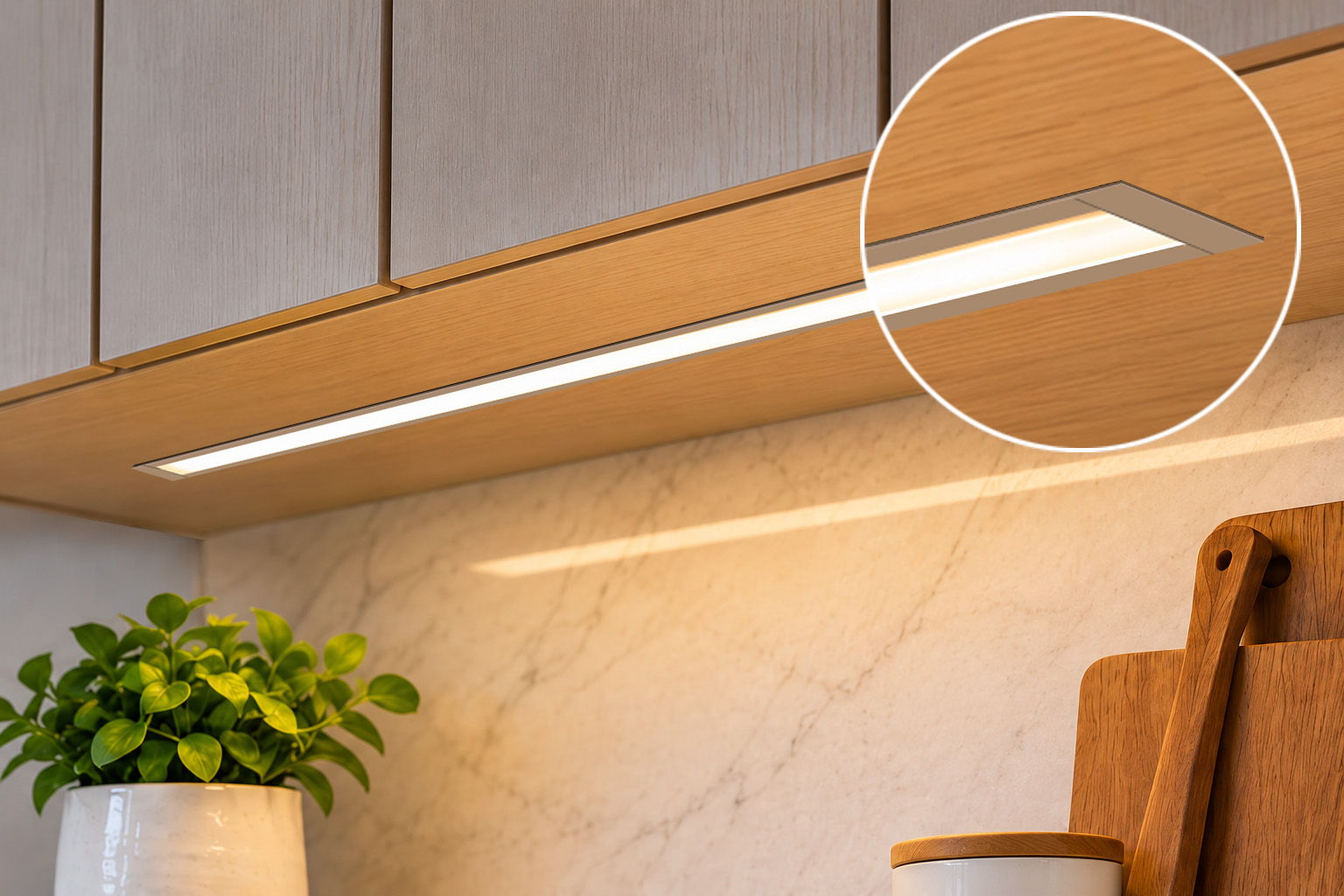

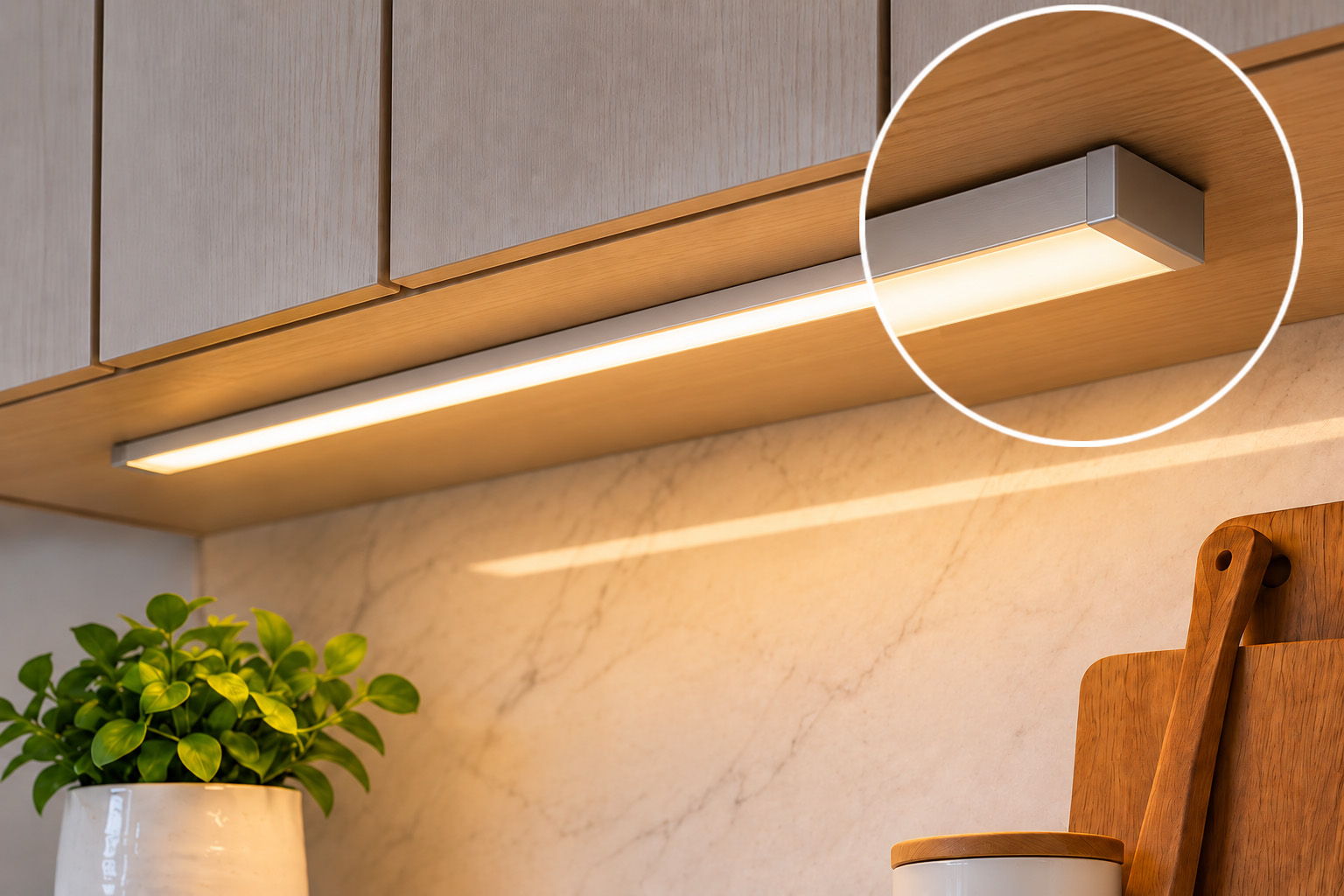

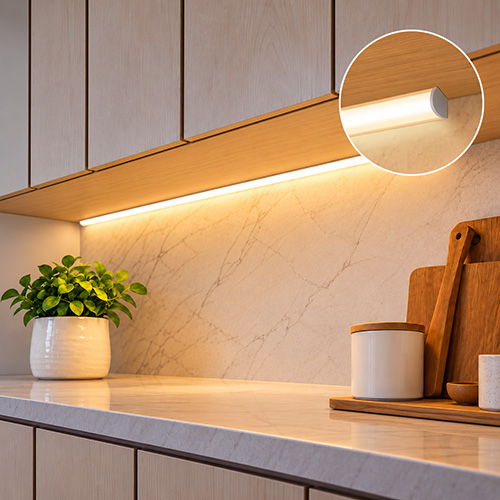

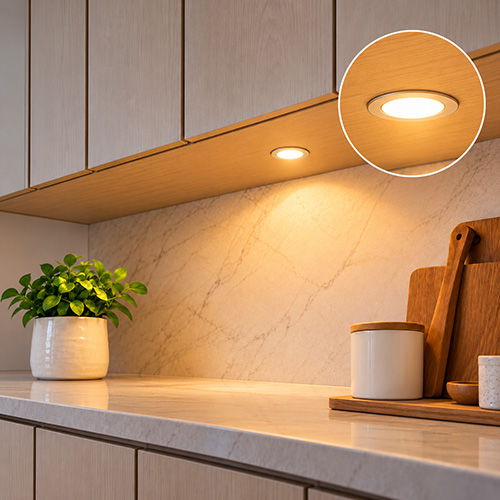

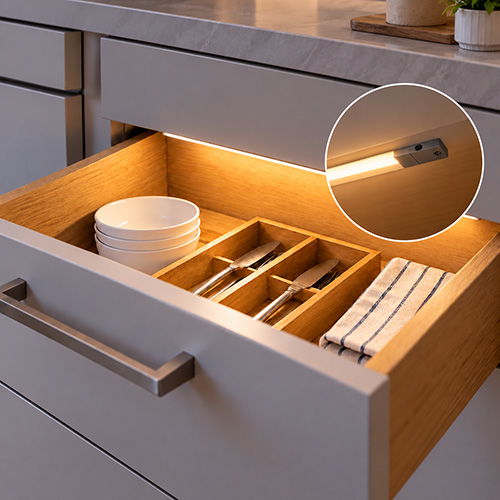

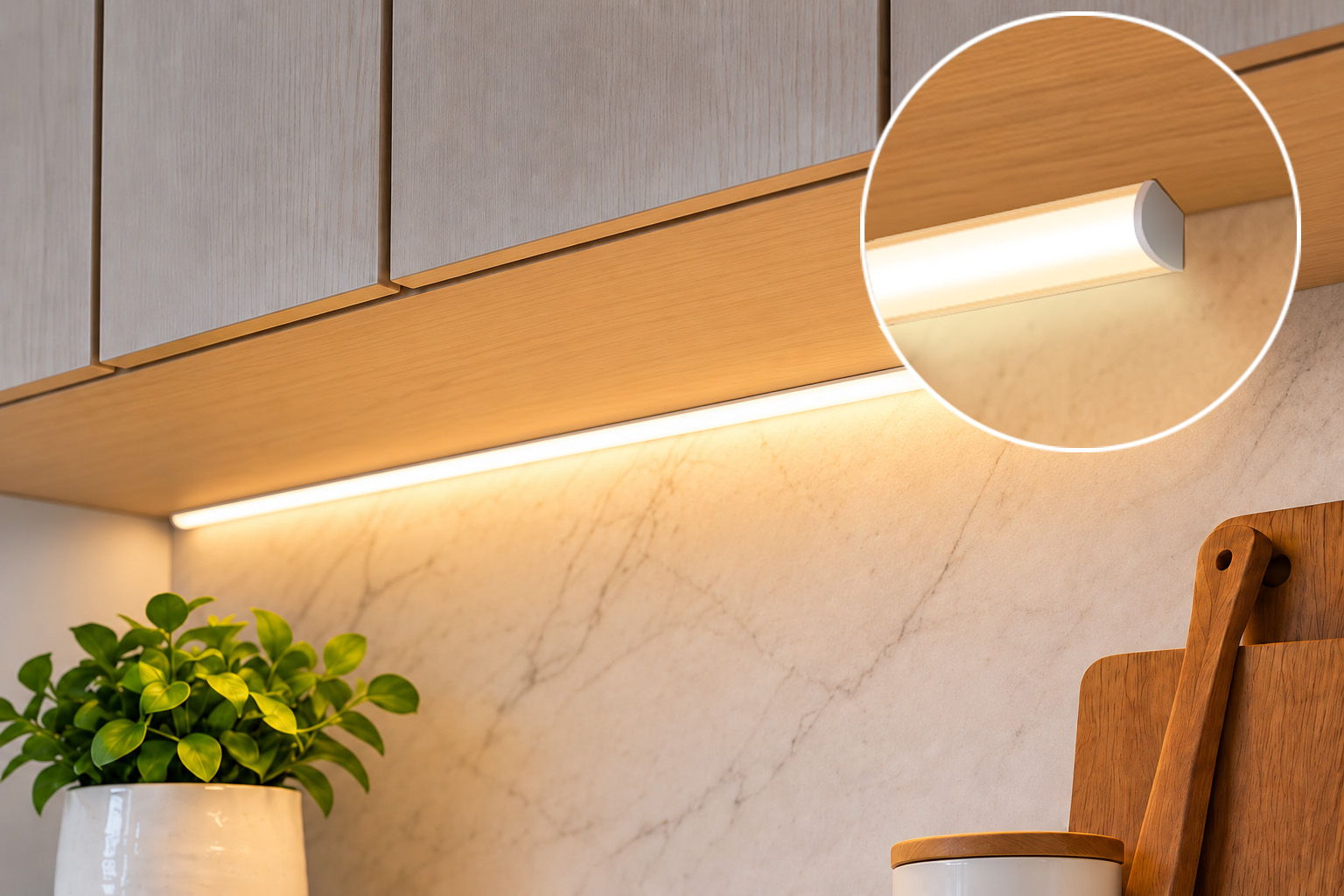

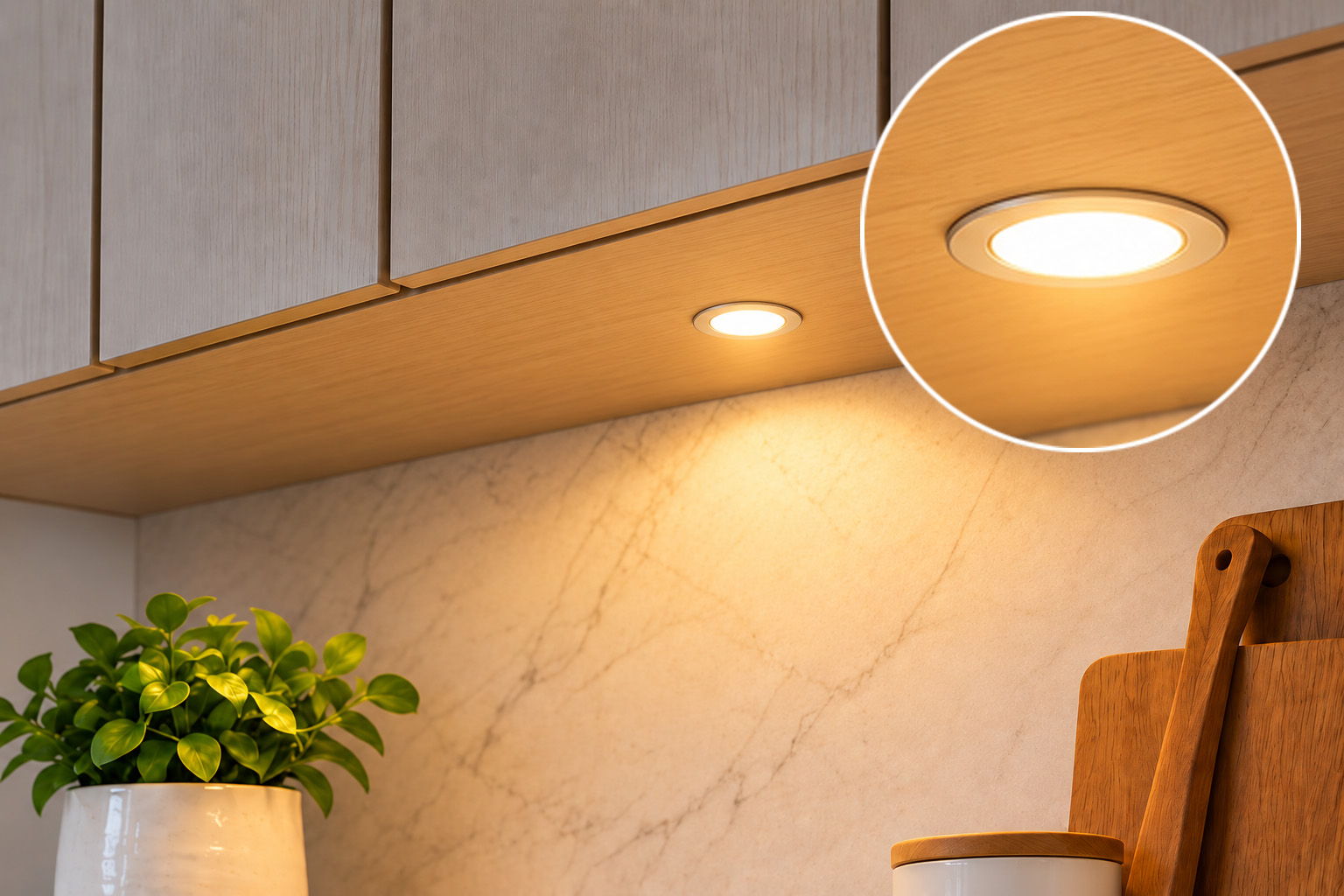

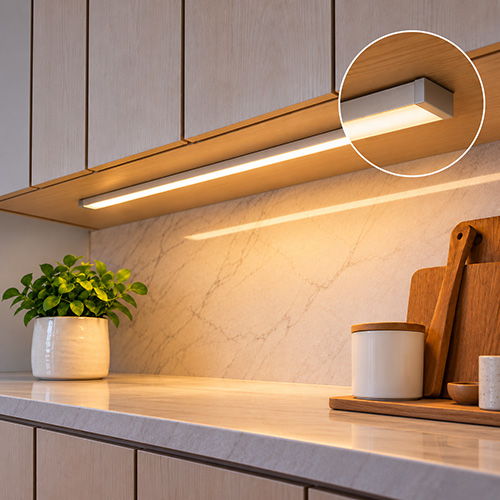

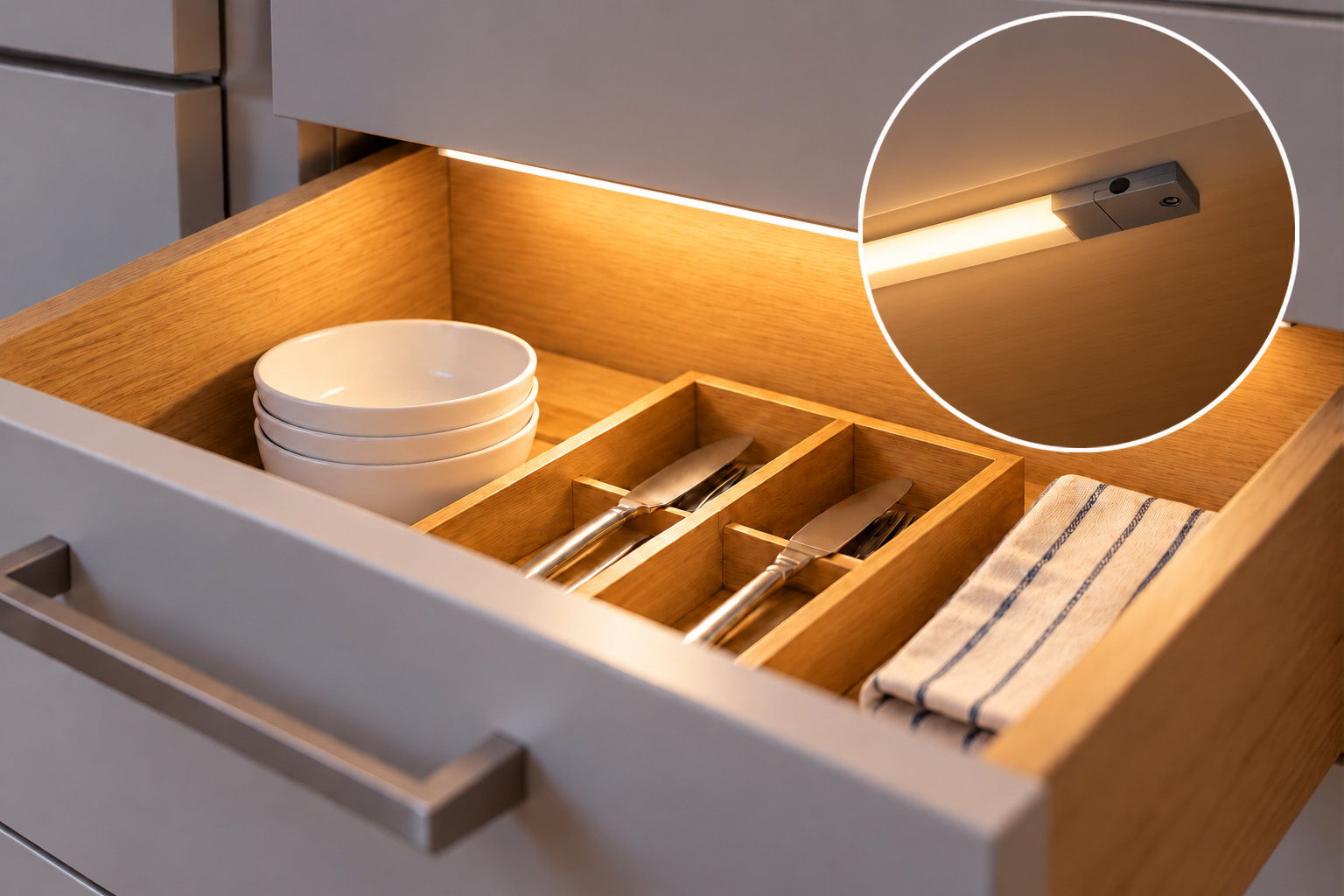

Choose from surface-mounted, low-profile, recessed, angled, corner, drawer, closet, and puck light designs to achieve the right lighting effect for different cabinet and millwork applications. Fixtures integrate with GL LED power supplies, controllers, sensors, and connectors to create a complete modular cabinet lighting system for residential and commercial projects.
Cabinet Light Power Supply

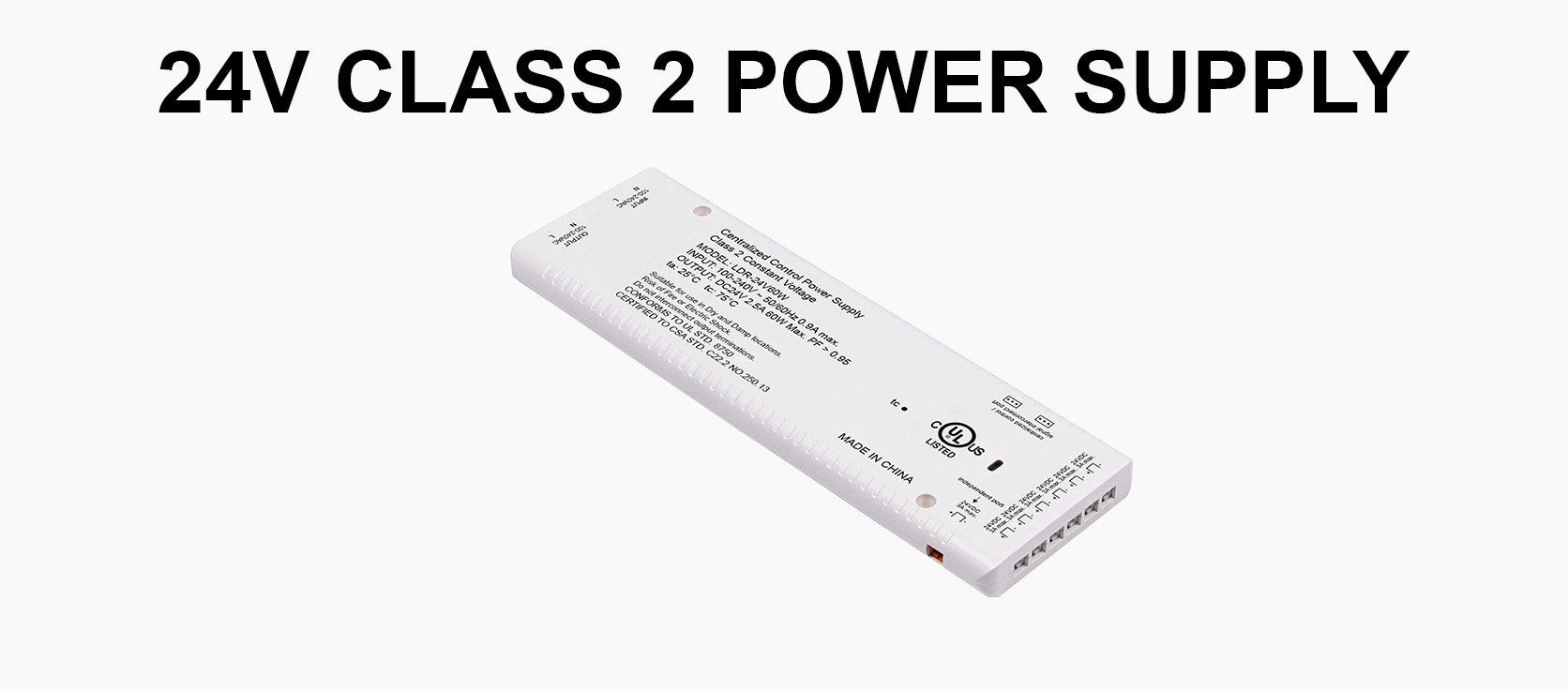

GL LED 24V Class 2 power supplies serve as the power and control hub of the Modular Cabinet Lighting System. Designed for different project sizes, they support plug-in or hardwired installation, multiple 24V lighting outputs, AC pass-through linking, and centralized control for connected cabinet lights.
Choose the appropriate power supply based on the total lighting load, fixture type, and control requirements of your project.
Cabinet Light Controllers & Sensors
Cabinet Lighting Control Options
GL LED cabinet lighting controls support both Centralized Control and Independent Control, with wireless and wired options available for each.
Wireless Control

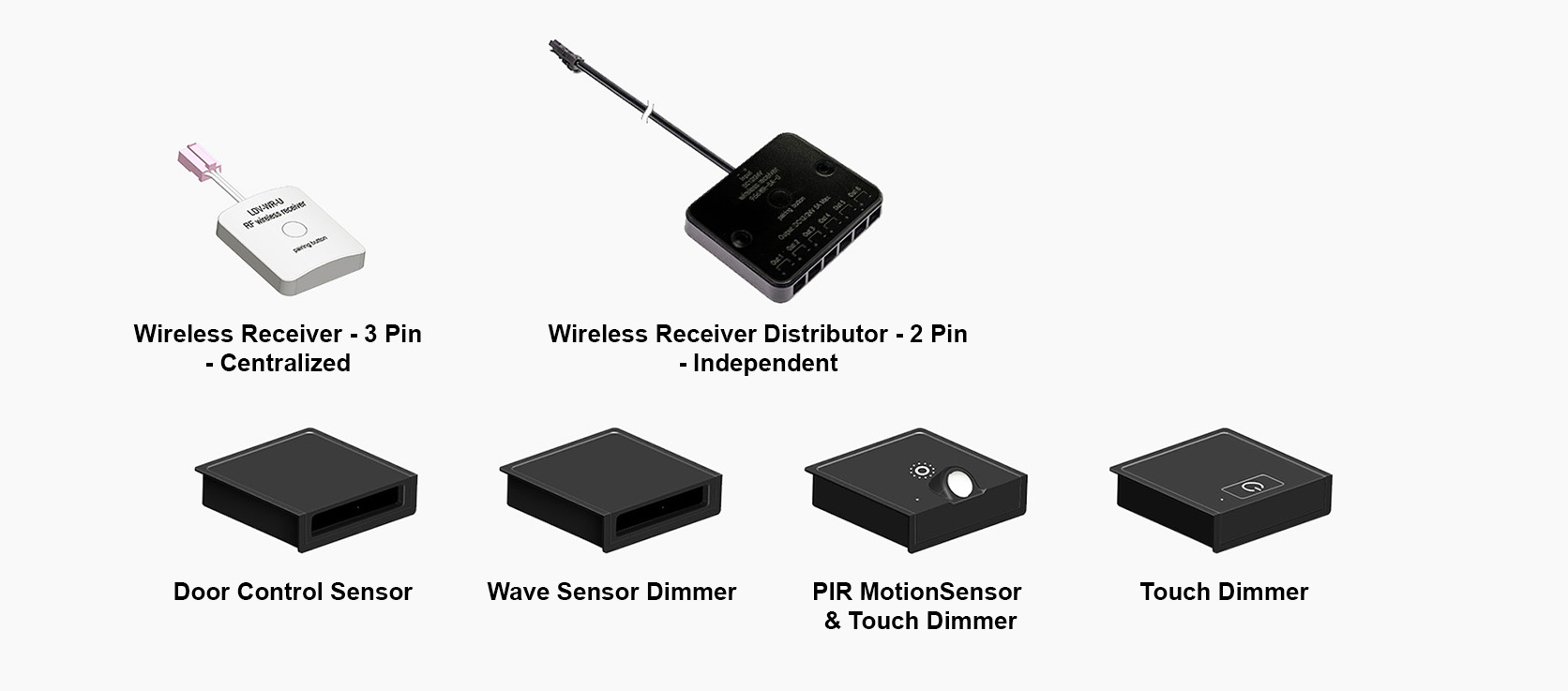

GL LED RF wireless controls are available with Door, Hand-Wave, Touch, and PIR Motion options. The same wireless control platform can be configured for centralized or independent control by selecting the appropriate receiver.

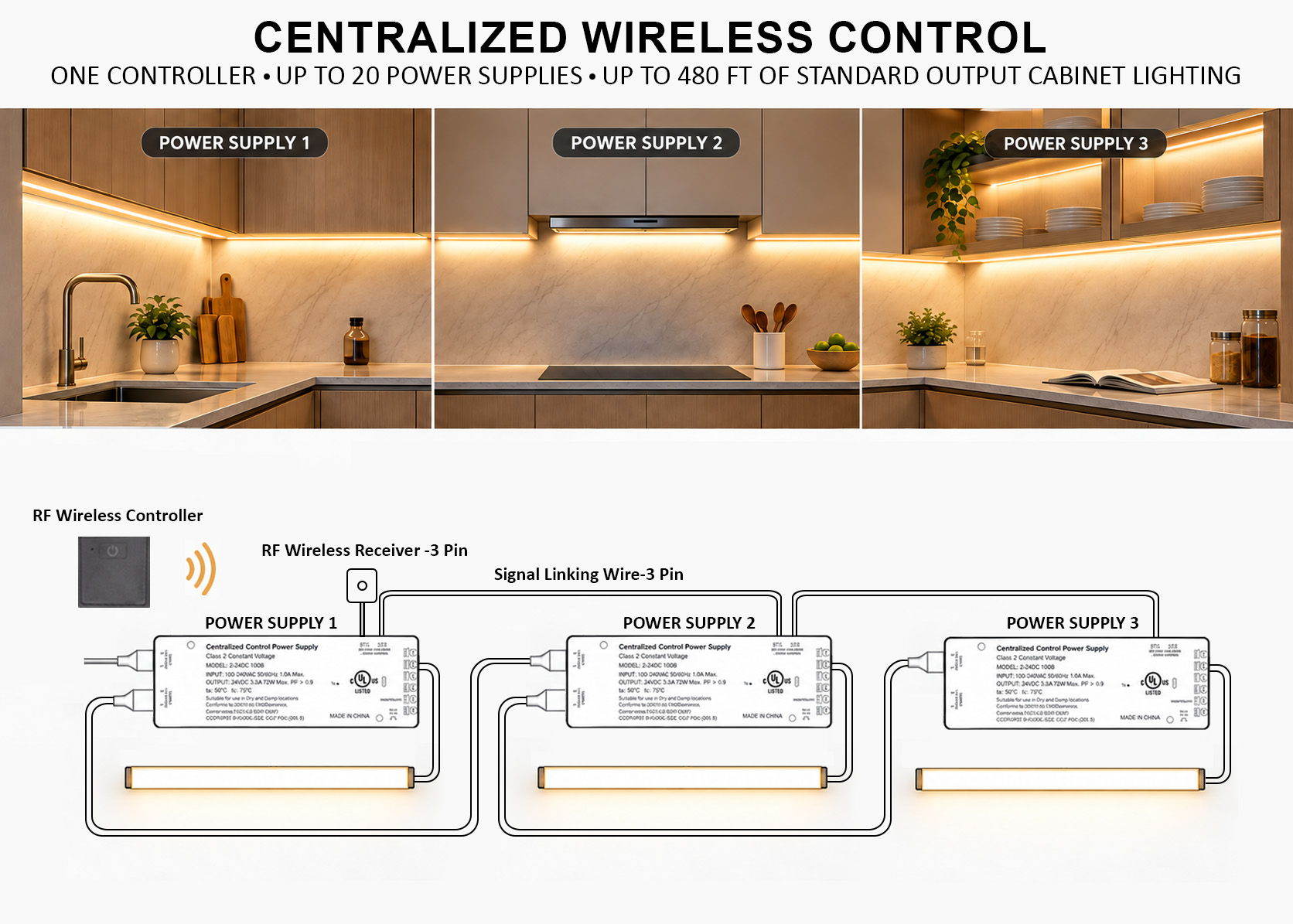

Centralized Wireless Control
Pair a wireless controller with the LDV RF Wireless Receiver – 3 Pin – Centralized. The receiver connects to the first power supply, while additional power supplies are linked by signal cables, allowing one controller to operate the connected lighting system together. Up to 20 power supplies can be linked for larger cabinet and millwork projects.

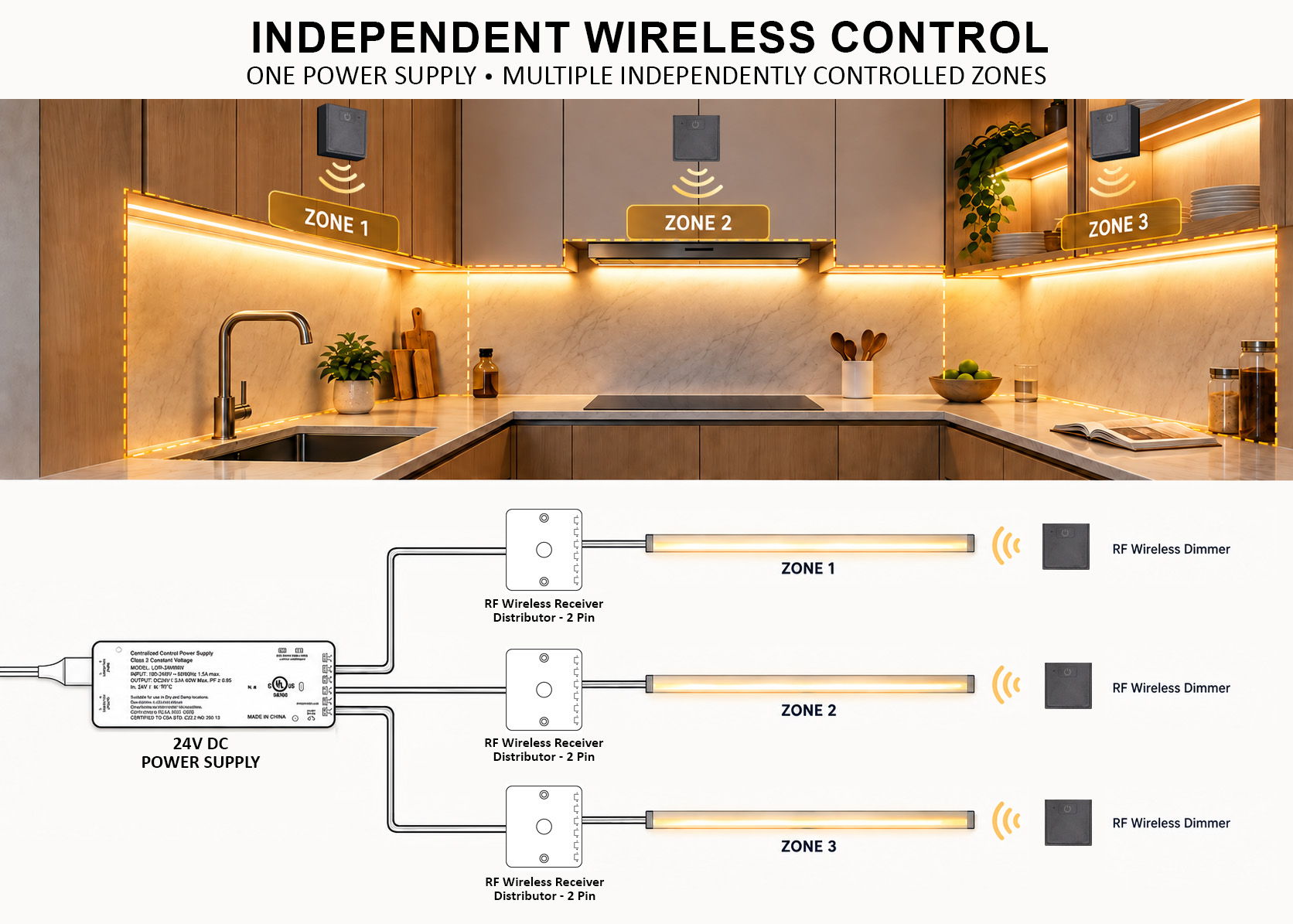

Independent Wireless Control
Pair a wireless controller with an RF Wireless Receiver Distributor – 2 Pin – Independent. Each receiver controls the lights connected after it as a separate zone. Multiple receivers can be powered from one power supply, allowing different cabinet lighting zones to operate independently.
Wired Control

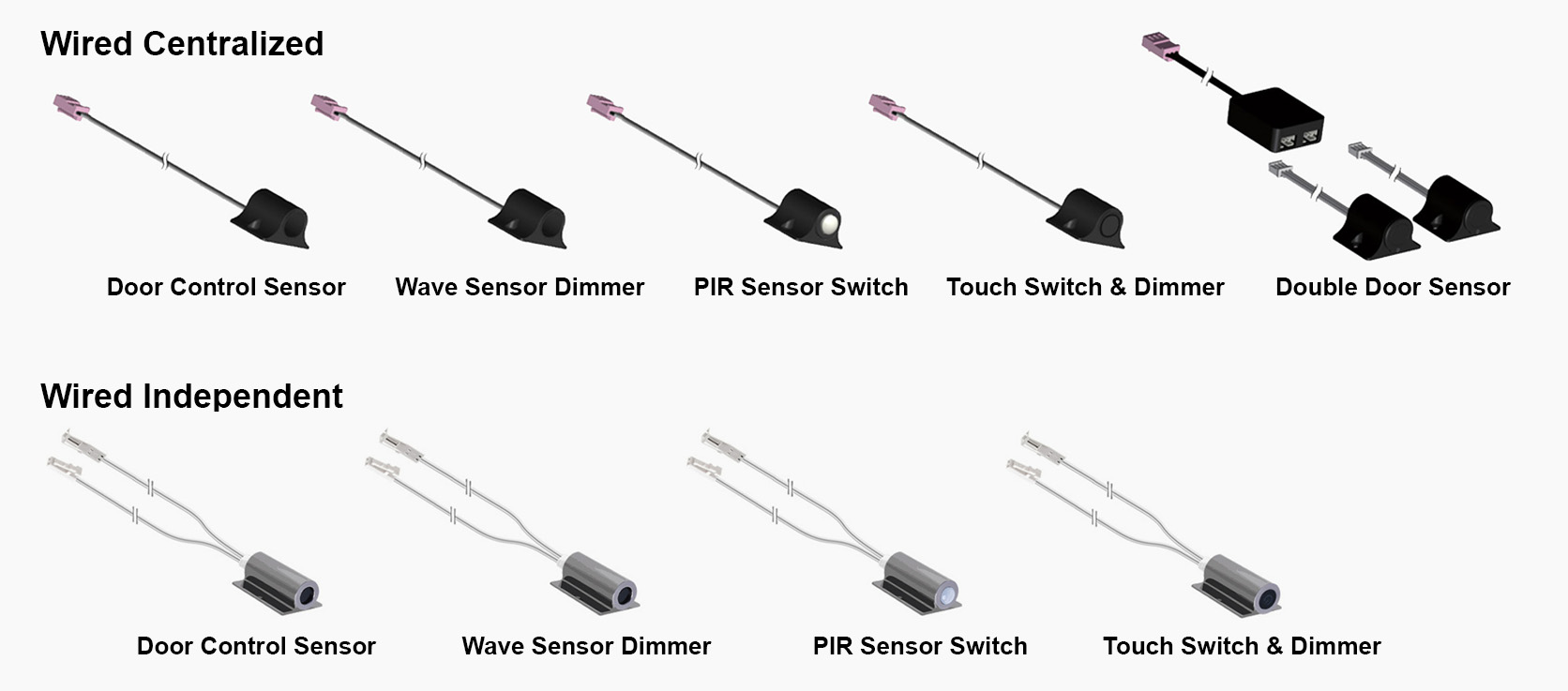

GL LED wired controls provide a stable, direct connection for cabinet lighting, with Door, Hand-Wave, Touch, and PIR Motion sensor options available for both centralized and independent control.
All wired controllers feature removable sensor heads, allowing the sensor to be replaced or changed to a different control type without replacing the entire controller. This modular design makes future control changes, maintenance, and service easier.

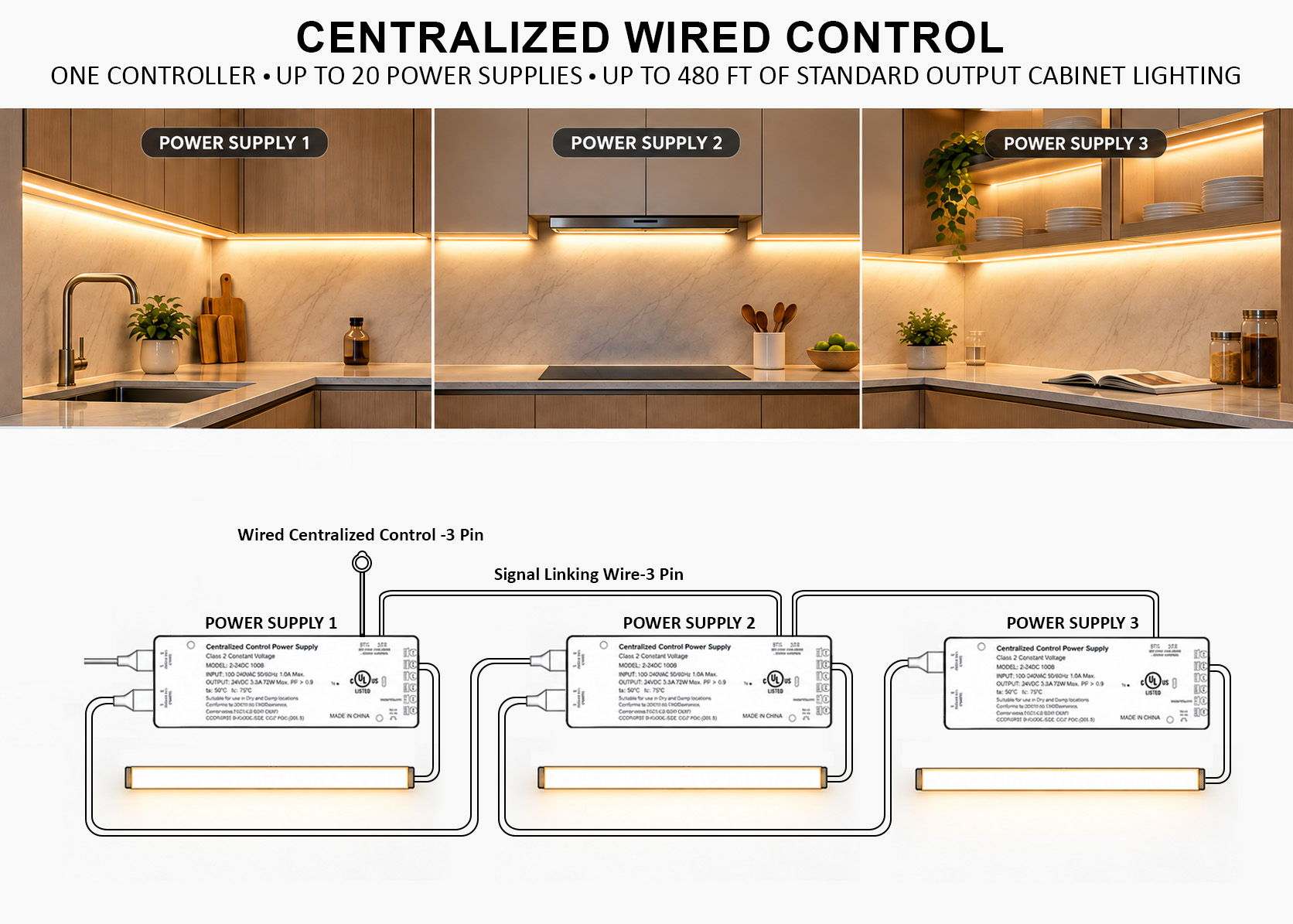

Centralized Wired Control
Connect a wired controller to the centralized control input of the power supply. The control signal can be synchronized across multiple linked power supplies, allowing one controller to operate a larger lighting system together.

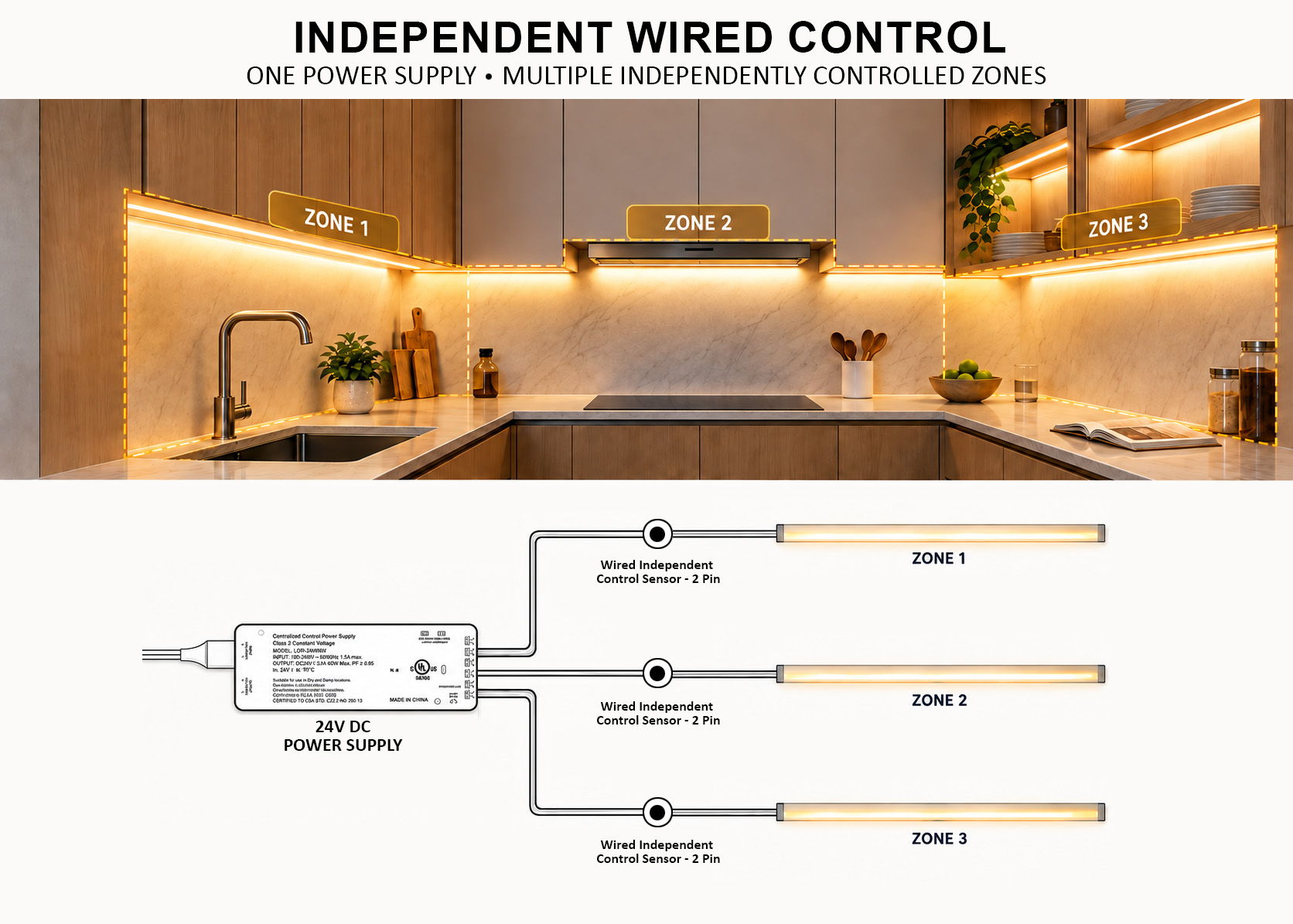

Independent Wired Control
Use an independent wired controller for individual fixtures or smaller lighting zones. Each controller operates its connected lights separately, providing flexible control for different cabinet sections, shelving, displays, and millwork.

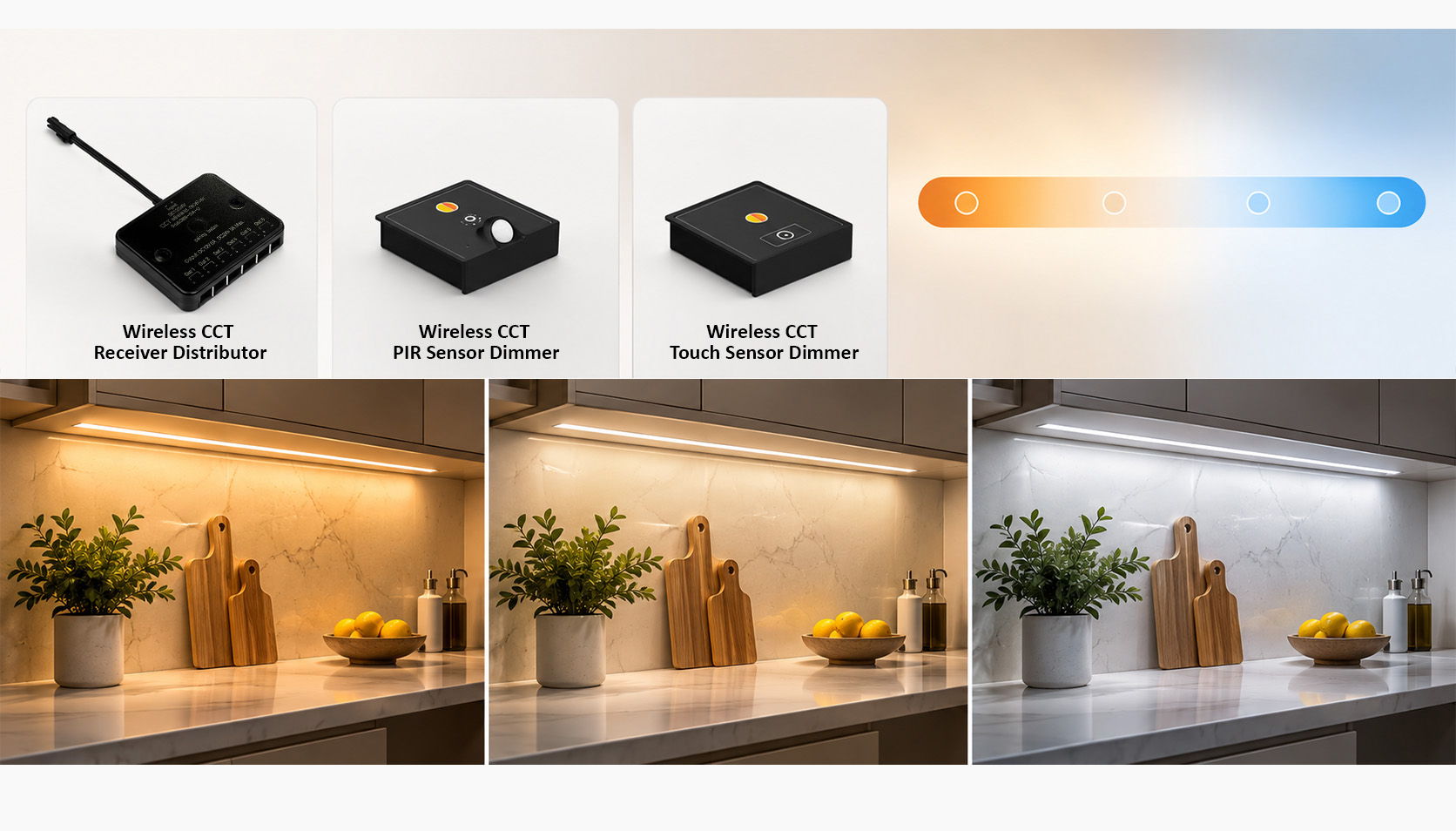

CCT Wireless Cabinet Lighting Controls
Create the right lighting for different activities and environments with CCT adjustable cabinet lighting from 2700K to 4000K. Shift from warm, comfortable light for relaxed spaces to brighter, cooler light for task-focused applications.
Wireless dimming and color temperature control make it easy to adapt cabinet, closet, shelving, display, and custom millwork lighting throughout the day.
Cabinet Lighting Connections & Accessories
Complete your cabinet lighting system with plug-and-play cables, connectors, distributors, mounting hardware, and fixture-specific accessories. Compatible components make it easy to extend wiring, distribute power, connect fixtures, and complete cabinet and millwork lighting installations.Explore Cabinet Lighting Connections & Accessories →
Need Help Designing Your Cabinet Lighting System?
Not sure which fixtures, power supplies, controls, or accessories you need? Send us your cabinet layout, dimensions, or project requirements. Our team can help you select compatible components and configure a complete cabinet lighting system for your project.Get Project Assistance
Resources

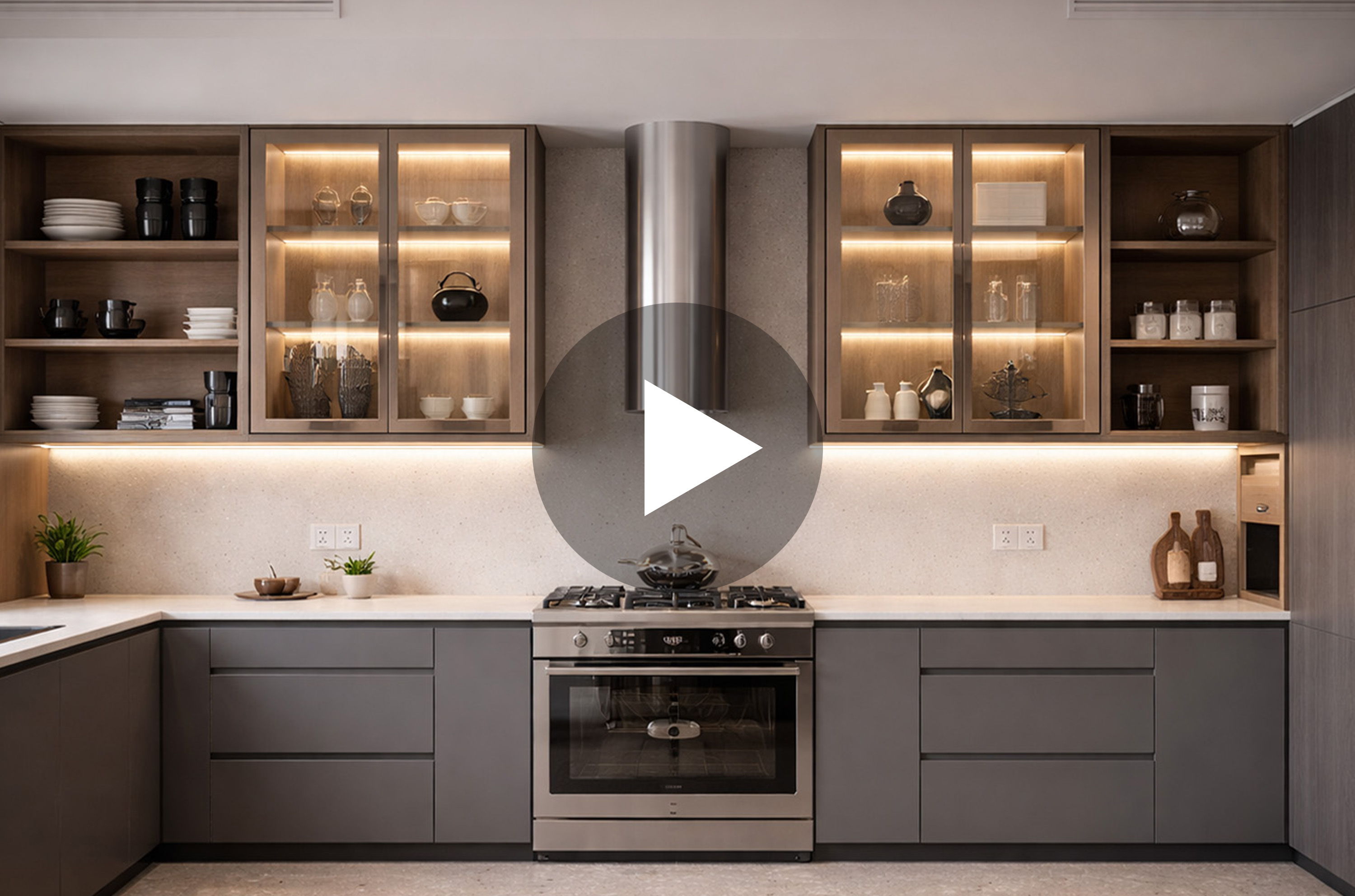

Watch installation, setup, control, and product videos for the GL LED Modular Cabinet Lighting System.
