Cabinet Light System - Controllers & Sensors

GL LED offers a complete range of wired and wireless controls for 24V cabinet lighting, supporting both centralized control for multiple lights and independent control for individual fixtures or lighting zones.

Choose from RF wireless controls, door sensors, touch switches, hand-wave sensors, and PIR motion sensors to create the right control solution for each application. With plug-and-play connections, the system makes control setup simple and flexible for under-cabinet lighting, closets, furniture, display cases, millwork, and commercial retail displays.

GL LED RF wireless cabinet lighting controls offer Door, Hand-Wave, Touch, and PIR Motion control with flexible centralized or independent zone control.

Pair a wireless controller with the LDV RF Wireless Receiver to control a large group of lights together—supporting up to 480 ft of LED lighting, ideal for larger cabinet and millwork projects. For independent control, pair controllers with RF Wireless Receiver Distributors, allowing multiple lighting zones on one power supply to be controlled separately.

The wireless, plug-and-play design provides flexible installation for cabinet lighting, closets, furniture, display cases, millwork, and commercial retail displays.

Important Wiring Notice: Control Compatibility

When an RF Wireless Receiver Distributor is connected to the power supply’s Controlled Power Output Port, the upper 3-Pin Centralized Control Port must remain unused. Connecting a centralized controller or RF receiver at the same time may cause flickering or control issues, even if the RF receiver is not paired.

Certain wired ON/OFF-only controllers, including compatible Door, PIR Motion, and Hand-Wave sensors, may be used on the Controlled Power Output Port alongside centralized dimming. However, flickering may occur at low dimming levels. Test the installation and avoid brightness settings that produce visible flicker.

The bottom Constant 24V Output Port operates independently of centralized control and supports separate zone control.

.Pairs with RF wireless controllers and synchronized power supplies for centralized control, allowing one controller to operate LED lighting powered by up to 20 power supplies.

Provides independent zone control, allowing one power supply to support multiple separately controlled LED lighting zones for greater system flexibility.

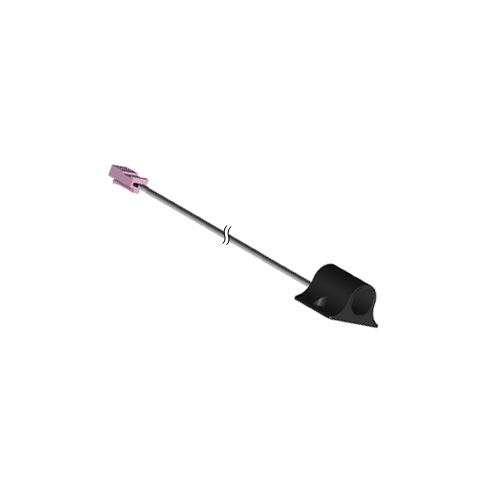

Automatically controls lighting when cabinet or closet doors open and close, featuring dual sensor heads for convenient hands-free door control.

Provides touch-free switching and dimming with a simple hand wave, ideal for cabinet, furniture, display, and commercial lighting applications.

Automatically turns lights on when motion is detected and provides dimming control, ideal for closets, cabinets, furniture, and display lighting.

Provides convenient wireless touch switching and dimming for cabinet, furniture, shelving, display, and custom millwork lighting applications.

GL LED wired cabinet lighting controls provide stable, reliable centralized control with Door, Hand-Wave, Touch, and PIR Motion sensor options. Using the power supply’s signal synchronization, one controller can control LED lighting powered by up to 20 power supplies, making it ideal for larger cabinet and millwork lighting systems.

For projects requiring separate lighting zones, an Independent Control Box can be added to create independent control within the same system. The removable sensor-head design also allows sensor heads to be replaced or repositioned individually, making future system adjustments and maintenance simple without replacing the entire controller.

With plug-and-play connections, the system provides flexible control for cabinet lighting, closets, furniture, display cases, custom millwork, and commercial retail displays.



Automatically turns cabinet or closet lights on when one door opens and off when it closes for convenient hands-free control.

Touch-free cabinet lighting control with simple hand-wave operation for on/off switching and dimming.

Automatically activates lighting when motion is detected, with on/off and dimming control for cabinets, closets, furniture, and display lighting.

Simple touch control provides convenient on/off switching and dimming for cabinet, furniture, shelving, and display lighting.

Dual sensor heads provide automatic lighting control for two-door cabinets or closets, turning lights on and off with door operation.

GL LED wired independent cabinet lighting controls provide stable, flexible control for individual lights and smaller lighting zones, with Door, Hand-Wave, Touch, and PIR Motion sensor options.

Designed for independent control, each controller operates its connected lighting zone separately, making it easy to create different control functions within the same cabinet, closet, furniture, or display lighting system.

The removable sensor-head design allows sensor heads to be replaced or repositioned individually for easier future adjustments and maintenance. With plug-and-play connections, the system is simple to install and configure for custom cabinet and millwork applications.



Automatically turns cabinet lighting on when the door opens and off when it closes.

Touch-free hand-wave control for easy on/off switching and dimming of cabinet lighting.

Automatically turns cabinet lighting on when motion is detected for convenient hands-free control.

Touch control for convenient on/off switching and brightness adjustment of cabinet lighting.

GL LED CCT wireless controls provide independent control for CCT adjustable cabinet lighting. The wireless CCT receiver pairs with Touch Dimmer or PIR controllers for flexible on/off, dimming, and color temperature control.

The Touch Dimmer provides convenient wireless on/off and brightness adjustment, while the PIR controller adds motion-activated control and adjustable color temperature from 2700K to 4000K. Ideal for cabinet lighting, closets, furniture, shelving, displays, and custom millwork.



Provides independent wireless control for CCT adjustable cabinet lighting and pairs with compatible Touch Dimmer and PIR controllers.

Provides motion-activated on/off control, dimming, and adjustable color temperature from 2700K to 4000K for CCT cabinet lighting.

Wireless touch controller for on/off switching, brightness adjustment, and 2700K–4000K color temperature control of tunable white cabinet lighting.
