Product Details

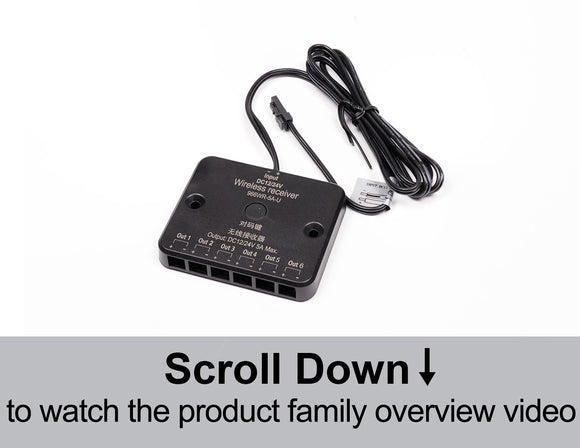

The RF Wireless Receiver Distributor is a compact and flexible wireless lighting control solution designed for modern cabinet and architectural lighting applications. Engineered for seamless RF wireless communication, this 2-pin receiver distributor enables independent wireless control of connected LED lighting fixtures when paired with compatible RF remote controls, touch dimmers, wave sensor dimmers, or PIR motion sensor dimmers.
* Supported LED Strip Length (Max Load 2A)
Standard Output 3.6W/ft LED Strip: Up to 12ft
High Output 4.4W/ft LED Strip: Up to 8.7f
Important Wiring Notice
When connecting this RF Wireless Receiver Distributor to the Controlled Power Output Port, leave the upper 3-Pin Centralized Control Port unused. Connecting both receivers may cause flickering or control issues, even if the centralized receiver is not paired.
If centralized control is required on the same power supply, connect this distributor to the bottom Constant 24V Output Port for independent zone control.
Documents
Cabinet Lighting Control System Manual
Instruction Video
GL LED Cabinet Lighting Product Family Overview |
