Where Should Under Cabinet Lighting Be Placed? Front, Center, or Back?
Quick Answer
Under cabinet lighting can be placed toward the front, center, or back of an upper cabinet, and each position creates a different lighting effect.
For most countertop task lighting, placing the fixture toward the front of the cabinet provides better coverage across the main work surface. Center placement balances light between the countertop and backsplash, while back placement puts more emphasis on the backsplash and rear countertop.
The best placement also depends on cabinet depth, cabinet-bottom design, and fixture direction.

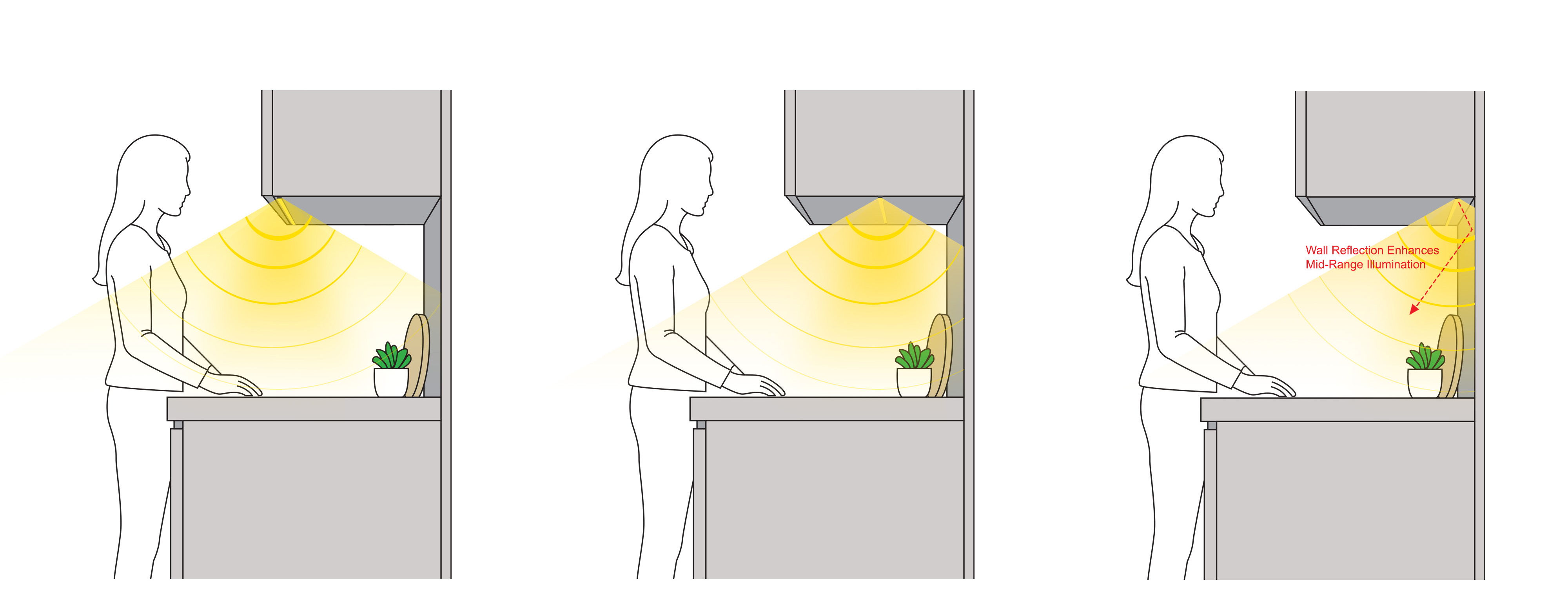

Front, Center, or Back: How Placement Changes the Light
FRONT
— Best for countertop task lighting
CENTER
— Balanced countertop and backsplash lighting
BACK
— Highlights the backsplash and rear countertop
How Cabinet Design Affects Light Placement

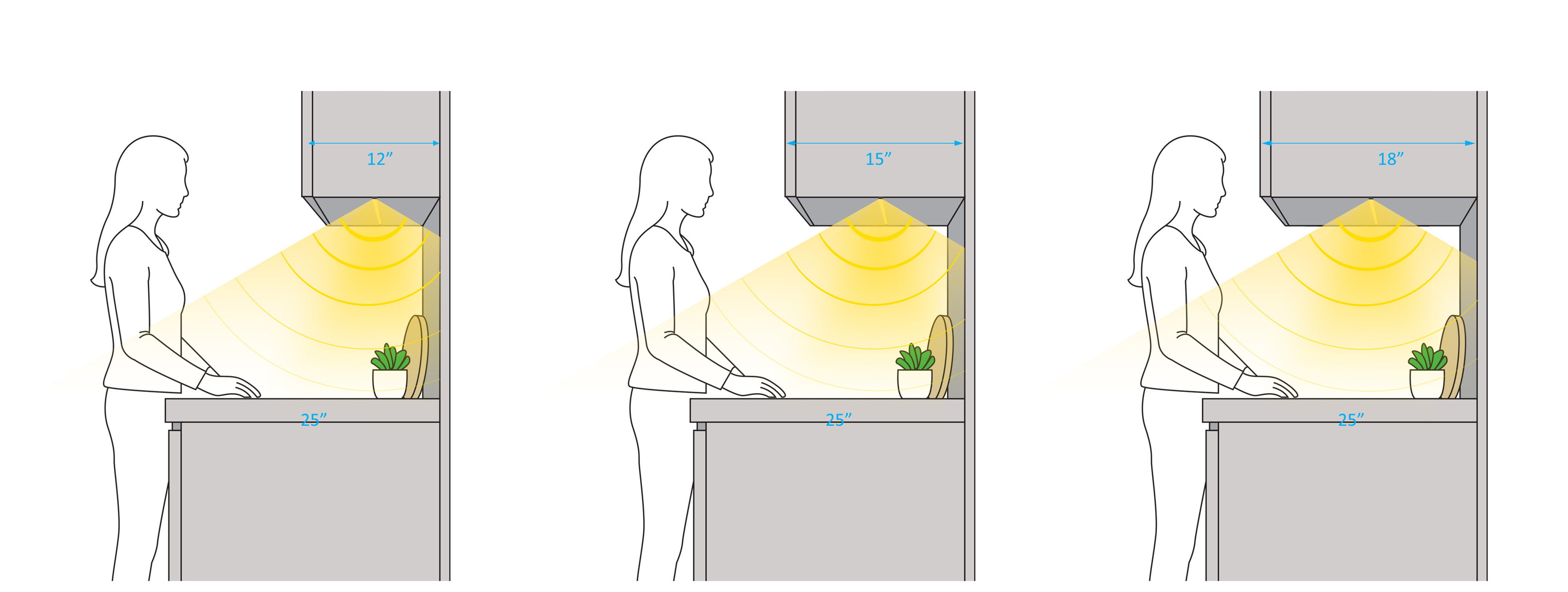

Cabinet Depth
Front, center, and back are relative positions. As cabinet depth increases, the same center position moves farther over the countertop. Evaluate the light in relation to the countertop work area, not only the cabinet edges.

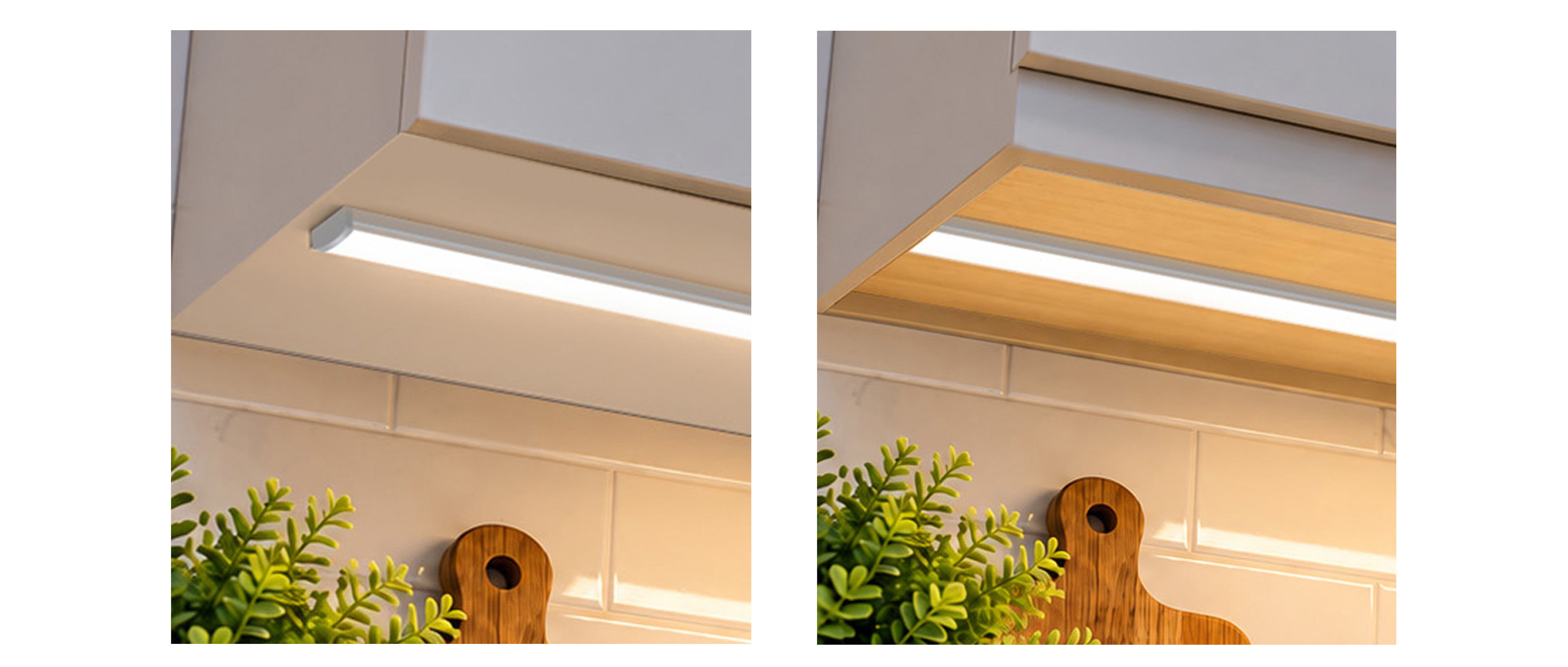

Cabinet Bottom Design
Front Lip / Light Rail
Helps conceal the fixture, but a deep rail can also block part of the useful light.
Flat Bottom:
Provides more freedom in placement, but the fixture may be more visible from lower viewing angles.
How Fixture Design Changes the Light
Even in the same general location, fixture design and mounting method can change both light direction and fixture visibility.

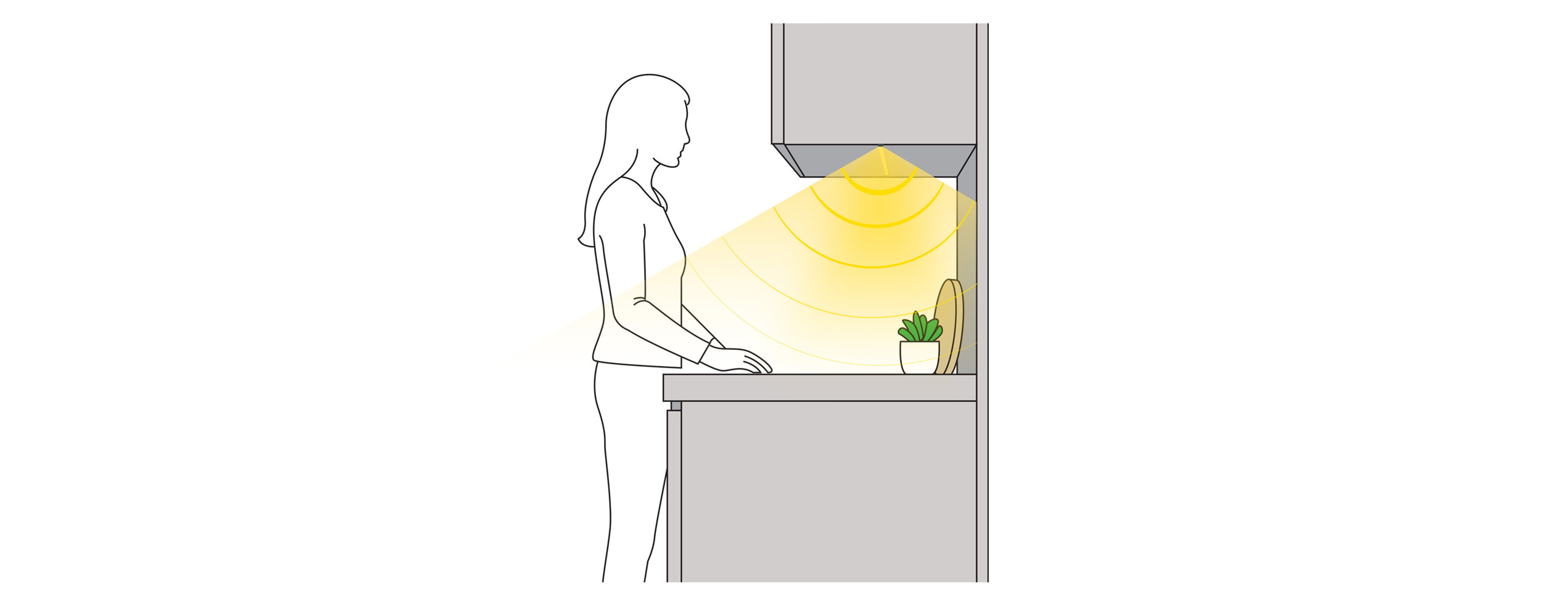

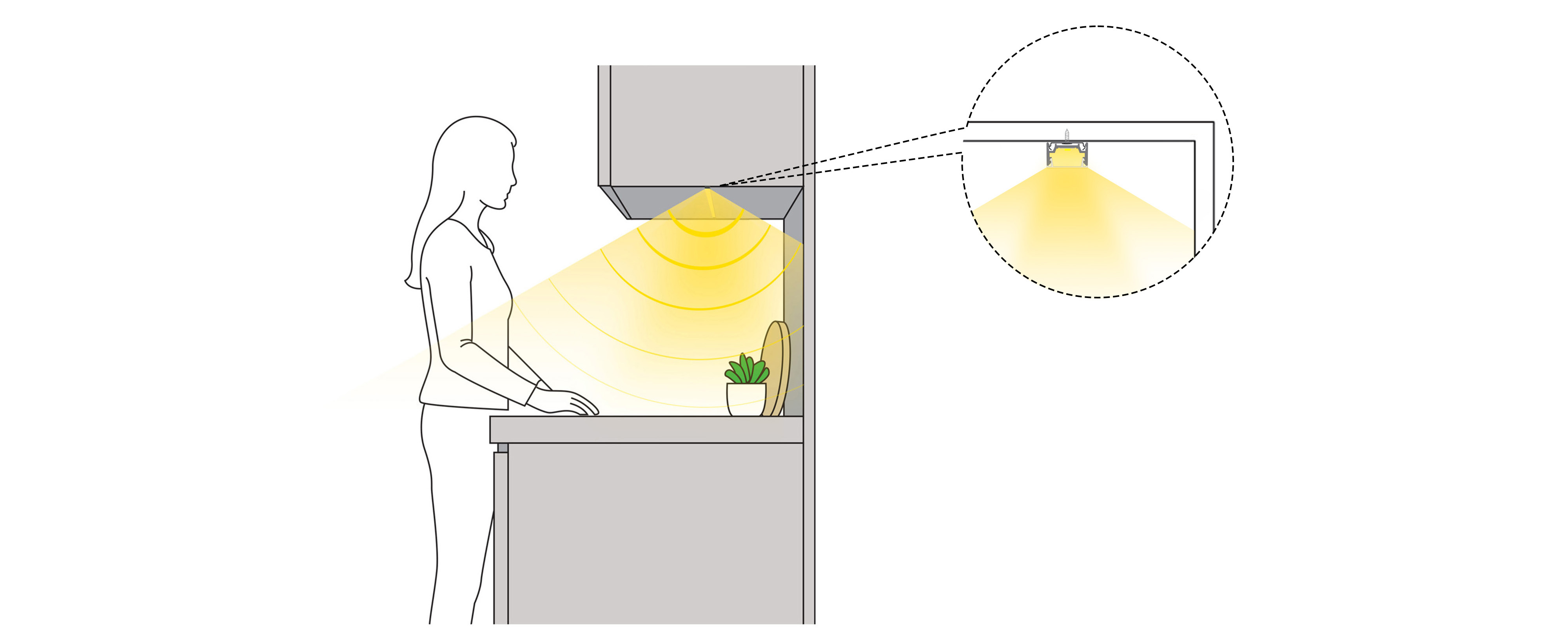

Surface Mount
Simple installation without routing the cabinet bottom. Fixture profile and position affect how visible the light is.

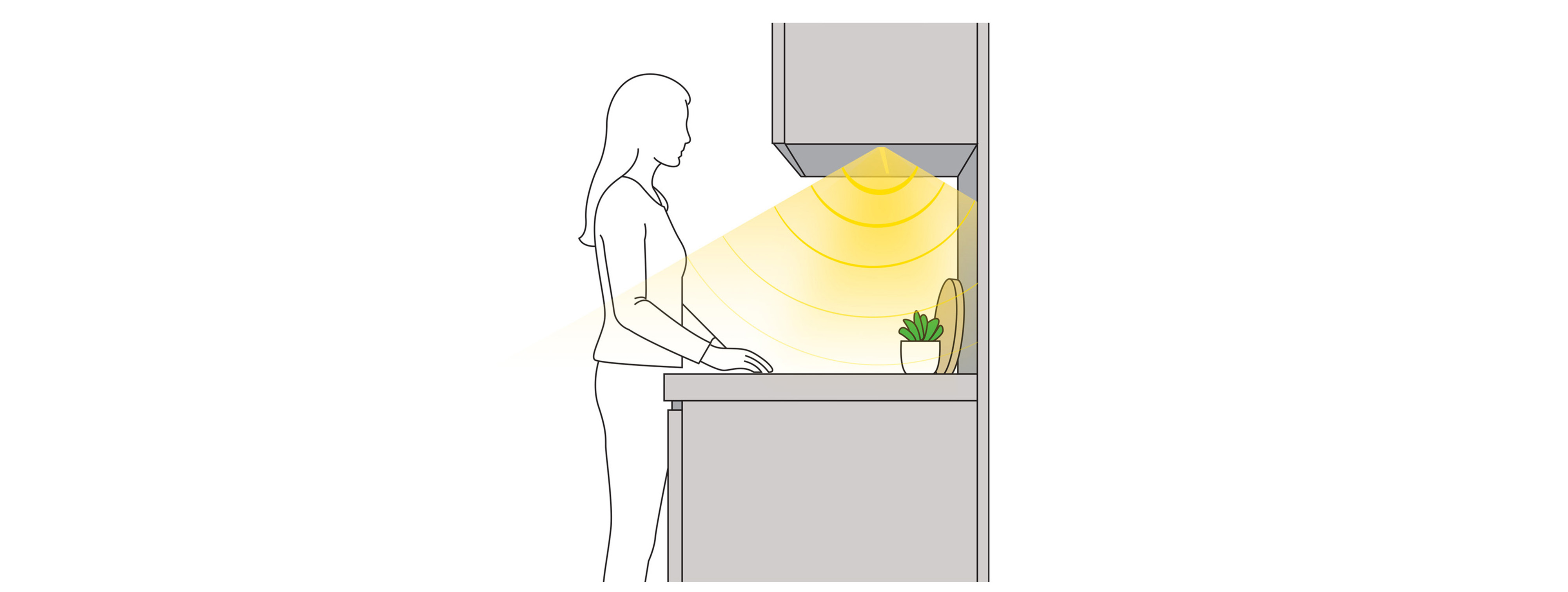

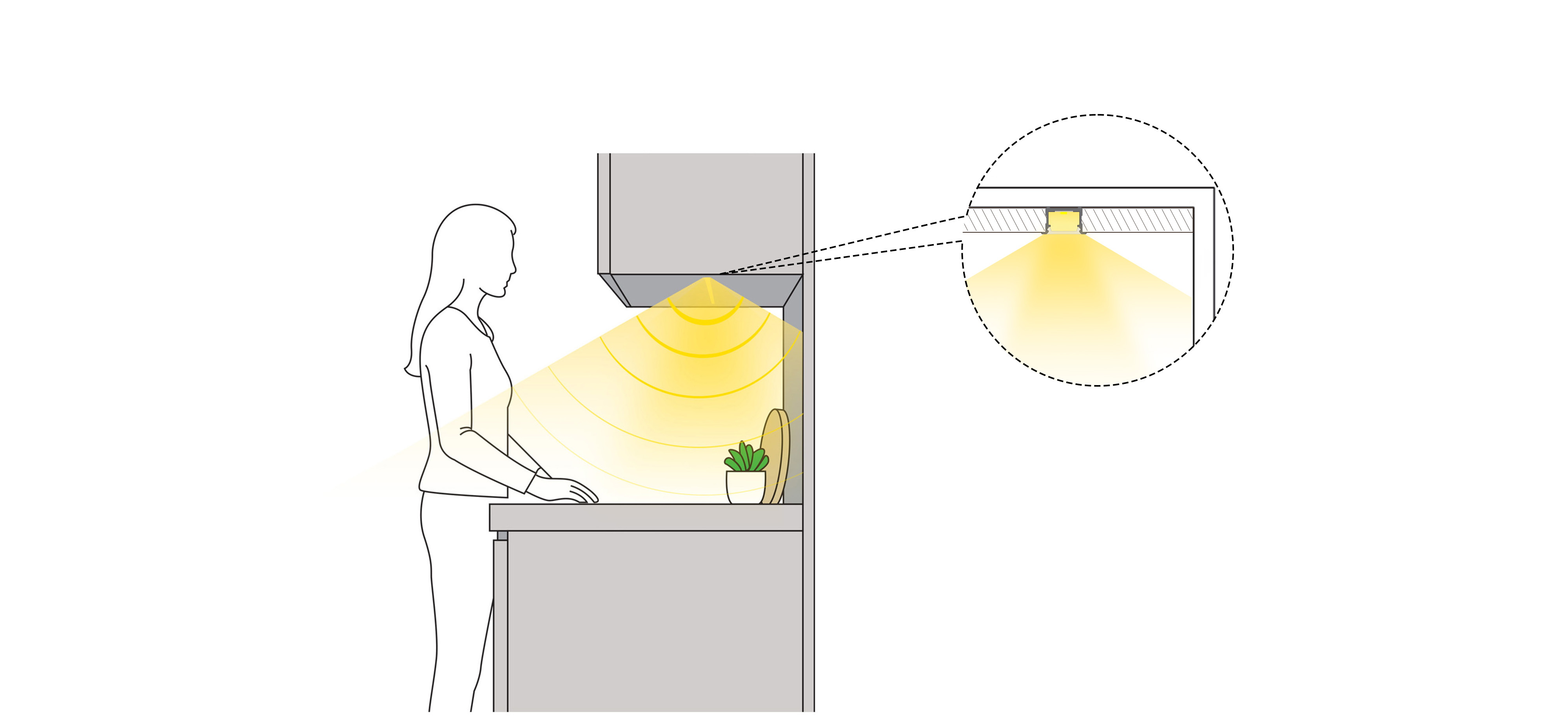

Recessed
Creates a clean, integrated look but requires a recessed channel. An added bottom panel can be used when routing the original cabinet is not preferred.

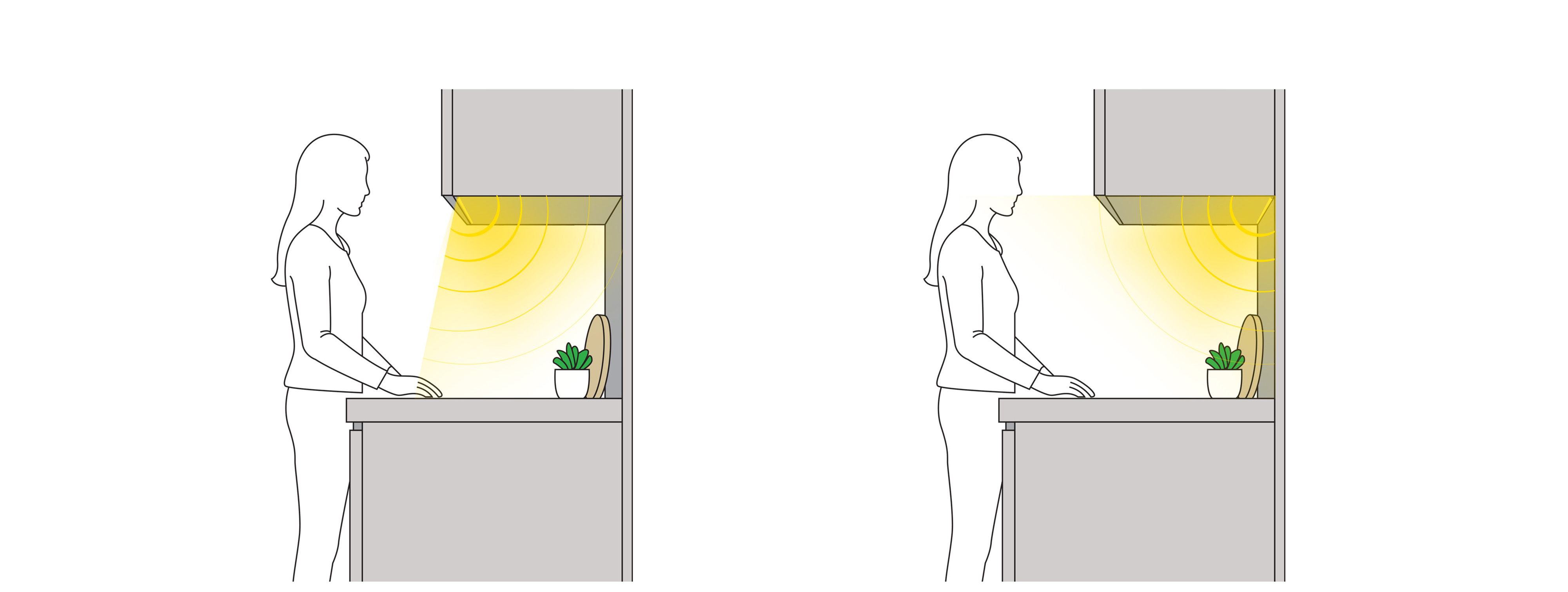

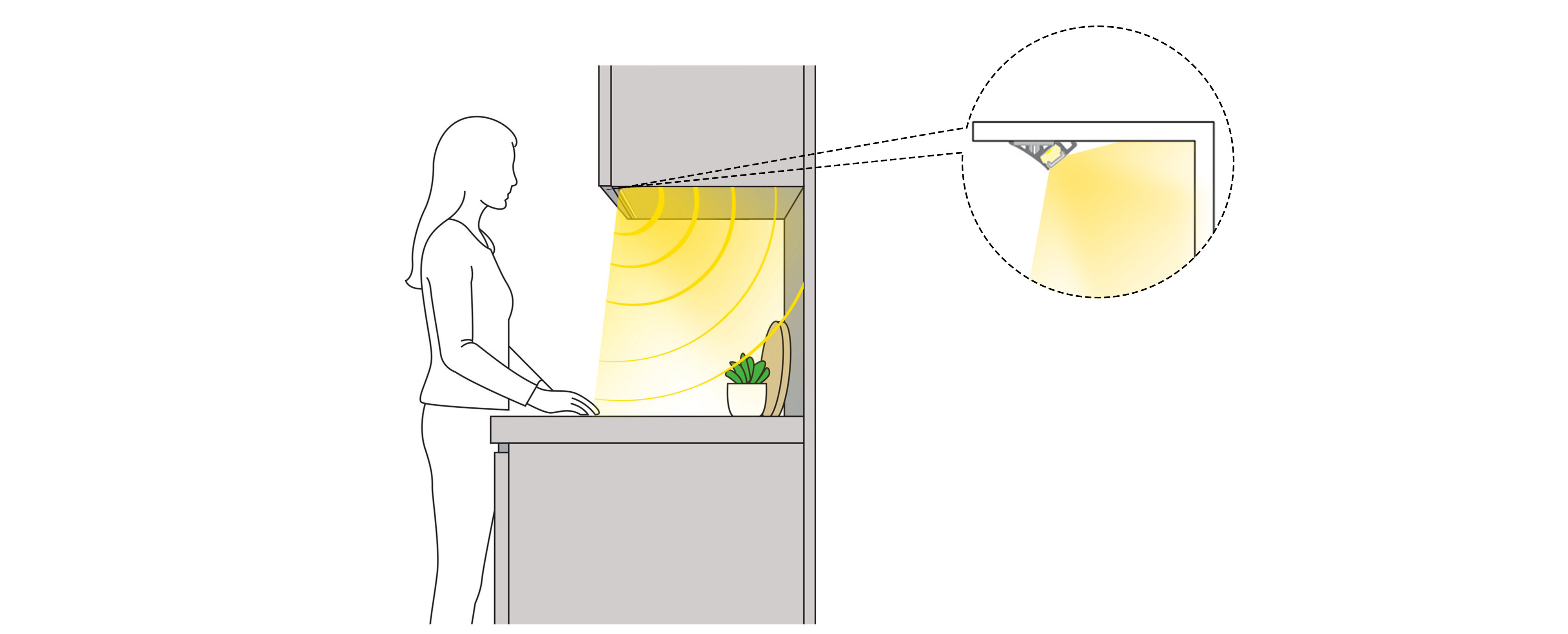

Mounts at the rear 90° corner and directs light outward across the countertop instead of straight down.
Placement determines where the light starts. Fixture design determines where it goes
Quick Under Cabinet Light Placement Guide
Your Goal
Start Here
Balanced countertop + backsplash lighting
Front
More countertop task light
Center
Highlight the backsplash
Back
Hide the light without routing

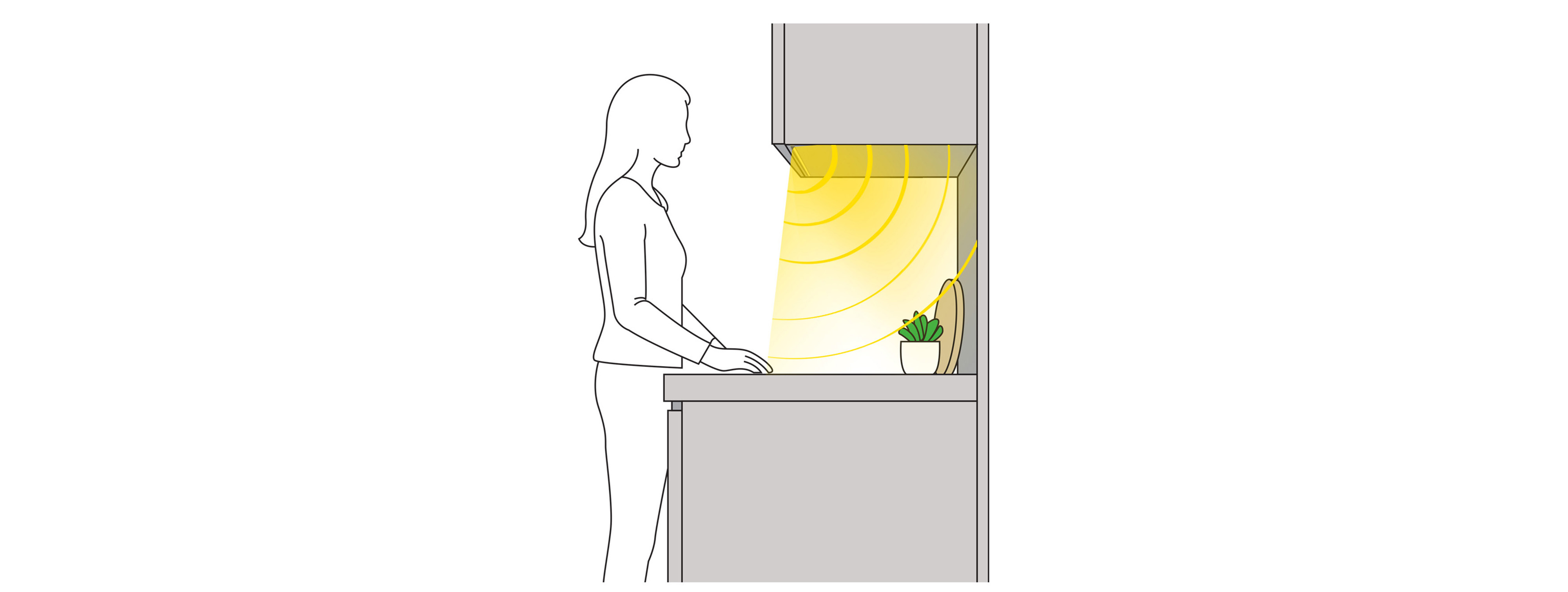

Low-Profile Surface Mount Under Cabinet Light
Direct light outward from the rear corner
Corner Surface Mount Under Cabinet Light
Before Installation
Before permanent installation, test the fixture position with the actual cabinet, countertop, and backsplash. Reflective surfaces can noticeably change the final lighting effect.
