The Surface Mount Under Cabinet Light - 31137 is a slim linear LED lighting solution designed for modern cabinet, shelving, and architectural interior applications. Featuring a surface-mounted design with soft and uniform illumination, it delivers a clean “see the light, not the fixture” lighting effect for contemporary spaces.
Product Details
- Plug & play fast connection, no wire welding required.

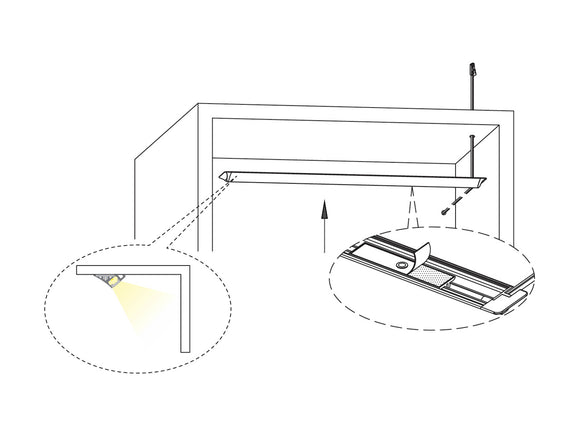

- Surface-mounted installation for easy DIY setup.
- High-performance LED strip compatible; cuttable at every LED chip for precise length adjustment and reduced dark areas.
- Premium finish color to match high-end furniture styles.

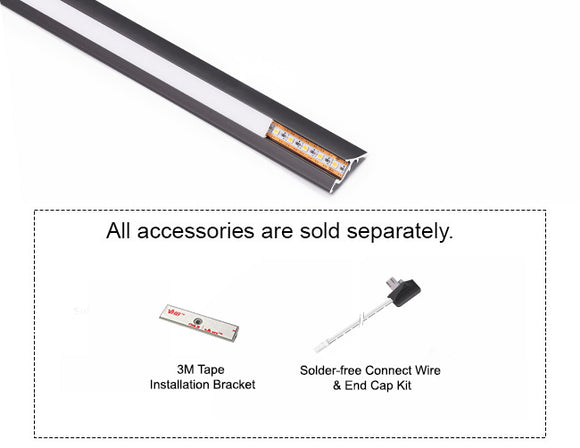

This product includes:
· Surface Mount Solder Free LED Linear Light Aluminum Channel 31137 – 24"*1pc
· Surface Mount Solder Free LED Linear Light Aluminum Channel 31137 – 94"*1pc
· Strip Light L6.8-2025-150-3000-1500-WW-12W/M-24V 9.84ft*1pc
Applications
- Under cabinet.
- Display shelves.
- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | 31137-S | 31137-H | 31137-C |
| Input Voltage | 24VDC | ||
| LED Quantity | 45 LEDs/ft | 72 LEDs/ft | 45 LEDs/ft |
| LED Chip | 2025 | 2216 | 2025 |
| Color Temperature | 2700K/3000K/4000K | 2700K-4000K(Tunable White) | |
| Brightness | 116.7lm/ft | 215.4lm/ft | 116.7lm/ft |
| Light Efficacy | 33.9lm/W | 49.1lm/W | 33.9lm/W |
| Color Rendering Index (CRI) | 90+ | ||
| Power Consumption | 3.6W/ft | 4.4W/ft | 3.6W/ft |
| Max Run (ft.) | 19.7ft | 9.85ft | 19.7ft |
| IP Rating | IP20 (Dry location) | ||
| Certificate | UL listed | ||

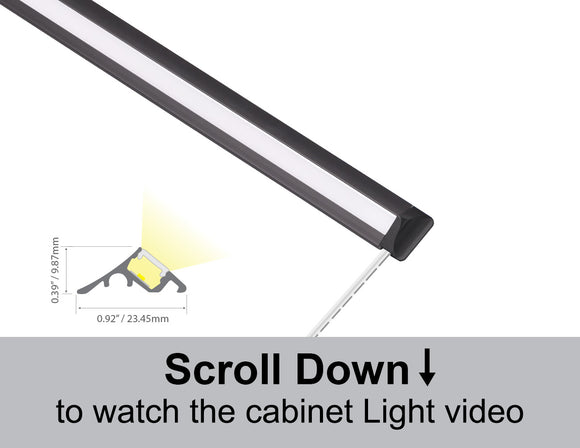

| Dimension | L: 94" W: 0.92" D: 0.39" | ||
Documents
Surface Mount Under Cabinet Light - 31137_Specification
Instruction Video
Modular Cabinet Lighting - Build Your Own Light |
