Product Description
The GL LED 60W 24V Class 2 Cabinet Lighting Power Supply is the compact core of the GL LED Modular Cabinet Lighting System. Designed for kitchens, display cabinets, closets, custom millwork, and other professional cabinet lighting applications, it combines AC power distribution, 24V fixture outputs, and flexible control connectivity in one streamlined unit.
Ideal for small to medium cabinet lighting projects, the 60W model supports plug-in or hardwired installation, wired or wireless master control, six rear 24V outputs, and a separate constant 24V output for independently controlled devices or zones. Its modular architecture makes installation fast, organized, and easy to expand.
Why Choose the 60W Cabinet Lighting Power Supply?
- Compact professional capacity - sized for small to medium cabinet lighting projects.
- Plug-In or Hardwire - use the detachable AC power cord with a standard outlet, or remove the input cover for hardwired installation.
- Universal 100-240VAC Input - supports a wide range of residential and commercial applications.
- Link Up to 7 Power Supplies - built-in AC pass-through simplifies power distribution across larger cabinet lighting installations.
- Centralized Master Control - top Control Signal Input/Output ports support wired controllers or wireless receivers and synchronized control across linked power supplies.
- Flexible 6-Port 24V Output - six rear outputs respond to master control when connected, or provide direct 24V DC power when no master control is present.
- Independent Constant 24V Output - a separate bottom output provides continuous 24V DC power for independent zones, controllers, or other compatible devices.

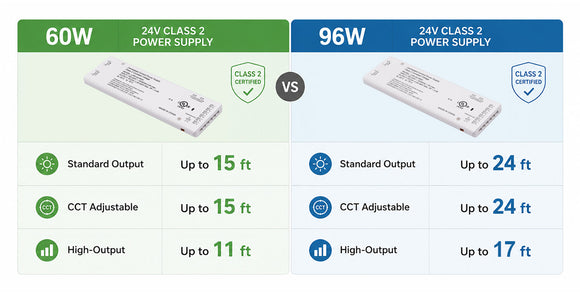

How Much Cabinet Lighting Can It Support?
The 60W model is selected by cabinet light type and total connected lighting length. For GL LED cabinet lights, use the sizing limits below.
Specifications
| Specification | LDR-24V60W |
| Input Voltage | 100–240VAC |
| Input AC Current (Max.) | 0.9A |
| Output Voltage | 24VDC |
| Output Power | 60W |
| Output Current | 2.5A |
| Standard Output Cabinet Light | Up to 15 ft |
| CCT-Adjustable Cabinet Light | Up to 15 ft |
| High-Output Cabinet Light | Up to 11 ft |
| Certification | UL Listed |
| Safety Standard | UL 8750, Class 2 |
| Protection | Short Circuit / Overload / Over Temperature |
| Location Rating | Dry Location |
| Warranty | 3 Years |
Best fit: small to medium cabinet lighting layouts where the total connected load stays within the 60W model sizing limits.
Need more capacity? Choose the 96W Cabinet Lighting Power Supply for longer lighting runs.
Documents
LDR Series Centralized Control Power Supply_Specification
How to Install & Use the 60W Cabinet Lighting Power Supply
Step 1 - Connect AC Power
Choose either plug-in or hardwired installation. For plug-in use, connect the detachable AC power cord to a standard two-prong outlet. For hardwired installation, remove the input cover and connect the power supply to the building AC circuit.
Step 2 - Link Additional Power Supplies if Needed
Use the built-in AC pass-through to continue AC power to the next Cabinet Lighting Power Supply. Up to 7 power supplies can be linked in sequence, reducing repeated AC wiring on larger projects.
Step 3 - Choose the Control Method
Connect a wired controller or wireless receiver to the top Control Signal port for master control. When master control is connected, the six rear 24V output ports follow the control signal. Without master control, those ports provide direct 24V DC output.
Step 4 - Connect 24V Cabinet Lights
Connect compatible 24V cabinet lights to the rear output ports for quick plug-and-play installation. Compatible fixtures include surface-mount cabinet lights, recessed cabinet lights, puck lights, drawer lights, and other compatible 24V DC cabinet lights.
Step 5 - Use the Independent Constant 24V Output
Use the bottom Constant 24V Output for devices or lighting zones that should remain independent from master control. This port provides continuous 24V DC power regardless of the top control signal.
Control & System Flexibility
The 60W power supply is especially useful for compact cabinet lighting systems that still require professional control options. A project can begin with direct 24V output and later add wired or wireless control without changing the basic power architecture.
- Wired master control
- Wireless RF receiver control
- Direct 24V operation without master control
- Independent constant 24V output for separate control zones
- Expandable multi-power-supply installations
Frequently Asked Questions
How much cabinet lighting can the 60W power supply support
Up to 15 ft of Standard Output lighting, 15 ft of CCT-Adjustable lighting, or 11 ft of High-Output lighting.
When should I choose the 60W model?
Choose the 60W model for smaller and medium-size cabinet lighting projects that stay within its lighting-length limits.
When should I move up to the 96W model?
Choose the 96W model when the connected lighting length exceeds the 60W limits or when a project needs additional load capacity for longer cabinet runs.
Can the 60W power supply operate without a controller?
Yes. With no master control connected, the six rear outputs provide direct 24V DC power to compatible cabinet lights.
Can multiple 60W power supplies be linked?
Yes. The AC pass-through system allows up to 7 compatible Cabinet Lighting Power Supplies to be powered in sequence.
