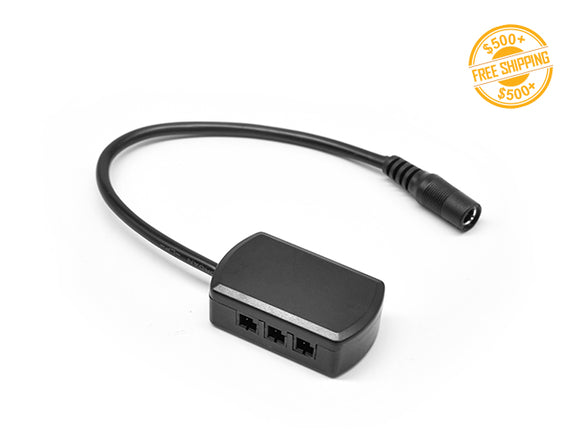

Top view of Dupont-DC Splitter 1 to 6 Black; a label of free shipping for orders over $500 is shown as well.

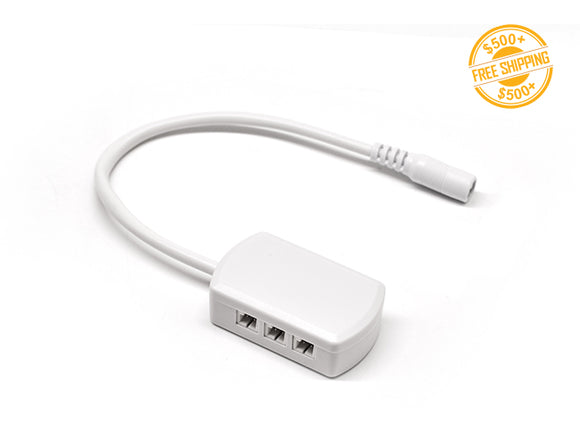

Top view of Dupont-DC Splitter 1 to 6 white color; a label of free shipping for orders over $500 is shown as well.

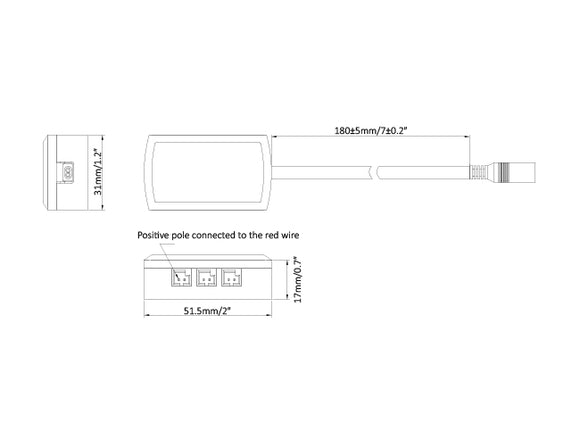

Dimensions of Dupont-DC Splitter 1 to 6

Dupont-to-DC 1-to-6 Splitter for Cabinet Lighting – Black / White

SKU: AS-DP-L805-6P-B

$7.57

The Dupont-DC 1-to-6 Splitter distributes power from a single DC source to up to six LED cabinet lights. It supports two flexible power supply configurations for cabinet lighting installations.

1. With a Plug-In LED Power Adapter

Connects to a compatible DC-output LED power adapter, such as the YHY-36W-24V , YHY-60W-24V, TPZ-96W-24V,to distribute power to multiple cabinet lights.

2. With a GL LED Cabinet Lighting Power Supply

When paired with the Dupont-DC Male to Dupont Male Adapter, the splitter connects to the 24V output of a compatible GL LED cabinet lighting power supply, providing six output connections for LED cabinet lights.

Key Features

  • 1-to-6 power distribution for LED cabinet lighting
  • Compatible with supported plug-in LED power adapters
  • Works with GL LED cabinet lighting power supplies using the appropriate adapter
  • 18 AWG input wire
  • Maximum total input current: 10A
  • Maximum current per output port: 3A
  • Available in black and white

Electrical Specifications

Specification Rating
Input Wire 18 AWG
Maximum Total Current 10A
Number of Outputs 6
Maximum Current per Output 3A



Important: The combined current of all connected lights must not exceed 10A, and each individual output must not exceed 3A. Always use a power supply with the correct output voltage and sufficient rated capacity.
