LDR Series Centralized Control Power Supply for Under Cabinet Light 24V 96W

SKU: LDR-24V96W

$120.39

Description Accessories

Product Details

GL LED Centralized Control Power Supply combines power distribution, driver linking, and intelligent control into one streamlined solution for modern cabinet lighting installations. Designed for kitchens, closets, displays, and custom millwork, the system simplifies wiring, improves installation efficiency, and enables flexible lighting control across multiple fixtures

Key Features

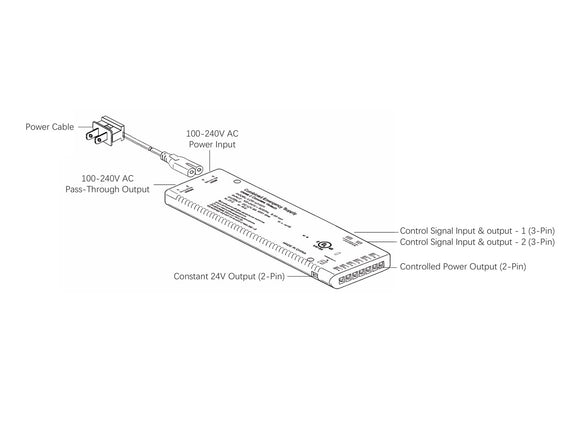

  • Plug-In or Hardwired
    Detachable power cord supports both direct plug-in and hardwired installation.
  • Universal Input
    100-240VAC input for residential and commercial applications.
  • Linkable Power System
    Built-in AC pass-through allows linking up to 7 power supplies.
  • Centralized Smart Control
    Signal input/output ports enable synchronized control of multiple power supplies and connected lights.
  • Flexible 6-Port Output
    6 integrated LED outputs operate together under centralized control or independently when no control signal is connected.
  • Constant 24V Output
    Stable constant 24V DC output for reliable lighting performance.

Recommended Applications

  • Cabinet, closet, task, lighting

Specifications

Type LDR-24V60W LDR-24V96W
Input Voltage 100-240VAC
Input AC Current (Max.) 0.9A 1.3A
Output Voltage 24VDC
Output Power 60W 96W
Output Current 2.5A 4A, Max Output Per Port:3A
Supported LED Strip Length Standard Output 3.6W/ft LED Strip: Up to 15ft
High Output 4.4W/ft LED Strip: Up to 11ft		 Standard Output 3.6W/ft LED Strip: Up to 24ft
High Output 4.4W/ft LED Strip: Up to 17ft
Certificate UL listed
Safety Standards UL8750, Class 2 unit.
Warranty 3 years
Protections Short Circuit / Over Loading / Over Temperature
Work Environment Dry Location

Documents

LDR Series Centralized Control Power Supply_Specification
