Solder-free Connect Wire & End Cap Kit with PIR Sensor Switch for Under Cabinet Light 31134

Product Description

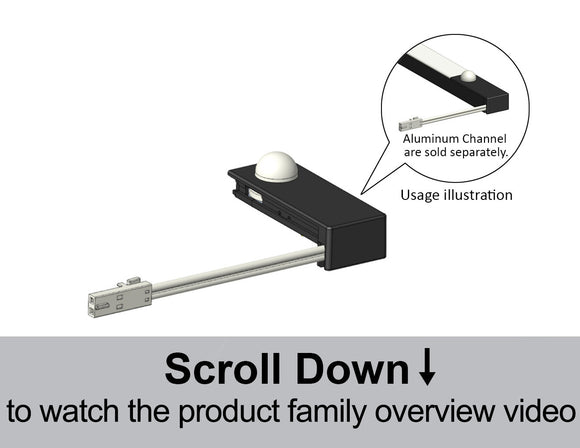

The PIR Motion Sensor for Cabinet Lighting 31134 is an integrated controller designed specifically for the 31134 cabinet light. Installed directly into the fixture, it provides both power connection and automatic motion-activated control. The built-in PIR sensor detects movement within approximately 1–3 meters and automatically turns the light on. When no movement is detected for approximately 45 seconds, the light turns off automatically.

Key Features

• Integrated PIR Controller - Combines power connection and motion control in one compact component.
• Automatic ON/OFF - Activates the cabinet light when motion is detected and switches it off after approximately 45 seconds without movement.
• 1–3 m Detection Range - Provides convenient hands-free control for cabinet lighting applications.
• Designed for 31134 - Installs directly into the compatible 31134 cabinet light fixture.
• Clean Installation - Integrated design eliminates the need for a separate external motion sensor.

Product Specifications

Documents

Cabinet Lighting Control System Manual

How to Install the PIR Motion Sensor for Cabinet Lighting 31134

Step 1 - Choose the Position:
Determine where the PIR controller will be installed on the 31134 cabinet light.

Step 2 - Prepare the Opening:
Cut the required section from the fixture surface to create an opening for the controller. Confirm the required cutout position and dimensions before cutting.

Step 3 - Insert the Controller:
Insert the PIR controller into the prepared opening and make sure it is correctly positioned.

Step 4 - Connect and Test:
Complete the required power connection and test the sensor. The light should turn on when motion is detected within approximately 1–3 meters and turn off after approximately 45 seconds without movement.

FAQ

Is this PIR motion sensor compatible with any cabinet light?
No. This integrated PIR controller is designed specifically for the 31134 cabinet light. Compatibility with other cabinet lighting fixtures has not been confirmed.

How does the PIR motion sensor for 31134 cabinet lighting work?
The built-in PIR sensor detects movement within approximately 1–3 meters and automatically turns the 31134 cabinet light on. If no movement is detected for approximately 45 seconds, the light automatically turns off.

Does the PIR sensor require a separate wall switch for normal operation?
The controller provides motion-activated ON/OFF control, allowing the 31134 cabinet light to operate automatically without manually switching the light on and off during normal sensor operation.

What is the motion detection range of the PIR sensor?
The PIR motion sensor has an approximate detection range of 1–3 meters, making it suitable for motion-activated cabinet lighting applications.

Does the 31134 cabinet light need to be modified to install the PIR sensor?
Yes. A section of the 31134 fixture surface must be cut out to provide the required opening for the integrated PIR controller. Confirm the correct installation position and cutout dimensions before cutting.

How long does the cabinet light stay on after motion stops?
If no additional movement is detected, the PIR controller automatically turns the cabinet light off after approximately 45 seconds, helping reduce unnecessary energy use.
