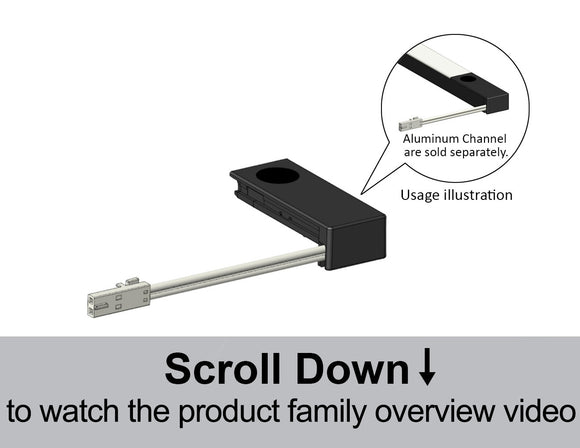

Solder-free Connect Wire & End Cap Kit with Hand Wave Sensor Dimmer for Under Cabinet Light 31134

Product Details

The Wave Sensor Dimmer for Under Cabinet Light 31134 – Integrated Controller provides power connection, touch-free ON/OFF control, and smooth dimming for the 31134 Under Cabinet Light.

Designed to integrate directly with the compatible 31134 light, it eliminates the need for a separate wall switch for everyday lighting control. Simply wave your hand in front of the sensor to turn the light ON or OFF, or hold your hand in the sensing area to adjust the brightness.

Its compact, integrated design provides convenient hands-free control while maintaining a clean cabinet lighting installation, making it ideal for kitchens, cabinets, display shelves, closets, and wardrobes.

* Note: For reliable operation, wave your hand at a normal speed, as excessively fast movement may not be detected.

Key Features

• Touch-Free ON/OFF: Wave your hand to turn the connected 31134 light on or off.
• Smooth Dimming: Hold your hand in front of the sensor to adjust the brightness.
• Integrated Controller: Combines power connection and lighting control in one component.
• Designed for 31134: Integrates directly with the compatible 31134 Under Cabinet Light.
• Clean Cabinet Installation: Compact design reduces the need for separate external switching components.
• Versatile Applications: Suitable for under-cabinet, display, closet, wardrobe, and furniture lighting.

Product Specifications

Documents

Cabinet Lighting Control System Manual

How to Install the Wave Sensor Dimmer for Under Cabinet Light 31134

Step 1 - Disconnect the Power:
Turn off and disconnect the power supply before installation to ensure safe operation.

Step 2 - Prepare the Opening:
Measure the Wave Sensor Dimmer and cut the required section from the surface of the 31134 cabinet light to create an opening. Confirm the required cutout position and dimensions before cutting.

Step 3 - Insert the Dimmer:
Insert the Wave Sensor Dimmer into the prepared opening of the compatible 31134 Under Cabinet Light and make sure it is correctly positioned.

Step 4 - Connect and Power On:
Connect the power supply according to the 31134 lighting system configuration. Make sure all connections are secure before restoring power.

Step 5 - Test the ON/OFF Function:
Wave your hand in front of the sensor to turn the light ON or OFF and confirm that the sensor responds correctly.

Step 6 - Test the Dimming Function:
Hold your hand within the sensing area to smoothly adjust the brightness. Move your hand away when the desired brightness level is reached.

Tip: For reliable operation, wave your hand at a normal speed. Moving too quickly may prevent the sensor from detecting the gesture..

FAQ

Is this wave sensor dimmer compatible with any under cabinet light?
No. This integrated wave sensor dimmer is designed for the 31134 Under Cabinet Light. Confirm fixture compatibility before installation.

How does the hand wave sensor dimmer control the light?
Wave your hand in front of the sensor to turn the light ON or OFF. To dim the light, hold your hand in the sensing area and move it away when the desired brightness is reached.

Is this a motion sensor for under cabinet lighting?
No. This is a hand wave sensor dimmer, not a PIR occupancy sensor. It responds to intentional hand gestures for ON/OFF and dimming control rather than automatically turning the light on when someone enters the area.

Do I need to touch the sensor to control the under cabinet light?
No. The sensor provides touch-free lighting control, so no physical contact with a switch is required. This is especially convenient for kitchen and cabinet lighting applications.

Why is the wave sensor not responding to my hand movement?
First, confirm that the controller is properly connected to the 31134 light and that the lighting system has power. Wave your hand at a normal speed in front of the sensor. An excessively fast movement may not be detected.
