As the newest model in our linear light family, GL LED L8070 architectural linear lights (up and down light continuous run) bring flexibility to the next level.

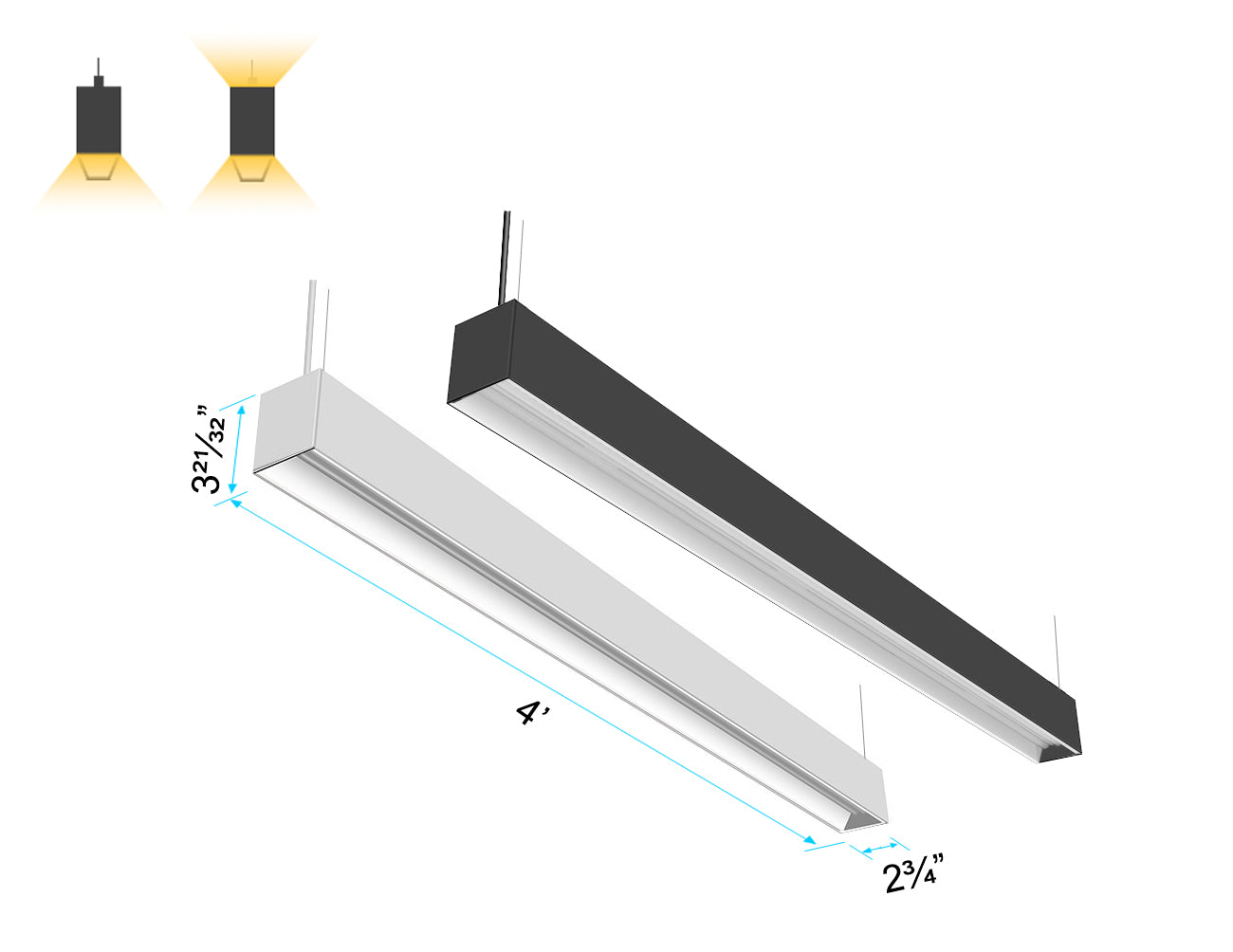

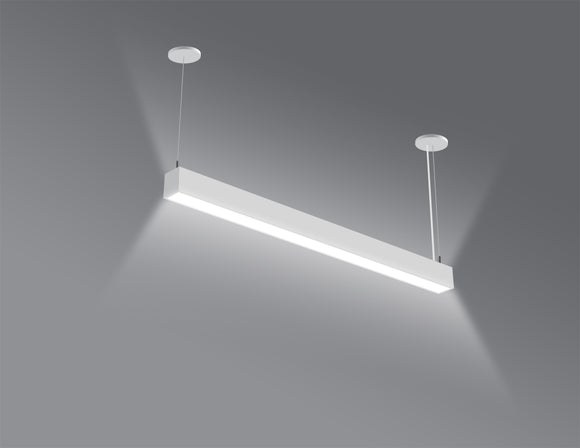

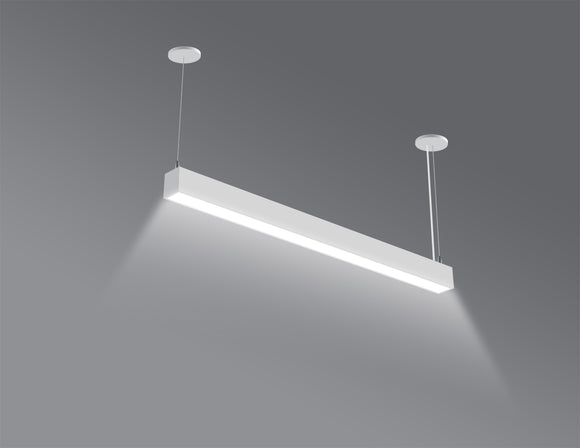

L8070 straight 4ft linear light fixture exhibits a neat and contemporary design. It features a durable aluminum case and polycarbonate diffusers, with high quality LED emitters inside to produce even and anti-glare lights. It has a high color rendering index CRI>=80, changeable color temperatures (3000K, 3500K & 4000K), and an output power of 50W to produce 5750 lumens at 4000K. With an up & down lighting option, 30% of the wattage/lumens are allocated up and 70% of the wattage/lumens are allocated down, which can be easily dimmed with a 0-10V dimmer switch (not included).
The 4ft linear light fixture can either work individually (single run) or connect to each other (continuous run) to form light extensions. It can also combine with other shapes to create a stylish lighting appearance that will make your space stand out. The compact size of the fixture makes it versatile to fit to any interior environment (residential buildings, offices, schools, meeting rooms, grocery stores, restaurants, coffee shops, retail stores, and malls etc.).

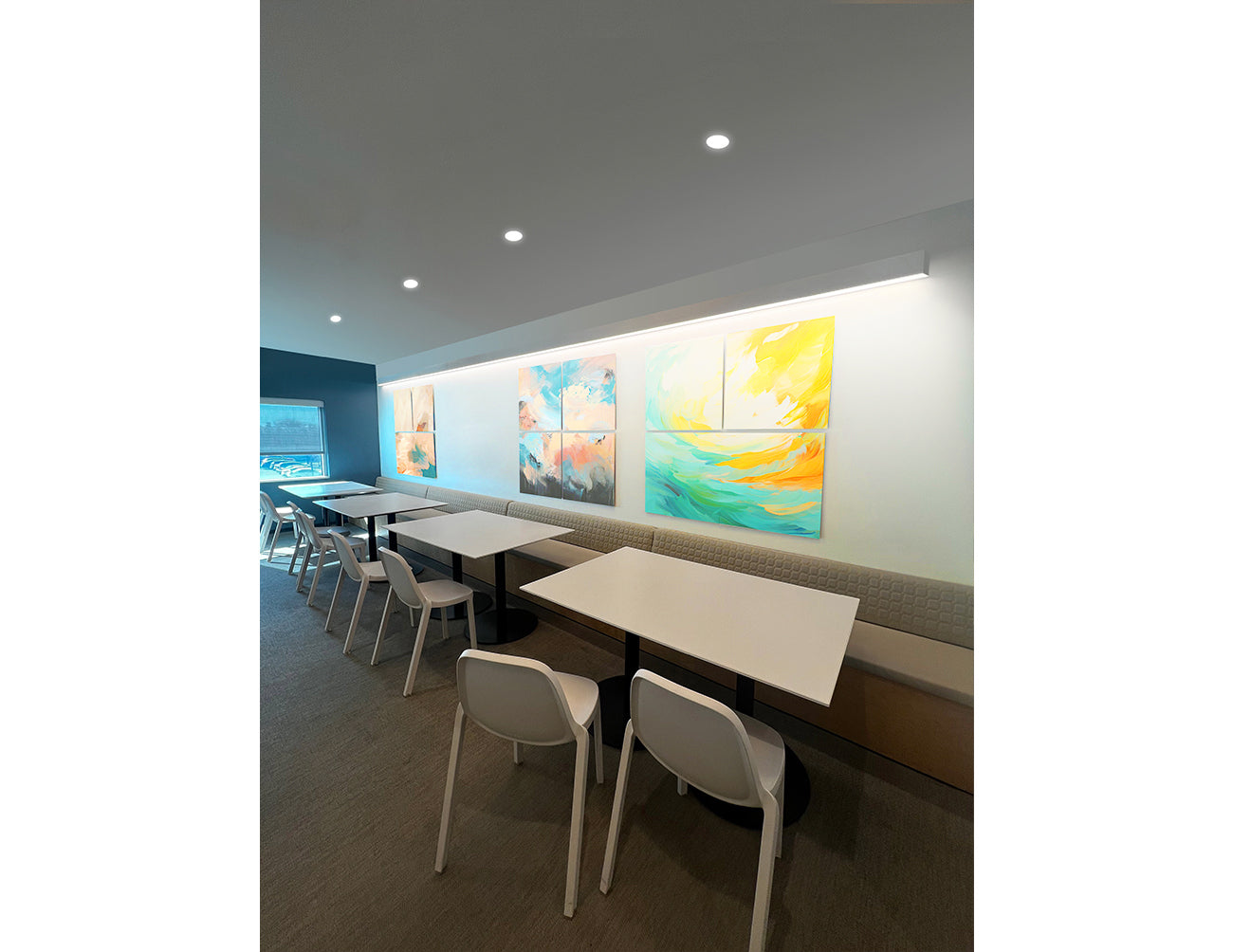

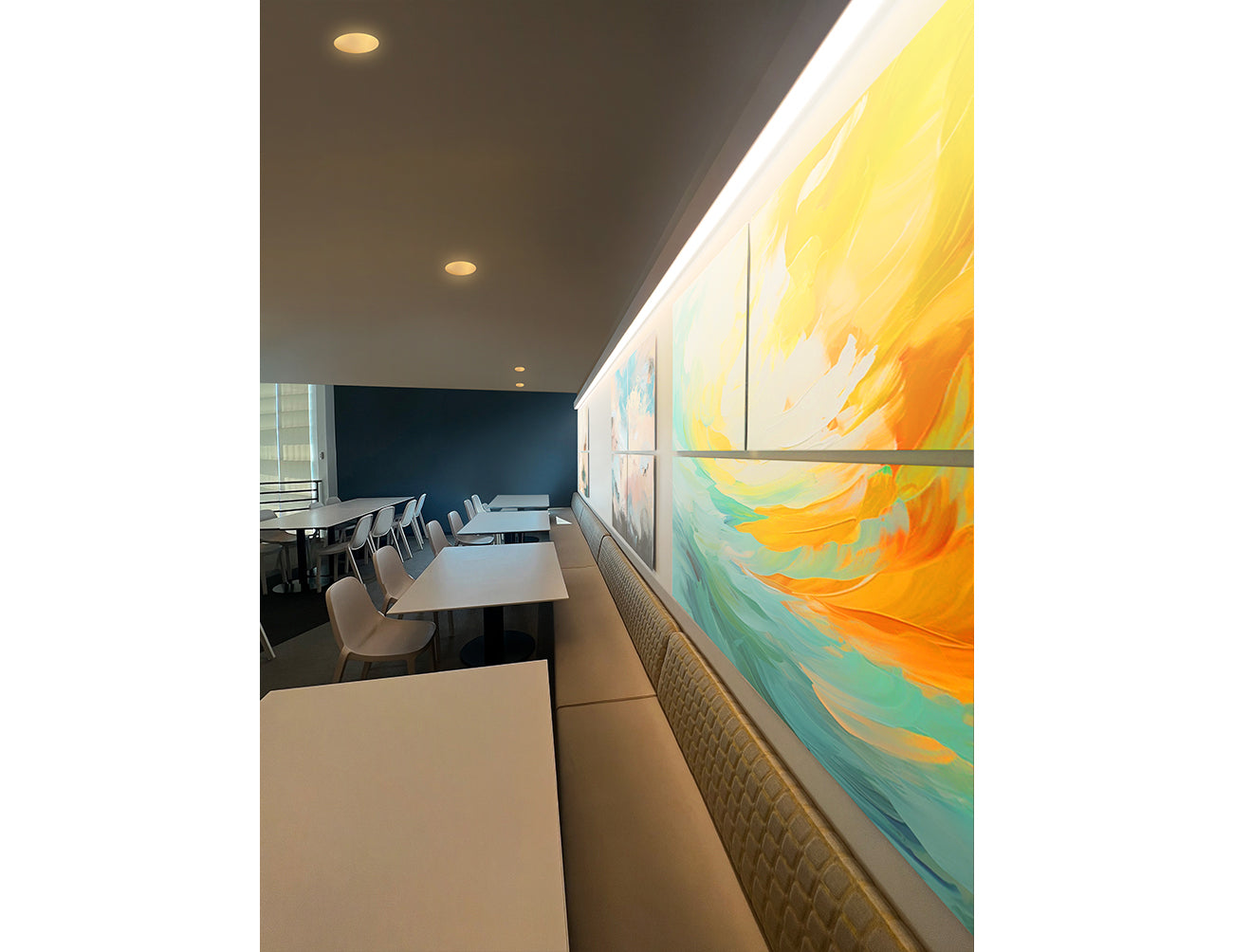

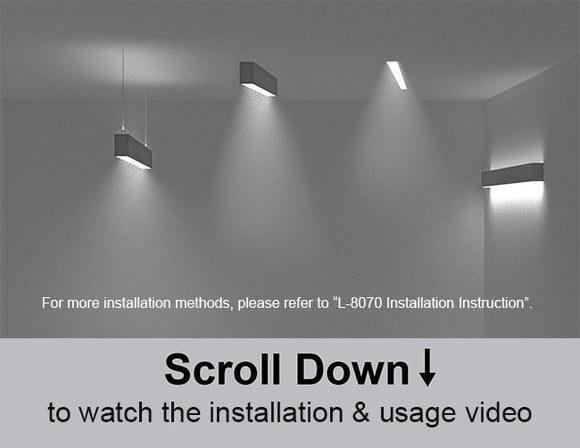

In terms of installations, this 4ft straight linear light can be suspended from ceilings as pendant light, surfaces mounted to ceilings when room height is limited, wall mounted to produce a wall wash effect, or ceiling recessed to fit a low ceiling environment. Corresponding compatible kits are available (sold separately) to simplify the installations.
PLEASE NOTE: THIS ITEM NEEDS A SEPERATE INSTALLATION KIT TO BE INSTALLED. PLEASE REFER TO ACCESSORIES PAGE FOR SELECTIONS.

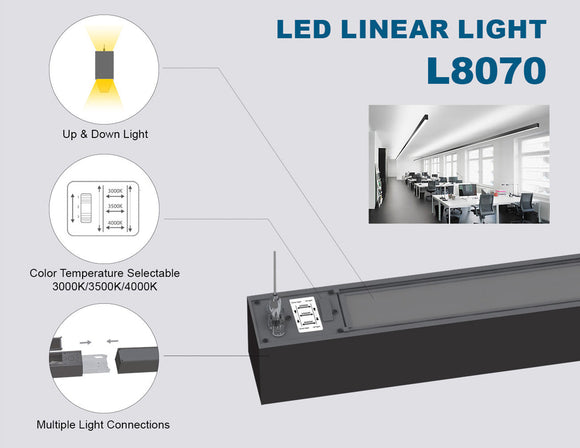

Features:
• Independently modular direct & indirect luminaries
• Connect to line voltage (120-347VAC) directly
• Changeable color temperatures (3000K, 3500K, and 4000K)
• Power efficiency 115LM/W at 4000K
• Single run and continuous run available
• Flexible mounting options (suspended; surface mounted; wall mounted; spring clamp recessed, and T-grid recessed)
• 0-10V dimming

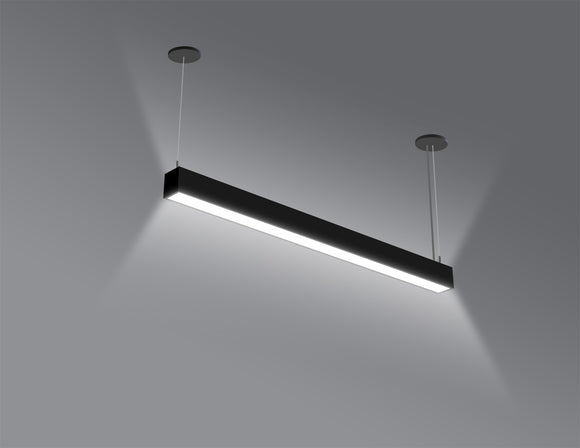

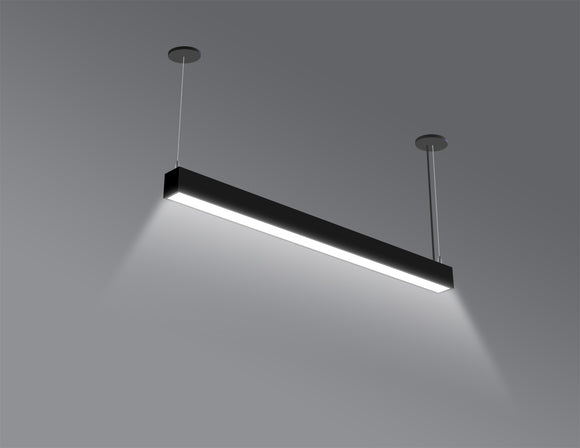

• Options of down lighting or up and down lighting
• Options of white or black finish
• Optional motion sensor control and emergency backup
• FCC, ETL listed
• Dry Location
• Limited 5 years warranty
![]() |
![]() |

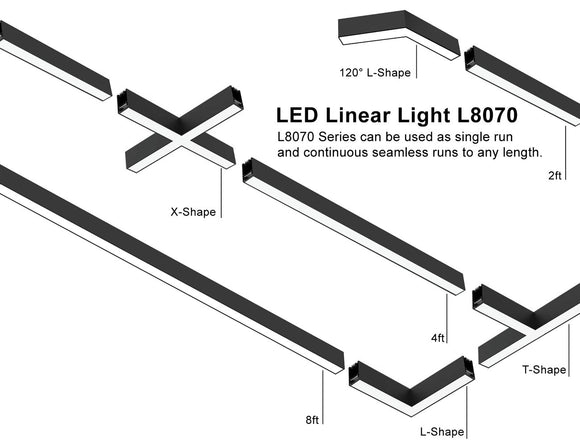

EXAMPLES OF POSSIBLE LIGHT FORMS Continuous seamless run when connected
Up and Down Continuous Run Linear Light L8070-UD Series:
Q&A:
What is the difference between LED linear lights and LED strip lights?
LED linear lights and LED strip lights are both types of linear LED lighting solutions that offer various benefits in terms of energy efficiency, durability, and versatility. However, there are some differences between the two that are worth noting.
LED linear lights are typically larger and more robust than LED strip lights. They often have a more substantial housing, which allows for better heat dissipation and protection against physical damage. LED linear lights also tend to be brighter and have a higher output than LED strip lights, making them suitable for use in commercial and industrial settings.
On the other hand, LED strip lights are generally more flexible and adaptable than LED linear lights. They come in a roll or a reel, allowing for easier installation and customization. LED strip lights can be cut to length, making them ideal for use in tight spaces or irregularly shaped areas. They are also available in a wider range of colors, color temperatures, and brightness levels, making them ideal for a variety of applications, including residential and commercial lighting.
Instruction Video: |
