LED Linear Light - L8070 Emergency Driver - STB45FA Series - 32W

Product Details

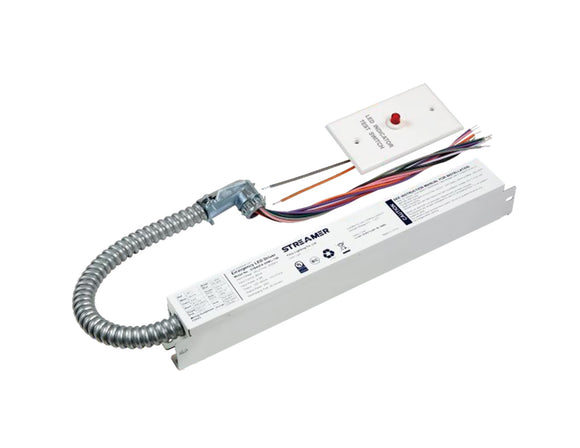

The 8070 High-Voltage Emergency Power Supply is a professional-grade emergency backup solution designed for LED lighting systems. It works seamlessly with both 0–10V dimmable LED drivers and non-dimmable LED drivers, ensuring reliable illumination during power outages.

Equipped with a built-in high-power AC relay, the unit allows the normal LED driver to operate without interference under normal power conditions and automatically switches to emergency mode when AC power is lost. The system uses a Lithium iron battery, providing high safety, long life, and stable performance.

Key Features

• UL Listed for Damp Locations
  Certified for use in damp environments, meeting safety requirements for commercial and public installations.
• Wide Power Compatibility
  Suitable for 10–300W LED luminaires with 0–10V dimming
  Suitable for 10–32W LED luminaires with or without 0–10V dimming
• 0–10V Dimming Compatibility
  Fully compatible with 0–10V dimming systems, ensuring stable operation during emergency mode.
• Built-In High-Power AC Relay
  Allows normal LED driver operation under AC power and enables automatic switching to emergency mode during power failure.
• Lithium Iron Phosphate Battery
  Designed for use with Lithium iron battery for enhanced safety, longer life, and reliable performance.
• Battery Protection
  Integrated over-charge and over-discharge protection to extend battery and system lifespan.
• Automatic Functional Self-Check
  Performs an initial functional test automatically upon power-up to ensure system reliability.
• Long Shelf Life / Rest Mode
  Rest mode enables a shelf life of over 1 year, ideal for project storage and inventory management.
• Emergency Operation Time
  Provides more than 90 minutes of emergency lighting after power loss.
• Wide Operating Temperature Range
  Ambient temperature: ta: 0°C to +50°C (32°F to 122°F)

Recommended Applications

• Commercial Emergency Lighting – Offices, shopping malls, hotels, supermarkets, and other commercial buildings.
• Public & Safety Lighting – Emergency exits, corridors, stairwells, and evacuation routes.
• Industrial & Warehouse Lighting – Factories and warehouses requiring reliable emergency illumination.
• 0–10V Dimming System Projects – Ideal for emergency upgrades in lighting systems with existing 0–10V dimming control.

Specifications

Q&A:

What is an LED emergency driver?

An LED emergency driver is a device that powers and controls an LED light during a power outage. It is typically used in emergency lighting systems, such as exit signs and emergency lighting fixtures. The emergency driver is connected to the LED light and is designed to automatically switch the light to emergency mode when the power goes out. It uses a rechargeable battery as a power source to keep the LED light on for a certain amount of time during an emergency, and ensures that the LED light continues to function and provide safe egress for building occupants and emergency responders.
