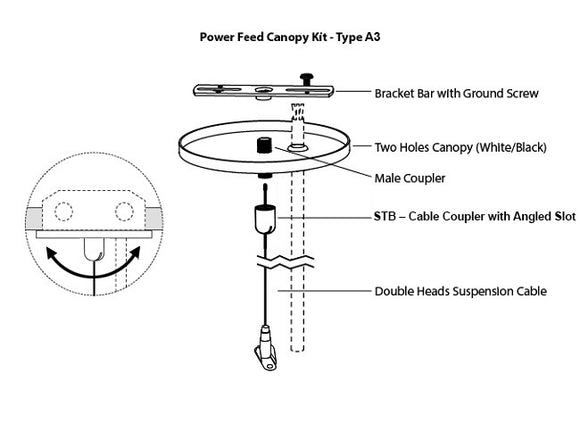

GL LED L8070 linear light fixture suspension canopy kit Type A3, with both a suspension cable and a power cable going through a black canopy attached to a ceiling.
GL LED L8070 linear light fixture suspension canopy kit Type A3, with both a suspension cable and a power cable going through a white canopy attached to a ceiling.

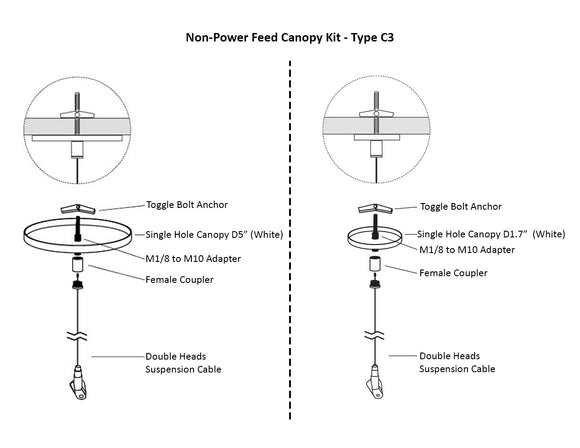

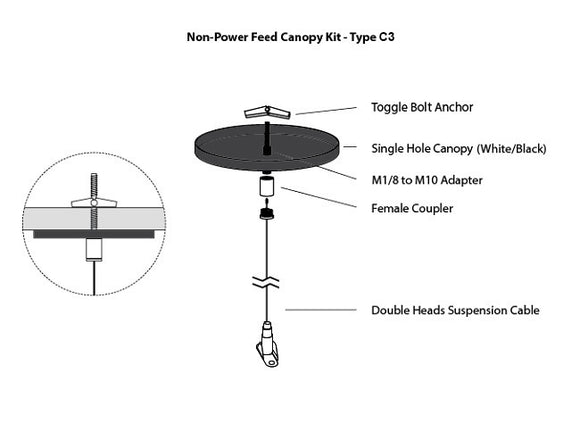

GL LED L8070 linear light fixture suspension canopy kit Type C3, with a suspension cable attached to a ceiling using a toggle bolt anchor through a black canopy.
GL LED L8070 linear light fixture suspension canopy kit Type C3, with a suspension cable attached to a ceiling using a toggle bolt anchor through a white canopy.
GL LED L8070 linear light fixture suspension canopy kit Type F3, with a suspension cable attached to a ceiling using a toggle bolt anchor without a canopy.

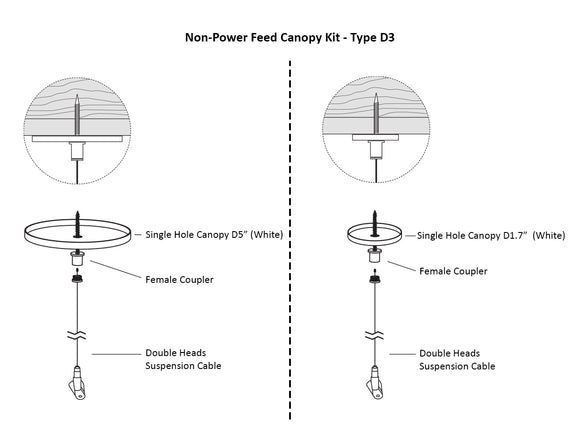

GL LED L8070 linear light fixture suspension canopy kit Type D3, with a suspension cable attached to a ceiling using a ceiling screw through a black canopy.
GL LED L8070 linear light fixture suspension canopy kit Type D3, with a suspension cable attached to a ceiling using a ceiling screw through a white canopy.
GL LED L8070 linear light fixture suspension canopy kit Type G3, with a suspension cable attached to a drywall ceiling using a screw without a canopy.

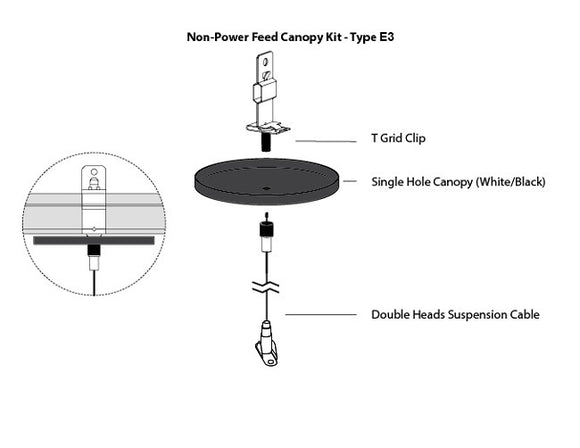

GL LED L8070 linear light fixture suspension canopy kit Type E3, with a suspension cable attached to a ceiling using a T-grid clip with a black canopy.
GL LED L8070 linear light fixture suspension canopy kit Type E3, with a suspension cable attached to a ceiling using a T-grid clip with a white canopy.
GL LED L8070 linear light fixture suspension canopy kit Type E3, with a suspension cable attached to a ceiling using a T-grid clip without a canopy.
LED Linear Light - L8070 Suspension Kit-12

LED Linear Light - L8070 Suspension Kit

SKU: SCK-PF-H2-A3-B

$22.07

Various suspension kits are available for L8070 series LED linear lights, with selections of power cable feed kit, installation parts, and color of canopy. Please follow an installation instruction HERE.

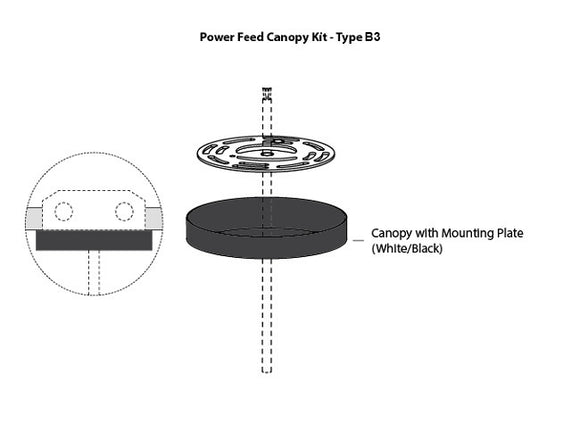

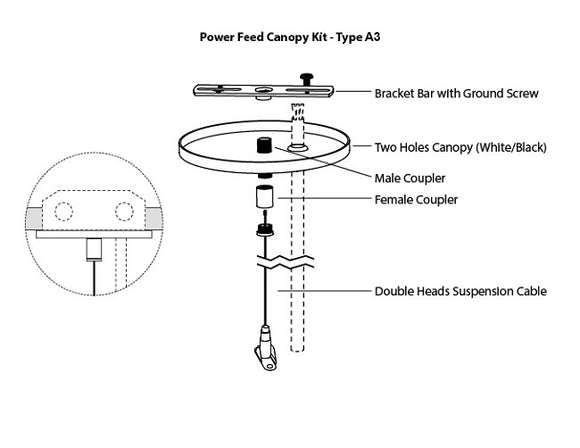

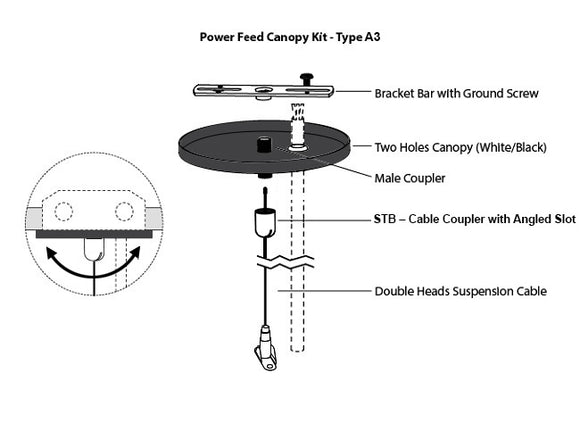

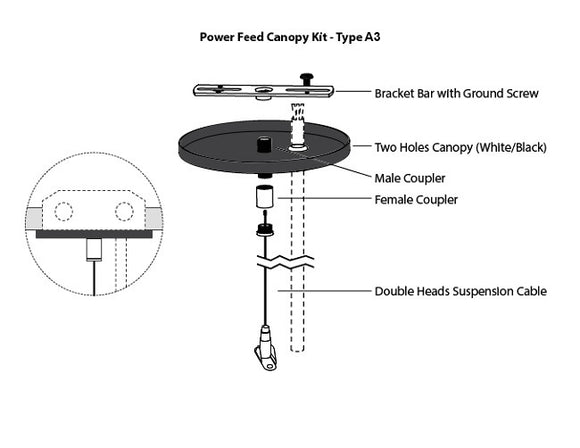

A power cable can go through a canopy with a suspension kit (Type A3), or go to ceiling outlet/junction box without a canopy.

Three types of installation methods include

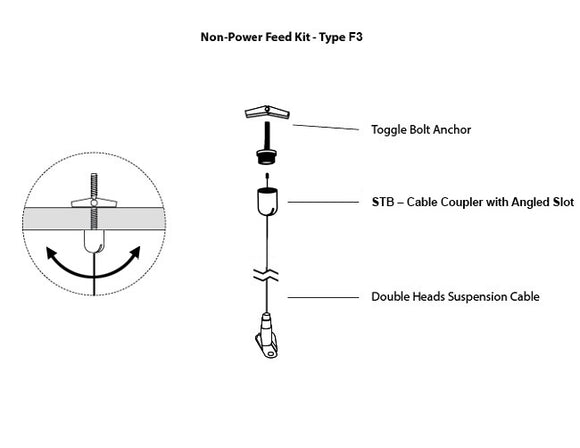

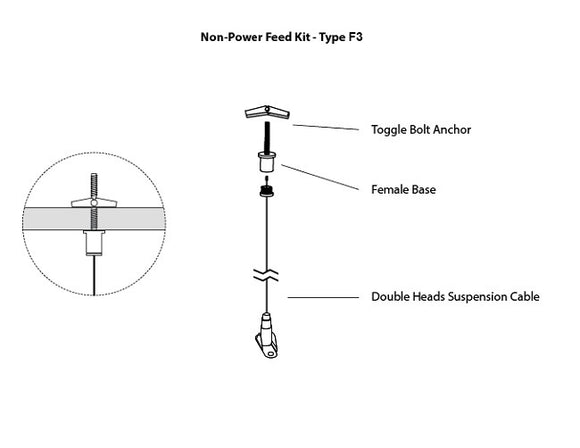

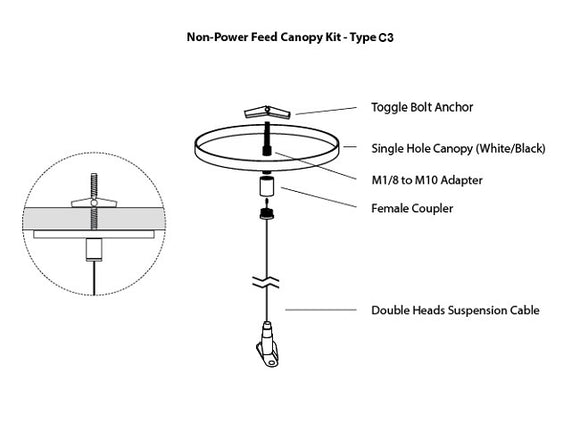

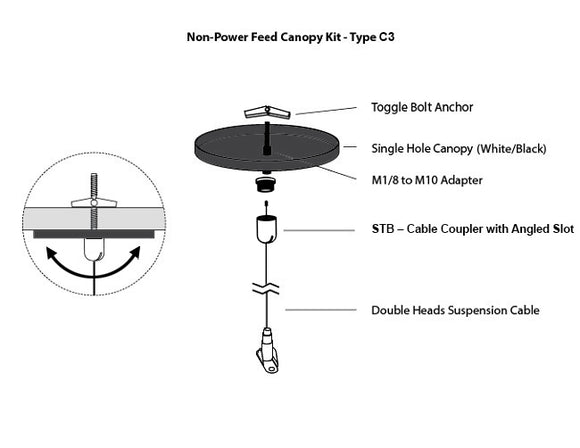

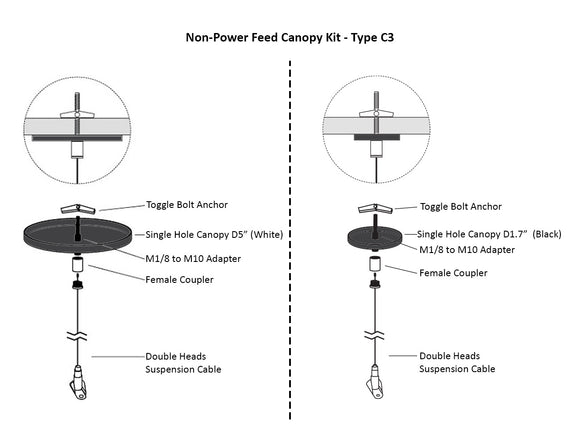

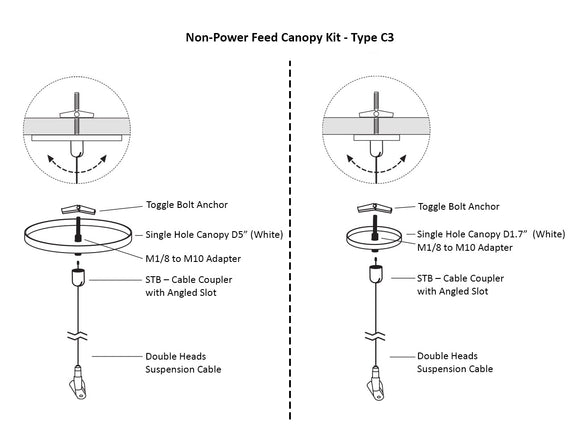

1. Using Toggle Bolt - with canopy (Type C3); without canopy (Type F3)

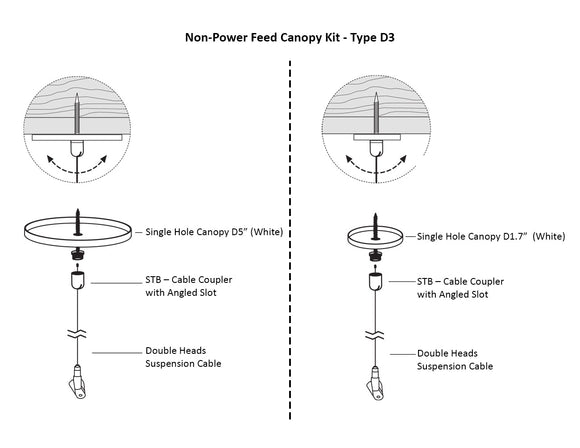

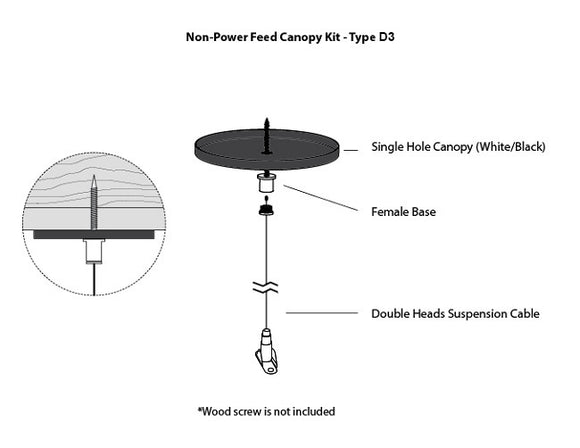

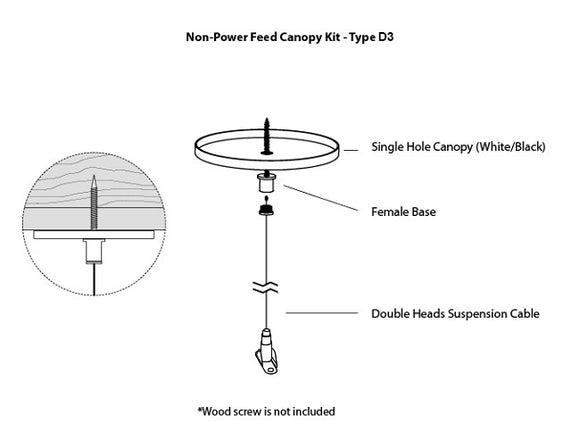

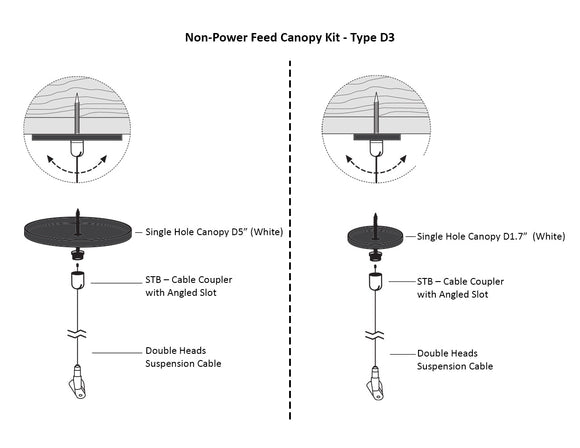

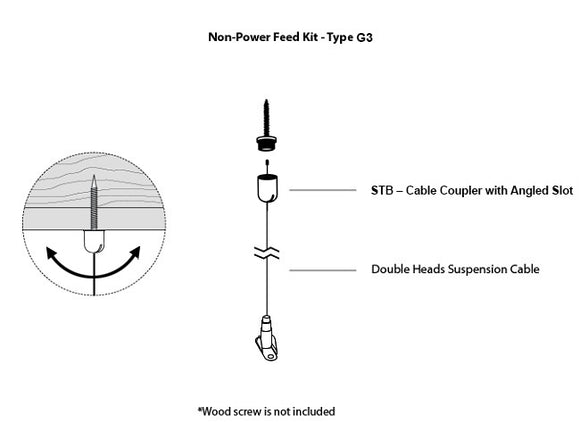

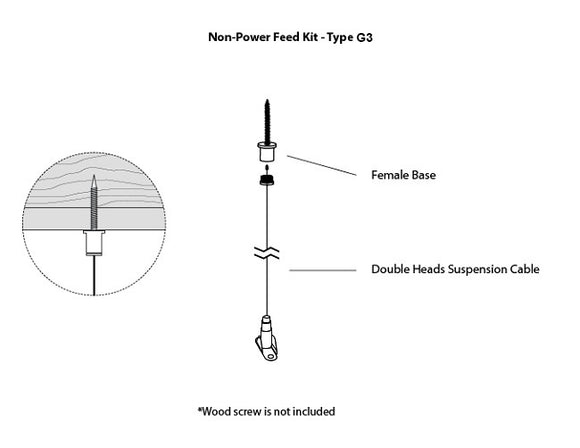

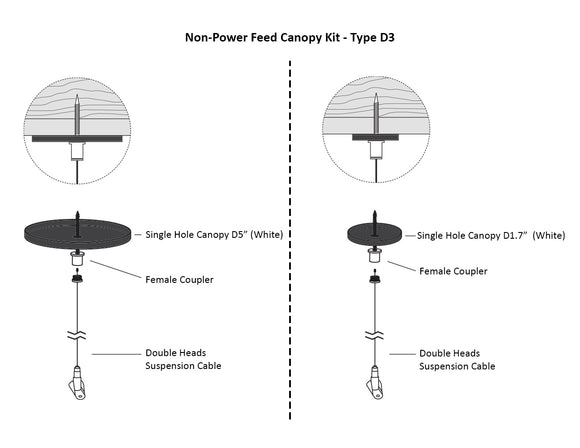

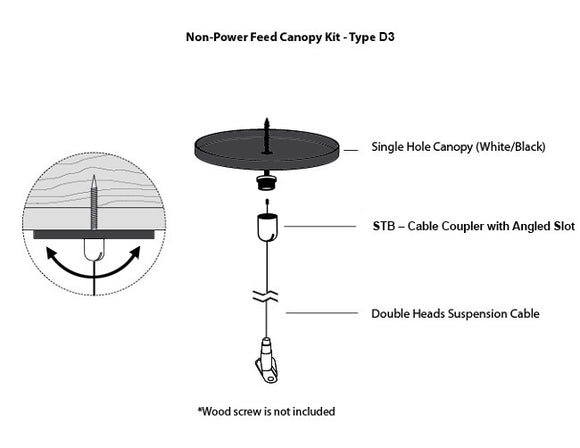

2. Using Ceiling Screw - with canopy (Type D3); without canopy (Type G3)

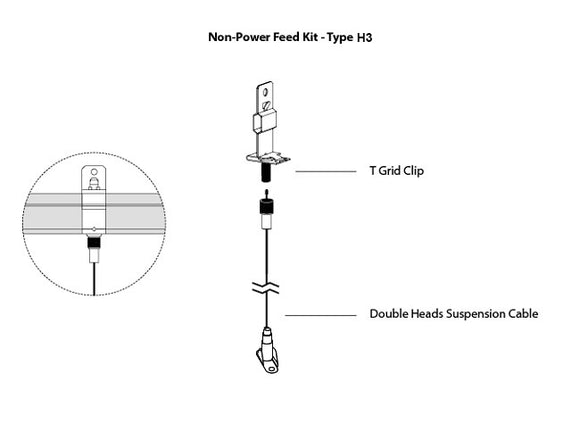

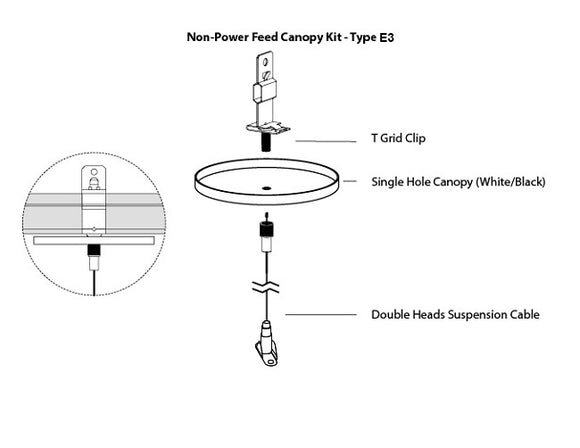

3. Using T-Grid Clip - with canopy (Type E3); without canopy (Type H3)

Each suspension cable is 6.5ft long.

LED Linear Light L8070 Suspension Kit Specification

It is recommended to use two suspension kits for each L8070 straight 4ft or 8ft LED linear light, and three suspension kits for each L-shaped, 120° L-shaped, T-shaped or cross-shaped LED linear light.

Compatible product:

LED Linear Light L8070
