LED Linear Light - L8070 - Wall Wash Lens - 2ft

The L8070 Series Linear Light with Wall Wash Lens is designed to deliver smooth, uniform illumination across vertical surfaces, making it ideal for accenting walls with precision and elegance. This advanced optical lens distributes light evenly from top to bottom, eliminating shadows and imperfections while emphasizing textures, architectural elements, or display features. The clean 2.75-inch profile fits seamlessly into modern interiors and is available in 2ft, 4ft, and 8ft lengths. With selectable color temperatures (3000K / 3500K / 4000K), 0–10V dimming, and mounting flexibility, the Wall Wash version of the L8070 is the perfect solution for highlighting feature walls, signage or art in both commercial and residential environments.

Product Details

• Features precision-engineered Wall Wash Lens for vertical light distribution
• Eliminates shadows and highlights wall surfaces evenly
• Available in 2ft, 4ft, and 8ft lengths

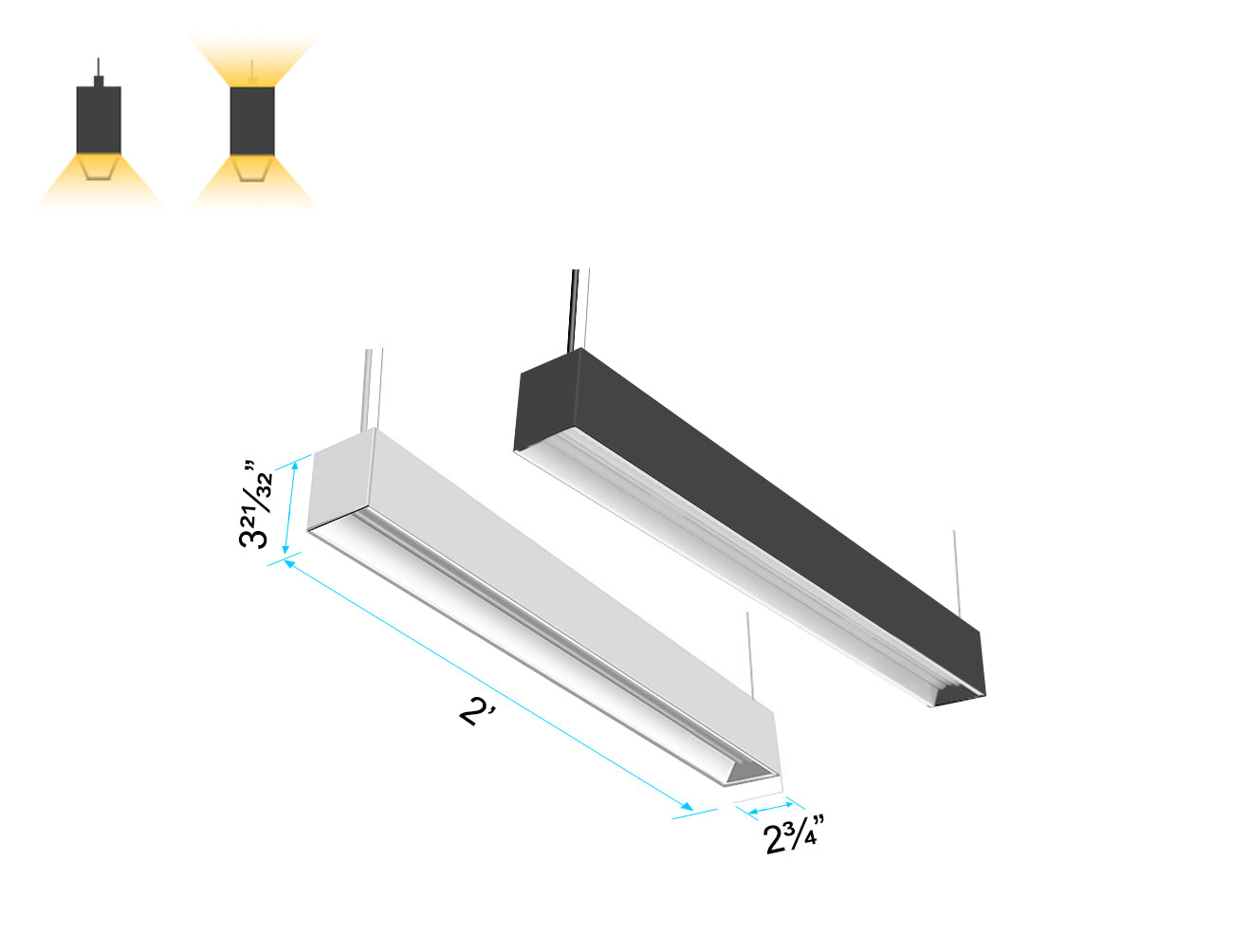

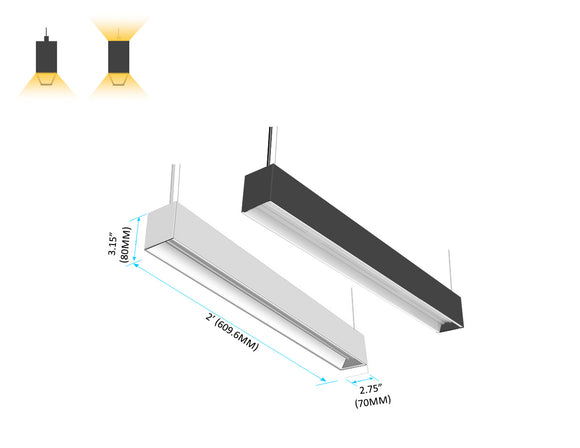

• Slim profile: 2.75-inch width for architectural integration

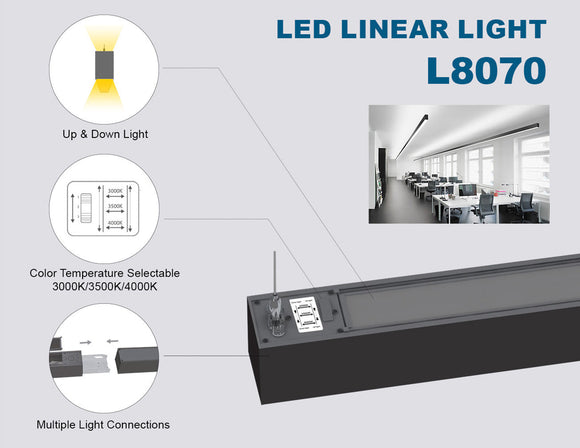

• Selectable color temperature: 3000K / 3500K / 4000K
• High performance: up to 115 lm/W efficiency
• 0–10V dimmable, CRI 90+ for color clarity

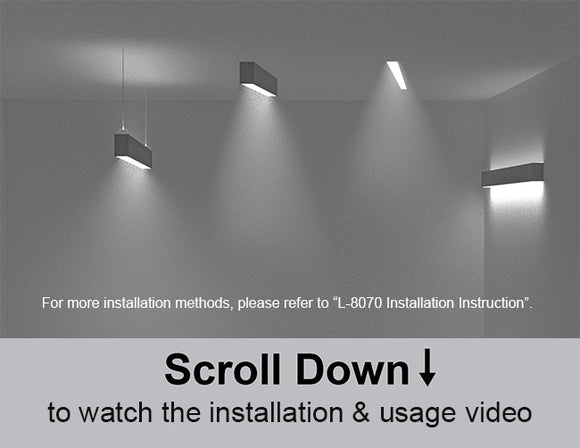

• Multiple mounting methods: suspended, recessed, or surface
• Available in black or white finishes

Applications

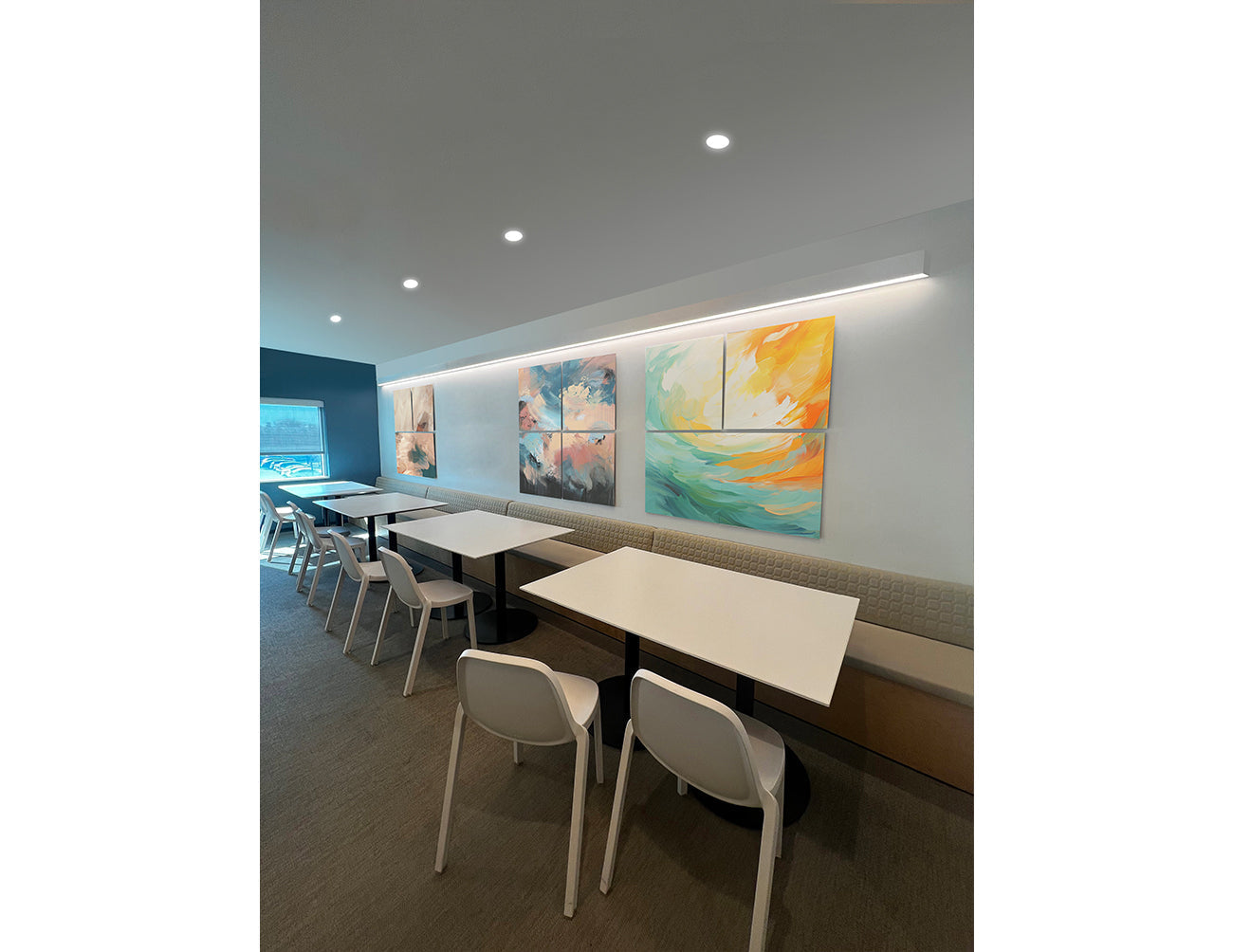

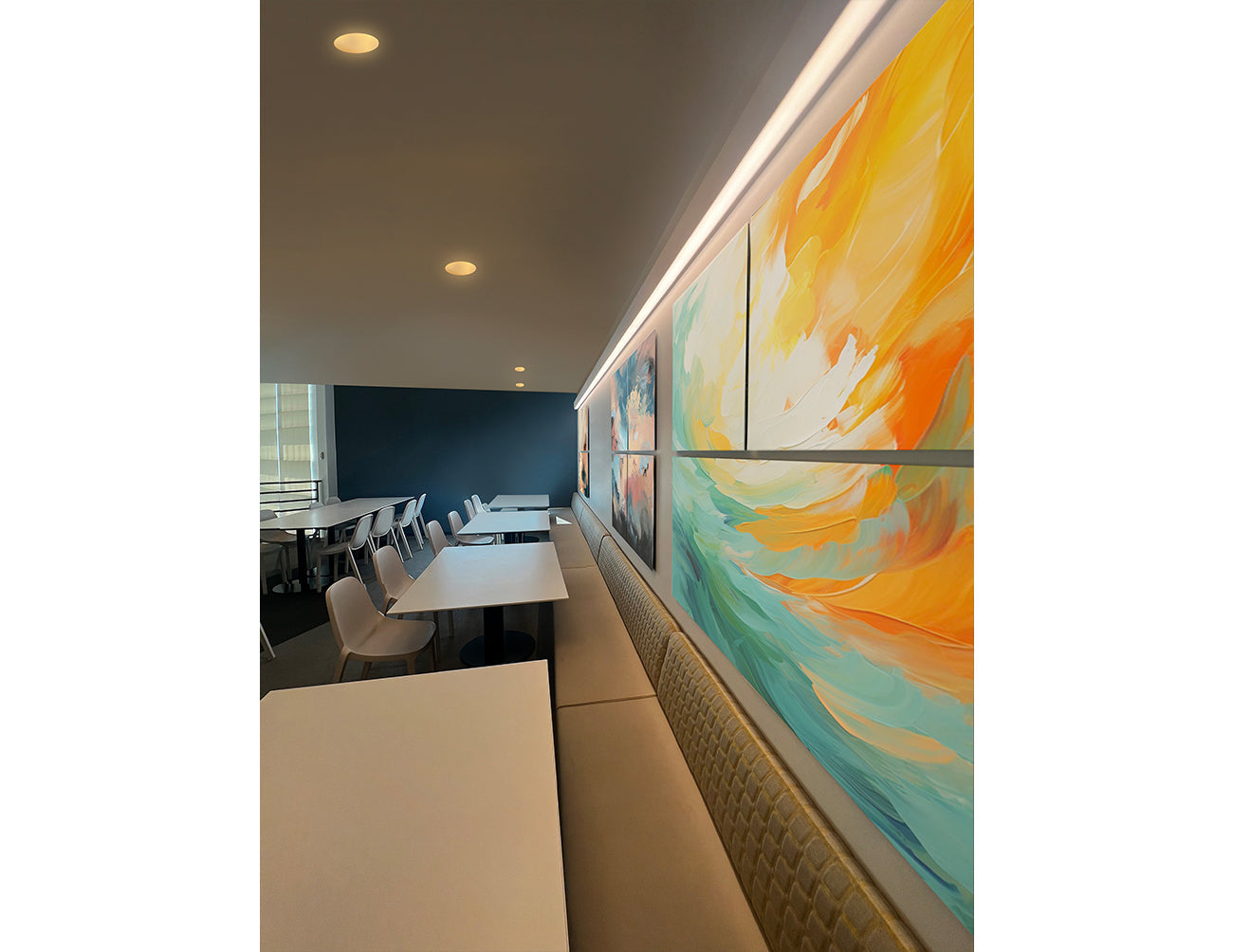

• Art galleries & museums: highlight artwork and exhibits with smooth wall illumination
• Retail stores: showcase merchandise and branding with enhanced visual focus
• Hospitality interiors: illuminate textured feature walls in hotel lobbies or restaurants
• Corporate offices: create statement backdrops in reception areas and meeting rooms
• Residential spaces: enhance stone or wood accent walls with clean, indirect lighting
• Signage: evenly light up signs and graphic panels
• Theaters & entertainment venues: set mood and highlight architectural surfaces

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

Specification

Q&A:

1. What is a wall wash lens, and how does it improve lighting performance?

A wall wash lens is a specially designed optical component that directs light evenly across vertical surfaces, from top to bottom. Unlike standard diffusers, it ensures uniform brightness, eliminates shadows, and enhances the appearance of textures, colors, and materials. This type of lens is ideal for highlighting artwork, architectural walls, and displays where visual presentation is key.

2. Is the Wall Wash Lens Linear Light suitable for both commercial and residential use?

Yes, the L8070 Wall Wash Linear Light is designed for versatile applications in both commercial and residential spaces. It’s ideal for illuminating walls in offices, retail stores, galleries, hotels, restaurants, and high-end homes.

3. What mounting options are available for this fixture?

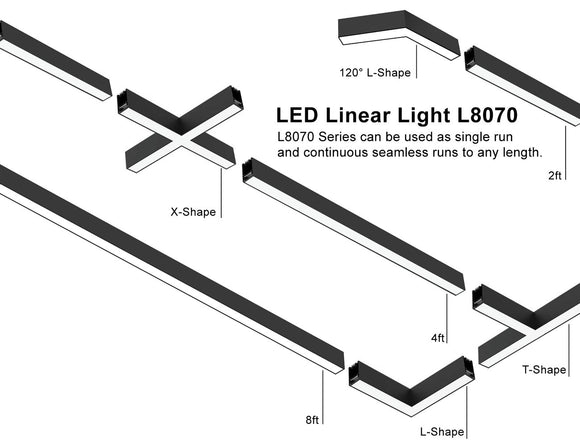

The linear light supports three primary mounting methods: suspension, surface mount, and recessed installation, allowing it to adapt to a wide range of ceiling conditions. It is available in 2ft, 4ft, and 8ft lengths and supports single or continuous runs.
