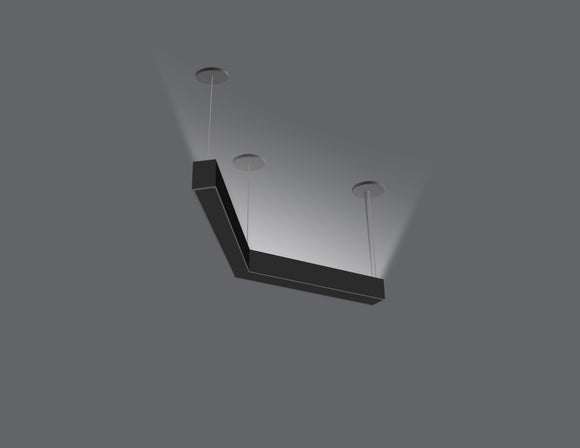

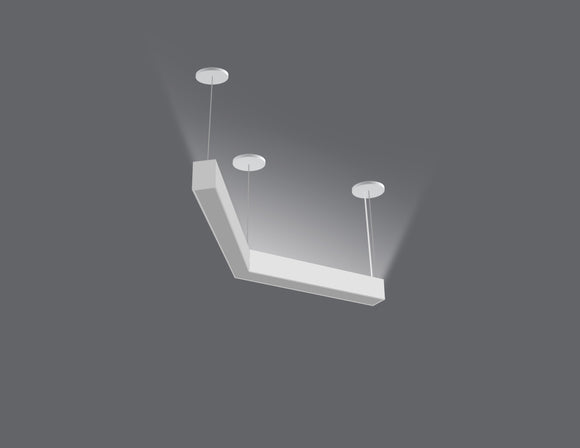

LED Linear Light - L8070 - Up Light - 120°L Shape

The L8070 Up Light Linear Fixture offers a refined approach to modern interior lighting by directing illumination solely upward. This creates a calm, atmospheric glow that reflects gently from the ceiling, removing direct exposure to the light source and eliminating glare. The result is a comfortable and stylish environment that supports both productivity and relaxation. Designed with a slim 2.75-inch body, it’s available in 2ft, 4ft, 8ft, L-shape, 120°L-shape, T-shape, X-shape and Y-shape sizes to suit a range of applications. With dimmable functionality, selectable color temperatures, and sleek black or white finishes, this up light seamlessly integrates into architectural, commercial, and residential spaces.

Product Details

• Emits upward-only light for elegant ambient effect
• Delivers a soft glow with no visible glare

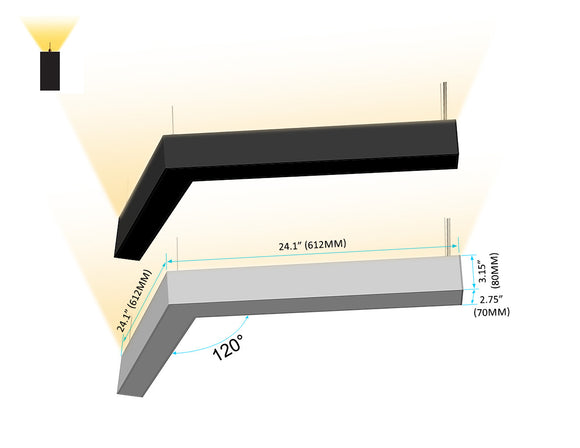

• Sleek 2.75" width; lengths: 2ft, 4ft, 8ft, L-shape, 120°L-shape, T-shape, X-shape and Y-shape
• Color temperature options: 3000K / 3500K / 4000K
• Up to 115 lm/W efficiency
• 0–10V dimmable, CRI 90+ for color fidelity
• Versatile installation: suspended or wall-mounted
• Choose from white or black finishes

Applications

• Workspaces: ambient ceiling lighting
• Conference areas: creates a warm, welcoming meeting atmosphere
• Schools & training centers: glare-free light for concentration
• Healthcare interiors: indirect light enhances patient comfort
• Hotels & lounges: adds a premium feel to common areas
• Retail interiors: clean ceiling lighting for product displays
• Home interiors: stylish indirect lighting for living or dining rooms


Documents

• L8070 Linear Light - V3 Specification
• L8070 Linear Light - White - V2 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

L8070 Linear Light - V3

L8070 Linear Light - White - V2

Q&A:

1. Why Choose Linear LED Lighting?

Linear LED lighting is the preferred choice for modern commercial, architectural, and interior design projects due to its clean aesthetics, energy efficiency, and seamless illumination. The L8070 Series by GL LED stands out because it offers superior versatility in both form and function. Designed with a slim, contemporary profile, these linear LED fixtures deliver uniform lighting across a wide area—making them ideal for offices, retail stores, hospitality environments, and even upscale residential spaces.

2. What Are the Differences Between Suspended and Surface Mounting Setups?

Suspended and surface-mounted linear lighting installations each offer distinct advantages depending on the architecture and desired visual effect of the space. Suspended linear LED lights are hung from the ceiling using adjustable cables and canopy kits. This setup creates a floating, modern appearance. On the other hand, surface-mounted setups offer a clean, functional look without the need for additional suspension hardware.

3. How Can I Select the Most Suitable Linear Light for My Commercial Application?

Choosing the appropriate linear LED lighting for a commercial environment involves evaluating factors such as spatial layout, lighting objectives, and desired visual impact. Assess lumen output to ensure adequate brightness levels, and select a color temperature that aligns with the space's function and mood. The mounting option also plays a key role—suspended fixtures create a bold visual statement, while recessed installations offer a seamless, minimalist finish. GL LED’s versatile product line supports customization in form, finish, and installation configuration, making it easy to tailor lighting solutions to any commercial design vision.
