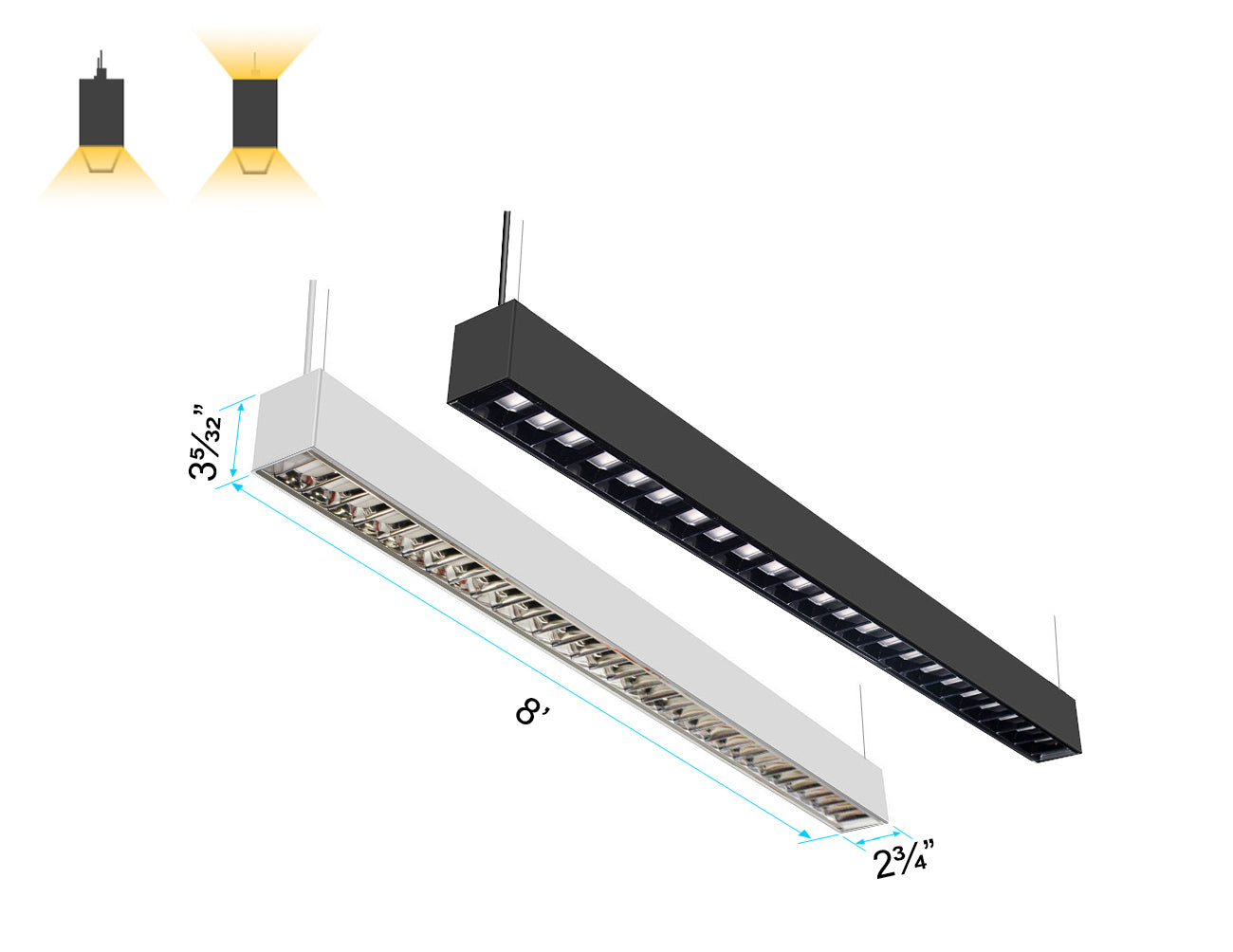

LED Linear Light - L8070 - Parabolic Lens - 8ft

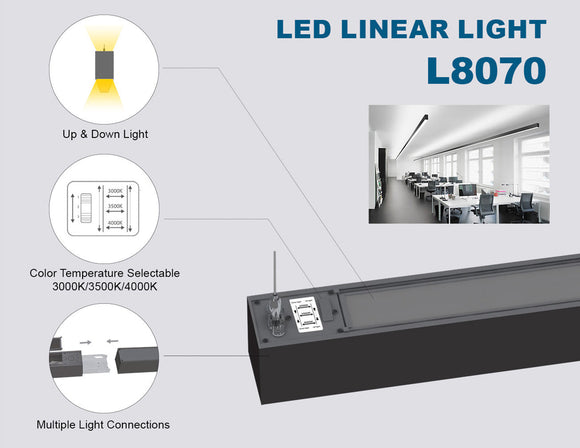

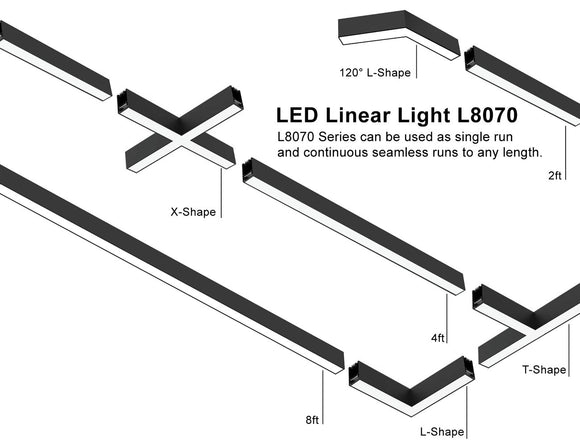

The LED Linear Light L8070, which incorporates a Parabolic Lens, is meticulously designed for accurate illumination in modern architectural settings. Its most prominent feature is the parabolic lens, which is engineered to deliver controlled, low-glare lighting that improves visual comfort. Unlike traditional lenses, the parabolic design effectively directs light, minimizing glare and hot spots, making it ideal for offices, galleries, and retail environments where clarity and ambiance are crucial. This advanced optical technology ensures consistent light distribution while maintaining high efficiency and an elegant appearance. Featuring selectable CCT options (3000K, 3500K, 4000K), 0–10V dimming capabilities, and modular linking options, the L8070 Parabolic Lens fixture seamlessly combines functionality with performance—perfect for spaces that demand both energy efficiency and exceptional lighting quality without compromising on design.

Product details

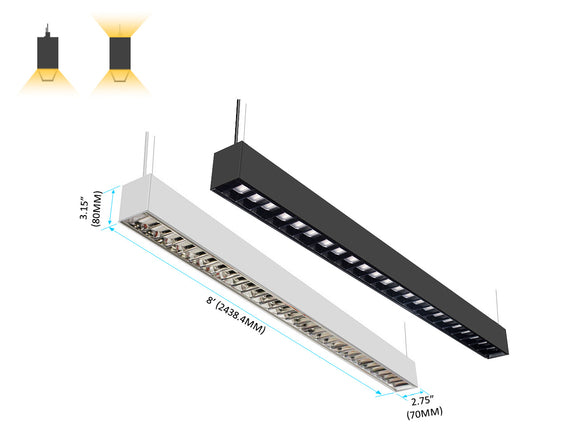

• The 8ft LED Linear Light featuring a sleek parabolic lens for optimal light distribution.
• Designed for commercial and industrial settings, this energy-efficient fixture offers high brightness with minimal glare, ensuring a comfortable environment.
• Easy to install and maintain, it provides long-lasting performance with a durable, high-quality build.
• Perfect for warehouses, factories, or large retail areas, the L8070 model combines modern design with reliable illumination, enhancing productivity and safety in any large-scale space.

Applications

• The GLLEDU 8ft LED Linear Light with a parabolic lens is ideal for illuminating large, open spaces such as warehouses, manufacturing facilities, gymnasiums, and retail stores.
• Its high-efficiency design provides uniform, glare-free lighting that enhances visibility and safety in industrial environments.
• Perfect for offices, parking garages, and educational institutions, this fixture ensures consistent light distribution across extensive areas.
• Its energy-efficient operation reduces operational costs while maintaining excellent brightness.

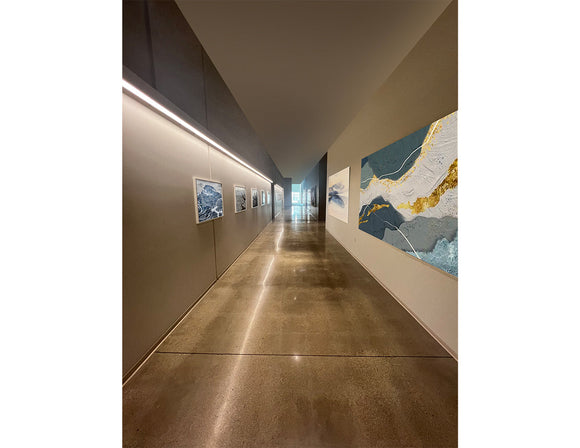

• Great for art galleries and museums due to its controlled light distribution.
• The durable construction makes it suitable for different environments, making the LED linear light a versatile and reliable lighting solution for various commercial and industrial applications.

Documents

• LED Linear Light L8070 Specification

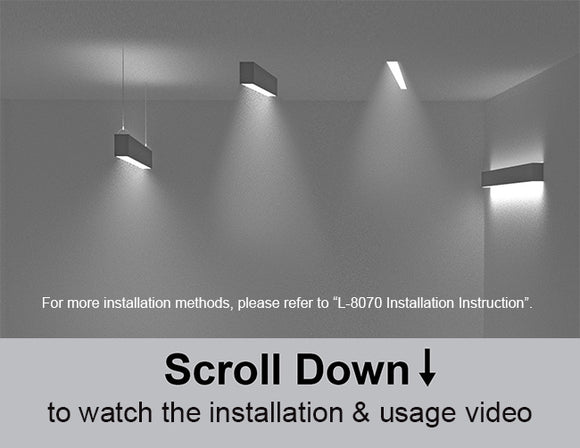

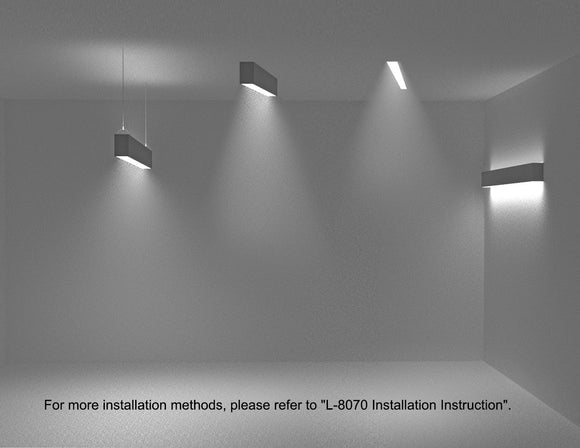

• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification:

Input Voltage		120-347VAC
Type		Parabolic Lens 2ft	Parabolic Lens 4ft	Parabolic Lens 8ft
Power	Up Light	20W	40W	70W
	Up & Down Light	25W	50W	100W
	Down Light	20W	40W	70W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm
	Up & Down Light	2875lm	5750lm	11500lm
	Down Light	2300lm	4600lm	8050lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the key features of the GLLEDU 8ft LED Linear Light with parabolic lens?

A: This LED linear light features an 8-foot length with a parabolic lens for optimal light distribution, providing high brightness with minimal glare. It is energy-efficient, long-lasting, and designed for commercial and industrial use, offering durable construction and easy installation.

Q2: Is this LED linear light suitable for large commercial spaces?

A: Yes, the 8ft LED linear light is ideal for large areas such as warehouses, factories, retail stores, and gymnasiums, providing uniform illumination across expansive spaces with reduced energy consumption.

Q3: How does the parabolic lens improve the lighting performance?

A: The parabolic lens focuses and directs light evenly, reducing glare and hotspots, which ensures comfortable, consistent illumination throughout the space, enhancing safety and productivity.

Instruction Video:
