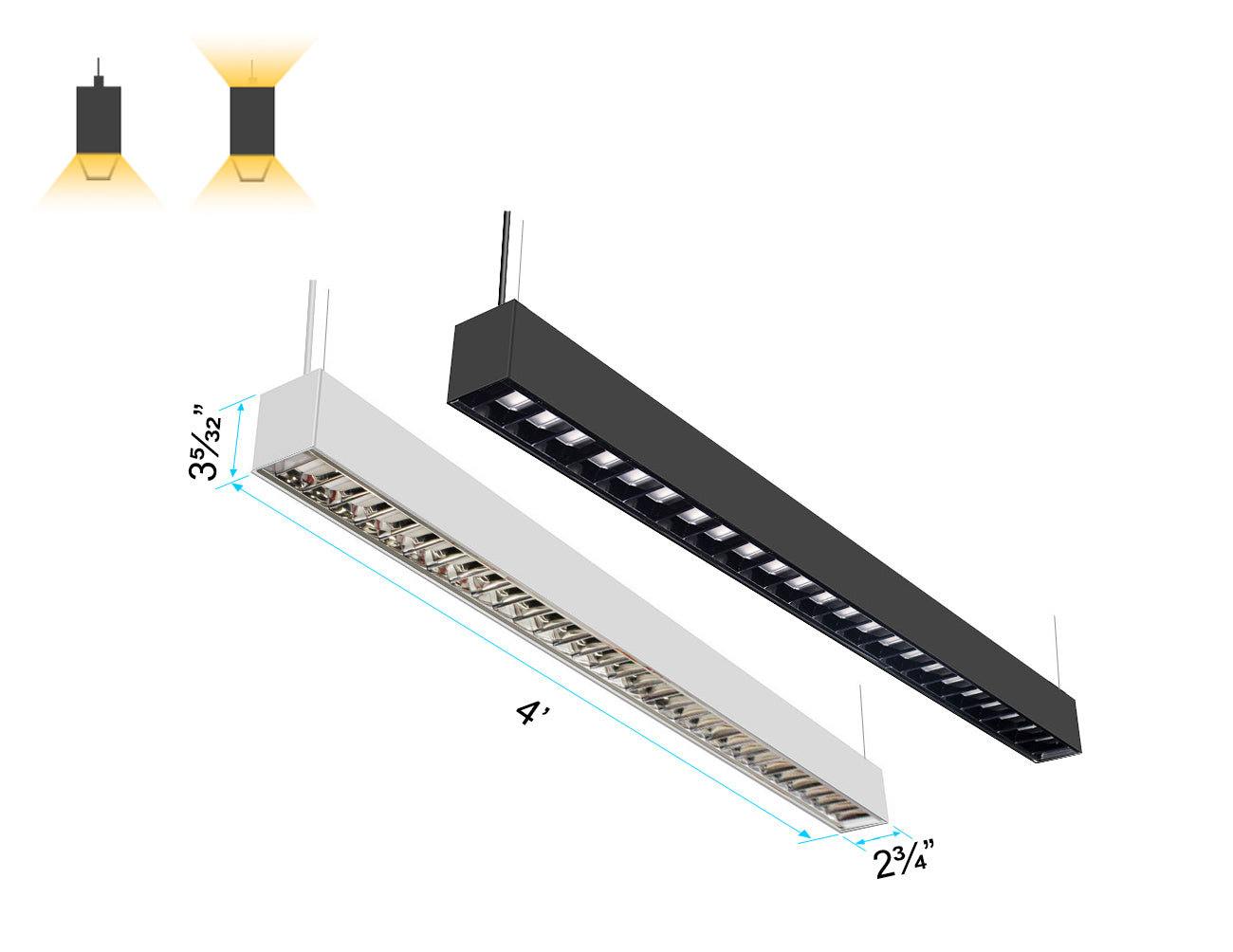

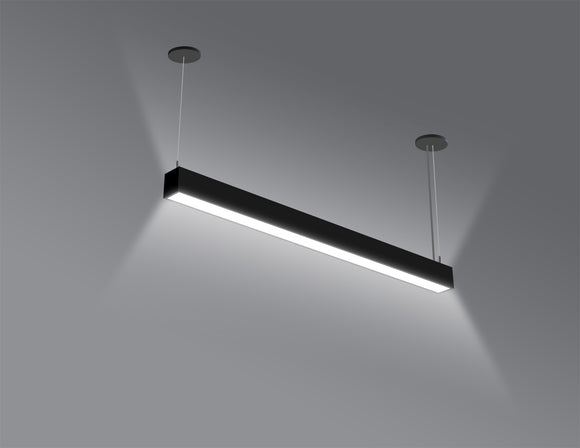

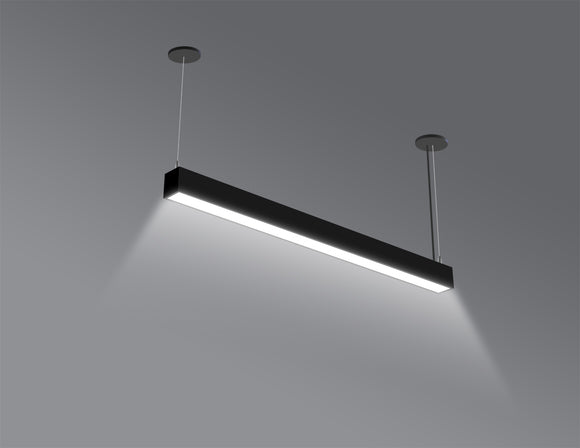

LED Linear Light - L8070 - Parabolic Lens - 4ft

The LED Linear Light L8070 featuring a Parabolic Lens is specifically crafted for precise illumination in contemporary architectural environments. Its most notable characteristic is the parabolic lens, designed to provide controlled, low-glare lighting that enhances visual comfort. In contrast to conventional lenses, the parabolic design accurately directs light, reducing glare and hot spots, making it suitable for offices, galleries, and retail spaces where clarity and atmosphere are essential. This sophisticated optical technology guarantees uniform light distribution while ensuring high efficiency and a sleek appearance. Equipped with selectable CCT options (3000K, 3500K, 4000K), 0–10V dimming, and modular linking features, the L8070 Parabolic Lens fixture merges functionality with performance—ideal for environments that require both energy efficiency and superior lighting quality without sacrificing design.

Product details

• Length: 2 feet (modular and linkable for continuous runs).
• Lens Type: Parabolic lens for low-glare, controlled light distribution.

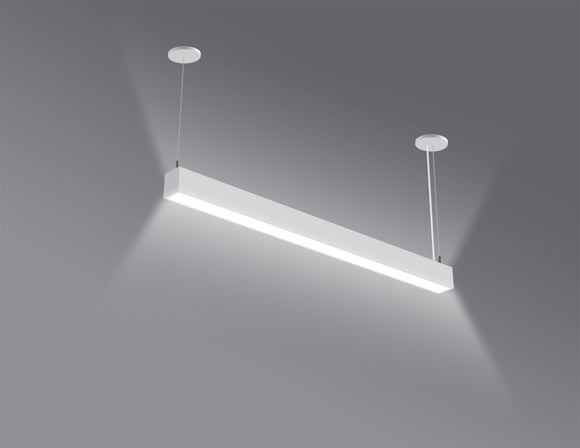

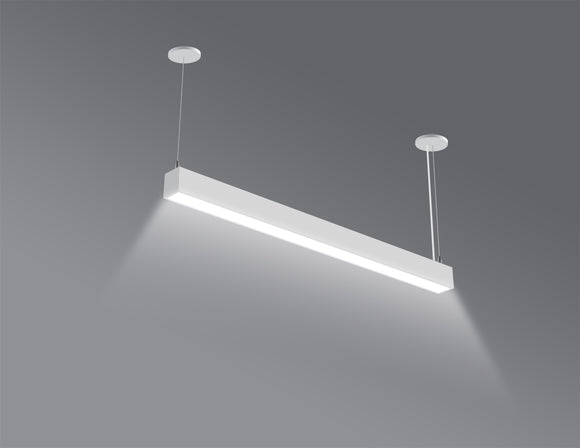

• Power Consumption: 20W (Down-only or Up-only); 25W (Up & Down).
• Color Temperature: Selectable – 3000K, 3500K, 4000K.
• CRI: 90+ for high color accuracy.
• Dimming: 0–10V compatible.

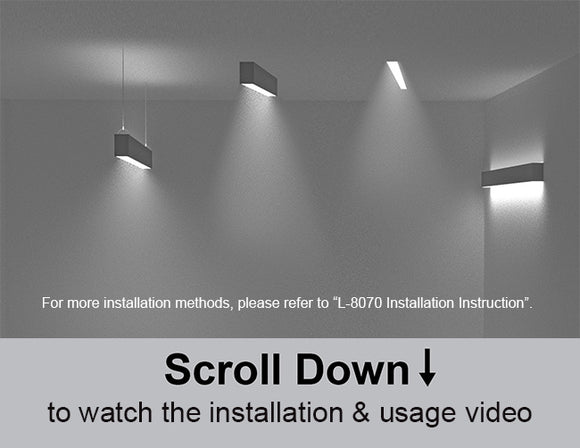

• Mounting Options: Pendant, surface mount, wall mount, recessed.

Applications

• Perfect for corporate offices in need of low-glare, comfortable ambient lighting.
• Appropriate for educational institutions such as classrooms and libraries.
• Outstanding for healthcare settings that demand uniform, glare-free illumination.
• Ideal for retail environments to showcase products with precise lighting.
• Well-suited for art galleries and museums because of its controlled light distribution.

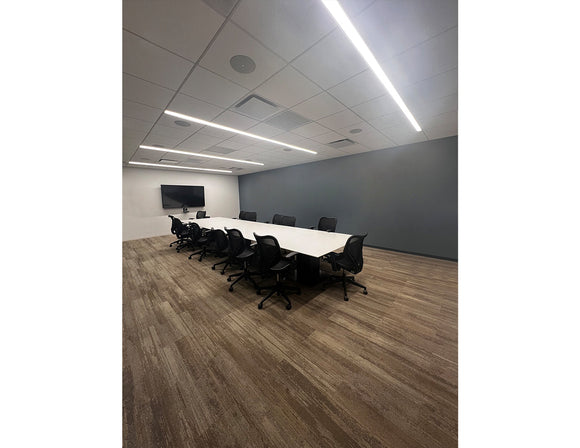

• Utilized in conference rooms and meeting spaces to ensure visual clarity.
• Appropriate for hospitality environments like hotels and lounges.
• Can be installed in hallways, lobbies, and reception areas.

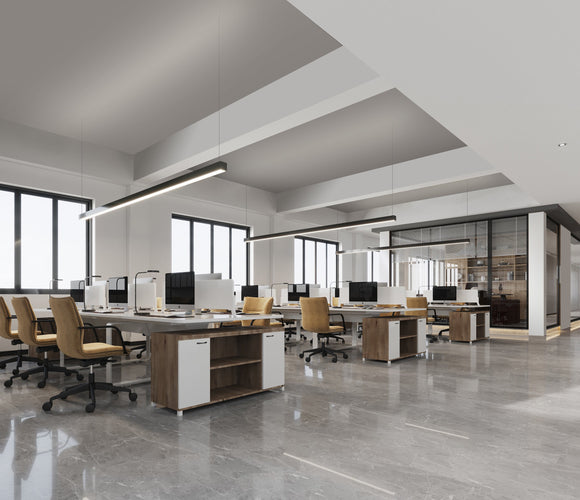

• Functions effectively in open-plan workspaces with modular linking capabilities.
• Perfect for projects that require contemporary architectural lighting design.

Documents

• LED Linear Light L8070 Specification
• 4FT Linear light-Parabolic Lens-IES-File
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification:

Input Voltage		120-347VAC
Type		Parabolic Lens 2ft	Parabolic Lens 4ft	Parabolic Lens 8ft
Power	Up Light	20W	40W	70W
	Up & Down Light	25W	50W	100W
	Down Light	20W	40W	70W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm
	Up & Down Light	2875lm	5750lm	11500lm
	Down Light	2300lm	4600lm	8050lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the advantages of the parabolic lens linear light?

A: The parabolic lens provides controlled, low-glare light distribution, reducing eye strain and enhancing visual comfort. It’s ideal for professional environments like offices, schools, and healthcare spaces that demand precise and uniform lighting.

Q2: What are the power and brightness specifications for the 4ft linear light?

A: The fixture uses 20W in single-direction (up or down) mode and 25W in dual-direction (up & down) mode. It delivers 2,300 lumens in one direction and 2,875 lumens when both directions are used.

Q3: Is the linear light suitable for different mounting applications?

A: Yes, the L8070 supports pendant (suspended), surface mount, wall mount, and recessed mounting, offering great flexibility for various interior design and lighting layout needs.
