LED Linear Light - L8070 - Parabolic Lens - 2ft

Free

The LED Linear Light L8070 with Parabolic Lens is designed for precision lighting in modern architectural spaces. Its standout feature is the parabolic lens, engineered to deliver controlled, low-glare illumination with enhanced visual comfort. Unlike standard lenses, the parabolic design precisely directs light, minimizing glare and hot spots, making it ideal for offices, galleries, and retail environments where clarity and ambiance matter. This advanced optical technology ensures uniform light distribution while maintaining high efficiency and a clean aesthetic. Paired with selectable CCT (3000K, 3500K, 4000K), 0–10V dimming, and modular linking capabilities, the L8070 Parabolic Lens fixture combines functionality with performance—perfect for spaces that demand both energy efficiency and lighting quality without compromising on design.

Product details

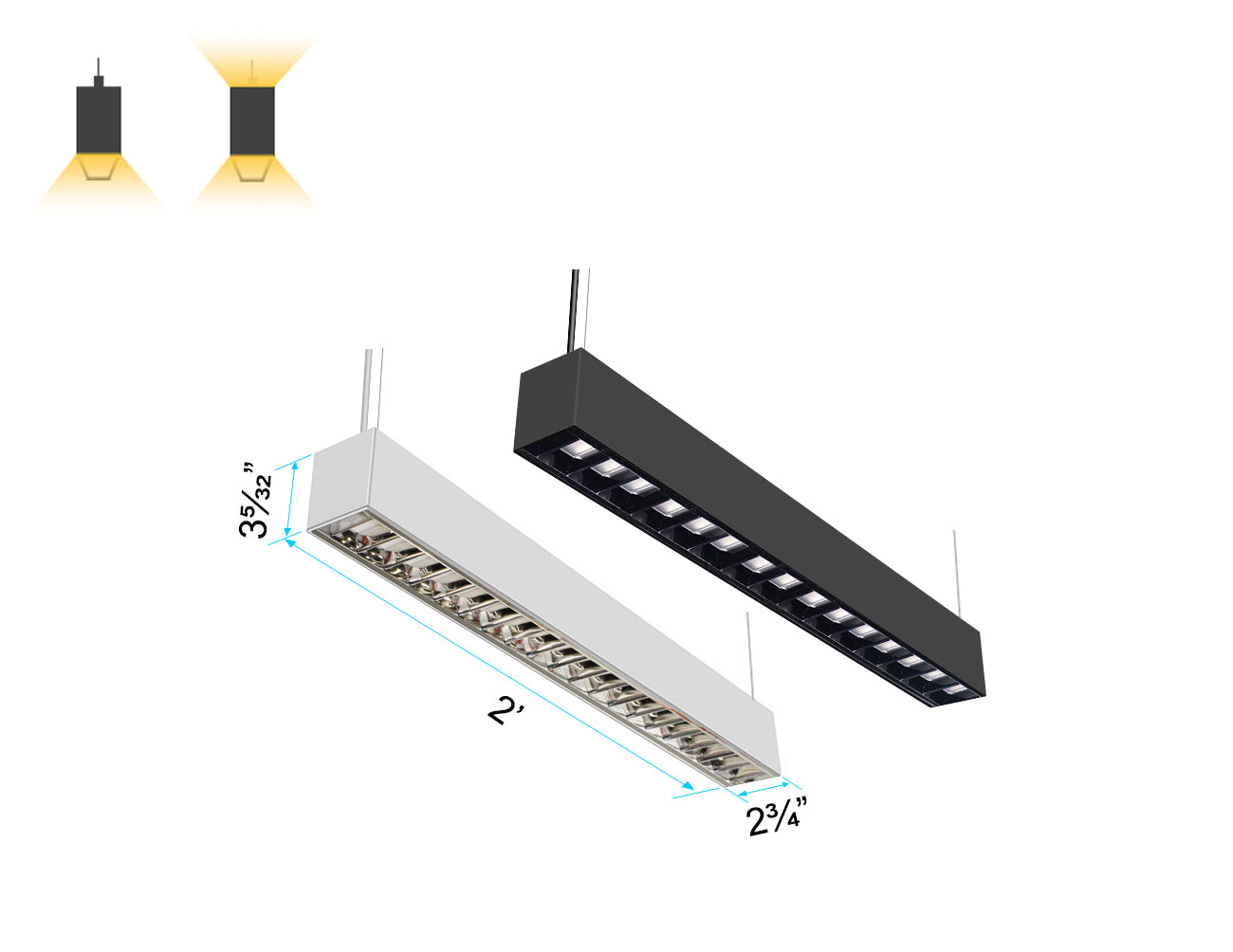

  • Length: 2 feet (modular and linkable for continuous runs).
  • Lens Type: Parabolic lens for low-glare, controlled light distribution.
  • Power Consumption: 20W (Down-only or Up-only); 25W (Up & Down).
  • Lumen Output: 2,300 lm (single direction); 2,875 lm (dual direction).

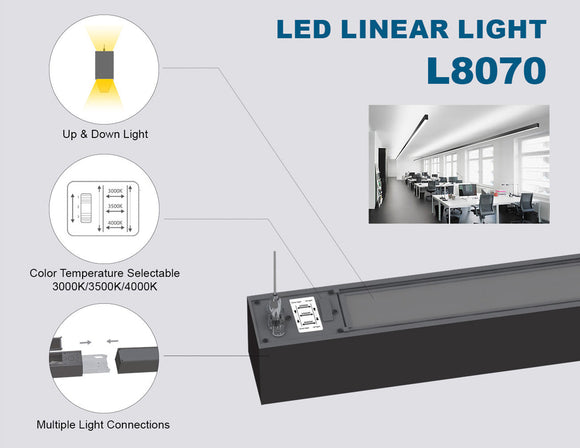

  • Color Temperature: Selectable – 3000K, 3500K, 4000K.
  • CRI: 90+ for high color accuracy.
  • Dimming: 0–10V compatible.

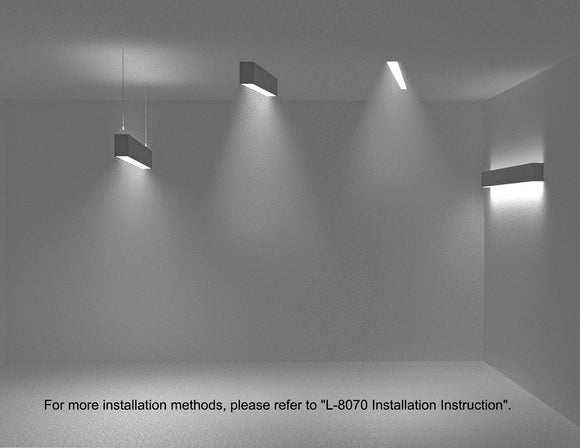

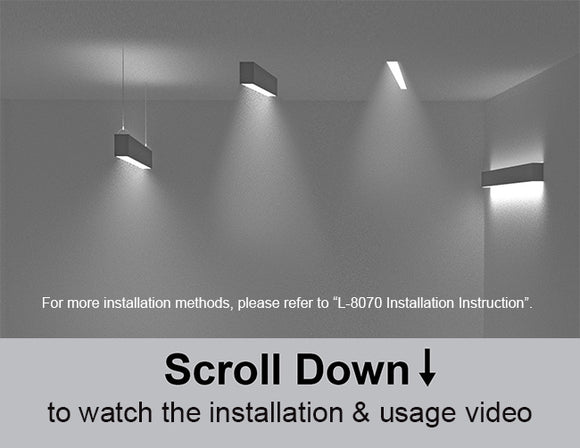

  • Mounting Options: Pendant, surface, wall mount, recessed.

Applications

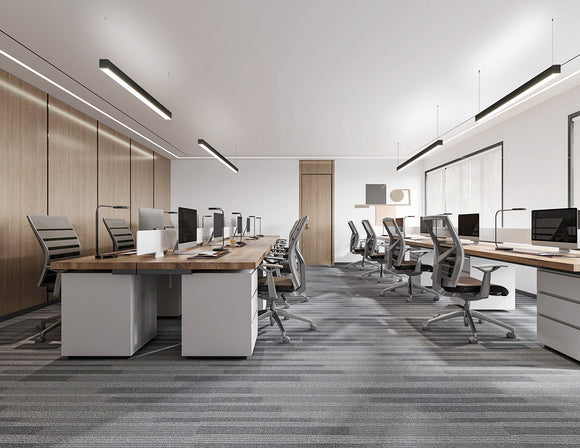

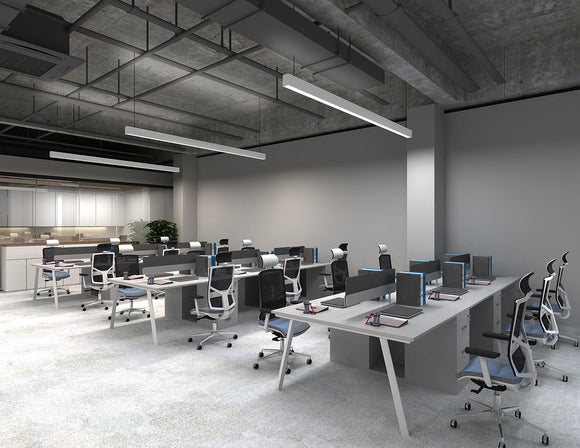

  • Ideal for corporate offices seeking low-glare, comfortable ambient lighting.
  • Suitable for educational facilities like classrooms and libraries.
  • Excellent for healthcare environments requiring uniform, glare-free illumination.
  • Perfect for retail spaces to highlight products with precision lighting.
  • Great for art galleries and museums due to its controlled light distribution.
  • Used in conference rooms and meeting areas for visual clarity.
  • Suitable for hospitality settings such as hotels and lounges.
  • Can be installed in corridors, lobbies, and reception areas.

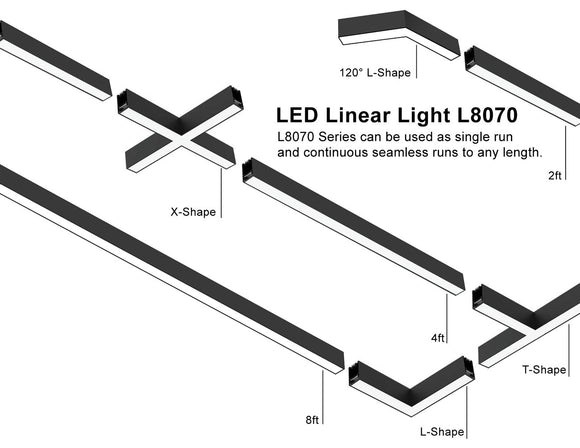

  • Works well in open-plan workspaces with modular linking options.
  • Ideal for projects requiring modern, architectural lighting design.

Documents



View Accessories



Specification:

Input Voltage 120-347VAC
Type Parabolic Lens 2ft Parabolic Lens 4ft Parabolic Lens 8ft
Power Up Light 20W 40W 70W
Up & Down Light 25W 50W 100W
Down Light 20W 40W 70W
Color Temperature
(Changeable)
3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)
Up Light 2300lm 4600lm 8050lm
Up & Down Light 2875lm 5750lm 11500lm
Down Light 2300lm 4600lm 8050lm
Efficacy(4000K) 115LM/W
Dimming 0-10V Dimming
CRI 90+
Location Dry Location
Finish Black, White


Q&A:

Q1: What makes the parabolic lens design beneficial in this 2-ft linear light?

A: The parabolic lens is engineered to minimize glare and provide precise light distribution. It delivers soft, uniform illumination ideal for environments that require visual comfort, such as offices, classrooms, and healthcare facilities.



Q2: Can the 2-ft Parabolic Lens linear light be dimmed or customized for color temperature?

A: Yes. It supports 0–10V dimming and features selectable CCT options of 3000K, 3500K, and 4000K, allowing for tailored lighting based on the application and ambiance needed.



Q3: What mounting options are available for this linear light?

A: The L8070 linear light offers versatile mounting choices, including pendant (suspended), surface-mounted, wall mount, and recessed installation, making it adaptable to a wide range of architectural settings.
