LED Linear Light - L8070 - No Glare Lens - 120° L Shape

Free

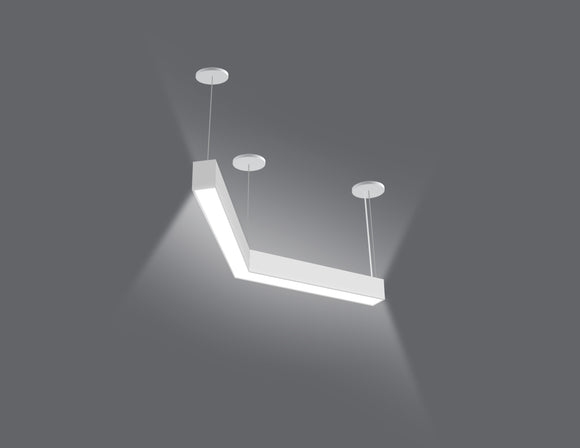

The L8070 Series 120° L-Shape Linear Light with No Glare Lens is an advanced lighting solution engineered for architectural precision and visual comfort. The no-glare optical design eliminates harsh reflections by diffusing light softly and uniformly, reducing visual strain. Its modular 120° L-shaped format enables seamless corner integration and continuous lighting runs, perfect for clean-edge designs. With a slim 2.75-inch profile, high luminous efficacy (up to 115 lm/W), 0–10V dimming, and tunable CCT (3000K / 3500K / 4000K), this fixture combines high performance with minimalistic elegance. Ideal for interiors that require glare-free, modern corner lighting from collaborative workspaces to boutique hospitality spaces.

Product Details

  • No-glare optical lens for eye-safe, soft light output

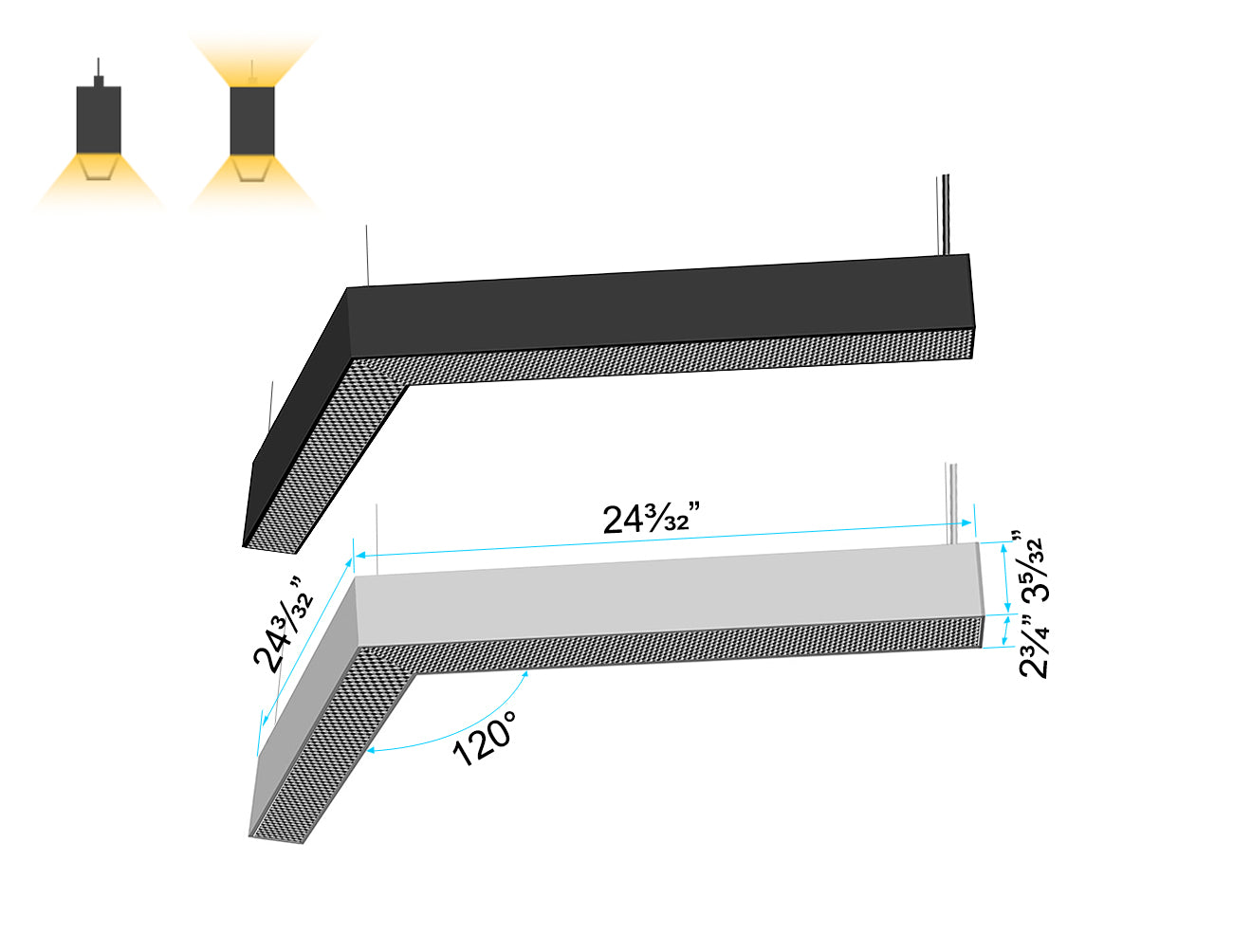

  • 120° L-shaped modular design for seamless corner transitions
  • Compact 2.75" architectural profile

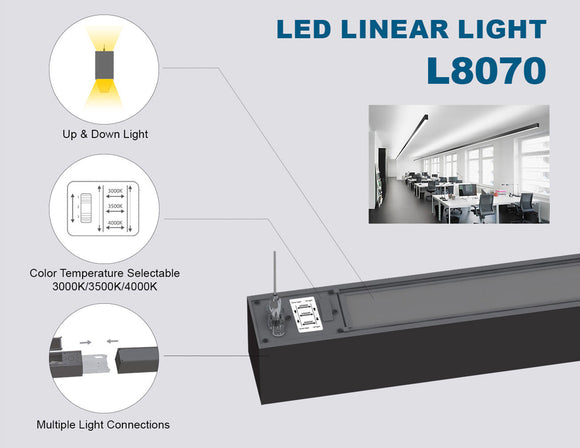

  • Selectable white light: 3000K / 3500K / 4000K
  • High efficiency: up to 115 lm/W, CRI 90+
  • 0–10V dimmable for lighting adaptability

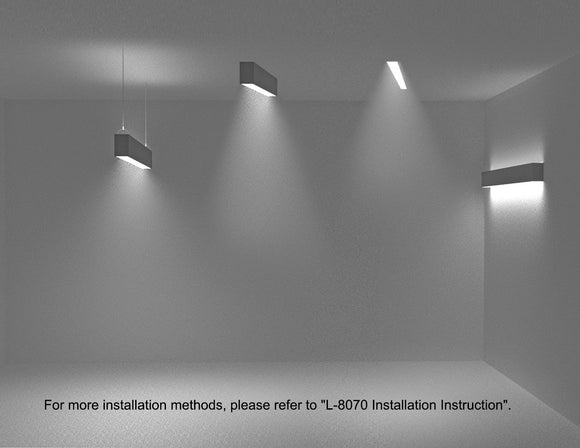

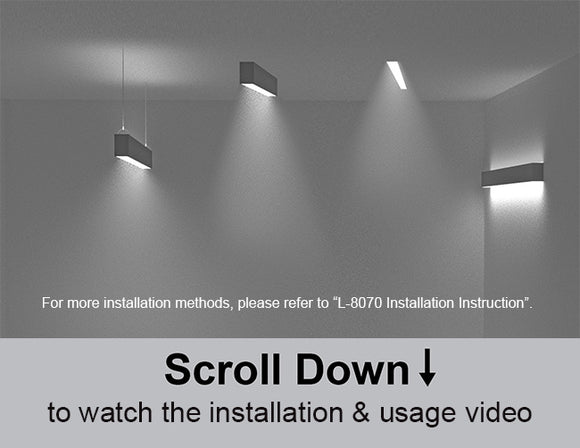

  • Compatible with surface, suspension, and recessed mounting

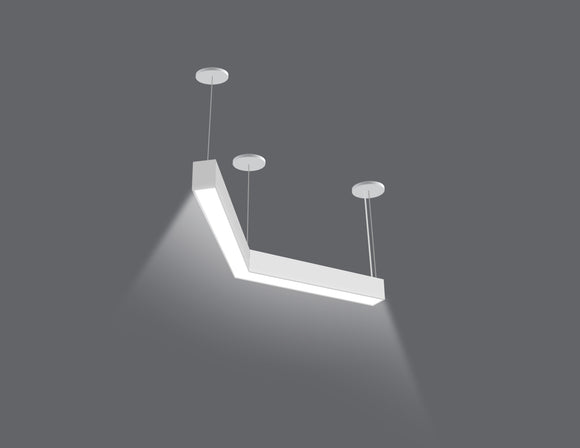

  • Finishes available in black or white

Applications

  • Workspaces & offices: boost productivity with clean corner lighting
  • Learning environments: soft light for classrooms, libraries, and study zones
  • Clinics & hospitals: reduce glare and enhance visual clarity in care areas
  • Retail environments: light corners and product walls without harsh spots
  • Boutique hotels & restaurants: elevate visual design
  • Contemporary homes: ideal for open-plan corners and ceiling transitions

Documents

View Accessories

Specification

Input Voltage 120-347VAC

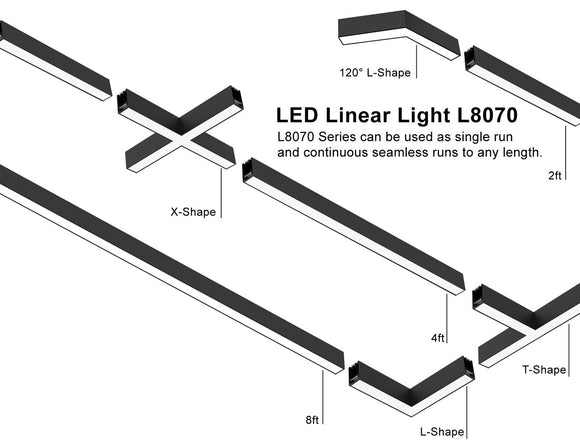

Type No Glare Lens 2ft No Glare Lens 4ft No Glare Lens 8ft No Glare Lens L Shape No Glare Lens 120° L Shape No Glare Lens T Shape No Glare Lens X Shape
Power Up Light 20W 40W 70W - - - -

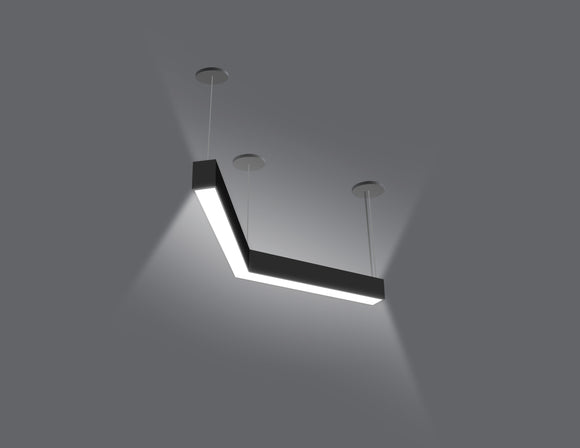

Up & Down Light 25W 50W 100W 30W 50W 40W 50W

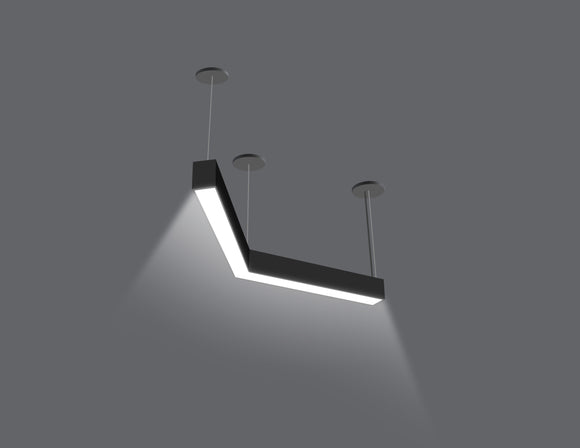

Down Light 20W 40W 70W 20W 40W 30W 50W
Color Temperature
(Changeable)
3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)
Up Light 2300lm 4600lm 8050lm - - - -
Up & Down Light 2875lm 5750lm 11500lm 3450lm 5750lm 4600lm 5750lm
Down Light 2300lm 4600lm 8050lm 2300lm 4600lm 3450lm 5750lm
Efficacy(4000K) 115LM/W
Dimming 0-10V Dimming
CRI 90+
Location Dry Location
Finish Black, White


Q&A:

1. What does CRI > 90 mean in a linear LED light?

CRI > 90 means the light renders colors with exceptional accuracy, close to natural daylight. This is vital in offices, retail stores, or studios where true-to-life color perception matters. A high CRI improves visibility and enhances the professional feel of any workspace. For commercial lighting applications, selecting a high CRI fixture ensures visual comfort and clarity. GL LED’s linear LED pendant lights, such as the L8070, are built with CRI > 90 for excellent performance.

2. What mounting option is best for office LED lighting?

For most office environments, suspended or T-grid recessed mounting provides the best results. Suspended LED pendant lights offer wide, even light distribution and a clean modern appearance. Recessed mounts deliver a flush, integrated finish in traditional drop ceilings. Surface mount is great for low ceilings or utility spaces. Each method offers unique benefits based on ceiling type and layout. GL LED’s architectural LED fixtures are available with all three options, making them adaptable for any professional workspace lighting need.

3. What dimming systems does this linear light support?

GL LED’s LED linear fixtures support 0–10V dimming, the common standard in professional lighting control systems. This allows smooth, flicker-free dimming from full brightness to low levels, ideal for adjusting ambiance. 0–10V dimming is compatible with wall-mounted dimmers and smart building systems alike.
