LED Linear Light - L8070 - Milky Flat Lens - Y Shape

The L8070 LED Linear Light with Milky Flat Lens in an Y-Shape from GLLED is a modern, high-efficiency lighting fixture designed for sophisticated commercial and architectural environments. Featuring a sleek Y-shaped configuration, it enables creative ceiling layouts while delivering even, glare-free illumination through its milky flat lens. Built with durable aluminum housing and advanced LED technology, it ensures optimal thermal management, energy efficiency, and long-lasting performance. Ideal for open office spaces, retail environments, galleries, and large public areas, this fixture supports seamless linkability for continuous lighting designs. Available in multiple color temperatures and dimmable with a 0-10V system, the L8070 Y-Shape offers both aesthetic appeal and practical functionality, making it a versatile choice for contemporary lighting applications.

Product details

• Durable aluminum housing with polycarbonate milky flat diffuser for smooth, glare‑free light.
• High color rendering (CRI ≥ 90) with selectable 3000K, 3500K, and 4000K color temperatures.
• 75 W power, delivering 6,750lm-7,500lm (at 4000 K) with 30 % up / 70 % down light distribution; 90-100lm/W efficacy.

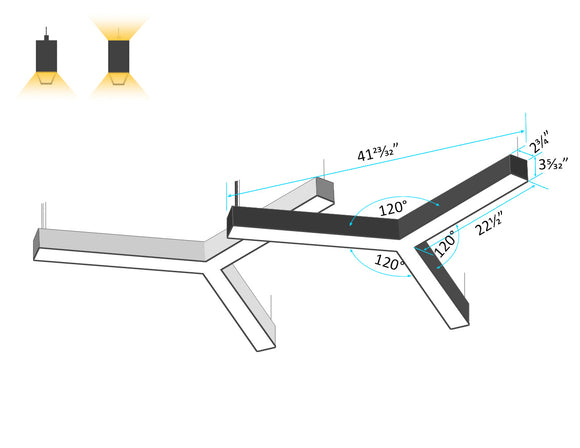

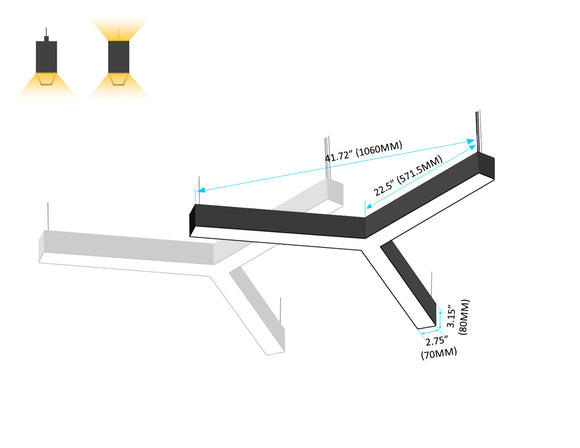

• Arms measure approximately 30.55″ each; works alone or links to form stylish continuous patterns.
• Flexible mounting: pendant, surface, or recessed (including T‑grid); compatible with linkable K‑K brackets..
• 0‑10 V dimming, available in black or white finish, for dry locations; backed by a 5‑year limited warranty.

Applications

• Ideal for residential buildings, providing stylish ambient lighting in living rooms or large foyer spaces.

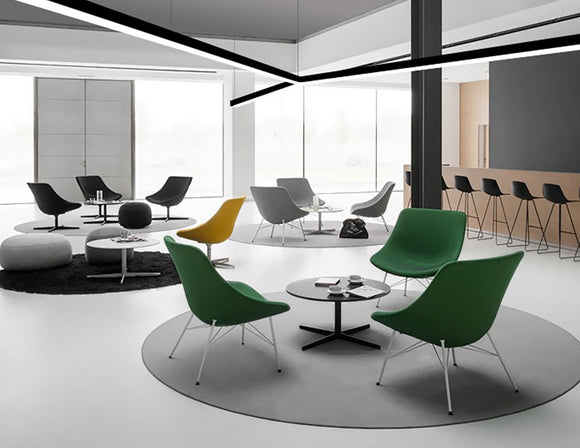

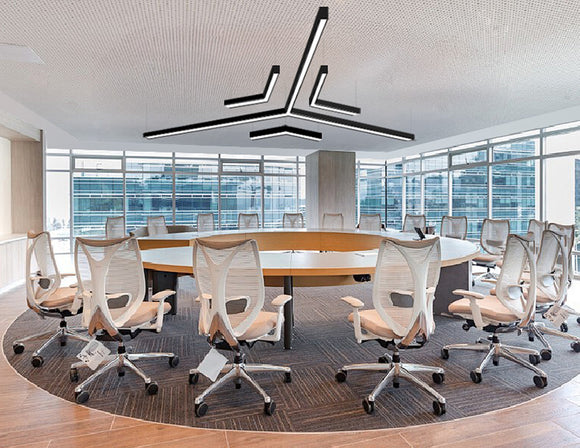

• Perfect for offices and meeting rooms, offering even, glare‑free illumination for productivity and collaboration.
• Enhances educational environments, such as schools and classrooms, with uniform lighting for optimal visibility.
• Great for retail settings, coffee shops, restaurants, grocery stores, and malls—delivering modern-looking, continuous lighting.
• Suited to both pendant and surface-mounted installations, as well as recessed ceilings—adaptable across various architectural needs.

Documents

• L8070 Linear Light - V3 Specification
• LED Linear Light L8070 X Shape IES
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

L8070 Linear Light - V3

Q&A:

Q1: What are the power consumption and light output specifications of the linear light Y‑Shape?

A: It consumes 75 W and produces 6,750lm-7,500lm at 4000 K. The light distribution can be down only (60W → 5,400lm-6,000lm) or up & down (same lumen output).

Q2: How long is each arm of the linear light X‑shape, and how can it be installed?

A: Each arm measures approximately 30.55" in length. The fixture can be installed as a suspended pendant, surface-mounted, or recessed into ceilings (including spring‑clamp and T‑grid options) with separate installation kits required.

Q3: Is the linear light X‑Shape dimmable and suitable for continuous runs?

A: Yes—it's compatible with 0‑10 V dimming for seamless brightness control. The fixture can operate individually or be linked with other L8070 units, using proper linkable brackets for continuous lighting layouts

Instruction Video:
