LED Linear Light - L8070 - Milky Flat Lens - T Shape

SKU: GL-L8070-UDT40WBDHV(30K-35K-40K)-T-BK-PC

Login to view price

As the newest model in our linear light family, GL LED L8070 architectural linear lights (up and down light continuous run) bring flexibility to the next level.

L8070 T-shaped linear light fixture features a durable aluminum case and polycarbonate diffusers, with high quality LED emitters inside to produce even and anti-glare lights. It has a high color rendering index CRI>=80, changeable color temperatures (3000K, 3500K & 4000K), and an output power of 50W to produce 4600 lumens at 4000K. With a up & down lighting option, 30% of the wattage/lumens are allocated up and 70% of the wattage/lumens are allocated down, which can be easily dimmed with a 0-10V dimmer switch (not included).

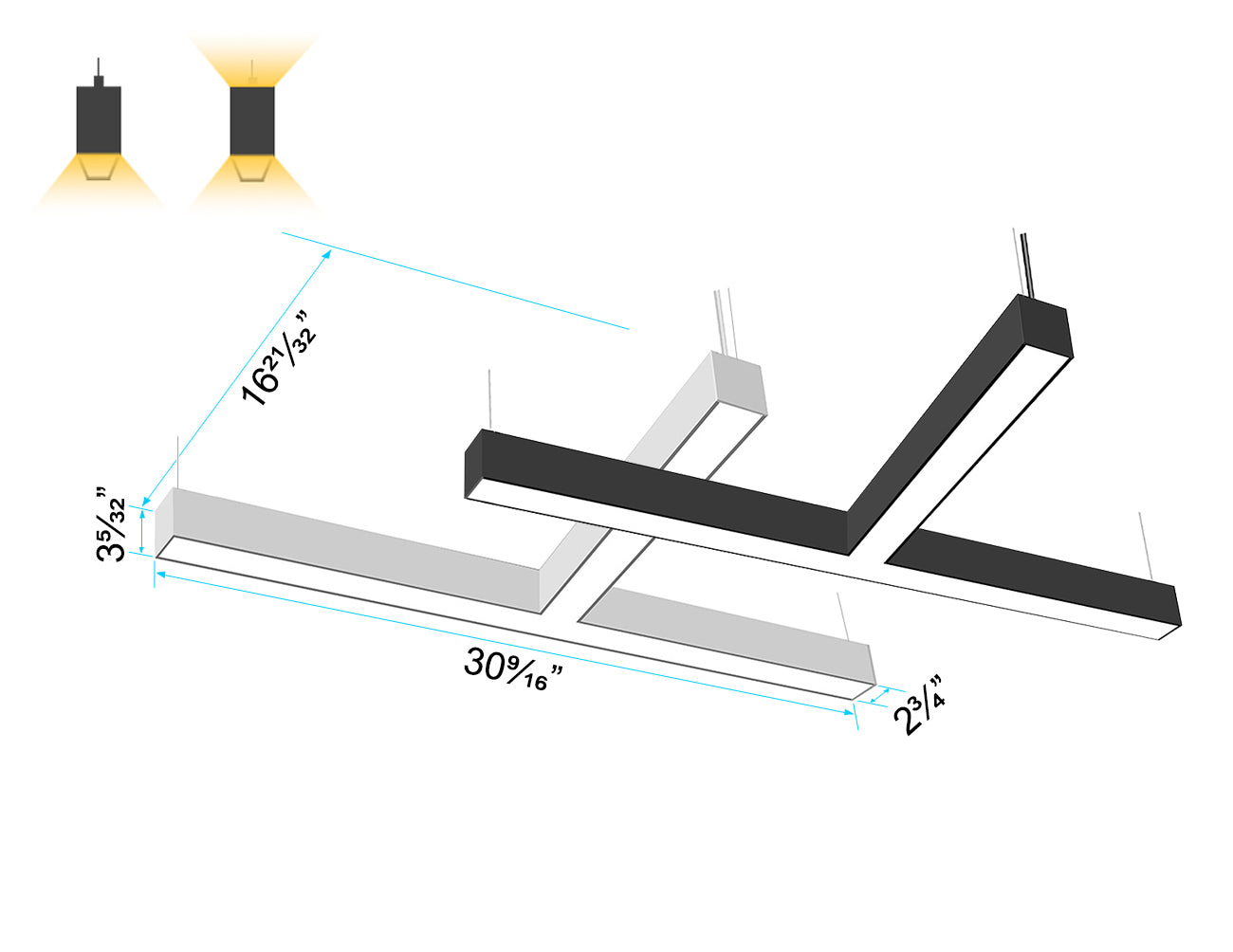

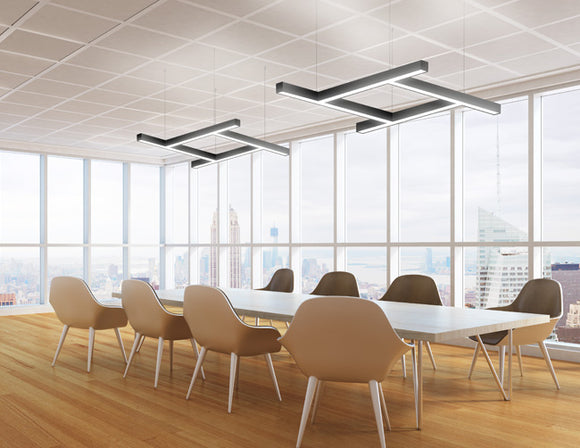

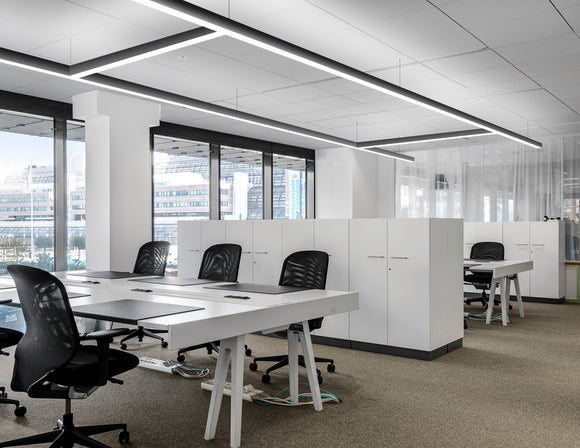

The T-shaped linear light fixture has two arms vertical to each other, 30-18/32” for one and 16-21/32” for the other one. Similar to other connecting shapes, the T-shaped linear light can not only bridge other L8070 linear light pieces in three ways and form a more stylish lighting appearance, but also work individually (single run) to present an aesthetics simplicity. L8070 T-shaped linear lights are ideal for application in residential buildings, offices, schools, meeting rooms, grocery stores, restaurants, coffee shops, retail stores, and malls etc.

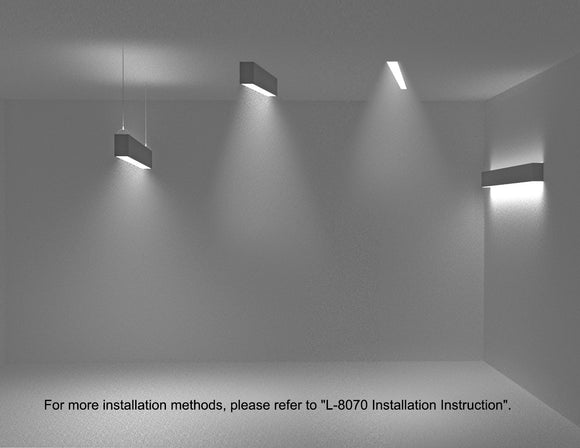

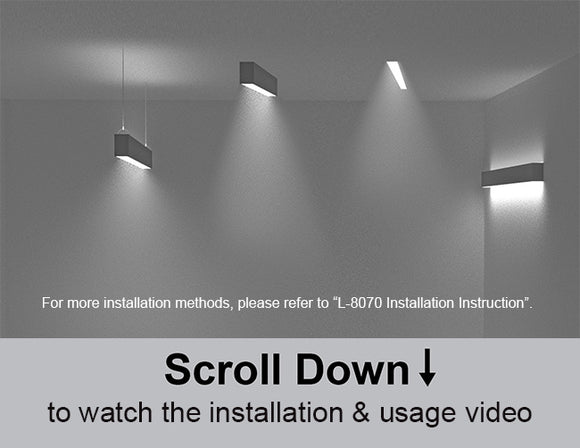

In terms of installations, this T-shaped linear light fixture can be suspended from ceilings as pendant light, surfaces mounted to ceilings when room height is limited, or ceiling recessed to fit low ceiling environment. Corresponding compatible kits are available (sold separately) to simplify the installations.

PLEASE NOTE: THIS ITEM NEEDS A SEPERATE INSTALLATION KIT TO BE INSTALLED. PLEASE REFER TO ACCESSORIES PAGE FOR SELECTIONS.

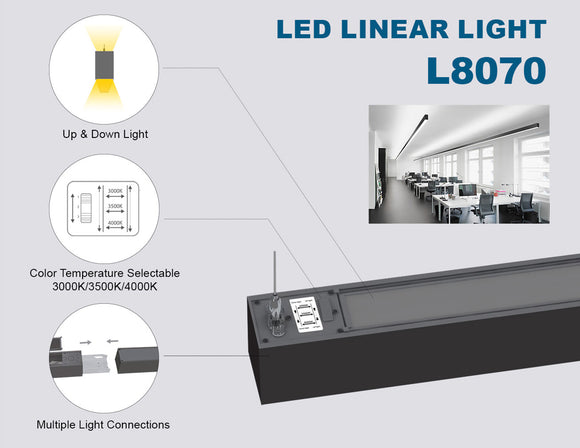

Features:
• Independently modular direct & indirect luminaries
• Connect to line voltage (120-347VAC) directly
• Changeable color temperatures (3000K, 3500K, and 4000K)
• Power efficiency 115LM/W at 4000K
• Single run and continuous run available
• Flexible mounting options (suspended; surface mounted; wall mounted; spring clamp recessed, and T-grid recessed)
• 0-10V dimming
• Options of down lighting or up and down lighting
• Options of white or black finish
• Optional motion sensor control and emergency backup
• FCC, ETL listed
• Dry Location
• Limited 5 years warranty

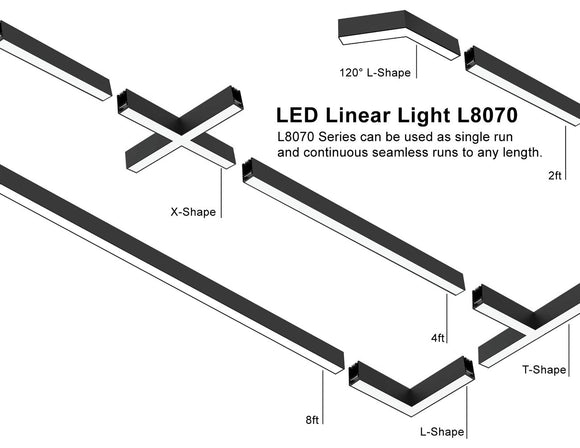

EXAMPLES OF POSSIBLE LIGHT FORMS Continuous seamless run when connected

Up and Down Continuous Run Linear Light L8070-UD Series:

Model

Length
4ft
8ft
16.65 in. x 16.65 in.
24.09 in. x 24.09 in.
30.56 in. x 16.65 in
30.56 in. x 30.56 in.
Power
50W
100W
35W
50W
40W
50W
Brightness (4000K)
(Up 30%, Down 70%)
5750LM
11500LM
4025LM
5750LM
4600LM
5750LM


Q&A:

What is the difference between LED linear lights and LED strip lights?

LED linear lights and LED strip lights are both types of linear LED lighting solutions that offer various benefits in terms of energy efficiency, durability, and versatility. However, there are some differences between the two that are worth noting.

LED linear lights are typically larger and more robust than LED strip lights. They often have a more substantial housing, which allows for better heat dissipation and protection against physical damage. LED linear lights also tend to be brighter and have a higher output than LED strip lights, making them suitable for use in commercial and industrial settings.

On the other hand, LED strip lights are generally more flexible and adaptable than LED linear lights. They come in a roll or a reel, allowing for easier installation and customization. LED strip lights can be cut to length, making them ideal for use in tight spaces or irregularly shaped areas. They are also available in a wider range of colors, color temperatures, and brightness levels, making them ideal for a variety of applications, including residential and commercial lighting.

Instruction Video:

  • Model: L8070 Milky Flat Lens T Shape
  • Input Voltage: AC 120-347V
  • Power: Down 40W, Up&Down 50W
  • Brightness (4000K): Down 4600lm, Up&Down 5750lm

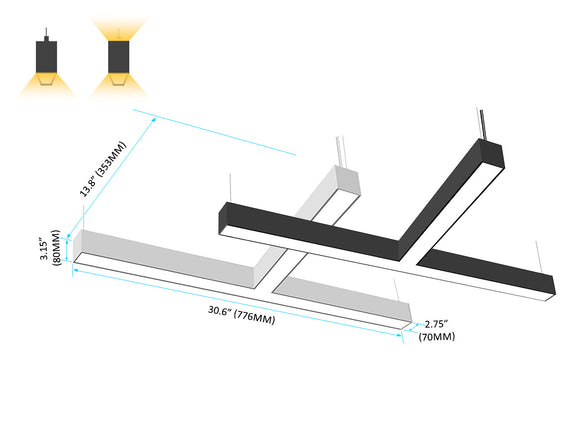

  • Dimension: L 30.55"+16.65, W 2.75", H 3.16"
  • Body Color: Black, White
  • Down Lens: Milky flat
  • Dimmable: 0-10V Dimming
  • Color Rendering Index (CRI): >80
  • Color Temperature Changeable: 3000K/3500K/4000K
  • Location: Dry Location
  • Limited 5 years warranty

LED Linear Light L8070 Specification
Linear Light Continuous Run - L-8070 Installation Instruction
