The GL LED L8070 L‑shape architectural luminaire combines refined design with high performance. Each arm measures approximately 16⅝″ and produces a total of 3,450 lumens at 4000 K using only 30 W, with a high efficacy of ~115 lm/W. Its up‑and‑down direct/indirect output splits roughly 70 % downward and 30 % upward, and supports smooth dimming via 0–10 V. Constructed with a robust aluminum housing and milky flat polycarbonate diffuser, it ensures soft, even, anti‑glare illumination and accurate color rendering (CRI ≥ 90). The L‑shape unit works as a standalone fixture or links in continuous runs for striking angular arrays, adaptable to suspended, surface, wall‑mounted, or recessed installations. Ideal for modern offices, classrooms, retail, and hospitality spaces.
Product details
- L‑shaped luminaire with direct/indirect output: approx. 70% down / 30% up.

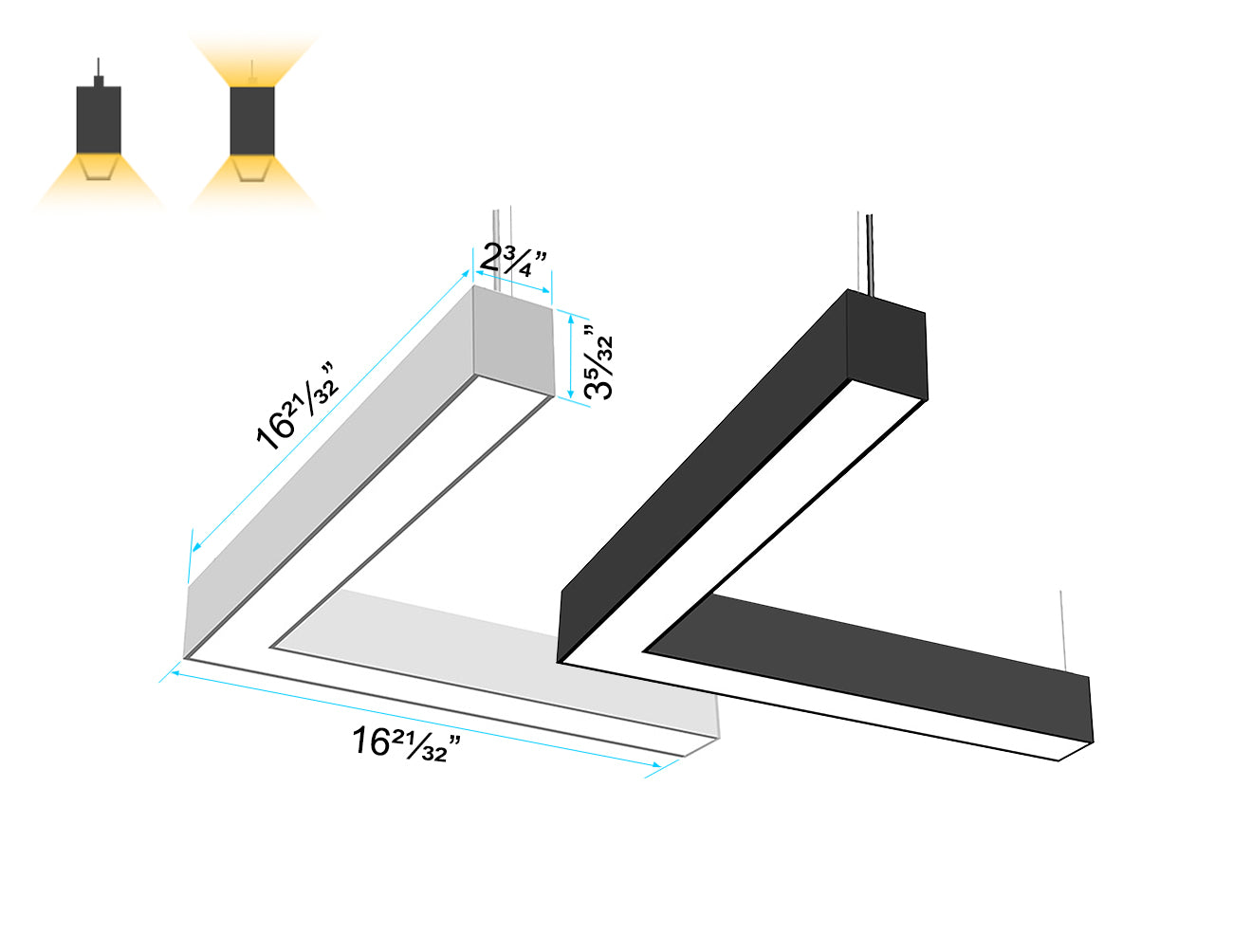

- One arm is ~16 ⅝″ long (16‑21/32″) powered at ~30 W, delivering ~3,450 lumens at 4000 K (≈115 lm/W).

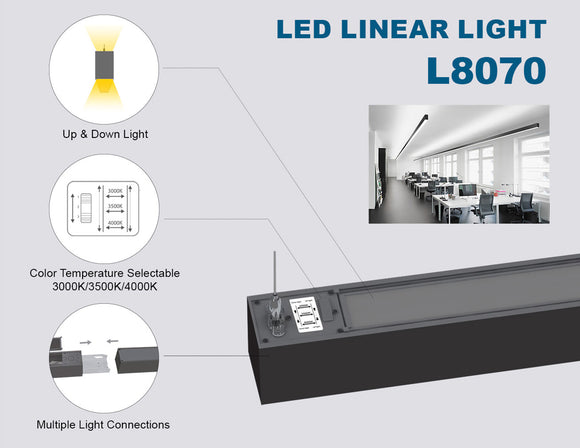

- Aluminum housing with polycarbonate milky flat diffuser; CRI ≥ 90 and selectable 3000K/3500K/4000K CCT.
- Direct connection to 120–347 VAC line voltage; 0–10 V dimmable.

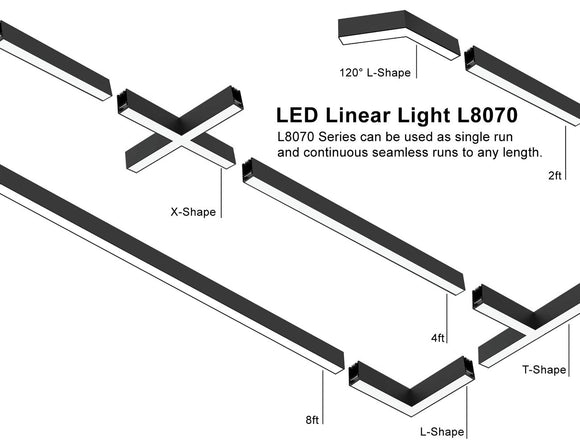

- Supports single or continuous runs; modular compatibility with other L8070 shapes.

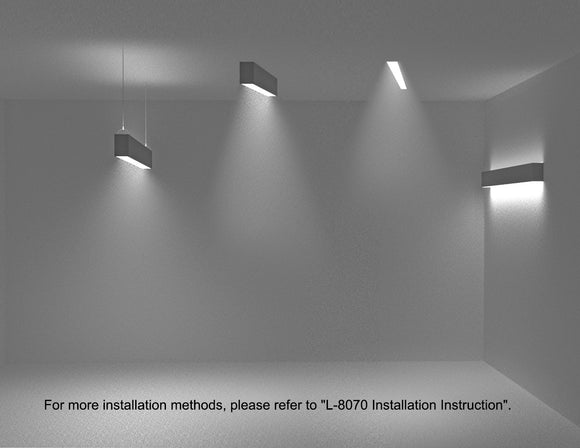

- Flexible mounting: suspended, surface mount, or recessed (spring clamp or T‑grid).
- Optional motion sensor control and emergency backup; FCC/ETL listed; 5‑year warranty.
Applications

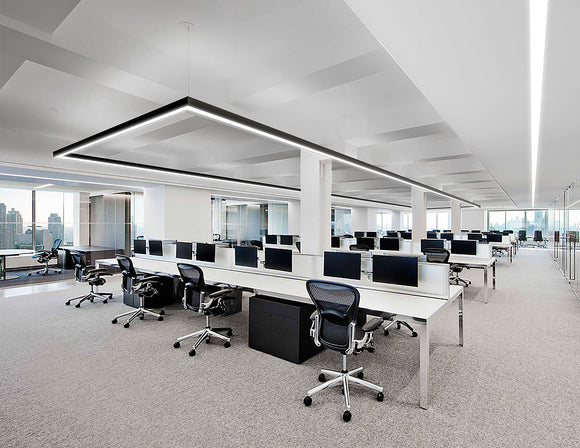

- Ideal for offices, classrooms, and meeting rooms—delivers soft, uniform illumination to support focus without glare or hotspots.

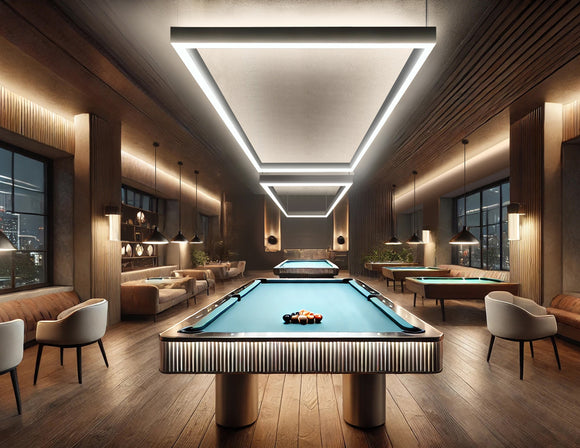

- Well-suited for retail stores, malls, restaurants, coffee shops, and hospitality spaces where clean, evenly distributed light enhances visual appeal and atmosphere.
- Excellent choice for educational facilities and healthcare environments that require high visual comfort and clarity.

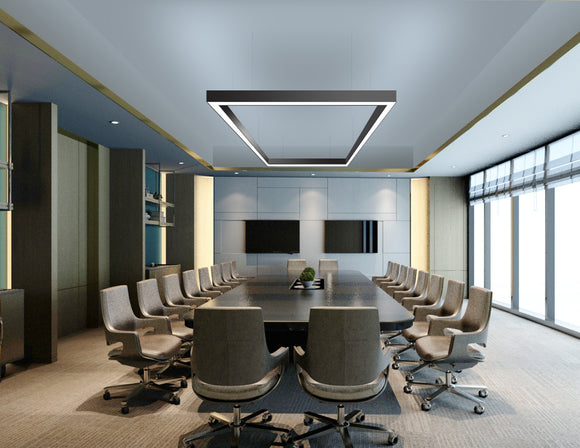

- Provides flexible architectural lighting layouts by connecting with other L8070 modules to form continuous, angular, or L-shaped runs.
- Offers versatile installation options: suspended pendant, surface mount, or recessed (spring clamp or T‑grid) to accommodate varied ceiling types and heights.
- Optional enhancements include motion sensing and emergency backup—ideal for adaptive, safety-critical lighting setups.
![]() |
![]() |
Documents
View AccessoriesSpecification
Input Voltage | 120-347VAC | |||||||
Type | Milky Flat Lens 2ft | Milky Flat Lens 4ft | Milky Flat Lens 8ft | Milky Flat Lens L Shape | Milky Flat Lens 120° L Shape | Milky Flat Lens T Shape | Milky Flat Lens X Shape | |
Power | Up Light | 20W | 40W | 70W | - | - | - | - |
Up & Down Light | 25W | 50W | 100W | 30W | 50W | 40W | 50W | |
Down Light | 20W | 40W | 70W | 20W | 40W | 30W | 50W | |
Color Temperature (Changeable) |
3000K/3500K/4000K | |||||||
Milky Flat Lens Brightness(4000K) |
Up Light | 2300lm | 4600lm | 8050lm | - | - | - | - |
Up & Down Light | 2875lm | 5750lm | 11500lm | 3450lm | 5750lm | 4600lm | 5750lm | |
Down Light | 2300lm | 4600lm | 8050lm | 2300lm | 4600lm | 3450lm | 5750lm | |
Efficacy(4000K) | 115LM/W | |||||||
Dimming | 0-10V Dimming | |||||||
CRI | 90+ | |||||||
Location | Dry Location | |||||||
Finish | Black, White |
Q&A:
Q1: What are the specifications of the linear LED light L‑Shape fixture?
A: This L‑shaped luminaire delivers about 3,450 lumens at 4000 K from a 30 W power draw, achieving roughly 115 lm/W efficacy. Each arm is approximately 16‑21/32″ long. It distributes lighting at a 70% down / 30% up ratio, adjustable via 0–10 V dimming.
Q2: What are the mounting and installation options of linear light?
A: The fixture offers modular installation and can be used as a single unit or combined into continuous or angular configurations. It supports suspended, surface mount, recessed (spring clamp), and T‑grid recessed mounting options. It requires separate linkable brackets and installation kits.
Q3: For what venues or environments is the linear light ideal?
A: Well-suited for offices, classrooms, meeting rooms, retail stores, hospitality spaces, schools, grocery stores, cafes, and malls. The flat milky diffuser suppresses glare and hotspots, enhancing visual comfort and aesthetic appeal while offering selectable CCT, high CRI, and optional motion/emergency features.
