8070 LED linear light with multiple mounting options, suitable for offices, grocery stores, restaurants, and malls.

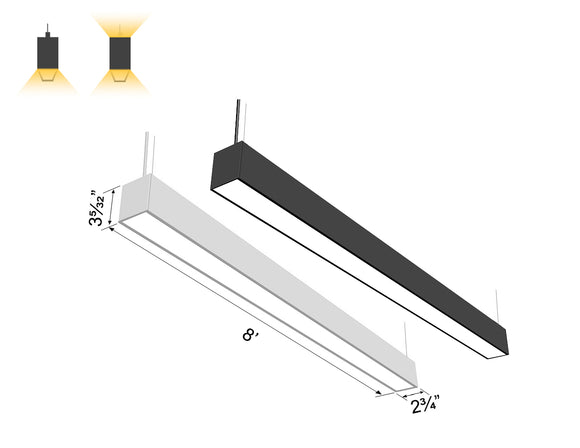

Black and white GL LED L8070 linear fixtures in 8ft size with clean up/down light output.
LED Linear Light - L8070 - Milky Flat Lens - 8ft-3

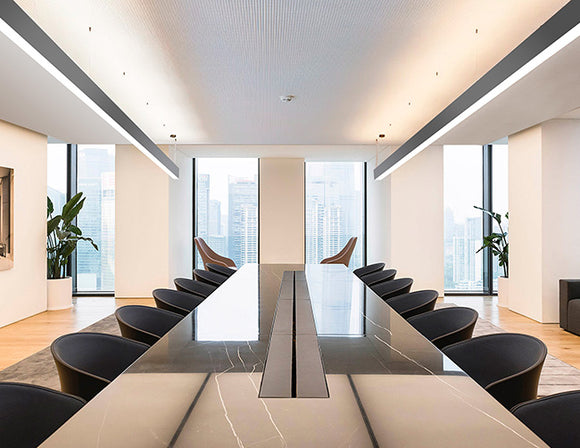

Suspended linear light fixtures formed by GL LED L8070 8ft linear light fixtures illuminate a meeting room.
LED Linear Light - L8070 - Milky Flat Lens - 8ft-5
LED Linear Light - L8070 - Milky Flat Lens - 8ft-6
LED Linear Light - L8070 - Milky Flat Lens - 8ft-7

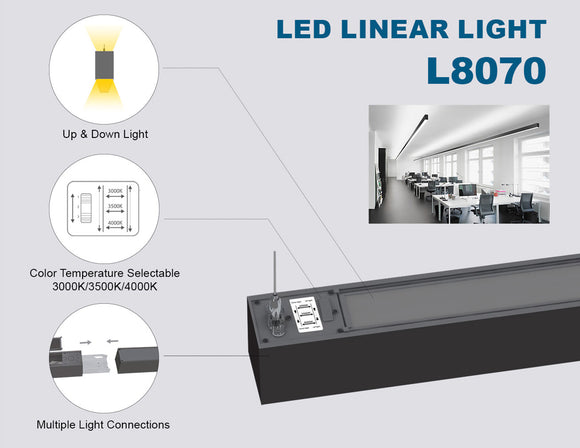

A picture showing functions of GL LED L8070 linear light fixture. It has both up and down lighting distributions, changeable color temperatures (3000K, 3500K, and 4000K), and can be easily connected to each other to form extensions and different shapes.

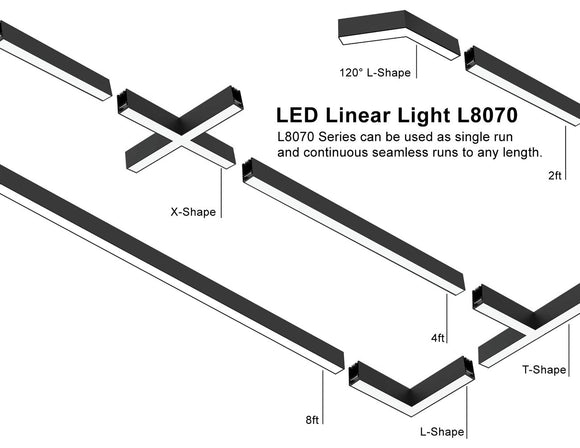

Modular pieces of L8070 series linear lights are shown to illustrate that they can work either individually or be connected to each other to form continuous seamless runs to any length.
LED Linear Light - L8070 - Milky Flat Lens - 8ft-10
LED Linear Light - L8070 - Milky Flat Lens - 8ft-11
LED Linear Light - L8070 - Milky Flat Lens - 8ft-12
LED Linear Light - L8070 - Milky Flat Lens - 8ft-13

LED Linear Light - L8070 - Milky Flat Lens - 8ft

Free

Description Accessories

The GL LED L8070 8-ft Linear Light with Milky Flat Lens offers high-performance lighting in a compact, architectural form. Designed for direct or optional up/down lighting, it distributes approximately 70% of light downward and 30% upward for balanced illumination. Dimmable via 0–10V, it’s ideal for straight or continuous runs in offices, retail, healthcare, and education settings. The milky flat polycarbonate diffuser provides soft, even light with minimal glare or hotspots, enhancing comfort in shared spaces like classrooms and conference rooms. Housed in durable aluminum with a high CRI (≥90) and selectable color temperatures (3000K, 3500K, 4000K), the L8070 delivers reliable, visually comfortable LED lighting while maintaining a clean, minimalist look suitable for modern interiors.

Product details

  • Direct and indirect luminaire system connects directly to 120–347VAC line voltage.
  • Selectable color temperatures: 3000K, 3500K, and 4000K via external slide switches.
  • Modular design options: 2ft, 4ft, 8ft straight, L shape, 120° L shape, T shape, and X shape.
  • Supports both single fixture and continuous run installations.
  • Optional features: motion sensor control and emergency backup.
  • Versatile solution suitable for various layouts and applications.

Applications

  • Ideal for offices, classrooms, conference rooms, and open-plan workspaces requiring soft, glare-free lighting.
  • Perfect for retail and hospitality environments where clean, uniform light enhances visual appeal.
  • Suitable for healthcare and educational facilities that demand high visual comfort and clarity.
  • Milky flat lens delivers low-glare, evenly distributed light to reduce eye strain and prevent hotspots.

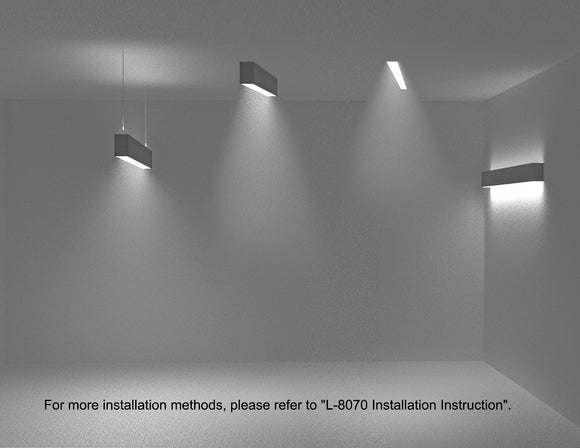

  • Offers flexible installation with suspended, surface, wall, or recessed mounting options.
  • Compatible with 0–10V dimming and selectable CCTs (3000K–4000K) for customizable lighting environments.

Documents

View Accessories

Specification

L8070 Linear Light - V3

Input Voltage 120-347VAC
Type Milky Flat Lens 2ft Milky Flat Lens 4ft Milky Flat Lens 8ft Milky Flat Lens L Shape Milky Flat Lens 120° L Shape Milky Flat Lens T Shape Milky Flat Lens X Shape Milky Flat Lens Y Shape
Power Down Light 20W 40W 80W 25W 40W 40W 50W 60W
Up Light 20W 40W 80W - - - - 60W
Up & Down Light 25W 50W 100W 30W 50W 50W 50W 75W
Color Temperature
(Changeable)		 3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)		 Down Light 1800lm-2000lm 3600lm-4000lm 7200lm-8000lm 2250lm-2500lm 3600lm-4000lm 3600lm-4000lm 4500lm-5000lm 5400lm-6000lm
Up Light 1800lm-2000lm 3600lm-4000lm 7200lm-8000lm - - - - 5400lm-6000lm
Up & Down Light 2250lm-2500lm 4500lm-5000lm 9000lm-10000lm 2700lm-3000lm 4500lm-5000lm 4500lm-5000lm 4500lm-5000lm 6750lm-7500lm
Efficacy(4000K) 90-100LM/W
Dimming 0-10V Dimming
CRI 90+
Location Dry Location
Finish Black, White


L8070 Linear Light - White - V2

Input Voltage 120-347VAC
Type Milky Flat Lens 2ft Milky Flat Lens 4ft Milky Flat Lens 8ft Milky Flat Lens L Shape Milky Flat Lens 120° L Shape Milky Flat Lens T Shape Milky Flat Lens X Shape
Power Down Light 20W 40W 80W 25W 40W 40W 50W
Up Light 20W 40W 80W - - - -
Up & Down Light 30W 50W 100W 35W 50W 50W 50W
Color Temperature
(Changeable)		 3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)		 Down Light 2300lm 4600lm 9200lm 2875lm 4600lm 4600lm 5750lm
Up Light 2300lm 4600lm 9200lm - - - -
Up & Down Light 3450lm 5750lm 11500lm 4025lm 5750lm 5750lm 5750lm
Efficacy(4000K) 115LM/W
Dimming 0-10V Dimming
CRI 80+
Location Dry Location
Finish White


Q&A:

Q1: Is this type of linear light dimmable?

A: Yes, it is compatible with 0–10V dimming systems, allowing for smooth brightness control.

Q2: Are different shapes and sizes available?

A: Yes, the product comes in modular designs including 2ft, 4ft, 8ft straight, L shape, 120° L, T, and X shapes.

Q3: What makes this light comfortable for shared spaces?

A: The milky flat lens diffuses light evenly, reducing glare and hotspots—ideal for minimizing eye strain in areas like classrooms and meeting rooms.

Instruction Video:

Separate accessories are available

L8070 Power Cable

L8070 Linkable Bracket

L8070 Suspension Canopy Kit

L8070 Wall Mount Kit

L8070 Surface Mount Bracket

L8070 Basic Integrated Low Bay Sensor

L8070 Smart App-Controlled Sensor

L8070 Emergency Backup

L8070 Emergency Driver - STB45FA Series
