LED Linear Light - L8070 - Milky Flat Lens - 1/4 Circle - R24"

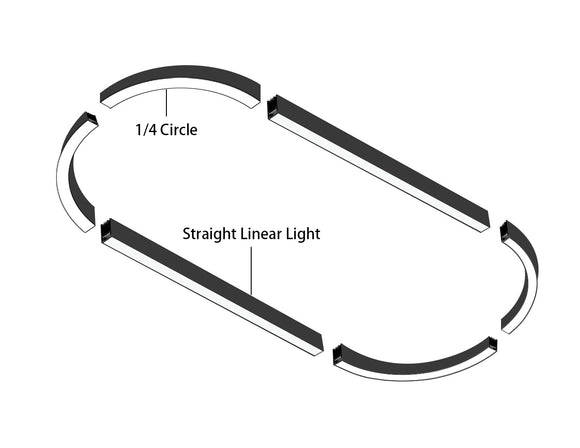

The LED 1/4 Curve Linear Light is a modular curved linear luminaire designed for modern architectural and interior lighting applications. Featuring a 1/4 circular form, the fixture allows multiple curved segments to be seamlessly connected, creating smooth and continuous curved lighting layouts.

Product details

• Modular 1/4 curved segments for continuous curved assemblies.

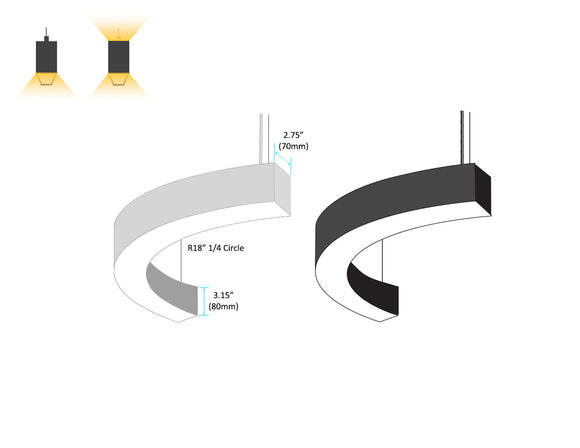

• Aluminum curved housing, W2.75” × H3.15”.
• Open-center structure with integrated dual-emission optics.
• Precision-machined connectors for seamless alignment.
• Standard radius options: 12” / 24” / 36”.
• Selectable wattage: 18W–72W (based on radius).
• Adjustable downlight ratio: 100% / 70% / 50%.
• Three-level wattage selectable.

Applications

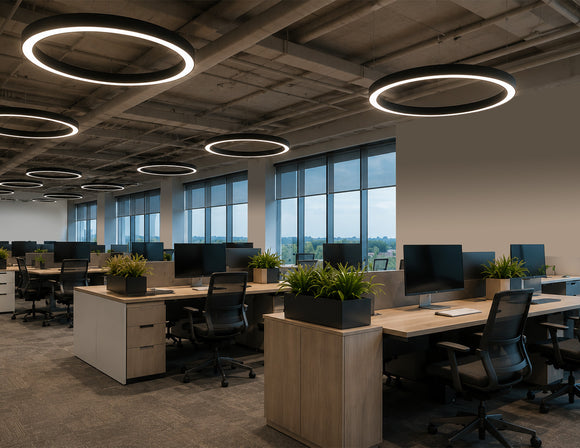

• Commercial office spaces.
• Atriums and public areas.
• Retail and display environments.

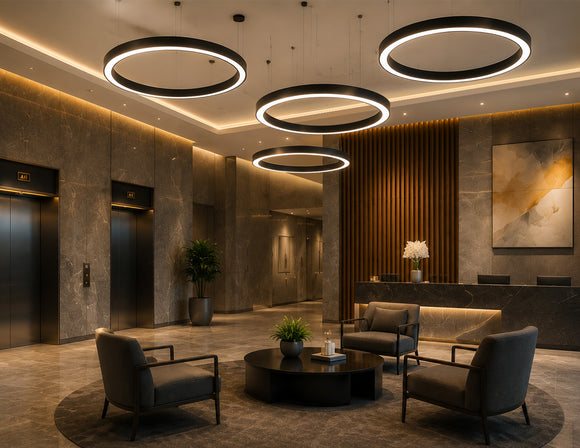

• Hotel lobbies and corridors.
• Educational and cultural facilities.
• Modern architectural interior lighting.

Documents

• L8070 Linear Light - V3 Specification
• L8070 Linear Light - White - V2 Specification
• L8070 Linear Light Installation Instruction
• L8070 Linear light IES File_4FT_Milky Flat Lens
• L8070 Linear light Revit File

View Accessories

Specification

L8070 Linear Light - V3

Q&A:

Q1: What type of voltage does the linear light support?

A: The luminaire connects directly to line voltage ranging from 120V to 347V, making it suitable for a variety of commercial and institutional installations.

Q2: Can I adjust the color temperature of the linear light?

A: Yes, the fixture features selectable CCT options of 3000K, 3500K, and 4000K, adjustable via external slide switches.

Q3: What mounting options are available for the linear light?

A: The GL LED L8070 supports suspended, surface, wall, and recessed mounting for flexible installation.
