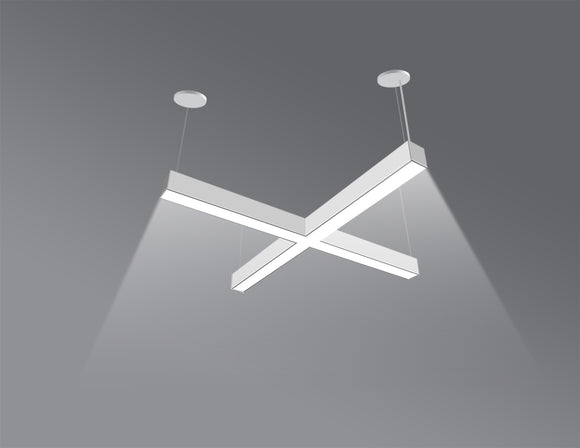

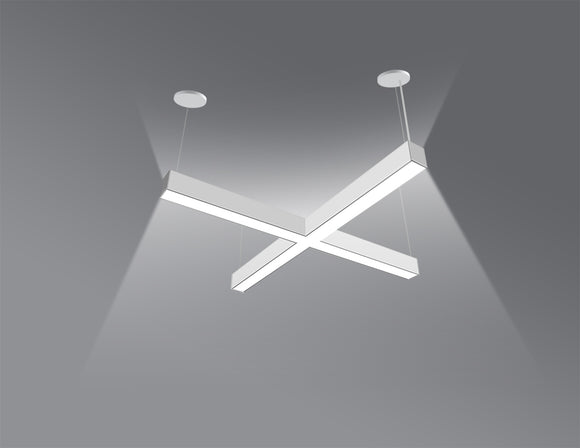

LED Linear Light - L8070 - Honeycomb Lens - X Shape

Free

The L8070 Series Honeycomb Lens – X Shape Linear Light is engineered for spaces that demand multi-directional, glare-free illumination with a bold architectural presence. Its precision-designed honeycomb optical lens reduces glare and stray light, delivering focused, comfortable brightness in four directions. The X-shaped configuration is ideal for large open-plan areas, central hubs, and multi-intersection layouts. With a sleek 2.75-inch profile, selectable color temperatures (3000K / 3500K / 4000K), CRI 90+, and high efficiency up to 115 lm/W, this fixture combines performance, comfort, and style. 0–10V dimming and versatile mounting options make it perfect for commercial, hospitality, retail, and high-end residential designs.

Product Details

  • Honeycomb Lens for superior glare reduction and light precision
  • X-shaped modular design for four-direction illumination

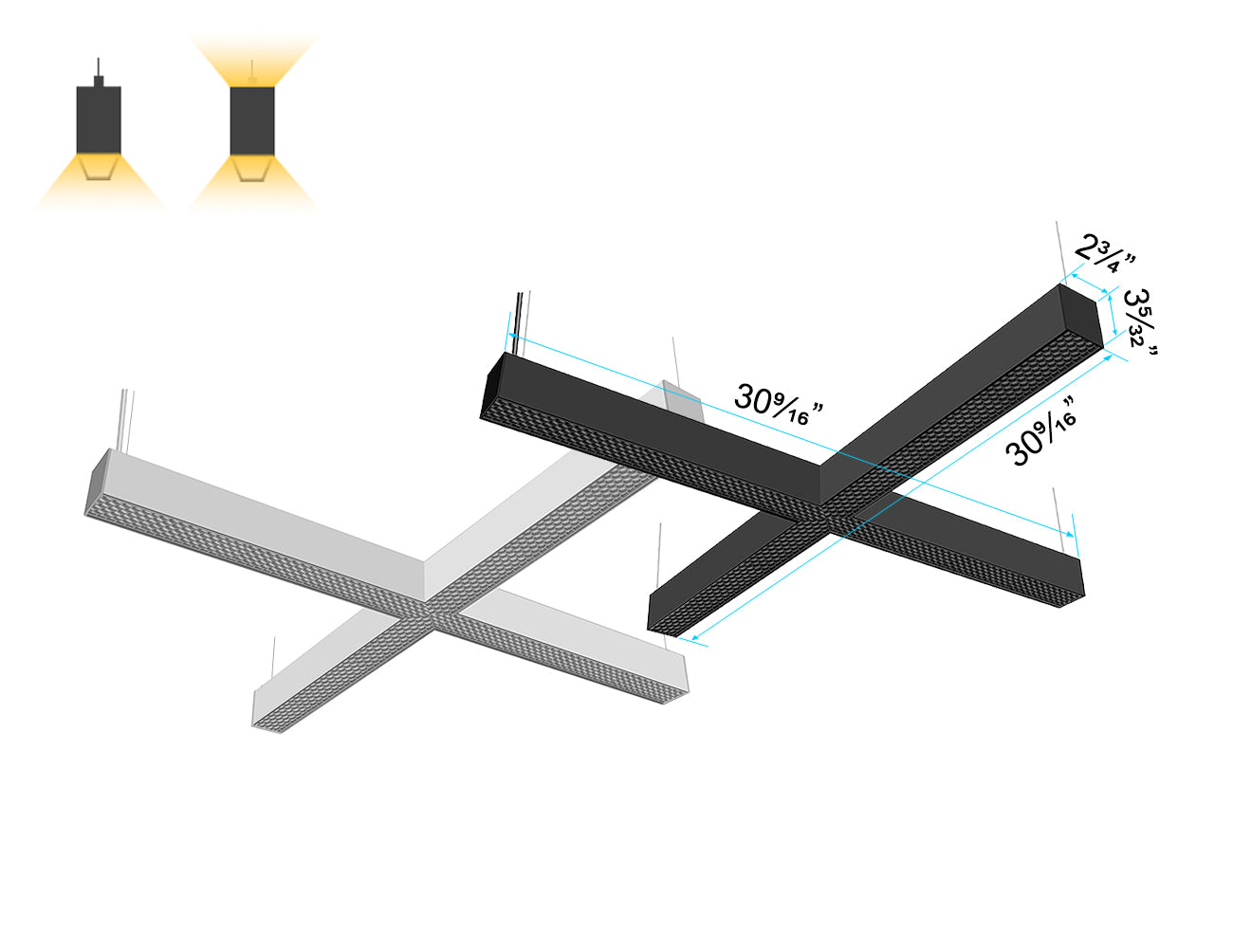

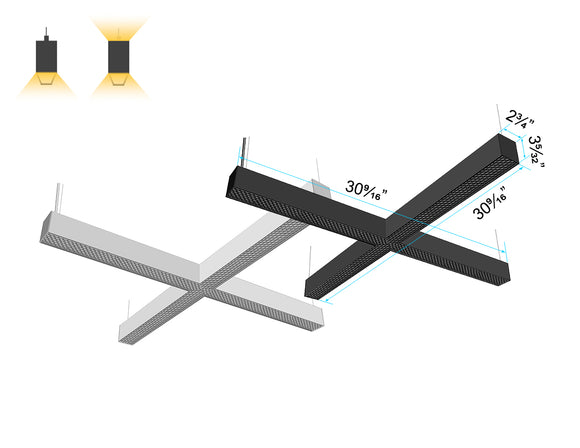

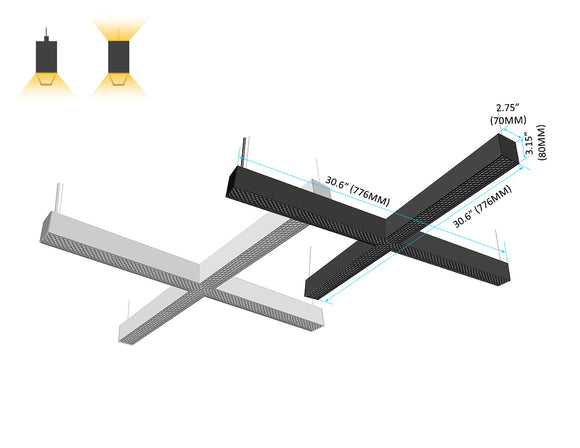

  • Slim 2.75-inch profile for architectural integration

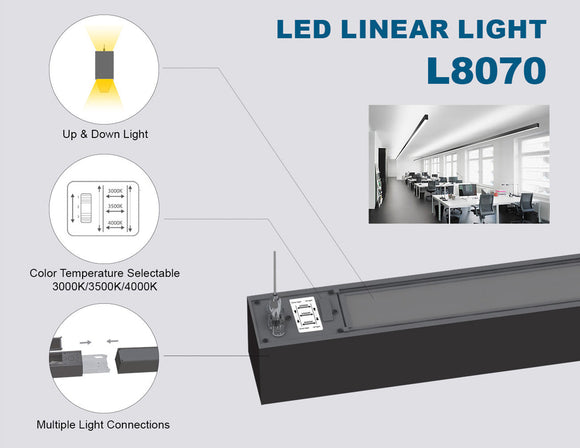

  • Selectable CCT: 3000K / 3500K / 4000K
  • High efficiency: up to 115 lm/W, CRI 90+
  • 0–10V dimmable for adjustable lighting levels

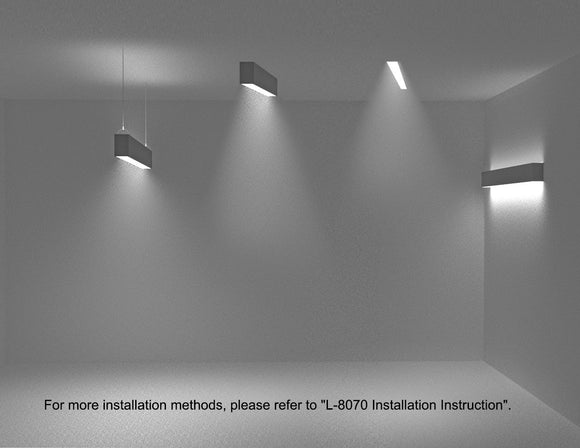

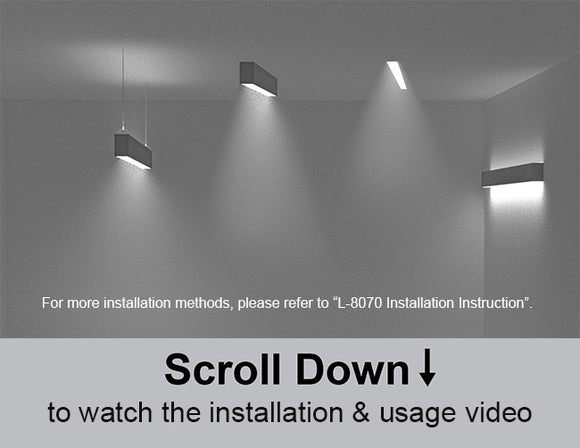

  • Mounting options: suspension, surface, recessed
  • Available in black or white finishes

Applications

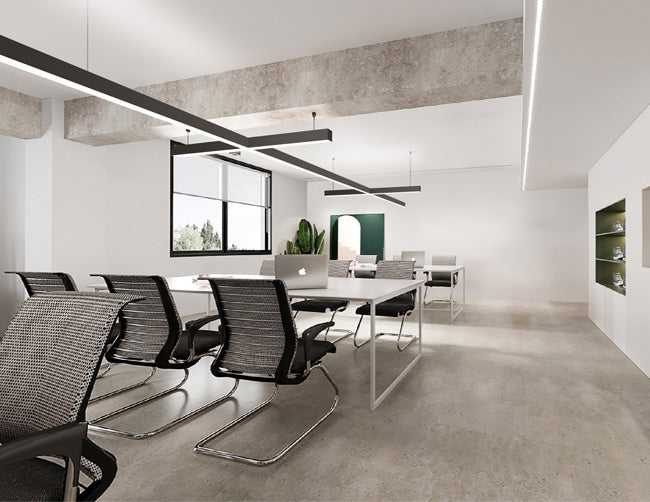

  • Corporate offices: evenly light open-plan hubs and multi-directional corridors
  • Healthcare spaces: glare-free illumination in central nurse stations and waiting areas
  • Retail environments: highlight products in large display zones from multiple angles

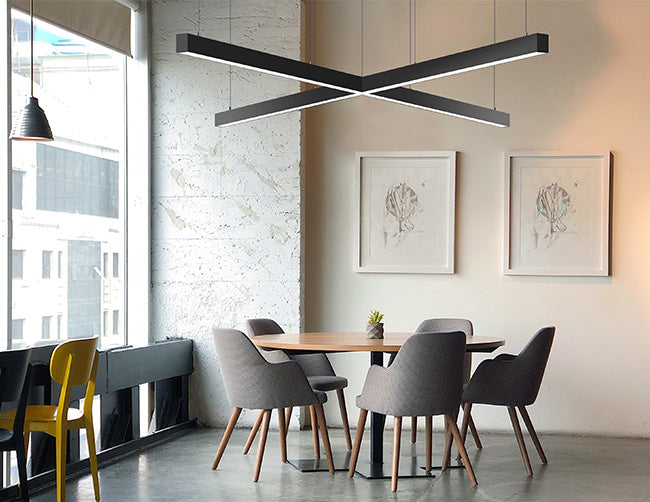

  • Hospitality interiors: create visual impact in lobbies, lounges, and open meeting areas
  • Museums & galleries: enhance visibility of exhibits from all sides without glare
  • High-end residential: statement lighting for spacious living areas and open floor plans

Documents

View Accessories

Specification

Input Voltage 120-347VAC
Type Honeycomb Lens 2ft Honeycomb Lens 4ft Honeycomb Lens 8ft Honeycomb Lens L Shape Honeycomb Lens 120° L Shape Honeycomb Lens T Shape Honeycomb Lens X Shape
Power Up Light 20W 40W 70W - - - -

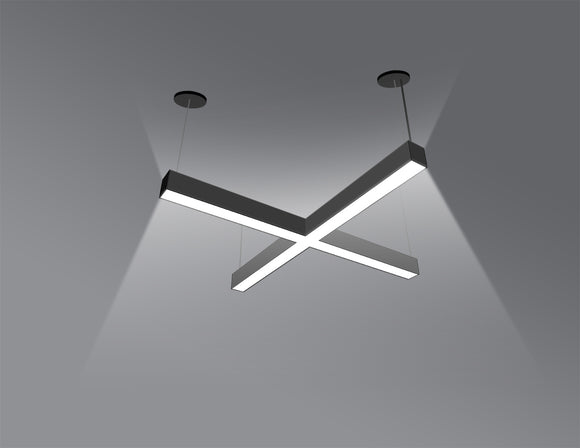

Up & Down Light 25W 50W 100W 30W 50W 40W 50W

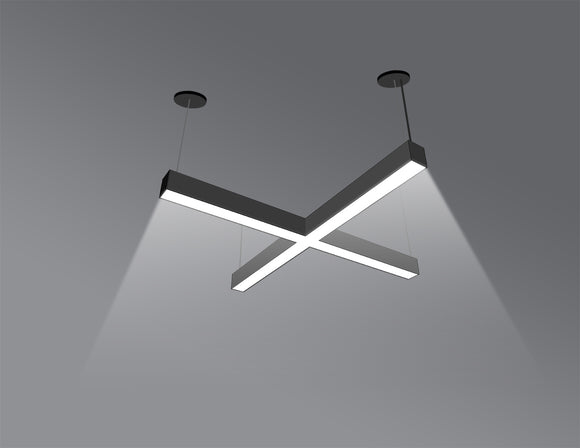

Down Light 20W 40W 70W 20W 40W 30W 50W
Color Temperature
(Changeable)
3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)
Up Light 2300lm 4600lm 8050lm - - - -
Up & Down Light 2875lm 5750lm 11500lm 3450lm 5750lm 4600lm 5750lm
Down Light 2300lm 4600lm 8050lm 2300lm 4600lm 3450lm 5750lm
Efficacy(4000K) 115LM/W
Dimming 0-10V Dimming
CRI 90+
Location Dry Location
Finish Black, White


Q&A:

1. How can my lighting projects benefit from selectable color temperatures?

Selectable color temperatures allow you to fine-tune lighting to match the mood, function, and design of a space without changing fixtures. GL LED’s CCT-selectable linear fixtures let you switch between 3000K, 3500K, and 4000K on-site, ensuring flexibility for evolving needs. This adaptability improves visual comfort, enhances aesthetics, and supports energy-efficient lighting strategies across various commercial and residential projects.

2. Why should you use modular linear lights for office lighting?

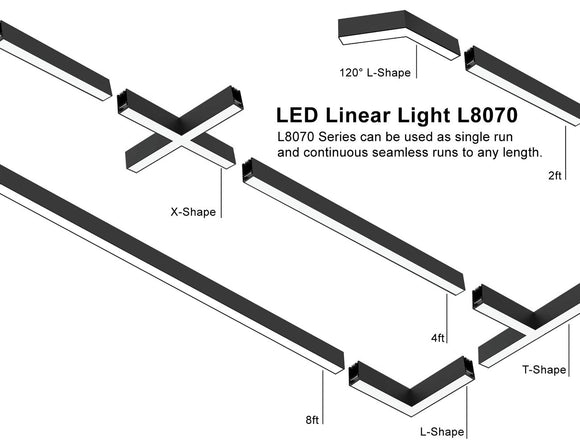

Modular linear LED lights offer unmatched flexibility in designing office lighting layouts. Their connectable sections allow single-run or continuous-run installations, adapting easily to open-plan offices, meeting rooms, and collaborative areas. Shapes like L, T, and X can be combined to fit unique architectural spaces while maintaining consistent illumination. This versatility makes modular linear lights a cost-effective and scalable solution for both new builds and office retrofits.

3. What are the advantages of a honeycomb lens?

A honeycomb lens enhances lighting quality by reducing glare and controlling light spread, creating a more comfortable viewing experience. Its grid-like structure channels light in a focused direction, preventing unwanted spill and improving contrast. In linear LED fixtures from GL LED, the honeycomb lens pairs with high CRI output and CCT selection to deliver crisp, controlled lighting that highlights spaces beautifully while maintaining user comfort.
