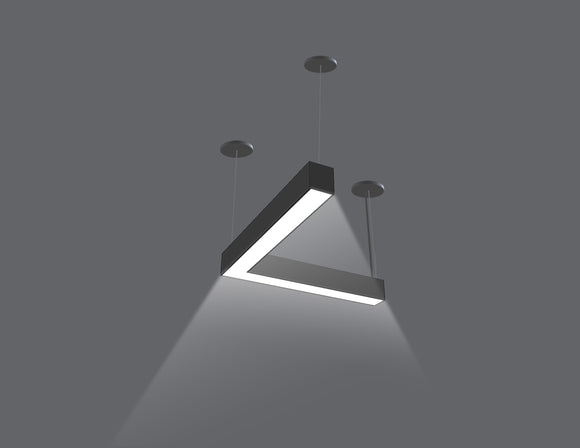

The L8070 Series Honeycomb Lens – L Shape Linear Light delivers precise, glare-controlled illumination while enhancing the architectural flow of corner layouts. The honeycomb optical lens is engineered to reduce glare and stray light, focusing illumination exactly where it’s needed for visual comfort. Its L-shaped configuration is ideal for seamless corner transitions, creating continuous, high-quality light in complex layouts. With a slim 2.75-inch profile, selectable color temperatures (3000K / 3500K / 4000K), CRI 90+, and high efficacy up to 115 lm/W, this fixture blends performance and elegance. 0–10V dimming and versatile mounting options make it perfect for commercial, hospitality, and high-end residential spaces.
Product Details
- Honeycomb Lens for superior glare reduction and light control
- L-shaped modular design for seamless corner illumination

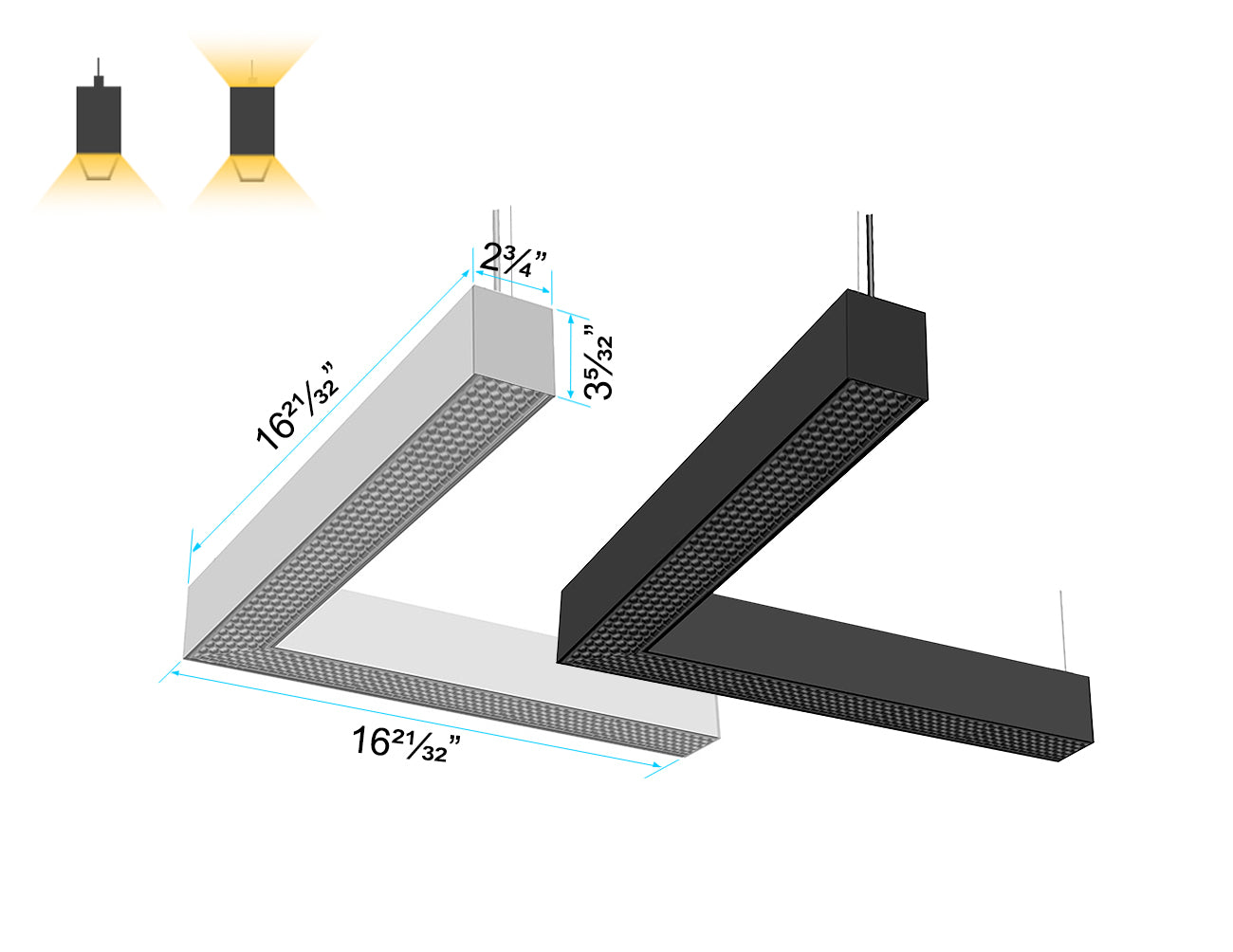

- Slim 2.75-inch profile for clean architectural integration

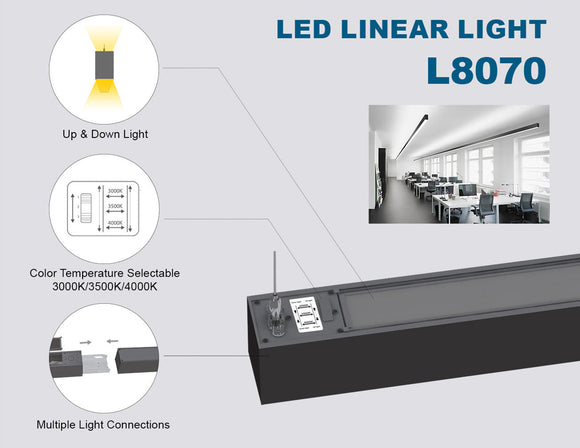

- Selectable CCT: 3000K / 3500K / 4000K
- High performance: up to 115 lm/W, CRI 90+
- 0–10V dimming for precise light adjustment

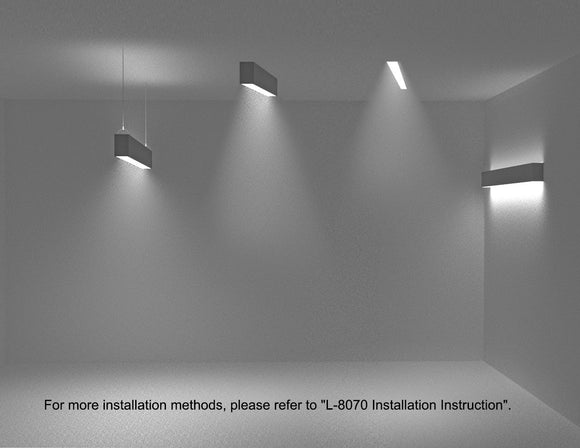

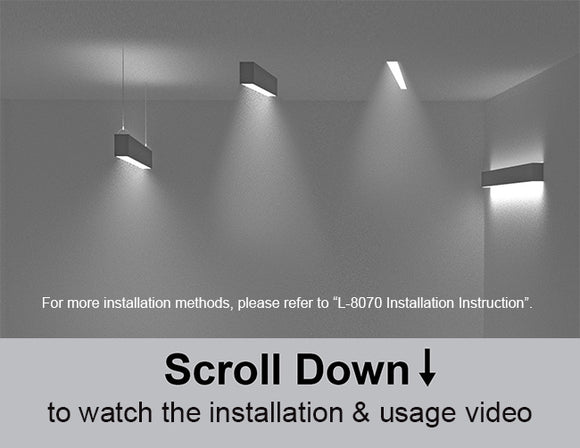

- Mounting options: suspension, surface, recessed
- Available in black or white finishes

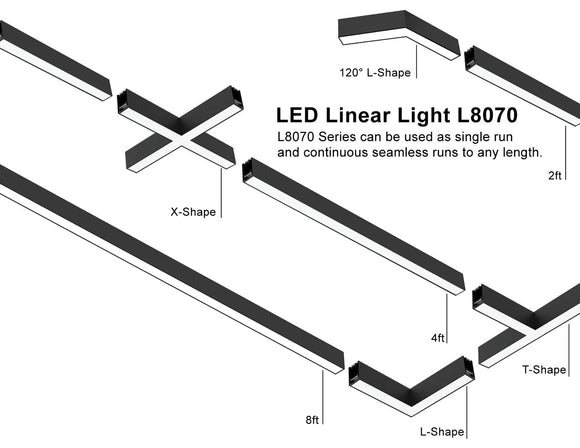

- Designed for both standalone use and continuous runs
Applications
- Office interiors: glare-free lighting for corner workstations and meeting areas
- Retail environments: highlight product displays along intersecting walls
- Healthcare settings: visual comfort for patient areas and staff stations
- Museums & galleries: targeted lighting for corner-mounted exhibits
- Conference centers: evenly lit intersections in large meeting spaces
- High-end residential: corner lighting for living rooms, kitchens, and open-plan layouts
![]() |
![]() |
Documents
View AccessoriesSpecification
Input Voltage | 120-347VAC | |||||||
Type | Honeycomb Lens 2ft | Honeycomb Lens 4ft | Honeycomb Lens 8ft | Honeycomb Lens L Shape | Honeycomb Lens 120° L Shape | Honeycomb Lens T Shape | Honeycomb Lens X Shape | |
Power | Up Light | 20W | 40W | 70W | - | - | - | - |

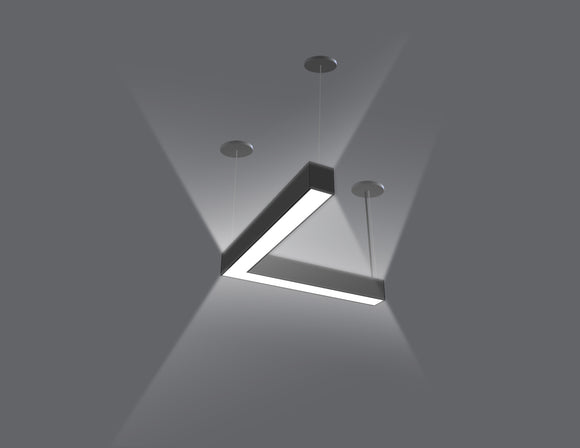

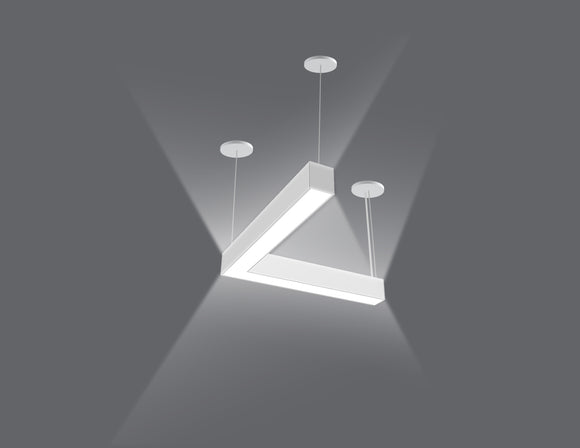

Up & Down Light | 25W | 50W | 100W | 30W | 50W | 40W | 50W | |

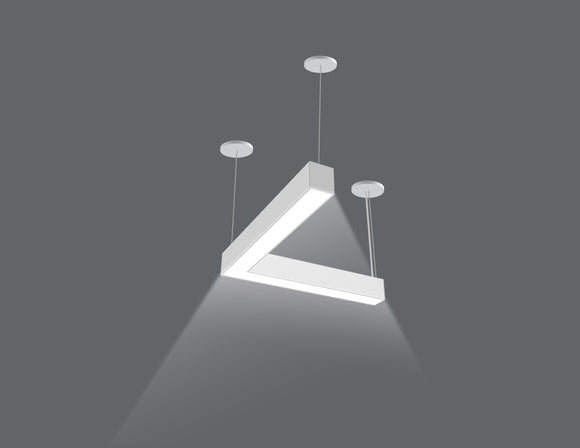

Down Light | 20W | 40W | 70W | 20W | 40W | 30W | 50W | |
Color Temperature (Changeable) |
3000K/3500K/4000K | |||||||
Milky Flat Lens Brightness(4000K) |
Up Light | 2300lm | 4600lm | 8050lm | - | - | - | - |
Up & Down Light | 2875lm | 5750lm | 11500lm | 3450lm | 5750lm | 4600lm | 5750lm | |
Down Light | 2300lm | 4600lm | 8050lm | 2300lm | 4600lm | 3450lm | 5750lm | |
Efficacy(4000K) | 115LM/W | |||||||
Dimming | 0-10V Dimming | |||||||
CRI | 90+ | |||||||
Location | Dry Location | |||||||
Finish | Black, White |
Q&A:
1. What color temperatures are available in CCT-selectable linear fixtures?
CCT-selectable linear LED fixtures allow you to adjust the light’s tone to suit different spaces and activities. GL LED’s architectural linear lights offer three options—3000K for warm, inviting environments, 3500K for balanced, neutral lighting, and 4000K for bright, cool illumination ideal for task-focused areas.
2. What factors should I consider when choosing linear lights?
When selecting linear LED lighting, consider lumen output for adequate brightness, CRI rating for accurate color rendering, and CCT options for the right visual tone. Mounting style should match your ceiling type and design goals. Evaluate dimming compatibility, such as 0–10V systems, to ensure flexible light control. GL LED’s modular architectural linear lights provide customizable solutions to meet both performance requirements and aesthetic preferences in commercial projects.
3. Is a suspended linear light suitable for conference rooms?

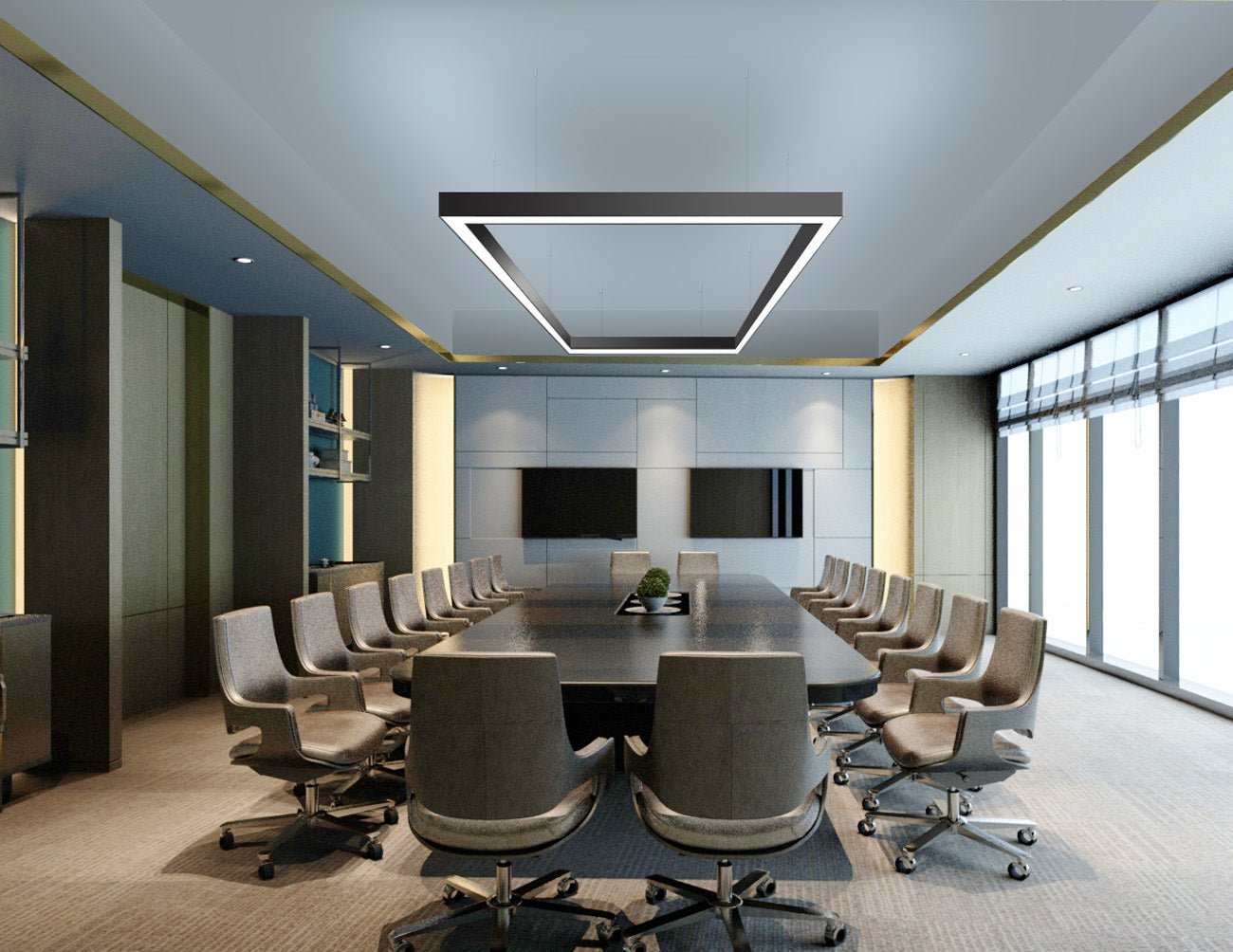

Yes. Suspended linear lights are an excellent choice for conference rooms, offering both functional illumination and a modern design statement. Hanging from adjustable cables, they provide broad, even light across meeting tables, minimizing shadows and glare. The GL LED suspended architectural linear fixture offers CCT selection, high CRI for accurate color, and 0–10V dimming to adapt brightness as needed.
