LED Linear Light - L8070 - Honeycomb Lens - 4ft

Free

The L8070 Series Honeycomb Lens LED Linear Light is engineered for precision illumination with advanced glare reduction. Its carefully designed honeycomb optical system controls light direction and reduces stray beams, delivering clean, focused brightness exactly where it’s needed. Perfect for task-oriented and display-focused environments, it combines high performance with exceptional visual comfort. The slim 2.75-inch profile complements contemporary architecture and is available in a variety of lengths and configurations. With tunable white light (3000K / 3500K / 4000K), an impressive efficacy of up to 115 lm/W, CRI 90+, and smooth 0–10V dimming, the Honeycomb Lens model offers the perfect balance of style, control, and efficiency for commercial, retail, and residential projects.

Product Details

  • Honeycomb optical lens for precision light distribution and glare control

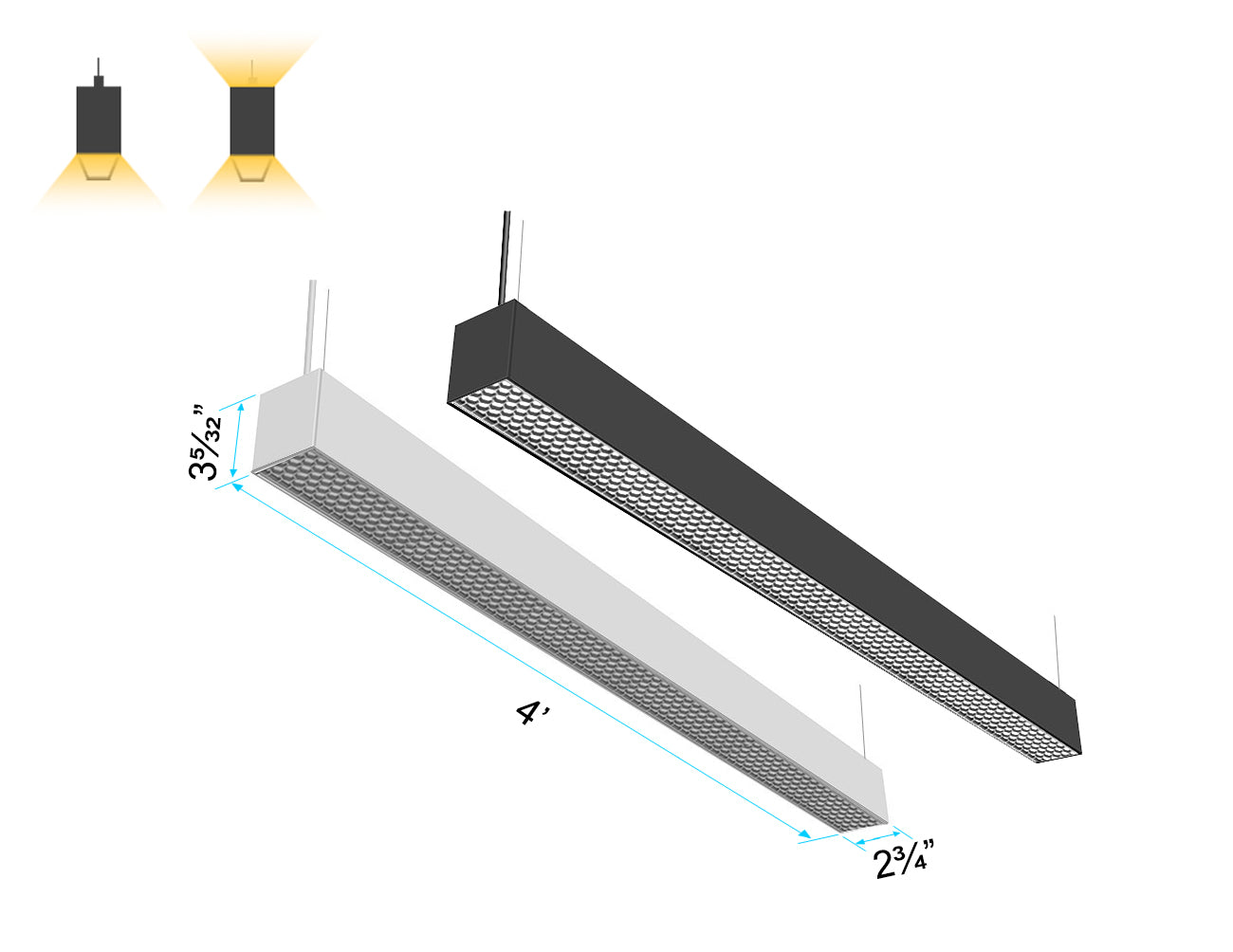

  • Slim 2.75-inch housing for seamless architectural integration

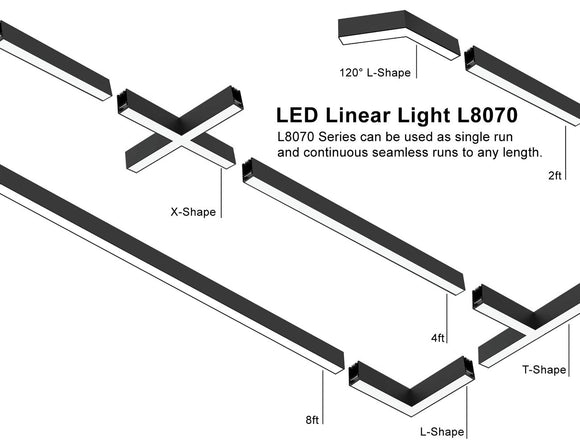

  • Available in 2ft, 4ft, 8ft, plus L, 120° L, T, and X shapes

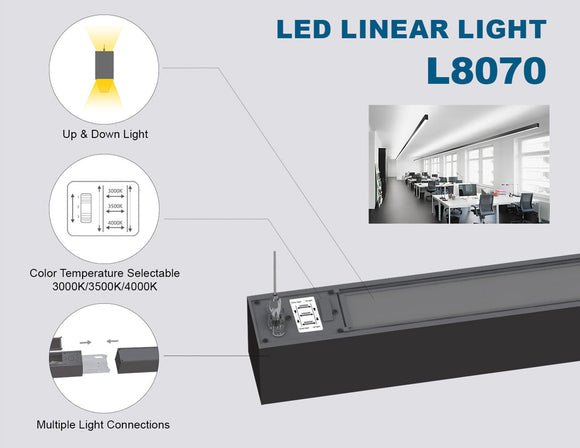

  • Selectable CCT: 3000K / 3500K / 4000K
  • High efficacy: up to 115 lm/W, CRI 90+
  • 0–10V dimming for customizable brightness

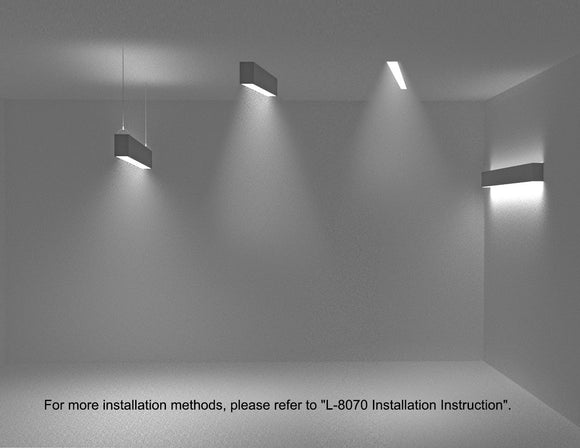

  • Mounting: suspension, surface, or recessed
  • Finishes: black or white

Applications

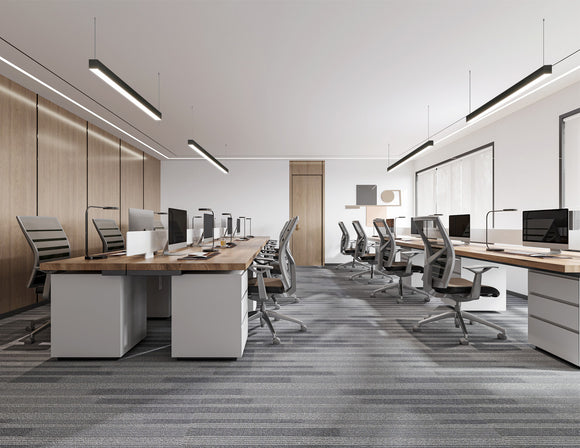

  • Corporate offices: glare-free, targeted workstation lighting
  • Education: even, controlled illumination for classrooms and lecture halls
  • Retail: highlight displays with clean, focused beams

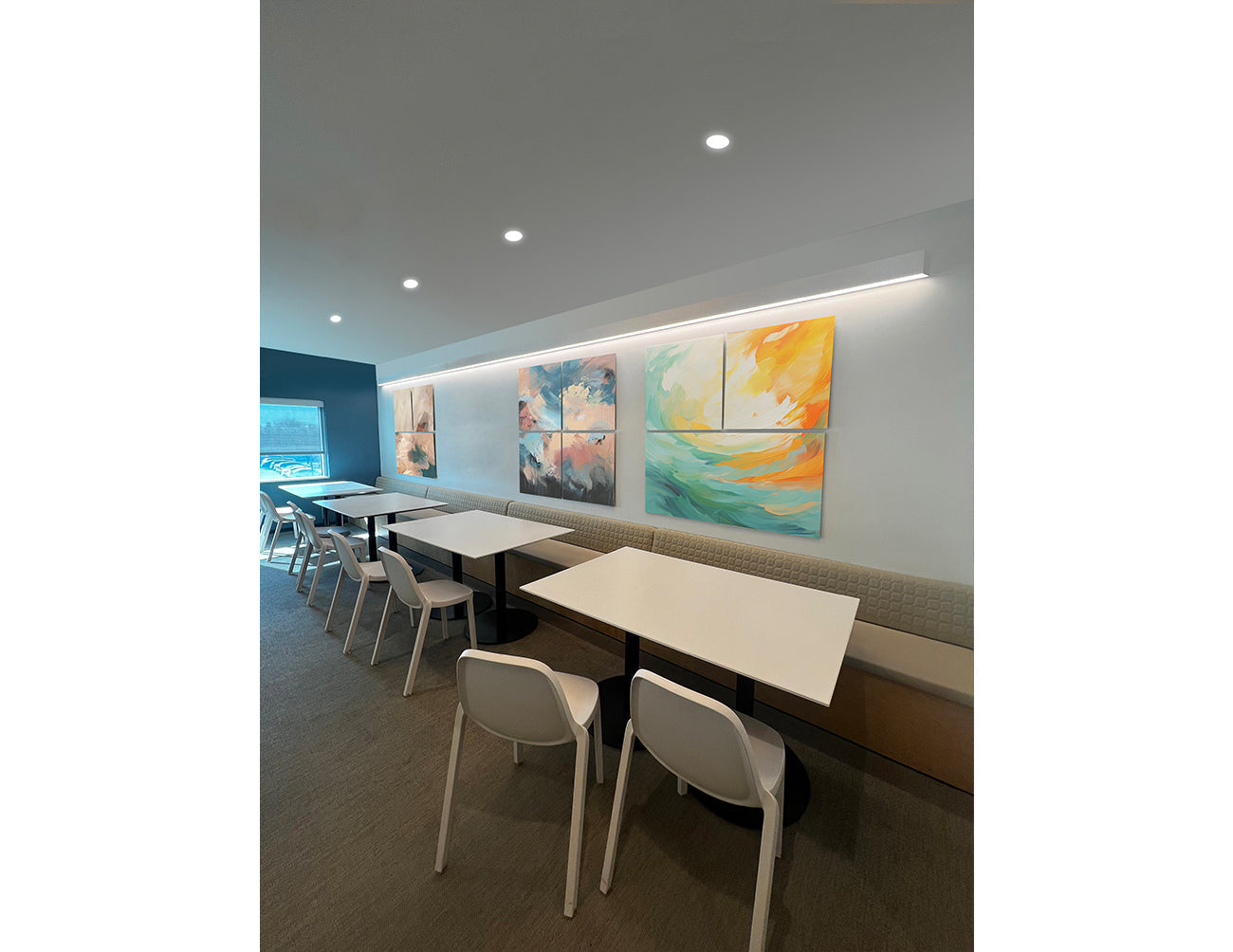

  • Hospitality: refined lighting for lobbies, lounges, and corridors
  • Museums & galleries: precise exhibit lighting without unwanted glare
  • Luxury homes: ideal for kitchens, reading spaces, and home offices

Documents

View Accessories

Specification

Input Voltage 120-347VAC
Type Honeycomb Lens 2ft Honeycomb Lens 4ft Honeycomb Lens 8ft Honeycomb Lens L Shape Honeycomb Lens 120° L Shape Honeycomb Lens T Shape Honeycomb Lens X Shape
Power Up Light 20W 40W 70W - - - -
Up & Down Light 25W 50W 100W 30W 50W 40W 50W
Down Light 20W 40W 70W 20W 40W 30W 50W
Color Temperature
(Changeable)
3000K/3500K/4000K
Milky Flat Lens
Brightness(4000K)
Up Light 2300lm 4600lm 8050lm - - - -
Up & Down Light 2875lm 5750lm 11500lm 3450lm 5750lm 4600lm 5750lm
Down Light 2300lm 4600lm 8050lm 2300lm 4600lm 3450lm 5750lm
Efficacy(4000K) 115LM/W
Dimming 0-10V Dimming
CRI 90+
Location Dry Location
Finish Black, White


Q&A:

1. What is the best linear lighting solution for indirect ambient lighting?

For indirect ambient lighting, uplight or combined uplight/downlight linear fixtures are ideal. Uplight directs illumination toward the ceiling, creating a soft, diffused glow. The GL LED architectural uplight/downlight linear LED light delivers both ambient and functional lighting in one fixture, making it perfect for offices, hospitality areas, and open-plan workspaces.

2. What is the CRI rating of the LED Linear Light?

The LED Linear Light features a CRI > 90, meaning it renders colors with exceptional accuracy, close to how they appear in natural daylight. This high CRI rating is essential for commercial spaces where visual clarity and true-to-life color perception matter, such as offices and retail stores. The GL LED linear fixture combines this superior color rendering with adjustable color temperatures for maximum design flexibility and lighting quality.

3. Which mounting style is best for my ceiling type in an office lighting project?

The ideal mounting style depends on ceiling type and desired aesthetics. Suspended linear pendant lights are perfect for high or open ceilings, adding a modern design element while evenly illuminating work areas. T-grid recessed mounting integrates seamlessly into drop ceilings for a clean, minimalist look. Surface mounting works well for low ceilings. GL LED’s linear fixtures support all mounting types, ensuring compatibility with diverse office layouts and architectural styles.

Instruction Video:
