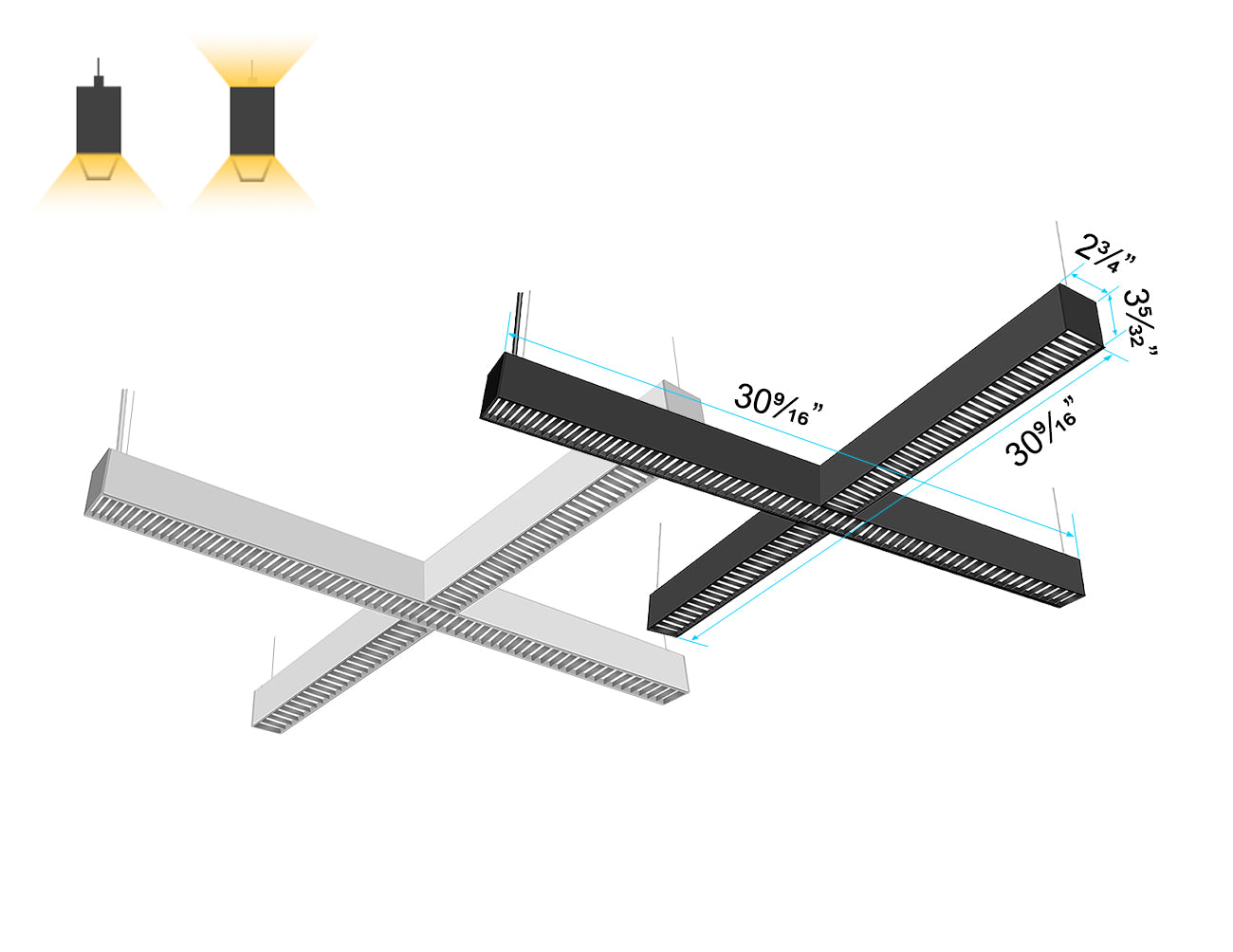

LED Linear Light - L8070 - Louver Lens - X Shape

The LED Linear Light featuring a louver lens offers a modern and elegant lighting solution designed for diverse commercial and industrial applications. Built with durability as a priority and employing energy-efficient LED technology, this fixture provides bright and even illumination, making it ideal for offices, retail spaces, warehouses, and garages. The louver lens design enhances light diffusion, effectively reducing glare and hotspots to foster a comfortable visual environment. Its compact design allows for easy installation in various configurations, enabling smooth integration into existing lighting systems. Designed for durability and high performance, this LED linear light minimizes maintenance costs while ensuring consistent, high-quality light output. Whether you are upgrading an existing system or designing a new area, the X shape LED Linear Light with louver lens is a reliable and energy-efficient choice to improve visibility and safety.

Product details

• The LED linear light equipped with a louver lens combines efficiency and durability to satisfy various lighting needs.
• Designed for commercial and industrial applications, it delivers bright, uniform illumination while reducing glare thanks to its louver lens.
• Its compact design allows for easy installation in multiple settings, including offices, retail spaces, and warehouses.
• Made from high-quality materials, this energy-efficient fixture ensures long-lasting performance and requires minimal maintenance.
• Perfect for enhancing visibility and safety, the X shape LED linear light is a reliable choice for modern lighting solutions.

Applications

• The X shape L8070 louver Lens LED Linear Light is perfectly suited for areas that require glare-free, focused lighting with a contemporary design.

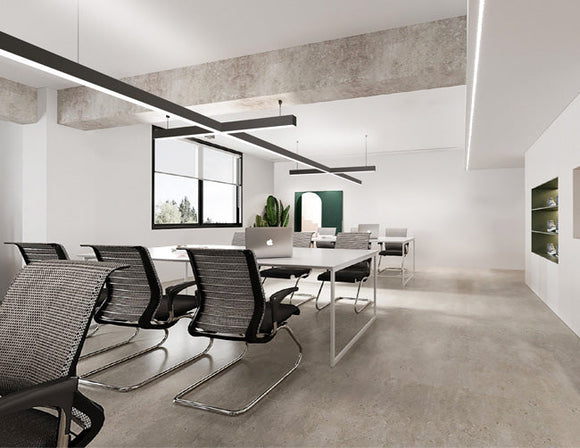

• Its louver lens construction significantly minimizes direct glare while providing directional illumination, making it ideal for offices, meeting rooms, and educational settings.

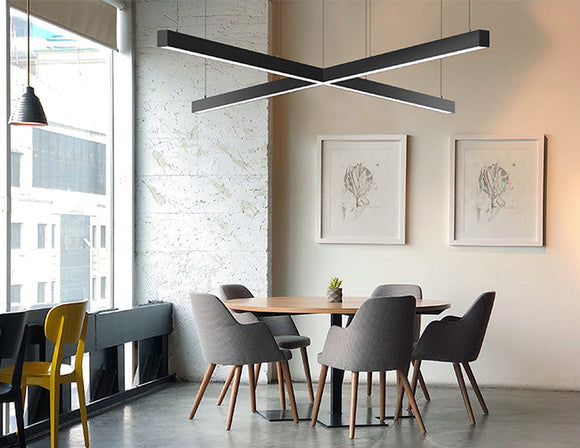

• Additionally, it is appropriate for commercial corridors, retail establishments, and hospitality venues where visual comfort and energy efficiency are essential.
• The compact X shape dimensions are advantageous for modular installations in confined architectural spaces or as accent lighting.
• Its sleek lines and accurate output render it a preferred option for modern lighting designs that necessitate visual clarity and control.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC

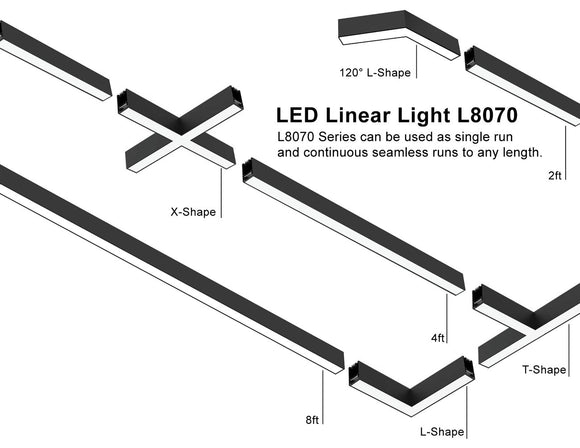

Type		Louver Lens 2ft	Louver Lens 4ft	Louver Lens 8ft	Louver Lens L Shape	Louver Lens 120° L Shape	Louver Lens T Shape	Louver Lens X Shape
Power	Up Light	20W	40W	70W	-	-	-	-
	Up & Down Light	25W	50W	100W	30W	50W	40W	50W
	Down Light	20W	40W	70W	20W	40W	30W	50W

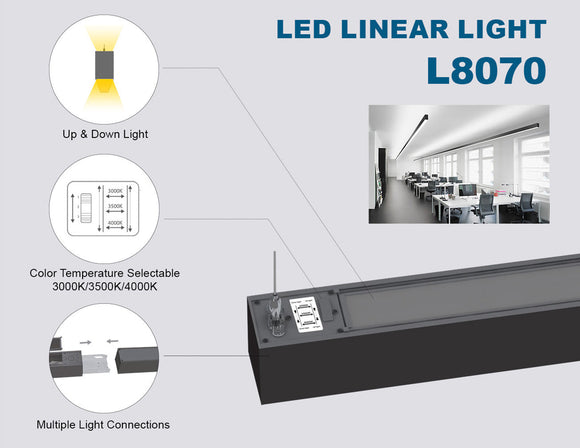

Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm	-	-	-	-
	Up & Down Light	2875lm	5750lm	11500lm	3450lm	5750lm	4600lm	5750lm
	Down Light	2300lm	4600lm	8050lm	2300lm	4600lm	3450lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power consumption and light output specifications for the X‑Shape L8070 with grille (louver) lens?

A: This X‑Shape fixture consumes 50 W at 4000 K, with a distribution of 30 % upward and 70 % downward to balance ambient and task lighting.

Q2: What mounting and modular linking options does the X‑Shape model offer?

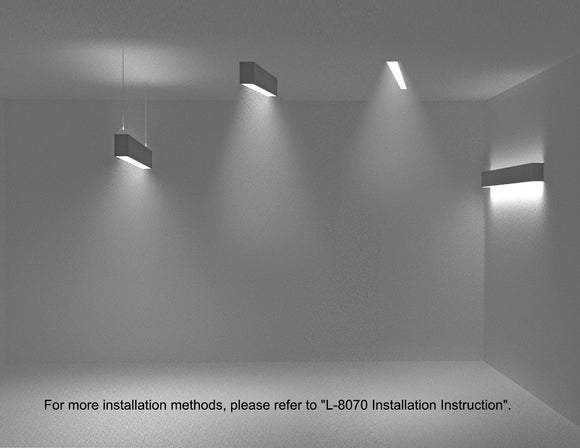

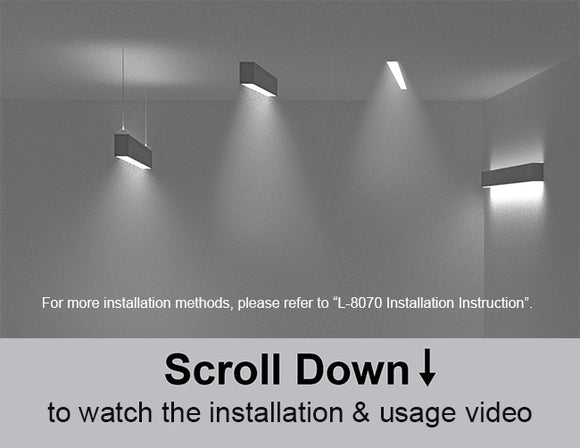

A: It supports multiple installation methods—suspended pendant, surface-mounted, or recessed (via spring clamp or T‑grid)—with the option for both single runs or connecting in four directions using compatible linkable brackets to create intricate lighting configurations.

Q3: Which customization features, finishes, and compliance ratings are available for this fixture?

A: The X‑Shape model offers selectable color temperatures (3000 K, 3500 K, 4000 K), 0–10 V dimming, finishes in white or black, and optional emergency backup features. It also meets FCC and ETL listings, is suited for dry locations, and includes a 5‑year limited warranty.
