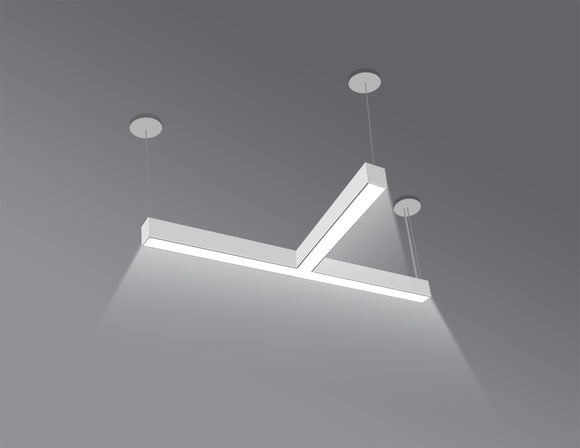

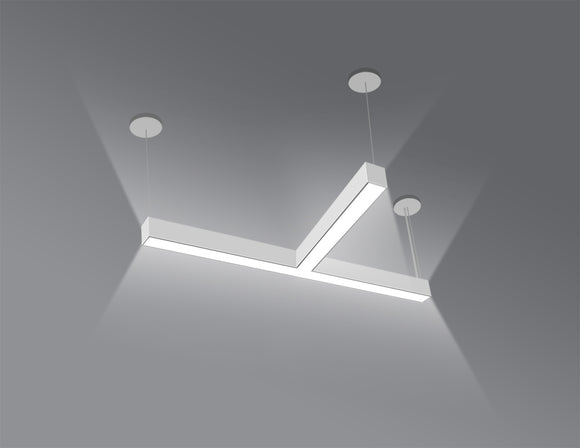

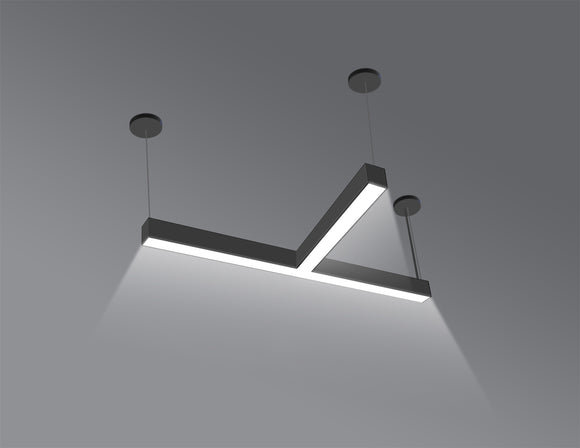

LED Linear Light - L8070 - Louver Lens - T Shape

The L8070 LED Linear Light featuring a Louver Lens in a T-Shape from GLLED represents a sophisticated, high-performance lighting option that is perfect for contemporary commercial and architectural environments. Engineered for seamless integration, this fixture provides uniform, glare-free lighting through its louver lens, contributing to a clean and modern aesthetic. The T-shape design facilitates versatile configurations, making it an excellent choice for offices, retail spaces, galleries, and corridors. Built with energy-efficient LED technology, it ensures long-lasting performance while minimizing power consumption. Constructed from robust aluminum housing, it guarantees superior heat dissipation and durability. Additionally, this fixture supports linkable installation, providing flexibility for continuous runs. The L8070 is offered in various color temperatures and wattage options to accommodate diverse lighting requirements and design preferences.

Product details

• The LED linear light equipped with a louver lens combines efficiency and durability to satisfy various lighting needs.
• Designed for commercial and industrial applications, it delivers bright, uniform illumination while reducing glare thanks to its louver lens.
• Its compact design allows for easy installation in multiple settings, including offices, retail spaces, and warehouses.
• Made from high-quality materials, this energy-efficient fixture ensures long-lasting performance and requires minimal maintenance.
• Perfect for enhancing visibility and safety, the T shape LED linear light is a reliable choice for modern lighting solutions.

Applications

• The L8070 louver Lens LED Linear Light is perfectly suited for areas that require glare-free, concentrated illumination with a contemporary design.
• Its louver lens configuration significantly minimizes direct glare while providing directional lighting, making it an excellent choice for offices, conference rooms, and educational settings.
• Additionally, it is appropriate for commercial hallways, retail outlets, and hospitality environments where visual comfort and energy efficiency are essential.
• The compact T shape is ideal for modular setups in confined architectural spaces or as accent lighting.
• Its sleek lines and accurate output render it a preferred option for modern lighting designs that necessitate visual clarity and control.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

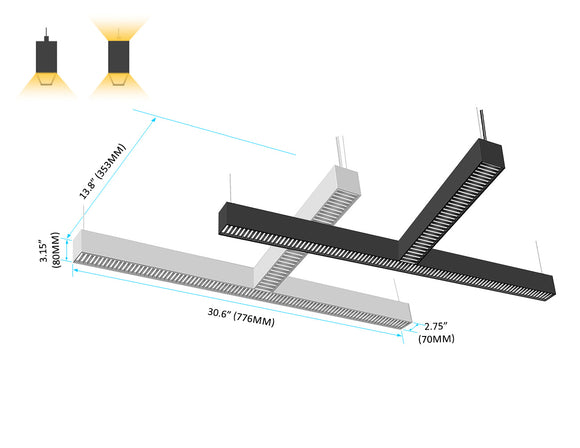

Specification

Input Voltage		120-347VAC

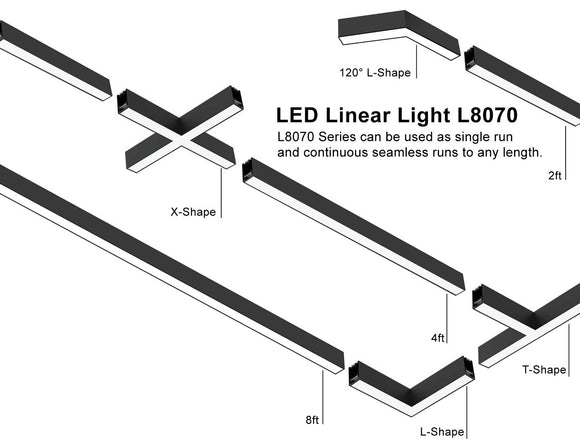

Type		Louver Lens 2ft	Louver Lens 4ft	Louver Lens 8ft	Louver Lens L Shape	Louver Lens 120° L Shape	Louver Lens T Shape	Louver Lens X Shape
Power	Up Light	20W	40W	70W	-	-	-	-
	Up & Down Light	25W	50W	100W	30W	50W	40W	50W
	Down Light	20W	40W	70W	20W	40W	30W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm	-	-	-	-
	Up & Down Light	2875lm	5750lm	11500lm	3450lm	5750lm	4600lm	5750lm
	Down Light	2300lm	4600lm	8050lm	2300lm	4600lm	3450lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power and light output specifications for the T‑Shape L8070 with louver lens?

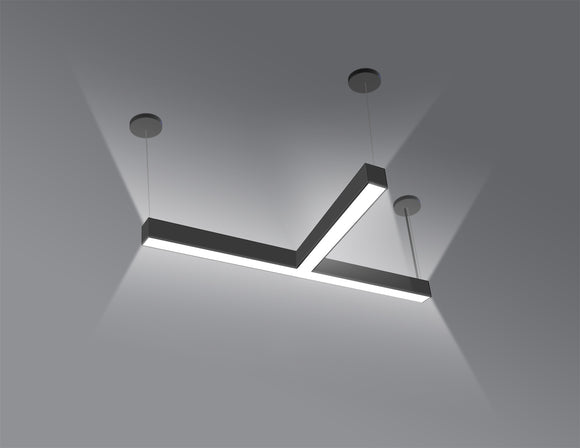

A: The T‑Shape model consumes 40 W in up-and-down lighting mode (30% up / 70% down) and at 4,000 K it achieves a strong efficacy of 115 lm/W, ensuring bright yet efficient illumination.

Q2: What installation configurations and modular capabilities does this fixture offer?

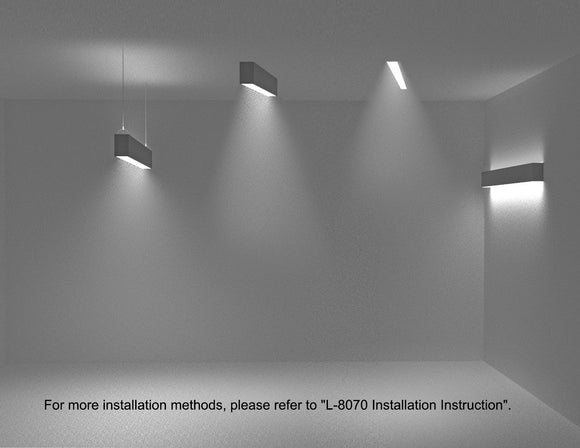

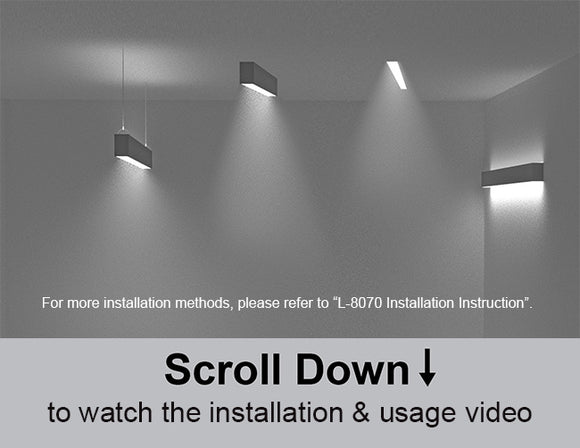

A: This fixture is highly versatile: it can be suspended, surface-mounted, wall-mounted, or recessed (spring clamp or T‑grid). The T‑Shape design allows the light to function individually or be seamlessly linked with other L8070 modules—ideal for creating T-junctions or complex continuous runs.

Q3: What control, finish, and safety features are included with the T‑Shape variant?

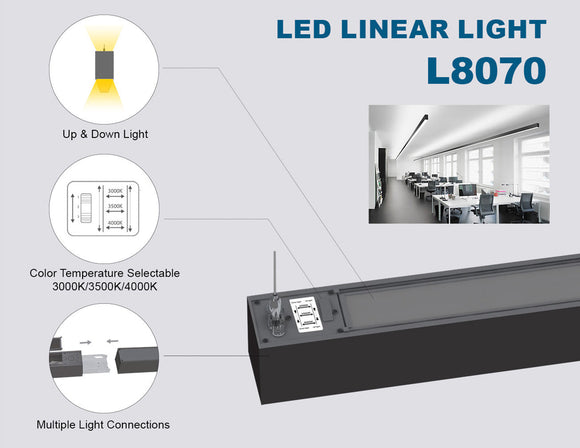

A: It supports selectable color temperatures (3000 K, 3500 K, 4000 K) and 0–10 V dimming. The fixture delivers excellent color accuracy with CRI ≥ 90, is ETL and FCC listed, designed for dry locations, offers emergency backup, and is available in white or black finishes, all backed by a 5‑year limited warranty.
