The GL LED L8070 L-shape architectural luminaire merges sophisticated design with exceptional performance. Each arm is approximately 16⅝" long and at 4000 K while consuming only 30 W, achieving a high efficacy of around 115 lm/W. Its up-and-down direct/indirect output is distributed approximately 70% downward and 30% upward, and it facilitates smooth dimming through 0–10 V. Built with a sturdy aluminum housing and a milky flat polycarbonate diffuser, it provides soft, uniform, anti-glare lighting and precise color rendering (CRI ≥ 90). The L-shape unit can function as an independent fixture or be connected in continuous runs to create striking angular arrangements, suitable for suspended, surface, wall-mounted, or recessed installations. It is perfect for contemporary offices, classrooms, retail environments, and hospitality settings.
Product details
- L-shaped luminaire featuring direct and indirect output: approximately 70% directed downward and 30% upward.

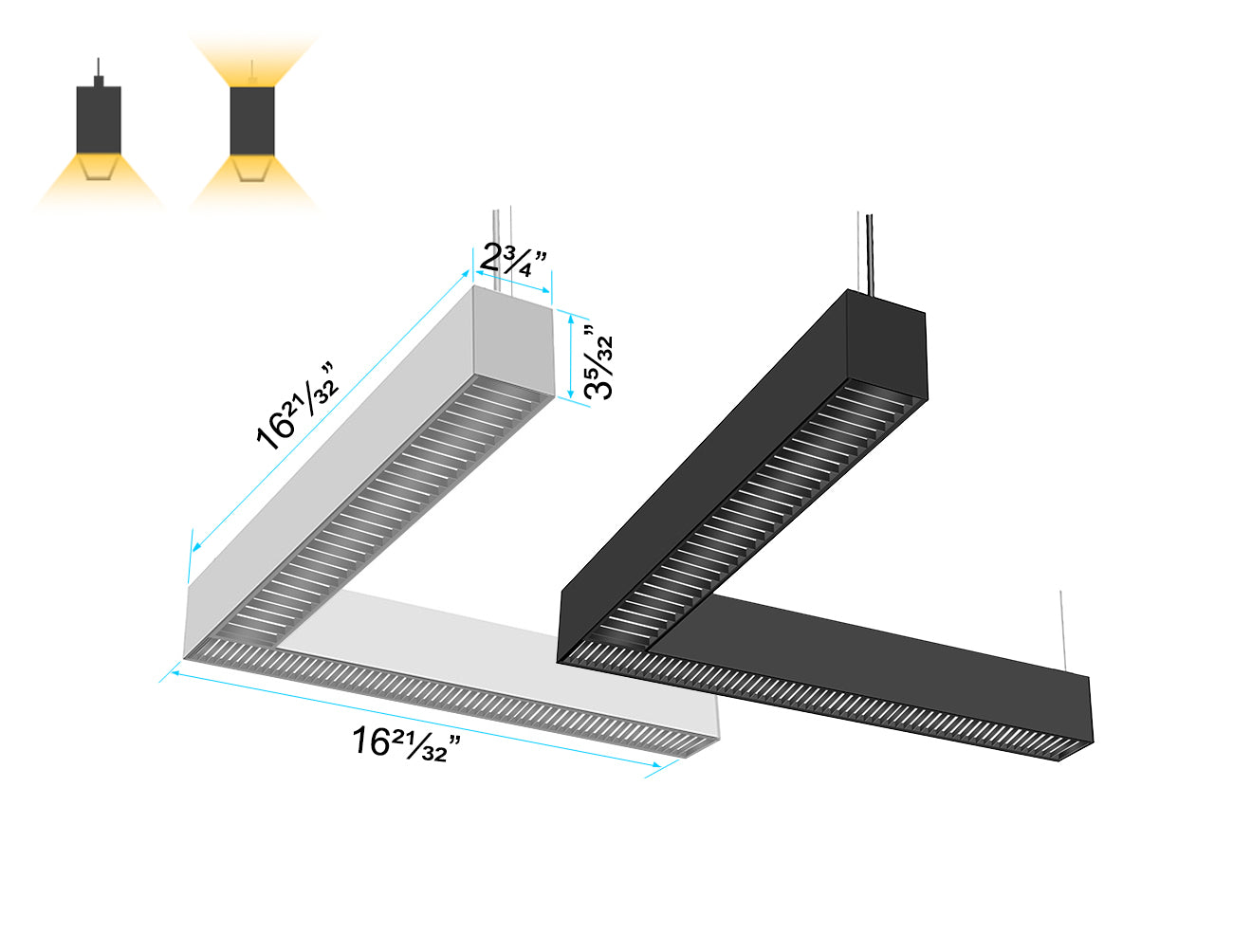

- One arm measures about 16 ⅝ inches in length (16-21/32 inches) and operates at around 30 watts, at color temperature of 4000 K approximately 115 lumens per watt.

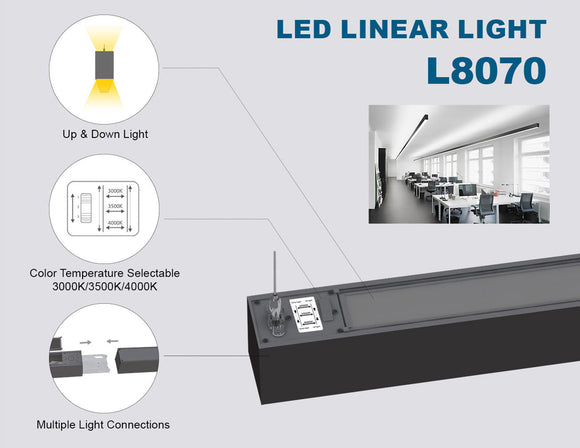

- Constructed with an aluminum housing and a polycarbonate milky flat diffuser; Color Rendering Index (CRI) of 90 or higher, with selectable correlated color temperatures of 3000K, 3500K, and 4000K.
- Directly connects to a line voltage of 120–347 VAC; features 0–10 V dimming capability.

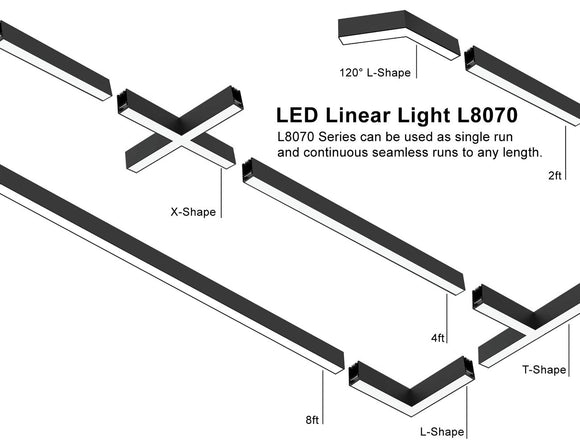

- Accommodates both single and continuous runs; modular compatibility with other L8070 configurations.

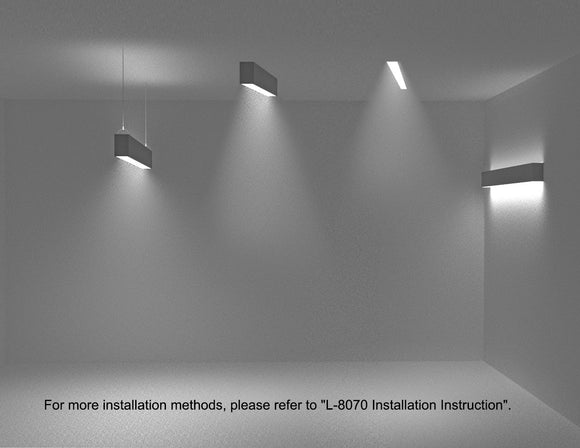

- Offers flexible mounting options: suspended, surface-mounted, or recessed (using spring clamp or T-grid).
- Includes optional motion sensor control and emergency backup; complies with FCC/ETL standards; backed by a 5-year warranty.
Applications

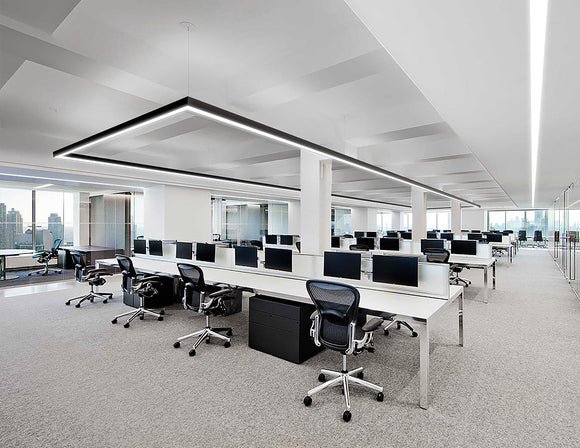

- Perfect for offices, classrooms, and meeting spaces—provides soft, uniform lighting that aids concentration without causing glare or hotspots.
- Well-suited for retail environments, shopping centers, dining establishments, coffee shops, and hospitality venues where clean, evenly distributed illumination improves visual appeal and ambiance.
- An excellent option for educational institutions and healthcare settings that demand high visual comfort and clarity.

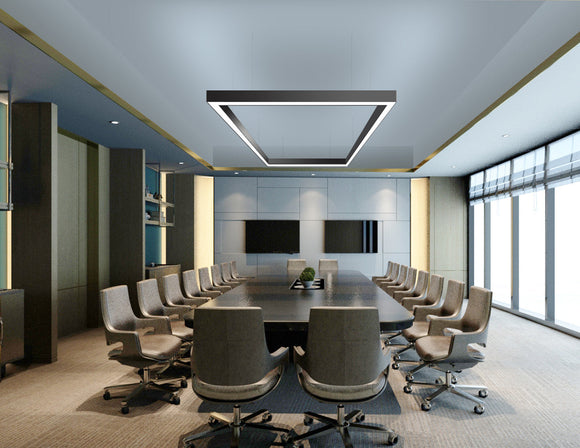

- Facilitates flexible architectural lighting designs by connecting with other L8070 modules to create continuous, angular, or L-shaped configurations.

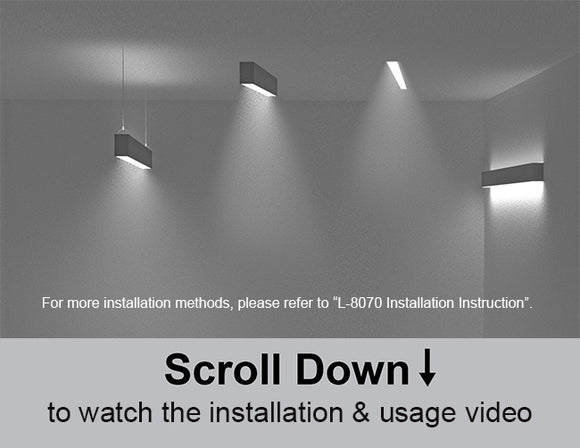

- Presents versatile installation choices: suspended pendant, surface mount, or recessed (spring clamp or T-grid) to suit various ceiling types and heights.
- Optional features include emergency backup—perfect for adaptive, safety-critical lighting arrangements.
![]() |
![]() |
Documents
Specification
Input Voltage | 120-347VAC | |||||||
Type | Louver Lens 2ft | Louver Lens 4ft | Louver Lens 8ft | Louver Lens L Shape | Louver Lens 120° L Shape | Louver Lens T Shape | Louver Lens X Shape | |
Power | Up Light | 20W | 40W | 70W | - | - | - | - |
Up & Down Light | 25W | 50W | 100W | 30W | 50W | 40W | 50W | |
Down Light | 20W | 40W | 70W | 20W | 40W | 30W | 50W | |
Color Temperature (Changeable) |
3000K/3500K/4000K | |||||||
Milky Flat Lens Brightness(4000K) |
Up Light | 2300lm | 4600lm | 8050lm | - | - | - | - |
Up & Down Light | 2875lm | 5750lm | 11500lm | 3450lm | 5750lm | 4600lm | 5750lm | |
Down Light | 2300lm | 4600lm | 8050lm | 2300lm | 4600lm | 3450lm | 5750lm | |
Efficacy(4000K) | 115LM/W | |||||||
Dimming | 0-10V Dimming | |||||||
CRI | 90+ | |||||||
Location | Dry Location | |||||||
Finish | Black, White |
Q&A:
Q1: What lighting output and efficiency does the L‑Shape linear light deliver?
A: Each arm of the L‑Shape fixture consumes 30 W and at 4000 K achieving a high efficacy of approximately 115 lm/W. The light distribution splits roughly 70% downward and 30% upward, offering balanced ambient lighting.
Q2: What color temp, dimming, and installation flexibility does this model offer?
A: The fixture supports selectable color temperatures of 3000 K, 3500 K, or 4000 K, and offers smooth 0–10 V dimming. It's compatible with a variety of mounting types—including suspended, surface-mounted, or recessed installations (spring‑clamp or T‑grid)—and can operate as a standalone unit or be linked with other L8070 modules for continuous or angled configurations.
Q3: What additional features and optional accessories enhance the L‑Shape’s linear light?
A: Housed in sturdy aluminum with a polycarbonate louver lens, the L‑Shape model achieves CRI ≥ 90, minimizing glare and offering high-quality light. It’s rated for dry locations, comes in black or white finishes, and is ETL and FCC listed. Optional add-ons—such as motion sensor control and emergency backup—are available, along with a 5-year limited warranty for long-term reliability.
