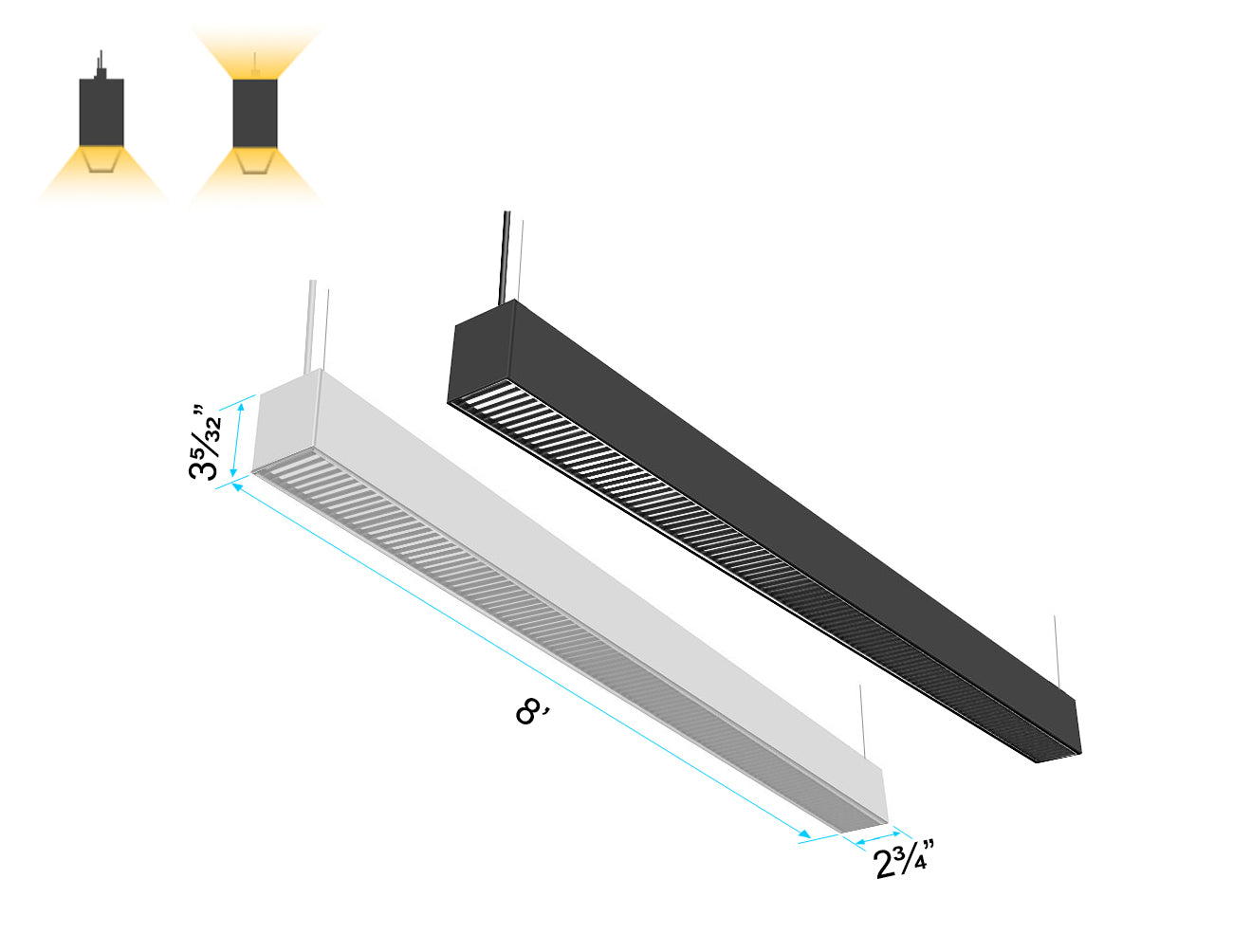

LED Linear Light - L8070 - Louver Lens - 8ft

The LED Linear Light featuring a louver lens offers a modern and elegant lighting solution designed for diverse commercial and industrial applications. Built with durability as a priority and employing energy-efficient LED technology, this fixture provides bright and even illumination, making it ideal for offices, retail spaces, warehouses, and garages. The louver lens design enhances light diffusion, effectively reducing glare and hotspots to foster a comfortable visual environment. With its compact 8-foot length, installation in various configurations is simple, allowing for seamless integration into existing lighting systems. Designed for durability and high performance, this LED linear light minimizes maintenance costs while ensuring consistent, high-quality light output. Whether you are upgrading an existing system or designing a new area, the 8ft LED Linear Light with louver lens is a reliable and energy-efficient choice to improve visibility and safety.

Product details

• The LED linear light equipped with a louver lens combines efficiency and durability to satisfy various lighting needs.
• Designed for commercial and industrial applications, it delivers bright, uniform illumination while reducing glare thanks to its louver lens.
• Its compact design allows for easy installation in multiple settings, including offices, retail spaces, and warehouses.
• Made from high-quality materials, this energy-efficient fixture ensures long-lasting performance and requires minimal maintenance.
• Perfect for enhancing visibility and safety, the 8ft LED linear light is a reliable choice for modern lighting solutions.

Applications

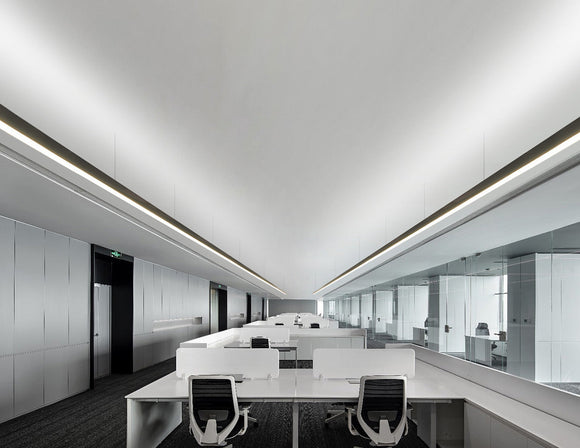

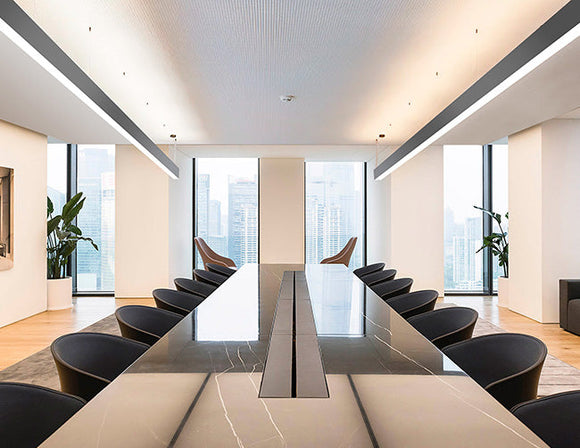

• Designed for larger interior applications, the L8070 8‑ft LED linear light with louver lens delivers broad, glare‑controlled illumination—ideal for open‑plan offices, classrooms, conference rooms, retail aisles, and warehouse corridors.
• Its grille-style lens diffuses light evenly, minimizing hotspots and glare while ensuring visual comfort and clarity.

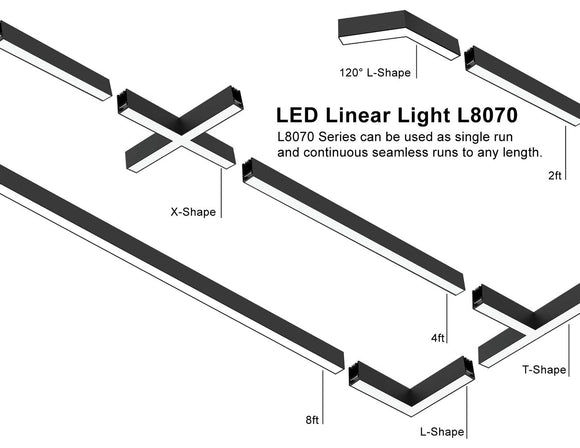

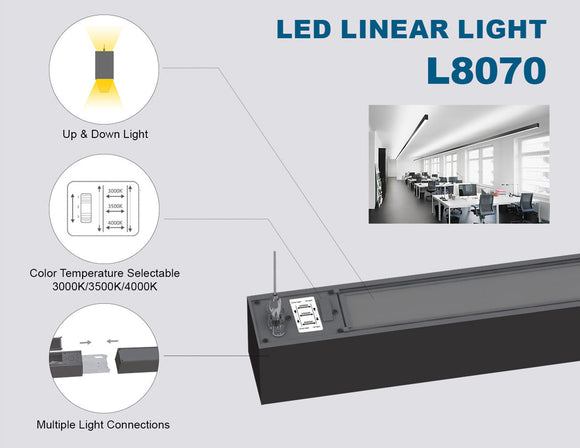

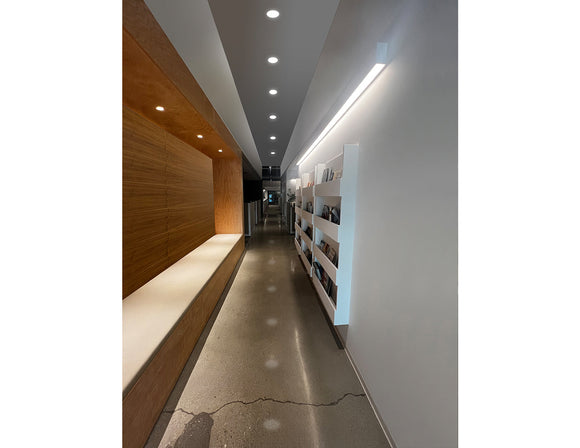

• With versatile installation options (pendant, surface, wall mount, or recessed) and seamless linking capability, it adapts to long continuous runs and varied architectural layouts.
• Offering selectable 3000 K, 3500 K, and 4000 K color temperatures, efficient 0–10 V dimming, high CRI (≥ 90), and energy efficiency of about 115 lm/W, it’s a smart, flexible, and modern solution for demanding commercial and educational environments.

Documents

• L8070 Linear Light - Black - V3 Specification
• L8070 Linear Light - White - V2 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

L8070 Linear Light - Black - V3

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape	Milky Flat Lens Y Shape
Power	Down Light	20W	40W	80W	25W	40W	40W	50W	60W
	Up Light	20W	40W	80W	-	-	-	-	60W
	Up & Down Light	25W	50W	100W	30W	50W	50W	50W	75W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Down Light	1800lm-2000lm	3600lm-4000lm	7200lm-8000lm	2250lm-2500lm	3600lm-4000lm	3600lm-4000lm	4500lm-5000lm	5400lm-6000lm
	Up Light	1800lm-2000lm	3600lm-4000lm	7200lm-8000lm	-	-	-	-	5400lm-6000lm
	Up & Down Light	2250lm-2500lm	4500lm-5000lm	9000lm-10000lm	2700lm-3000lm	4500lm-5000lm	4500lm-5000lm	4500lm-5000lm	6750lm-7500lm
Efficacy(4000K)		90-100LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black,White

L8070 Linear Light - White - V2

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape
Power	Down Light	20W	40W	80W	25W	40W	40W	50W
	Up Light	20W	40W	80W	-	-	-	-
	Up & Down Light	30W	50W	100W	35W	50W	50W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Down Light	2300lm	4600lm	9200lm	2875lm	4600lm	4600lm	5750lm
	Up Light	2300lm	4600lm	9200lm	-	-	-	-
	Up & Down Light	3450lm	5750lm	11500lm	4025lm	5750lm	5750lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		80+
Location		Dry Location
Finish		White

Q&A:

Q1: What are the lumen output and efficiency specifications for the 8 ft louver lens linear light?

A: The 8 ft L8070 with louver lens offers a combined up‑and‑down output of 11,500 lumens when using the up‑and‑down configuration (30% up, 70% down), achieving an impressive efficiency of about 115 lm/W (at 4000 K).

Q2: What mounting options and installation flexibility are available for this fixture?

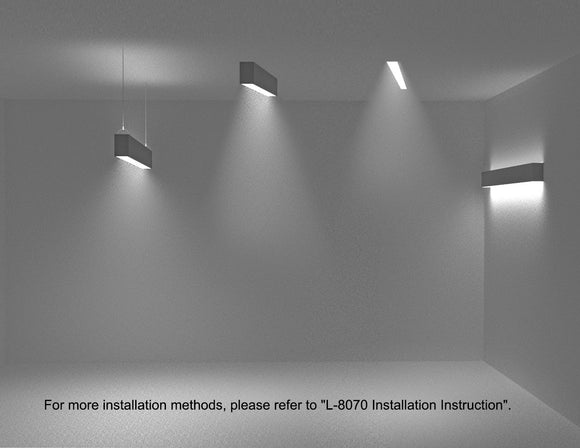

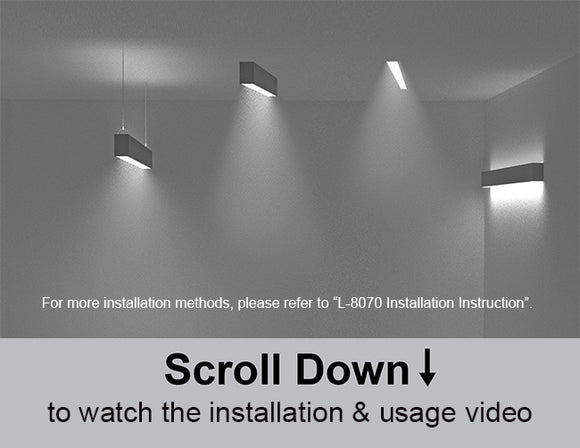

A: This fixture supports a variety of installation types—including pendant suspension, surface mounting, wall mounting, and recessed mounting—and supports seamless continuous runs through compatible linkable brackets (sold separately).

Q3: What controls and customization features does the linear light offer?

A: Users benefit from selectable color temperatures (3000 K, 3500 K, and 4000 K) and smooth 0‑10 V dimming. Optional add-ons such as a motion sensor and emergency backup are available. The fixture also comes in both white or black finishes, is ETL and FCC listed, rated for dry locations, and backed by a 5‑year limited warranty.
