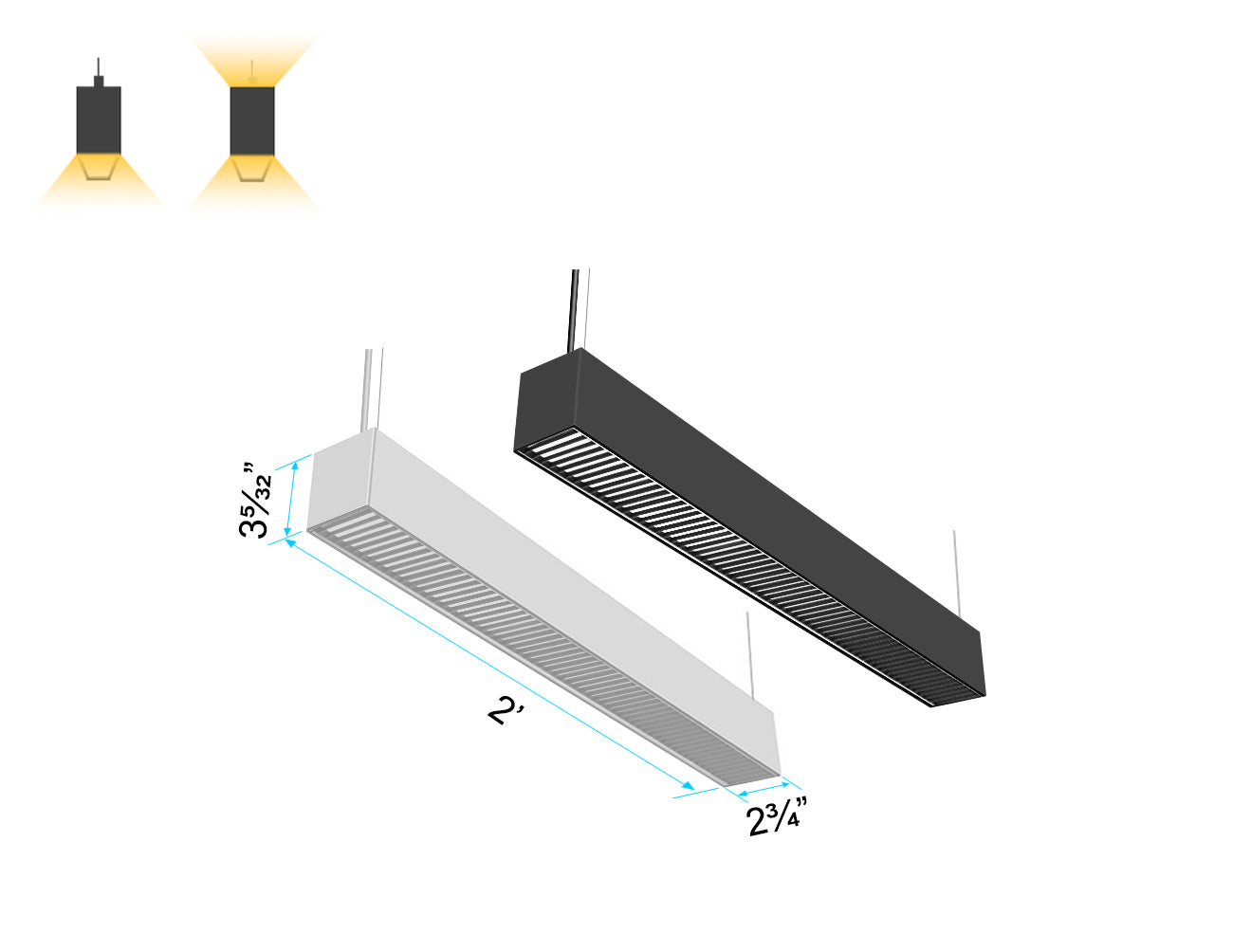

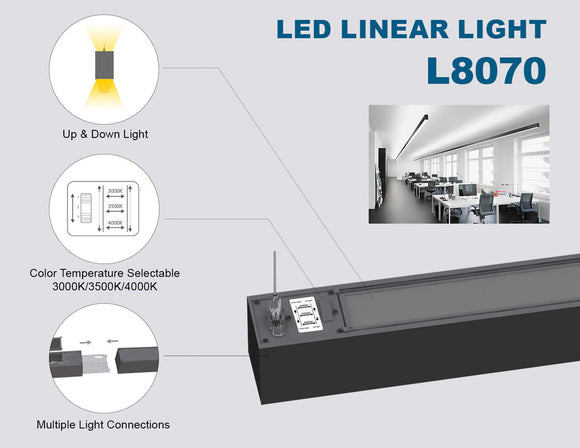

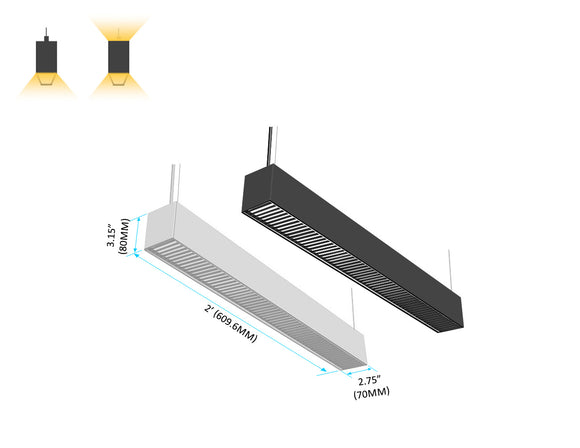

LED Linear Light - L8070 - Louver Lens - 2ft

The 2ft LED Linear Light with louver lens offers a sleek, modern lighting solution designed for versatile commercial and industrial applications. Featuring a durable construction and energy-efficient LED technology, this fixture provides bright, uniform illumination ideal for offices, retail spaces, warehouses, and garages. The louver lens design enhances light diffusion, reducing glare and hotspots for a comfortable visual environment. Its compact 2-foot length makes it easy to install in various configurations, allowing for seamless integration into existing lighting layouts. Built for durability and long-term performance, this LED linear light minimizes maintenance costs while delivering consistent, high-quality light output. Whether upgrading an existing system or designing a new space, the 2ft LED Linear Light with louver lens is a reliable, energy-efficient choice to improve visibility and safety.

Product details

• The LED linear light with louver lens combines efficiency and durability for versatile lighting needs.
• Designed for commercial and industrial environments, it offers bright, uniform illumination with reduced glare thanks to its louver lens.
• Its compact size allows easy installation in various settings, including offices, retail spaces, and warehouses.
• Built with high-quality materials, this energy-efficient fixture ensures long-lasting performance and low maintenance.
• Perfect for enhancing visibility and safety, the 2ft LED linear light is a reliable solution for modern lighting applications.

Applications

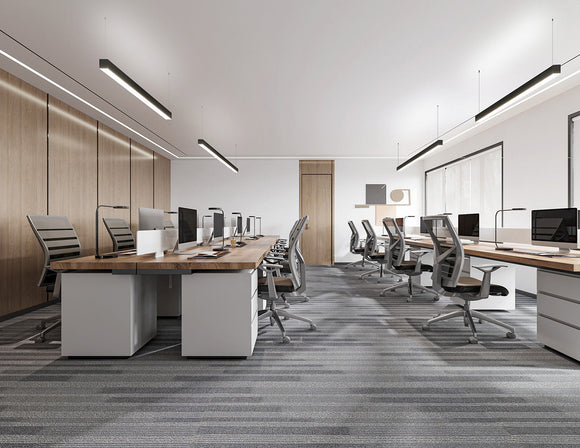

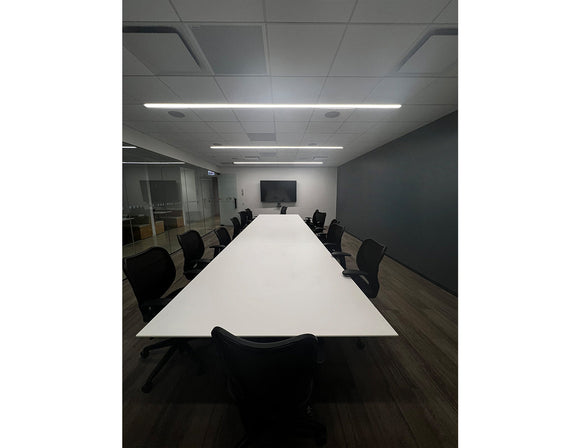

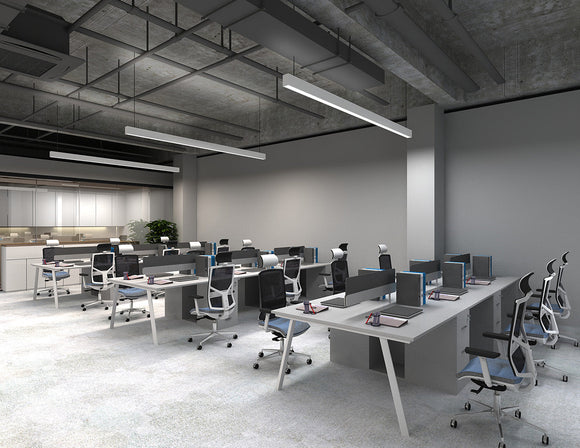

• The 2-ft L8070 louver Lens LED Linear Light is ideal for spaces that demand glare-free, focused illumination with a modern aesthetic.
• Its louver lens design effectively reduces direct glare while delivering directional light, making it perfect for offices, meeting rooms, and educational environments.

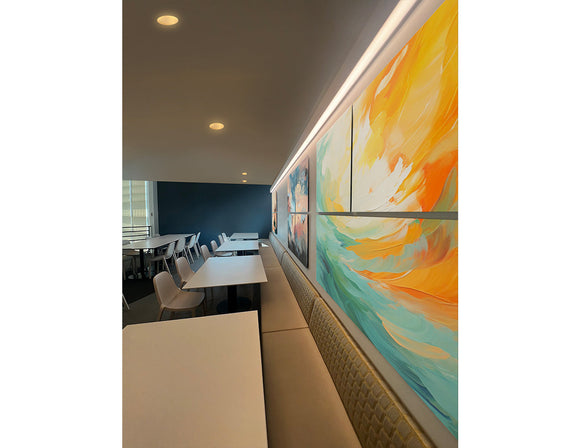

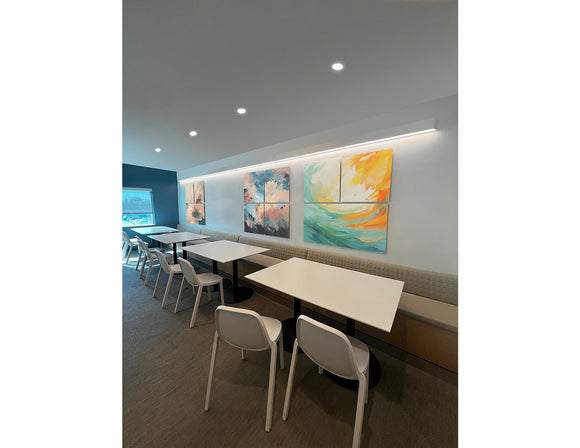

• It also suits commercial corridors, retail stores, and hospitality spaces where visual comfort and energy efficiency are priorities.
• The compact 2-ft size is excellent for modular installations in tight architectural spaces or as accent lighting.
• Its clean lines and precise output make it a top choice for contemporary lighting designs requiring visual clarity and control.

Documents

• L8070 Linear Light - Black - V3 Specification
• L8070 Linear Light - White - V2 Specification
• 2FT Linear light Louver Lens-IES-File
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

L8070 Linear Light - Black - V3

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape	Milky Flat Lens Y Shape
Power	Down Light	20W	40W	80W	25W	40W	40W	50W	60W
	Up Light	20W	40W	80W	-	-	-	-	60W
	Up & Down Light	25W	50W	100W	30W	50W	50W	50W	75W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Down Light	1800lm-2000lm	3600lm-4000lm	7200lm-8000lm	2250lm-2500lm	3600lm-4000lm	3600lm-4000lm	4500lm-5000lm	5400lm-6000lm
	Up Light	1800lm-2000lm	3600lm-4000lm	7200lm-8000lm	-	-	-	-	5400lm-6000lm
	Up & Down Light	2250lm-2500lm	4500lm-5000lm	9000lm-10000lm	2700lm-3000lm	4500lm-5000lm	4500lm-5000lm	4500lm-5000lm	6750lm-7500lm
Efficacy(4000K)		90-100LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

L8070 Linear Light - White - V2

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape
Power	Down Light	20W	40W	80W	25W	40W	40W	50W
	Up Light	20W	40W	80W	-	-	-	-
	Up & Down Light	30W	50W	100W	35W	50W	50W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Down Light	2300lm	4600lm	9200lm	2875lm	4600lm	4600lm	5750lm
	Up Light	2300lm	4600lm	9200lm	-	-	-	-
	Up & Down Light	3450lm	5750lm	11500lm	4025lm	5750lm	5750lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		80+
Location		Dry Location
Finish		White

Q&A:

Q1: What benefit does the louver lens provide?

A: The louver lens helps to reduce glare and improve visual comfort, making it ideal for workspaces and environments where soft, diffused lighting is essential.

Q2: What color temperature options and dimming features are available?

A: The linear light supports selectable color temperatures (3000K, 3500K, 4000K) and comes with 0–10 V dimming for smooth brightness control.

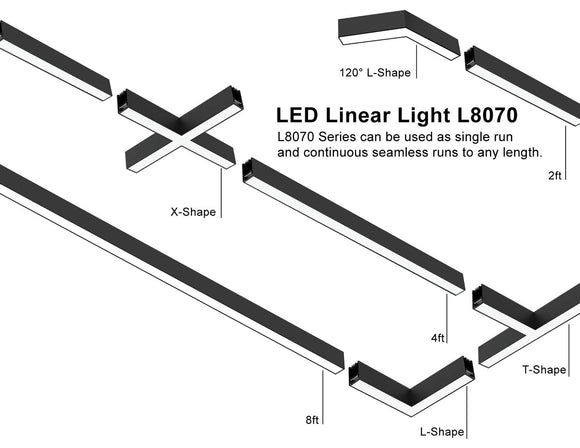

Q3: Can this linear light be integrated for continuous lighting runs and mounting flexibility?

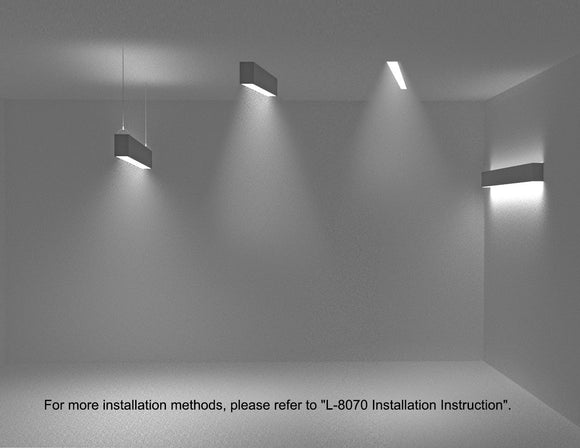

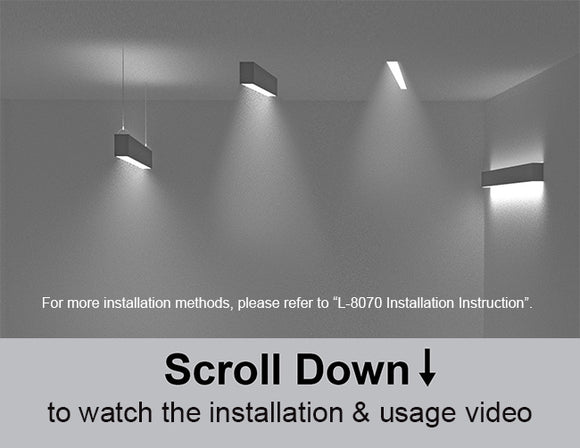

A: Yes. It supports continuous run linking using compatible brackets, and offers versatile installation methods—including pendant, surface-mounted, wall mount, and recessed.
