LED Linear Light - L8070 - Convex Lens - 8ft

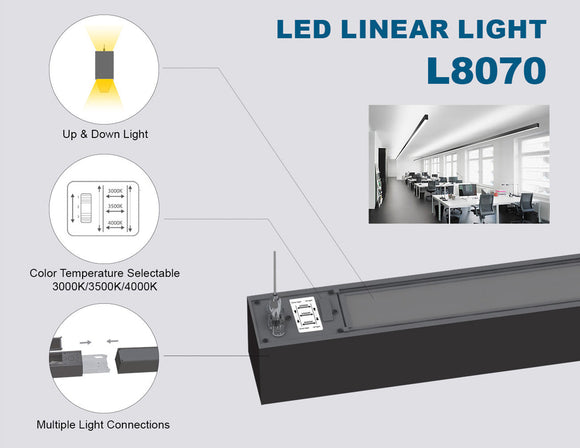

The 8-ft Convex-Lens LED Linear Light combines a sleek architectural design with exceptional lighting performance. Its unique convex lens design significantly improves light diffusion, providing a wide, soft glow that is visually comfortable and minimizes glare—ideal for fostering inviting ambient environments, particularly in offices, schools, retail spaces, and hospitality venues. Constructed with a durable aluminum housing and high-quality LEDs, it accommodates both down and up & down lighting configurations, with options to switch between 3000K, 3500K, and 4000K color temperatures. Equipped with 0-10V dimming capabilities, linkable modularity, and ETL/FCC certifications along with a 5-year warranty, this fixture merges adaptability, efficiency, and reliability into one exceptional offering.

Product details

• Sturdy aluminum casing paired with a convex polycarbonate lens provides broad, gentle, and glare-reduced illumination.

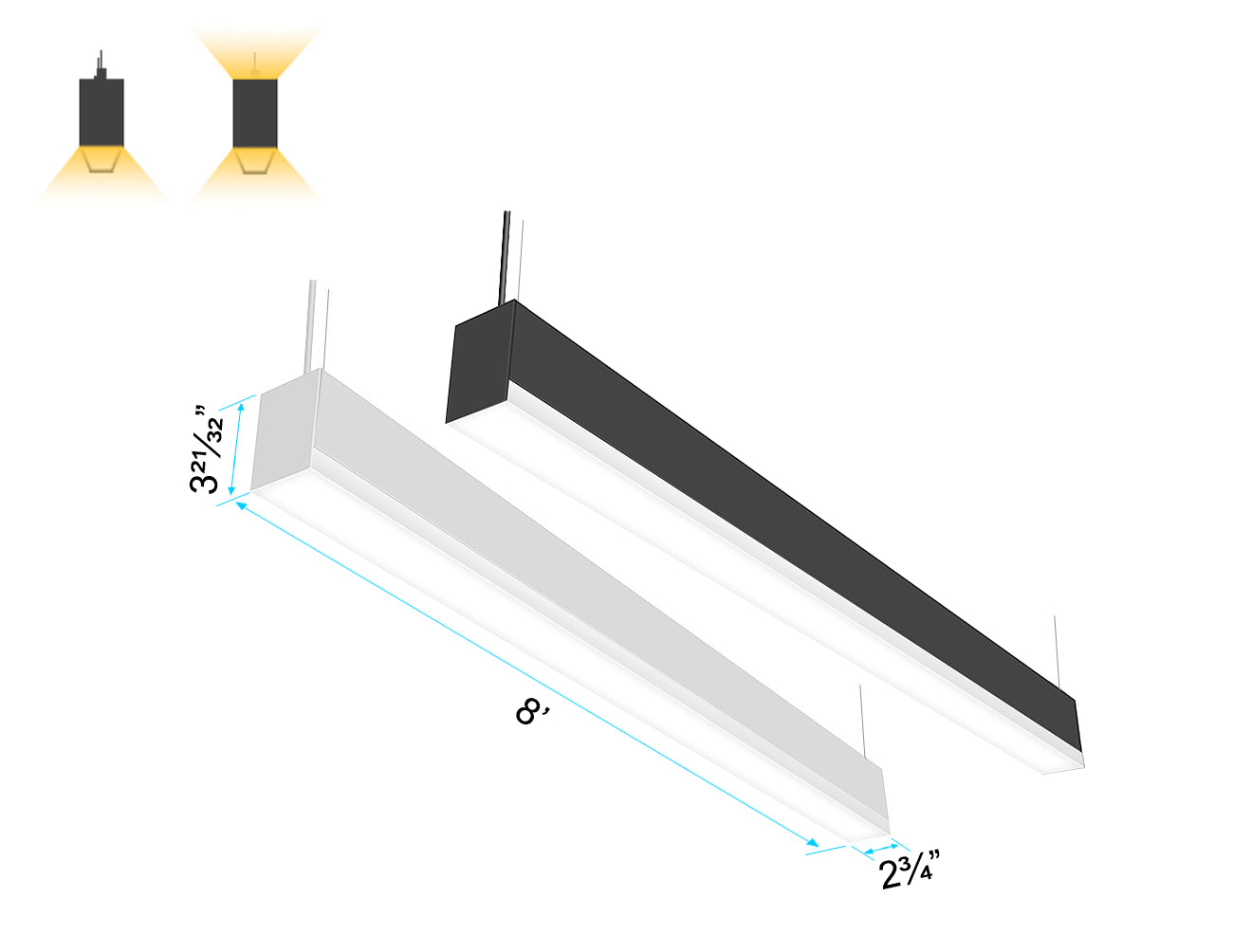

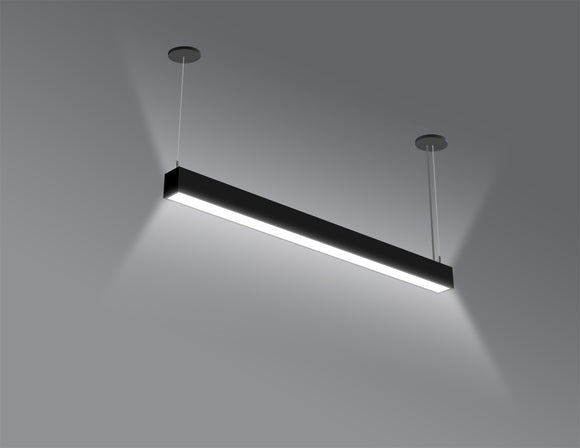

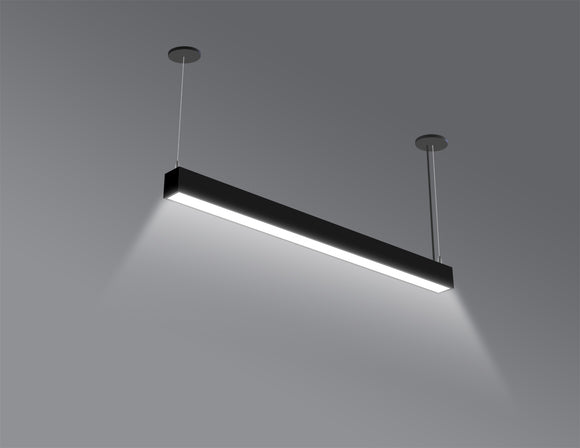

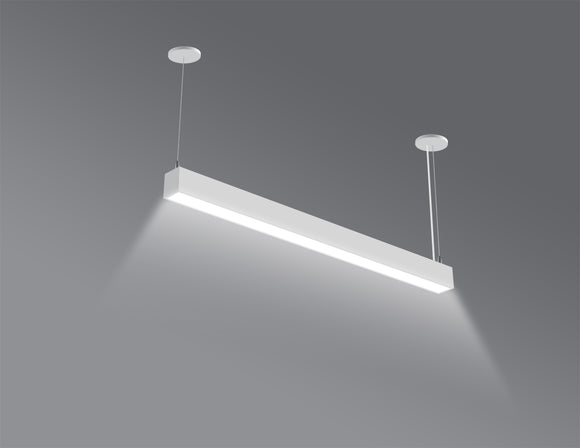

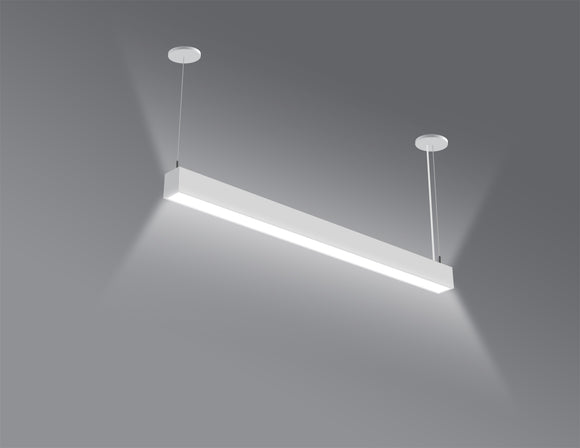

• Flexible 8-foot length option is offered in down-only, up-only, or up-and-down lighting configurations.
• Power consumption: 20 W for down or up; 25 W for up-and-down setup.
• Outstanding efficacy at 115 lm/W, with a color rendering index (CRI) of 90 or higher.
• Dimmable through 0-10 V and available in either black or white finish; suitable for dry environments; supported by a 5-year limited warranty.

Applications

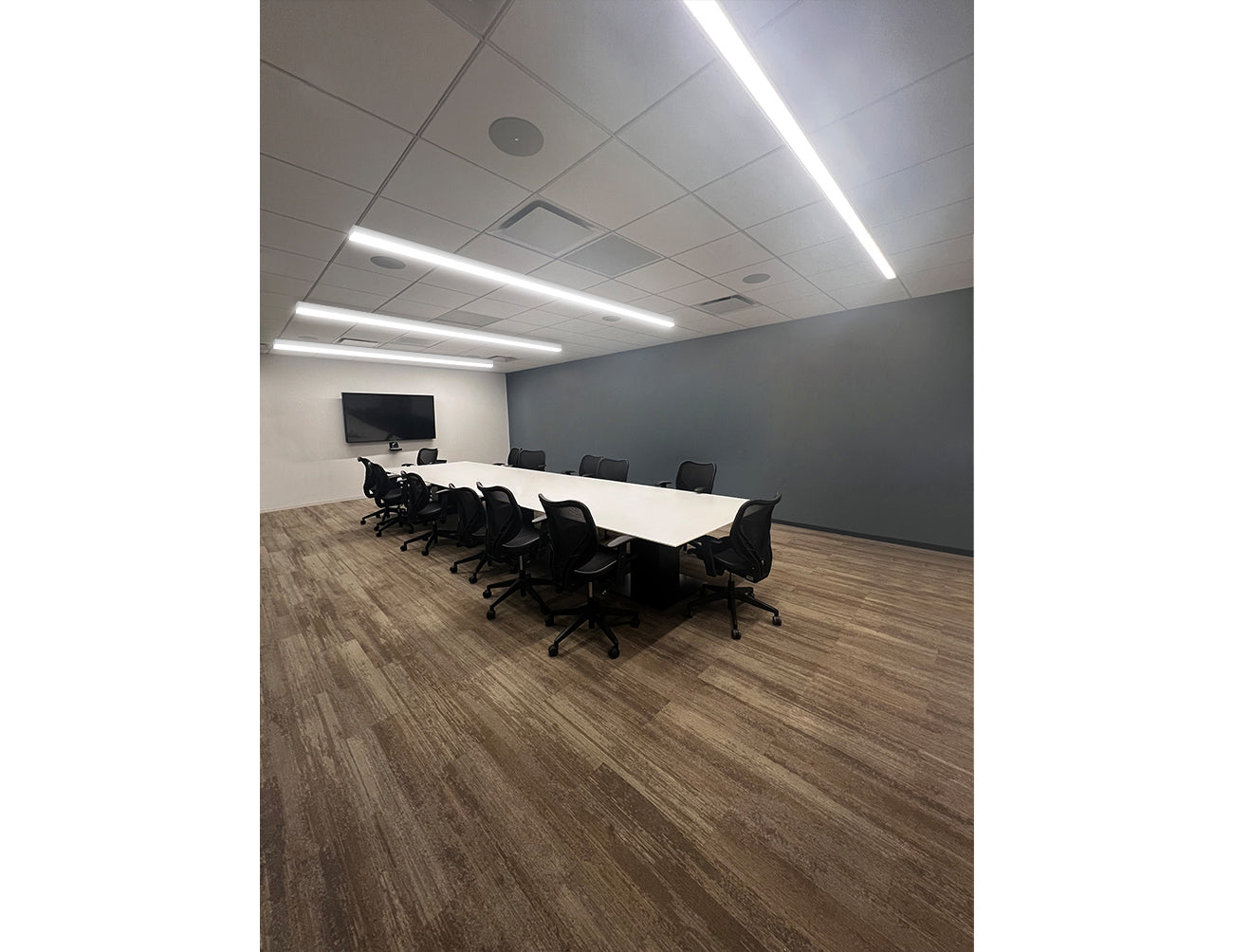

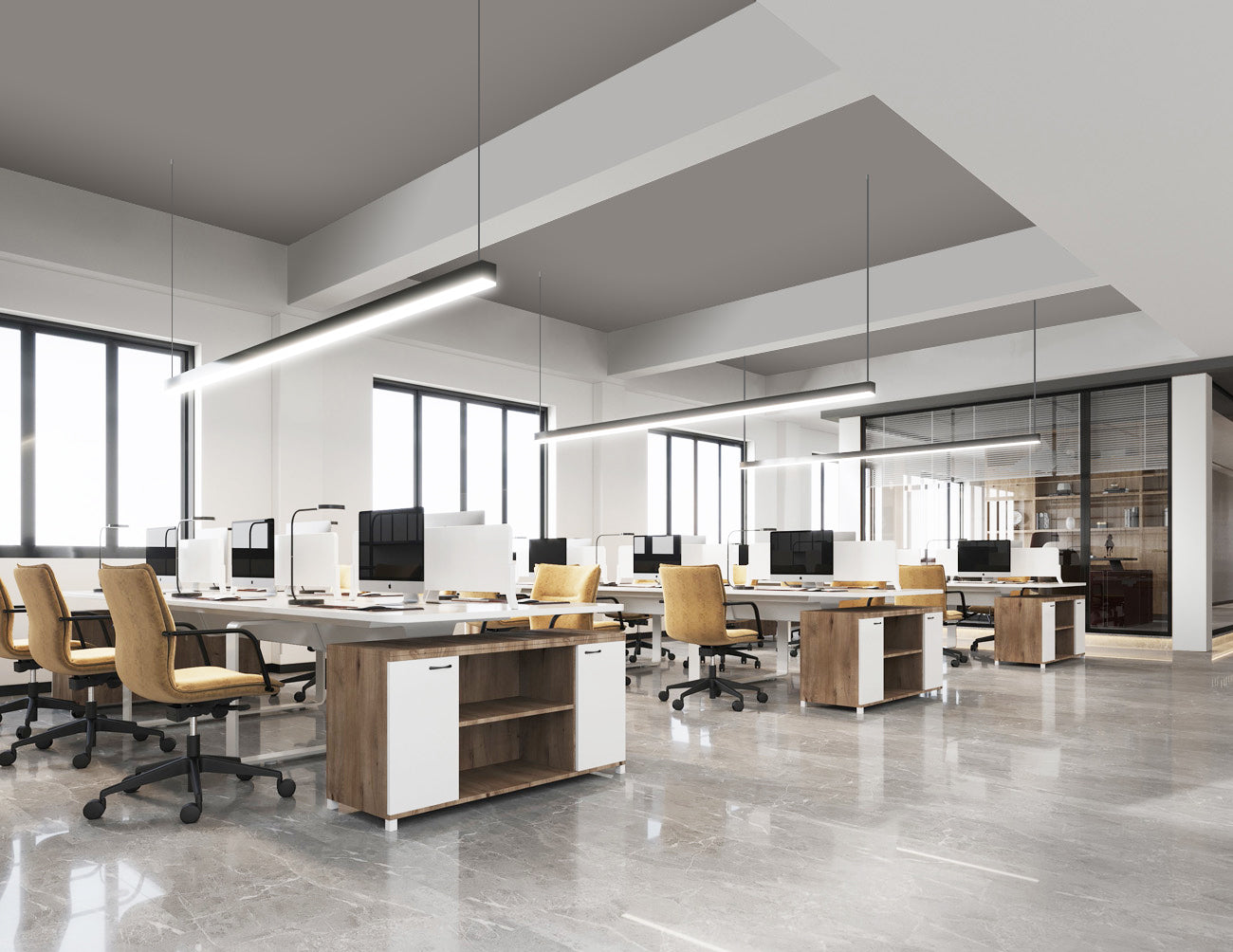

• Generates extensive, comfortable ambient lighting that is perfect for open-plan offices, conference rooms, and classrooms—thanks to its convex lens diffusion which provides uniform, glare-reduced illumination.
• Invites customers in retail spaces, hotel lobbies, and hospitality areas, delivering soft atmospheric light that enhances the overall ambiance.
• Ideal for schools, hospitals, and institutional facilities, where glare reduction and wide light distribution enhance visual comfort and functionality.
• Excellent for continuous lighting installations in corridors, galleries, or large ceilings, facilitating seamless and elegant illumination.

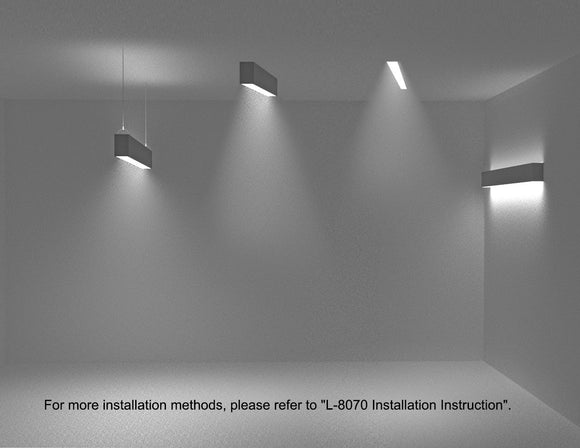

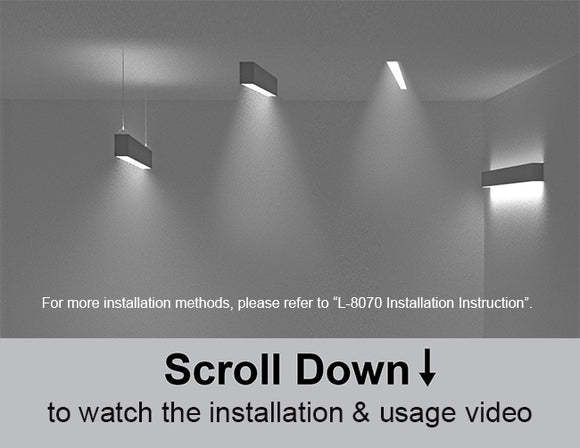

• Offers versatile mounting options—such as pendant, surface mount, wall mount, or recessed—allowing adaptation to various architectural and design requirements.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Convex Lens 2ft	Convex Lens 4ft	Convex Lens 8ft
Power	Up Light	20W	40W	70W
	Up & Down Light	25W	50W	100W
	Down Light	20W	40W	70W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm
	Up & Down Light	2875lm	5750lm	11500lm
	Down Light	2300lm	4600lm	8050lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What is the luminous efficacy and color rendering quality of the 8‑ft Convex‑Lens linear light?

A: The 8‑ft model delivers outstanding luminous efficacy of 115 lm/W and a Color Rendering Index (CRI) of 90+, ensuring bright yet visually pleasing and accurate light output.

Q2: How much power does the 8‑ft Convex‑Lens linear light consume, and what are its lumen outputs for different configurations?

A: Power consumption is 20 W when used in down‑only or up‑only modes, and 25 W for up‑and‑down configurations. At 4000 K, it outputs approximately 2,300 lm in single‑direction modes, and 2,875 lm total in the up‑and‑down setup.

Q3: What installation versatility and modular options does the 8‑ft Convex‑Lens linear light offer?

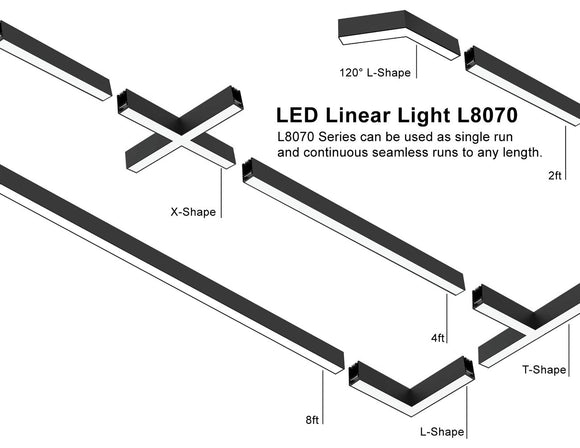

A: This fixture offers exceptional flexibility: it supports pendant (suspended), surface mount, wall‑wash, or recessed mounting, and can be linked with additional units using modular brackets to create continuous lighting runs—ideal for expansive spaces.
