LED Linear Light - L8070 - Convex Lens - 4ft

The L8070 4-ft Convex-Lens LED Linear Light combines a sleek architectural design with exceptional lighting performance. Its unique convex lens design significantly improves light diffusion, providing a wide, soft glow that is visually comfortable and minimizes glare—ideal for fostering inviting ambient environments, particularly in offices, schools, retail spaces, and hospitality venues. Constructed with a durable aluminum housing and high-quality LEDs, it accommodates both down and up & down lighting configurations, with options to switch between 3000K, 3500K, and 4000K color temperatures. Equipped with 0-10V dimming capabilities, linkable modularity, and certified with ETL/FCC listings along with a 5-year warranty, this fixture seamlessly integrates adaptability, efficiency, and reliability into one exceptional offering.

Product details

• Sturdy aluminum casing featuring a convex polycarbonate lens that provides broad, gentle, and glare-reduced illumination.

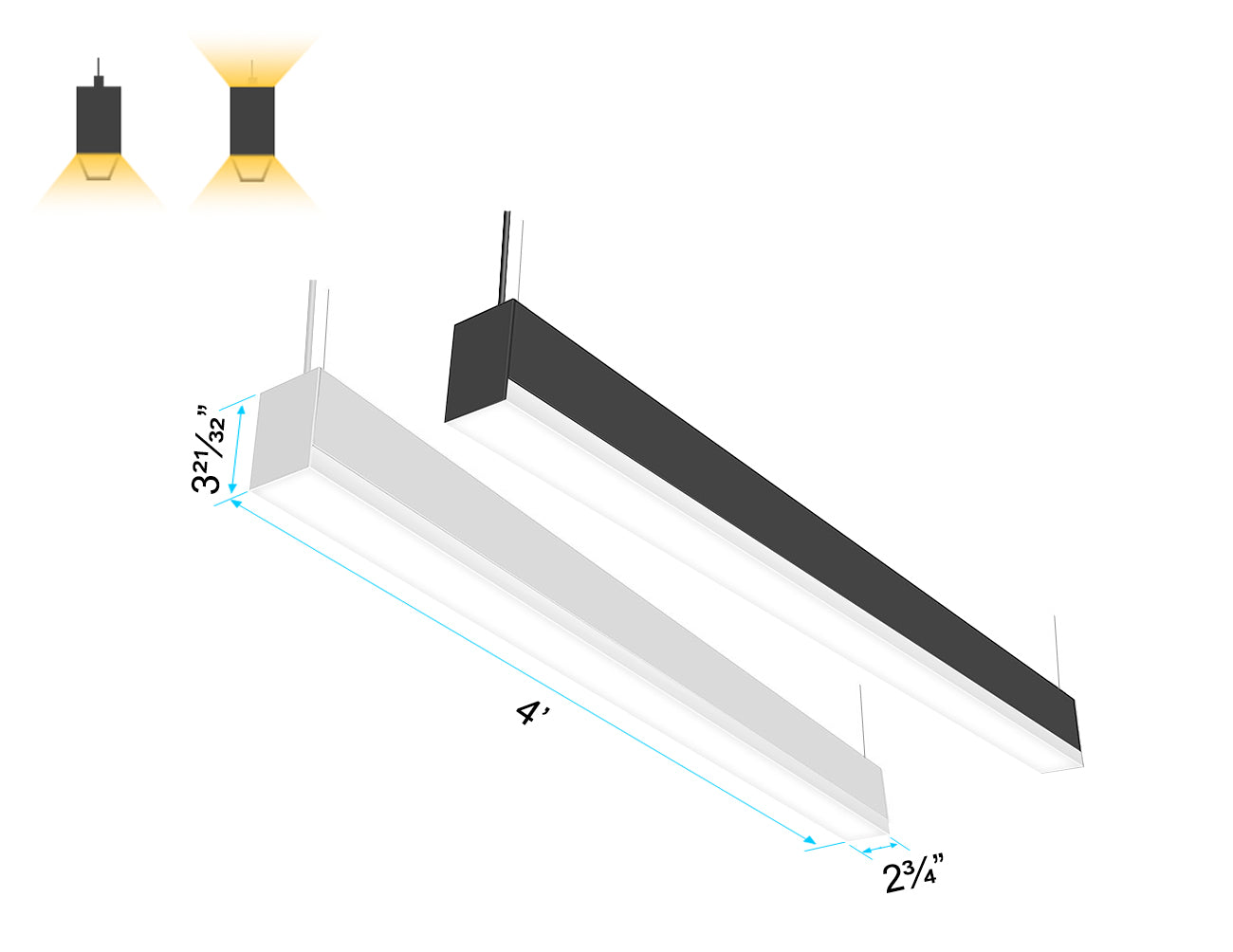

• The adaptable 4-foot length is offered in down-only, up-only, or up-and-down lighting configurations.
• Power consumption is 20 W for either down or up lighting, and 25 W for the up-and-down setup.
• At a color temperature of 4000 K, the brightness levels are 2,300 lm for down/up and 2,875 lm for up-and-down.
• It boasts an impressive efficacy of 115 lm/W and a color rendering index (CRI) of 90 or higher.
• The fixture is dimmable using 0-10 V and comes in either black or white finishes; it is intended for use in dry environments and is supported by a 5-year limited warranty.

Applications

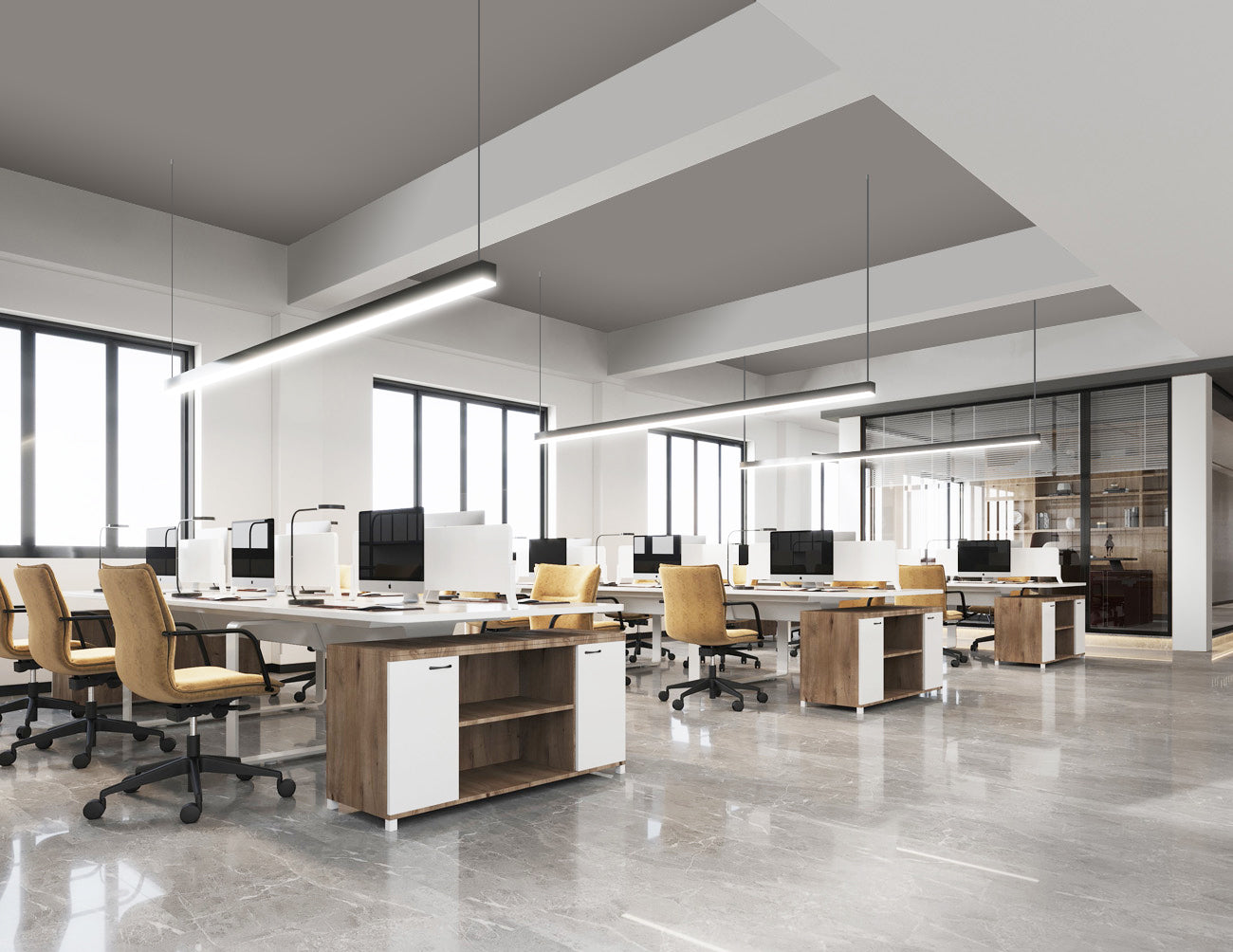

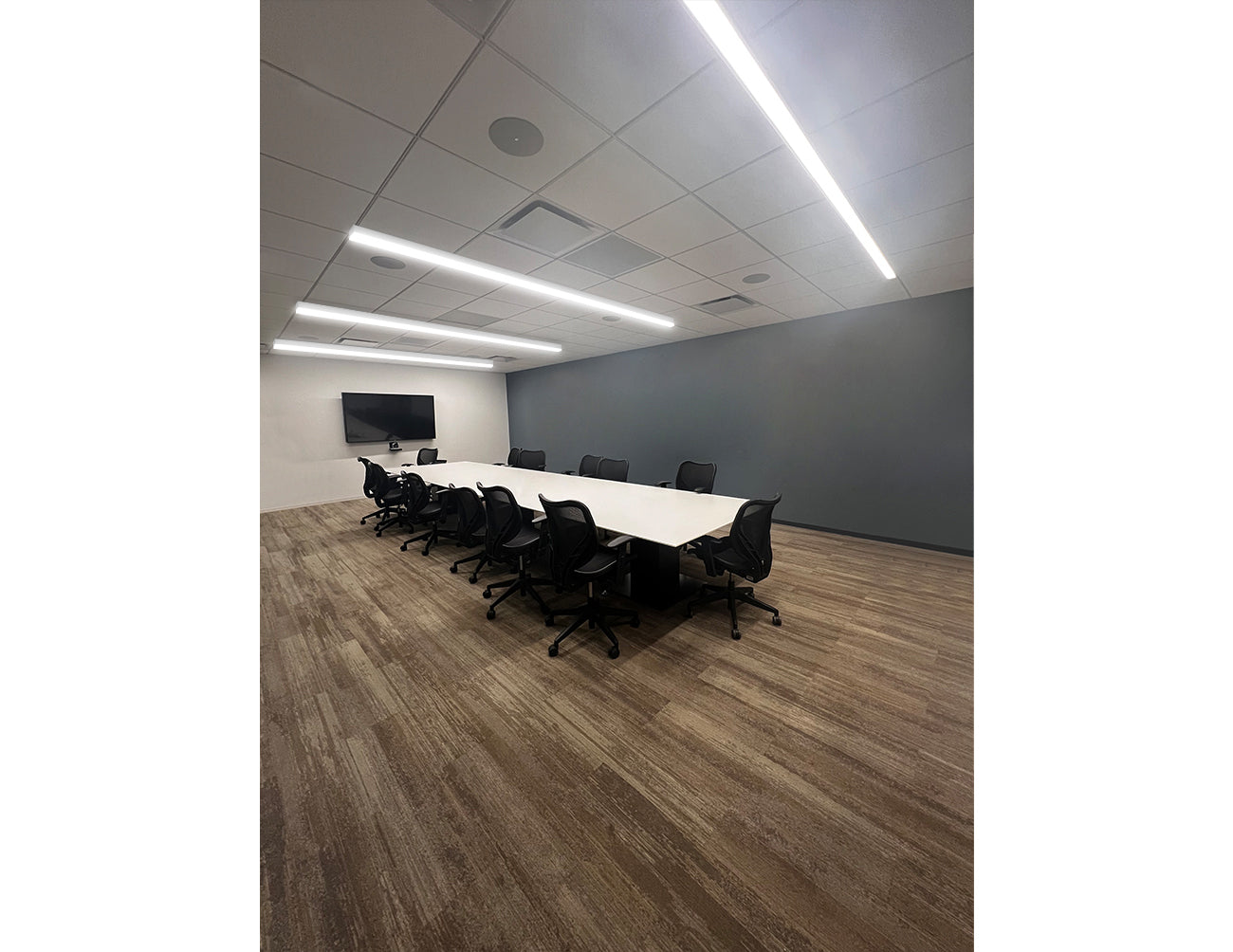

• Generates extensive, comfortable ambient lighting that is perfect for open-plan offices, conference rooms, and classrooms—thanks to its convex lens diffusion which provides uniform, glare-reduced illumination.
• Invites customers in retail spaces, hotel lobbies, and hospitality areas, delivering soft atmospheric light that enhances the overall ambiance.
• Ideal for schools, hospitals, and institutional facilities, where glare reduction and wide light distribution enhance visual comfort and functionality.
• Excellent for continuous lighting installations in corridors, galleries, or high ceilings, allowing for seamless and elegant illumination.

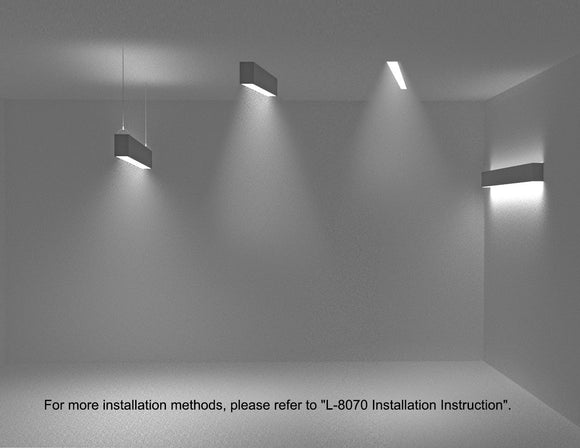

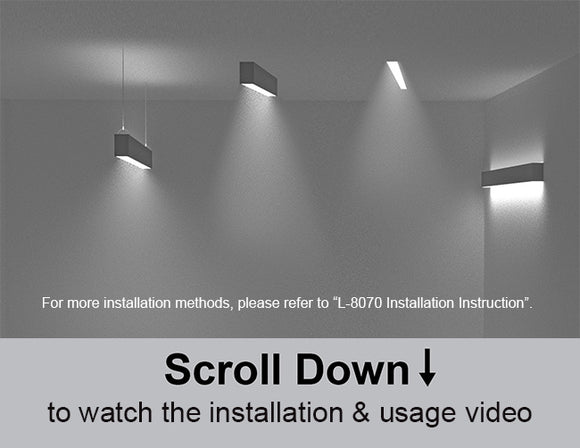

• Offers versatile mounting options—such as pendant, surface mount, wall mount, or recessed—adapting to various architectural and design requirements.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Convex Lens 2ft	Convex Lens 4ft	Convex Lens 8ft
Power	Up Light	20W	40W	70W
	Up & Down Light	25W	50W	100W
	Down Light	20W	40W	70W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm
	Up & Down Light	2875lm	5750lm	11500lm
	Down Light	2300lm	4600lm	8050lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power consumption and brightness outputs for different lighting configurations of the 4‑ft Convex‑Lens linear light?

A: For down-only or up-only configurations, it consumes 20 W and outputs approximately 2,300 lm at 4,000 K. The up‑and‑down configuration uses 25 W and provides 2,875 lm total.

Q2: Does this model offer adjustable color temperature and dimming capabilities?

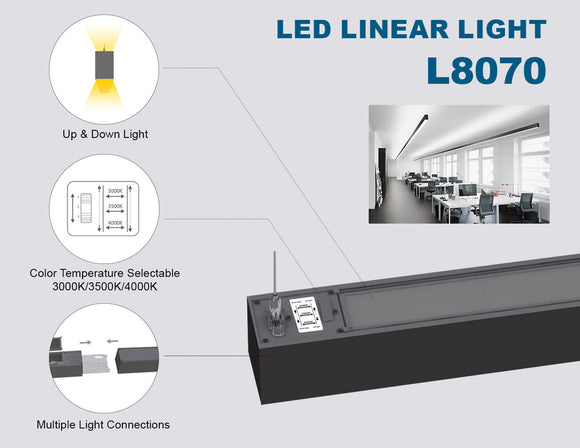

A: Yes. It supports selectable color temperatures of 3000 K, 3500 K, and 4000 K, and features 0–10 V dimming for smooth brightness control.

Q3: What installation flexibility does the linear light offer in terms of mounting and modularity?

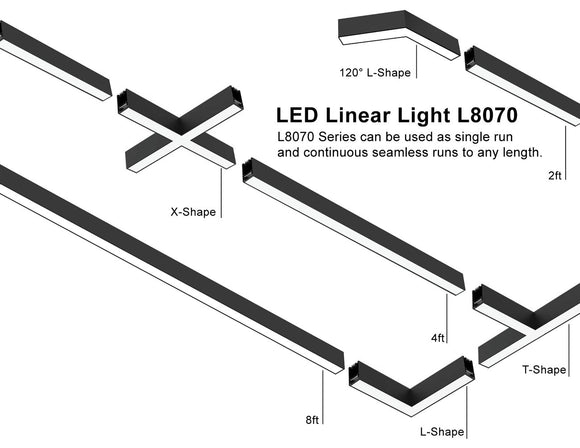

A: The fixture supports modular linking—allowing you to connect multiple units into continuous runs using compatible brackets. It also offers versatile mounting options such as pendant (suspended), surface mount-mounted, wall-wash, or recessed installations.
