LED Linear Light - L8070 - Convex Lens - 2ft

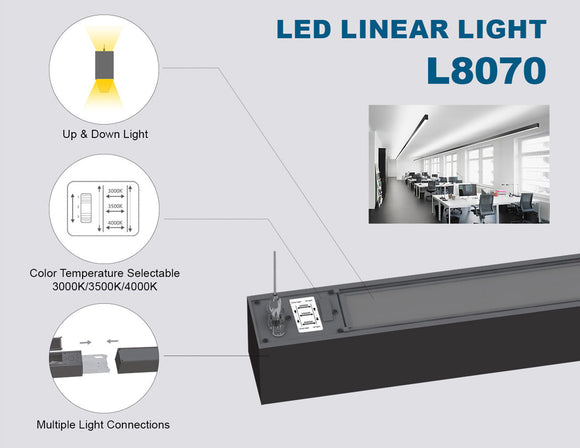

The L8070 2‑ft Convex‑Lens LED Linear Light marries sleek architectural form with superior lighting performance. Its convex lens design uniquely enhances light diffusion, delivering a broad, soft glow that’s visually comfortable and glare-reduced—perfect for creating inviting ambient environments, especially across offices, schools, retail, and hospitality settings. Featuring a robust aluminum housing and high-quality LEDs, it supports both down and up & down lighting configurations, switchable between 3000K, 3500K, and 4000K color temperatures. With 0‑10V dimming, linkable modularity, and ETL/FCC listings plus a 5‑year warranty, this fixture combines adaptability, efficiency, and reliability in one standout package.

Product details

• Durable aluminum housing with convex polycarbonate lens for wide, soft, glare‑reduced lighting.

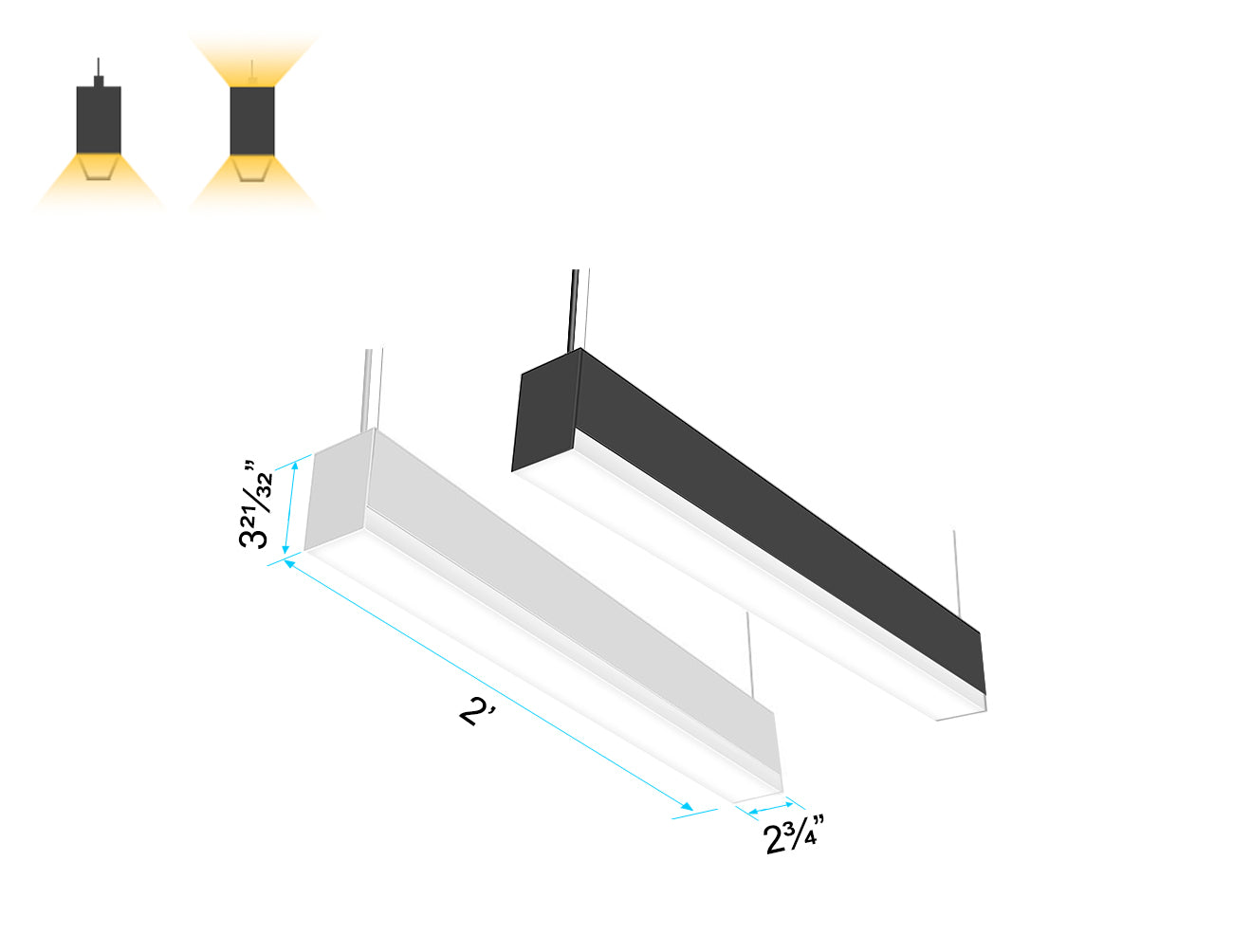

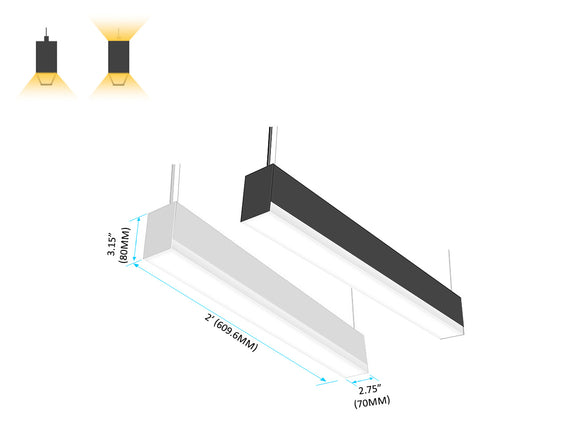

• Versatile 2-ft length option, available in down‑only, up‑only, or up‑&‑down lighting outputs.
• Power: 20 W for down or up; 25 W for up‑&‑down configuration.
• Brightness at 4000 K: 2,300 lm (down/up) or 2,875 lm (up‑&‑down).
• Excellent efficacy at 115 lm/W, color rendering index CRI ≥ 90.
• Dimmable via 0‑10 V and available in black or white finish; designed for dry locations; backed by a 5‑year limited warranty.

Applications

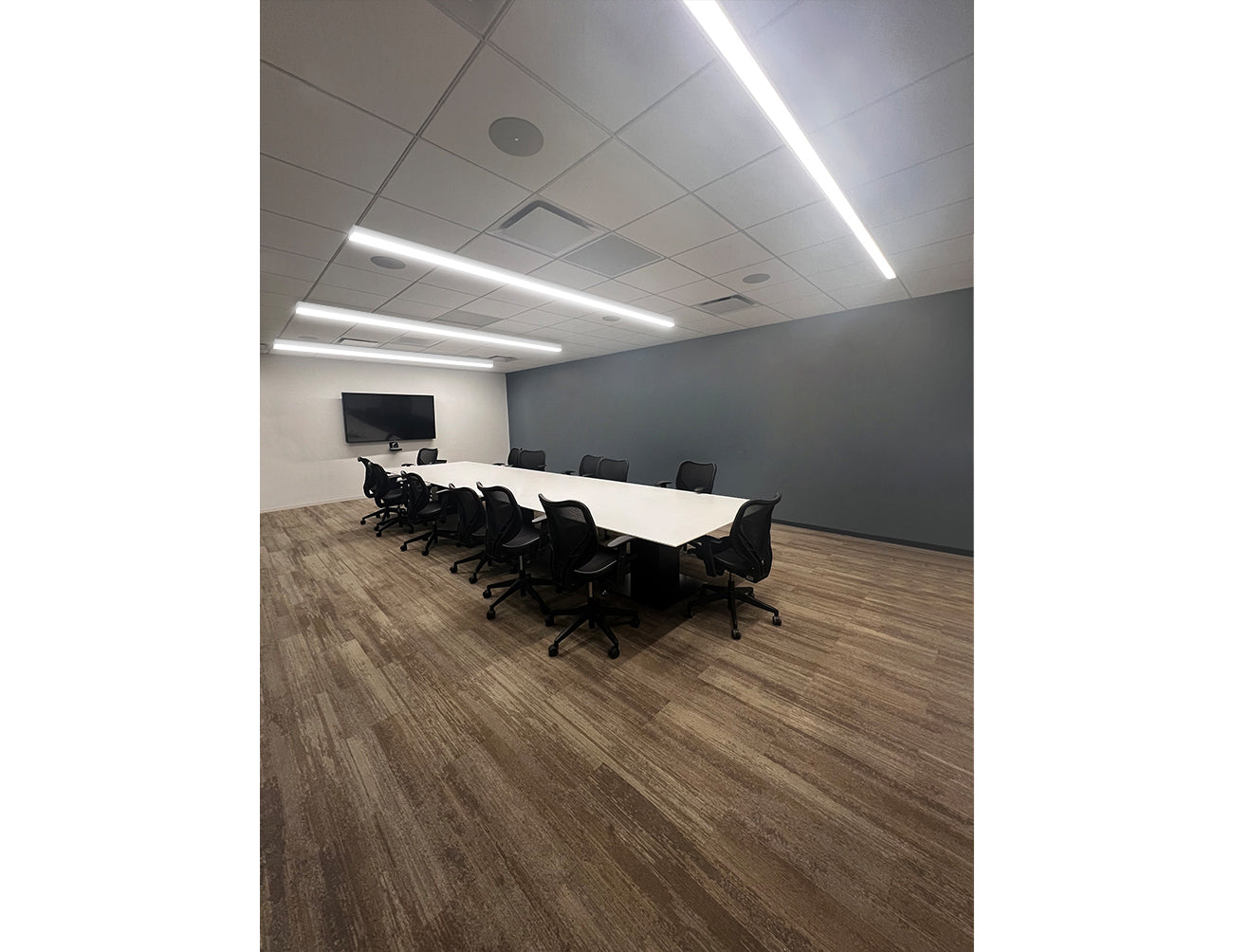

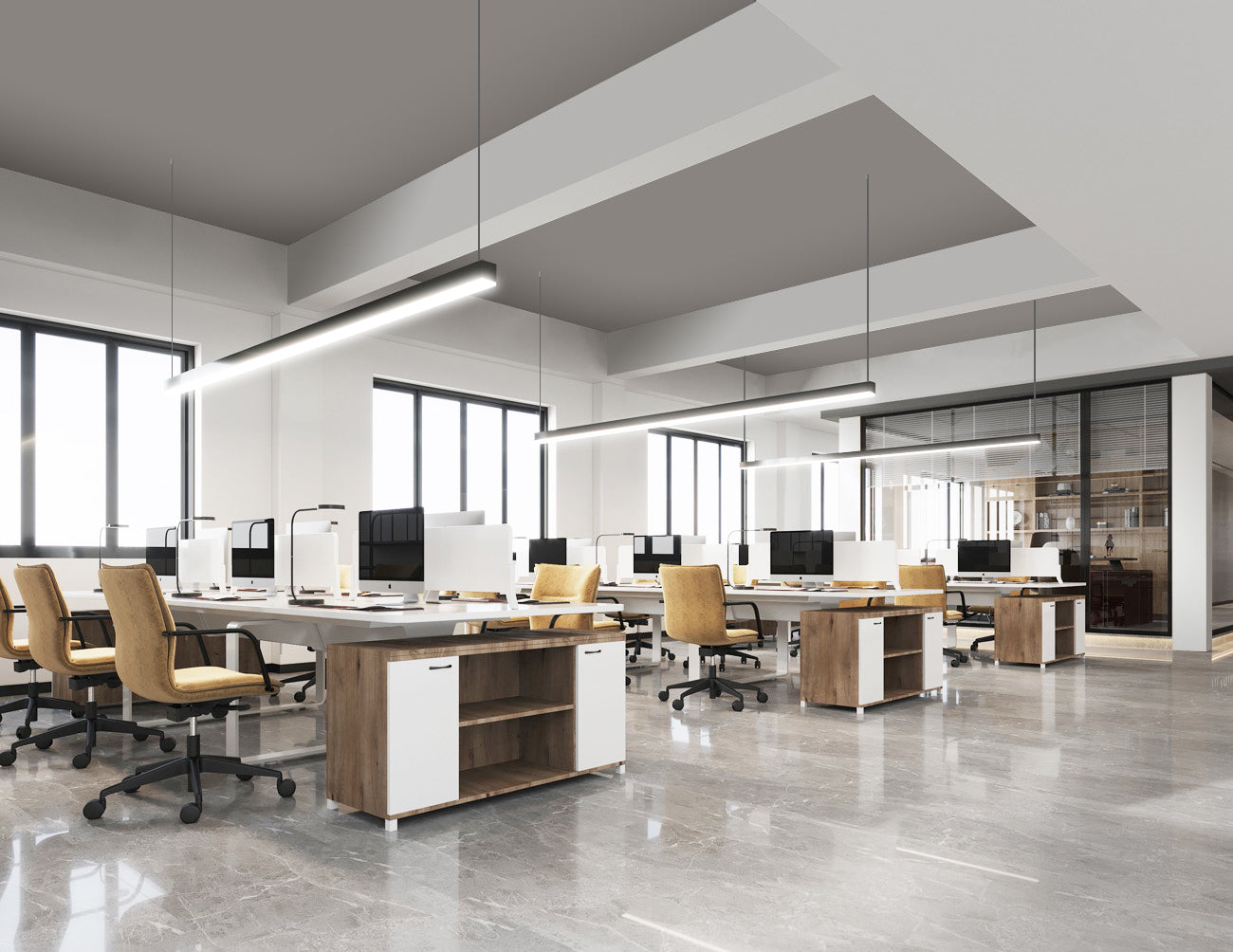

• Creates broad, comfortable ambient lighting ideal for open-plan offices, conference rooms, and classrooms—thanks to its convex lens diffusion delivering uniform, glare‑reduced illumination.
• Welcomes customers in retail environments, hotel lobbies, and hospitality areas, offering soft atmospheric light that enhances ambiance.
• Well-suited to schools, hospitals, and institutional facilities, where glare reduction and wide light spread improve visual comfort and functionality.

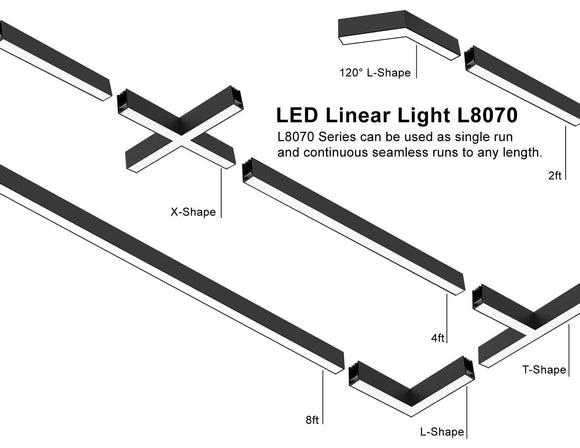

• Perfect for continuous lighting runs in corridors, galleries, or expansive ceilings, enabling seamless, elegant illumination.

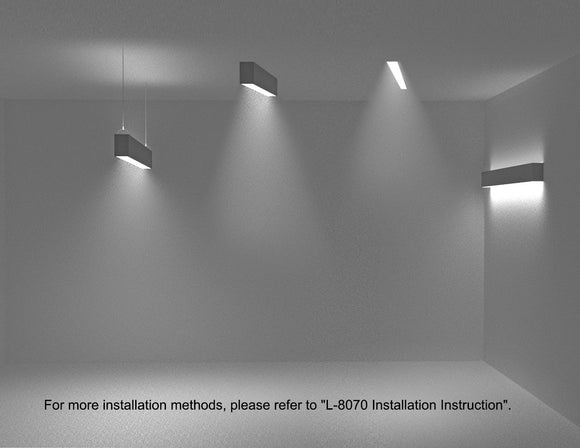

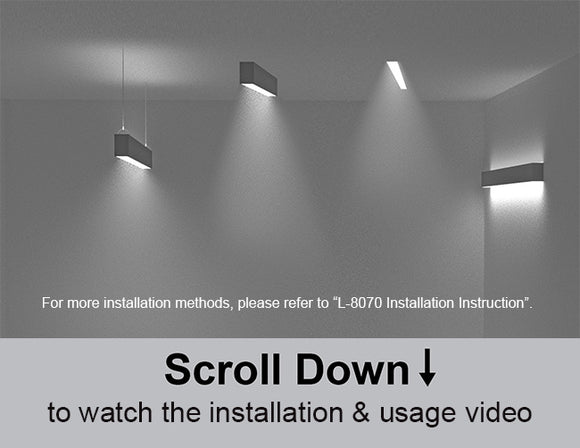

• Supports flexible mounting options—such as pendant, surface mount, wall mount, or recessed—adapting to diverse architectural and design needs.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Convex Lens 2ft	Convex Lens 4ft	Convex Lens 8ft
Power	Up Light	20W	40W	70W
	Up & Down Light	25W	50W	100W
	Down Light	20W	40W	70W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm
	Up & Down Light	2875lm	5750lm	11500lm
	Down Light	2300lm	4600lm	8050lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power and brightness specifications for the 2‑ft Convex‑Lens linear light?

A: The light offers three lighting outputs:

• Down‑only or Up‑only: 20 W → ~2,300 lm at 4,000 K
• Up & Down: 25 W → ~2,875 lm total

Q2: Does it support adjustable color temperature and dimming?

A: Yes—this model supports selectable 3000K, 3500K, and 4000K color temperatures, and it’s 0–10 V dimmable for smooth brightness control.

Q3: Can the 2‑ft Convex‑Lens linear light be linked with others and mounted in various configurations?

A: Absolutely. It can be used as a standalone or linked in continuous runs using compatible brackets. You can mount it as a pendant, surface mount, wall-wash, or recessed fixture, offering installation flexibility to suit diverse architectural needs.

Instruction Video:
