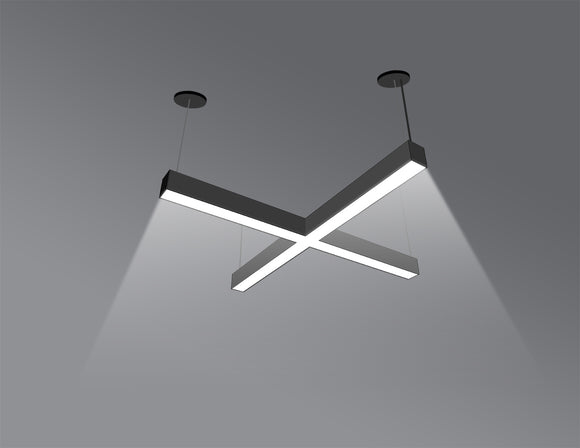

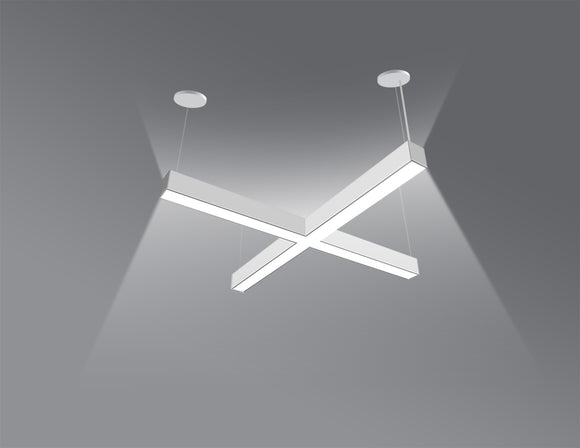

LED Linear Light - L8070 - Milky Flat Lens - X Shape

The L8070 LED Linear Light with Milky Flat Lens in an X-Shape from GLLED is a modern, high-efficiency lighting fixture designed for sophisticated commercial and architectural environments. Featuring a sleek X-shaped configuration, it enables creative ceiling layouts while delivering even, glare-free illumination through its milky flat lens. Built with durable aluminum housing and advanced LED technology, it ensures optimal thermal management, energy efficiency, and long-lasting performance. Ideal for open office spaces, retail environments, galleries, and large public areas, this fixture supports seamless linkability for continuous lighting designs. Available in multiple color temperatures and dimmable with a 0-10V system, the L8070 X-Shape offers both aesthetic appeal and practical functionality, making it a versatile choice for contemporary lighting applications.

Product details

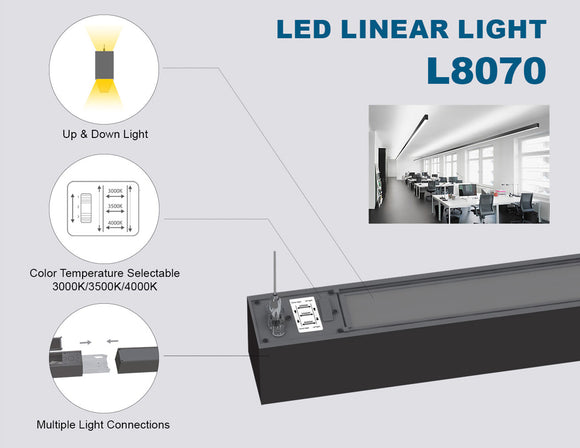

• Durable aluminum housing with polycarbonate milky flat diffuser for smooth, glare‑free light.
• High color rendering (CRI ≥ 90) with selectable 3000K, 3500K, and 4000K color temperatures.
• 50 W power, delivering 5,750 lm (at 4000 K) with 30 % up / 70 % down light distribution; 115 lm/W efficacy.

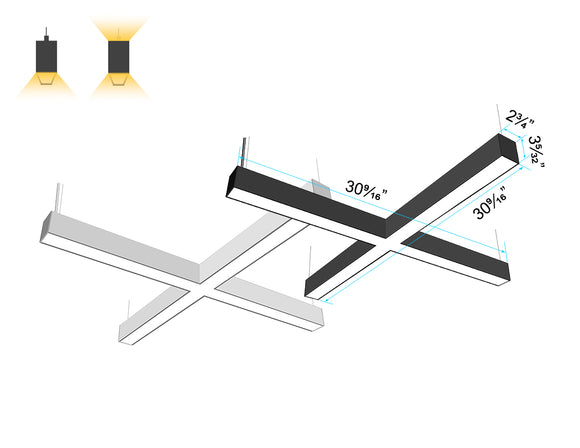

• Arms measure approximately 30.55″ each; works alone or links to form stylish continuous patterns.

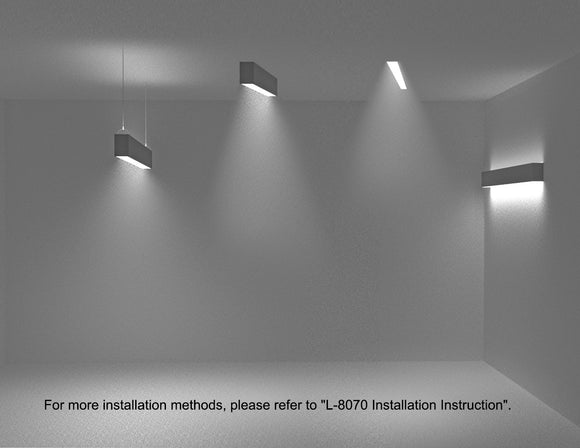

• Flexible mounting: pendant, surface, or recessed (including T‑grid); compatible with linkable brackets (K‑K, K‑L types).
• 0‑10 V dimming, available in black or white finish, for dry locations; backed by a 5‑year limited warranty.

Applications

• Ideal for residential buildings, providing stylish ambient lighting in living rooms or large foyer spaces.

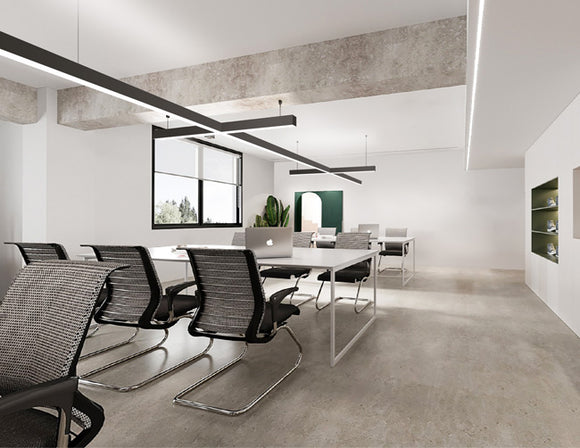

• Perfect for offices and meeting rooms, offering even, glare‑free illumination for productivity and collaboration.
• Enhances educational environments, such as schools and classrooms, with uniform lighting for optimal visibility.

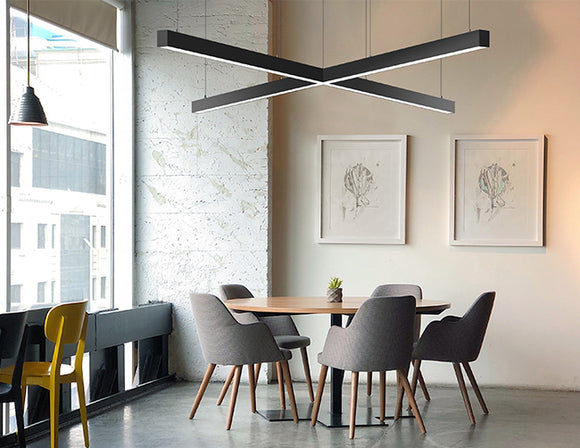

• Great for retail settings, coffee shops, restaurants, grocery stores, and malls—delivering modern-looking, continuous lighting.
• Suited to both pendant and surface-mounted installations, as well as recessed ceilings—adaptable across various architectural needs.

Documents

• LED Linear Light L8070 Specification
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape
Power	Up Light	20W	40W	70W	-	-	-	-
	Up & Down Light	25W	50W	100W	30W	50W	40W	50W
	Down Light	20W	40W	70W	20W	40W	30W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm	-	-	-	-
	Up & Down Light	2875lm	5750lm	11500lm	3450lm	5750lm	4600lm	5750lm
	Down Light	2300lm	4600lm	8050lm	2300lm	4600lm	3450lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What are the power consumption and light output specifications of the linear light X‑Shape?

A: It consumes 50 W and produces 5,750 lm at 4000 K. The light distribution can be down only (50 W → 5,750 lm) or up & down (same lumen output).

Q2: How long is each arm of the linear light X‑shape, and how can it be installed?

A: Each arm measures approximately 30.55" in length. The fixture can be installed as a suspended pendant, surface-mounted, or recessed into ceilings (including spring‑clamp and T‑grid options) with separate installation kits required.

Q3: Is the linear light X‑Shape dimmable and suitable for continuous runs?

A: Yes—it's compatible with 0‑10 V dimming for seamless brightness control. The fixture can operate individually or be linked with other L8070 units, using proper linkable brackets for continuous lighting layouts

Instruction Video:
