LDR Series Centralized Control Power Supply for Under Cabinet Light 24V 96W

Product Description

The GL LED 96W 24V Class 2 Cabinet Lighting Power Supply is designed for larger cabinet lighting installations that require greater load capacity without sacrificing control flexibility. As a core component of the GL LED Modular Cabinet Lighting System, it combines AC power distribution, 24V fixture outputs, and control connectivity in one professional solution for kitchens, walk-in closets, display cabinetry, custom millwork, and multi-zone projects.

With higher lighting capacity than the 60W model, the 96W power supply is well suited to medium and large projects. It supports plug-in or hardwired installation, wired or wireless master control, six rear 24V outputs, and an independent constant 24V output for zones or devices that should remain separate from master control.

Why Choose the 96W Cabinet Lighting Power Supply?

• Higher-capacity professional power - sized for medium to large cabinet lighting projects.
• Plug-In or Hardwire - use the detachable AC power cord with a standard outlet, or remove the input cover for hardwired installation.
• Universal 100-240VAC Input - supports a wide range of residential and commercial applications.
• Link Up to 7 Power Supplies - built-in AC pass-through simplifies power distribution across larger cabinet lighting installations.
• Centralized Master Control - top Control Signal Input/Output ports support wired controllers or wireless receivers and synchronized control across linked power supplies.
• Flexible 6-Port 24V Output - six rear outputs respond to master control when connected, or provide direct 24V DC power when no master control is present.
• Independent Constant 24V Output - a separate bottom output provides continuous 24V DC power for independent zones, controllers, or other compatible devices.

How Much Cabinet Lighting Can It Support?

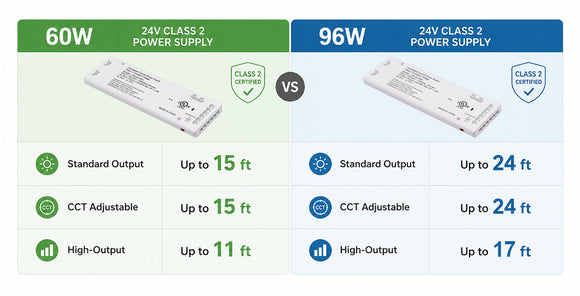

The 96W model is selected by cabinet light type and total connected lighting length. For GL LED cabinet lights, use the sizing limits below.

Specifications

Best fit: medium to large cabinet lighting layouts that need longer lighting runs or higher total connected load capacity.

Need less capacity? The 60W Cabinet Lighting Power Supply may be a better fit for smaller installations.

Documents

LDR Series Centralized Control Power Supply_Specification

How to Install & Use the 96W Cabinet Lighting Power Supply

Step 1 - Connect AC Power

Choose either plug-in or hardwired installation. For plug-in use, connect the detachable AC power cord to a standard two-prong outlet. For hardwired installation, remove the input cover and connect the power supply to the building AC circuit.

Step 2 - Link Additional Power Supplies if Needed

Use the built-in AC pass-through to continue AC power to the next Cabinet Lighting Power Supply. Up to 7 power supplies can be linked in sequence, reducing repeated AC wiring on larger projects.

Step 3 - Choose the Control Method

Connect a wired controller or wireless receiver to the top Control Signal port for master control. When master control is connected, the six rear 24V output ports follow the control signal. Without master control, those ports provide direct 24V DC output.

Step 4 - Connect 24V Cabinet Lights

Connect compatible 24V cabinet lights to the rear output ports for quick plug-and-play installation. Compatible fixtures include surface-mount cabinet lights, recessed cabinet lights, puck lights, drawer lights, and other compatible 24V DC cabinet lights.

Step 5 - Use the Independent Constant 24V Output

Use the bottom Constant 24V Output for devices or lighting zones that should remain independent from master control. This port provides continuous 24V DC power regardless of the top control signal.

View Accessories

Control & System Flexibility

The 96W power supply gives larger cabinet lighting systems more load capacity while keeping the same modular control architecture. Multiple supplies can be distributed across a project and coordinated through the GL LED control signal system for organized multi-zone installations.

• Wired master control
• Wireless RF receiver control
• Direct 24V operation without master control
• Independent constant 24V output for separate control zones
• Expandable multi-power-supply installations

Frequently Asked Questions

How much cabinet lighting can the 96W power supply support
Up to 24 ft of Standard Output lighting, 24 ft of CCT-Adjustable lighting, or 18 ft of High-Output lighting.

When should I choose the 96W model?
Choose the 96W model for medium and large cabinet lighting projects, longer lighting runs, or installations requiring more load capacity than the 60W model provides.

Is the 96W model only for large projects?
No. It can also be used when additional capacity is preferred, provided the installation remains within the system requirements.

Can the 96W power supply operate without a controller?
Yes. With no master control connected, the six rear outputs provide direct 24V DC power to compatible cabinet lights.

Can multiple 96W power supplies be linked?
Yes. The built-in AC pass-through allows up to 7 compatible Cabinet Lighting Power Supplies to be powered in sequence.
