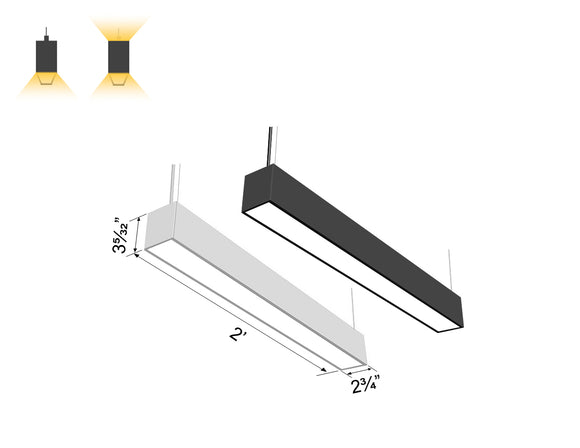

LED Linear Light - L8070 - Milky Flat Lens - 2ft

The GL LED L8070 2‑ft Linear Light with Milky Flat Lens delivers refined functionality in compact, architectural form. Designed for direct and optional up/down lighting, this model channels around 70 % of lumens downward and 30 % upward for balanced ambient illumination; it's dimmable via 0‑10 V and suitable for straight or continuous runs in office, retail, healthcare, or educational spaces. Its milky flat polycarbonate diffuser produces exceptionally even, soft light—minimizing glare and visual hotspots while maintaining a sleek minimalist profile. The flat diffuser also enhances occupant comfort, making it ideal for shared and focused environments like classrooms or conference rooms. Encased in robust aluminum housing with CRI ≥ 90 and selectable CCTs (3000K/3500K/4000K), the L8070 combines performance with visual comfort in high-quality LED lighting.

Product details

• Independently modular direct & indirect luminaries.
• Connect to line voltage (120-347VAC) directly.

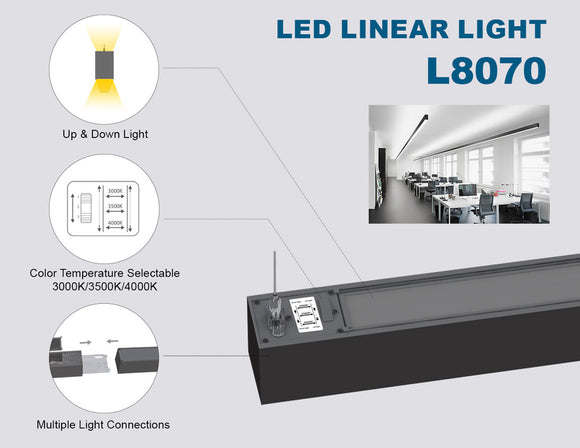

• Simultaneous CCT changeable of 3000K, 3500K & 4000K by external slide switches.

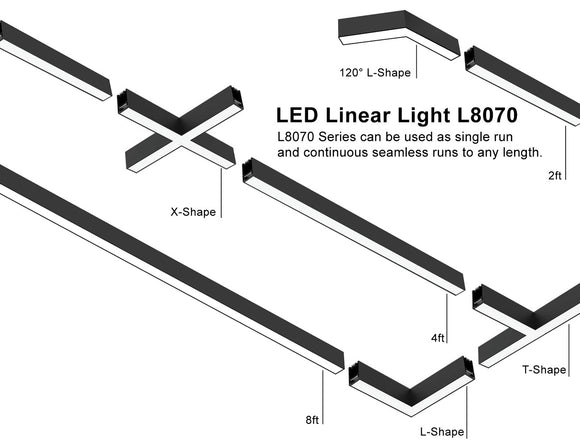

• Various modular designs with straight 2ft, straight 4ft, straight 8ft, L shape, 120° L shape, T shape and X shape.
• Single run and continuous run available.
• Optional motion sensor control and emergency backup.

Applications

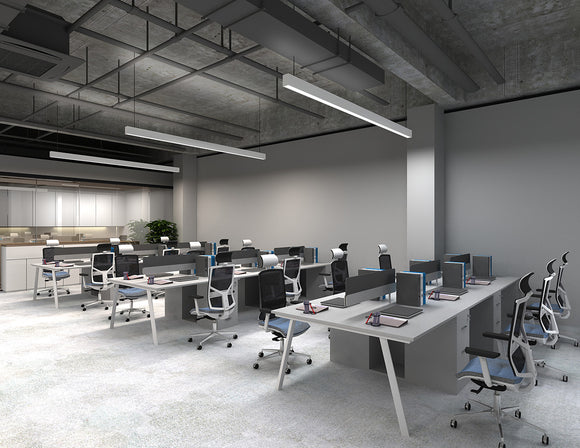

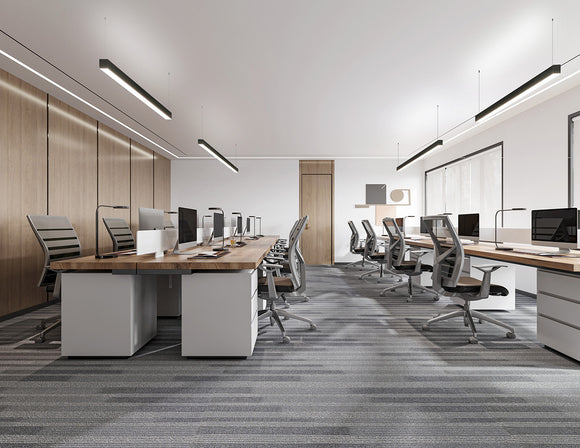

• Ideal for offices, classrooms, conference rooms, and open-plan workspaces requiring soft, glare-free lighting.
• Perfect for retail stores and hospitality areas where clean, even illumination enhances visual appeal.
• Suitable for healthcare and educational facilities where visual comfort and clarity are essential.
• Milky flat lens provides uniform, low-glare light, reducing eye strain and minimizing hotspots.
• Modular design supports individual or continuous run installations.

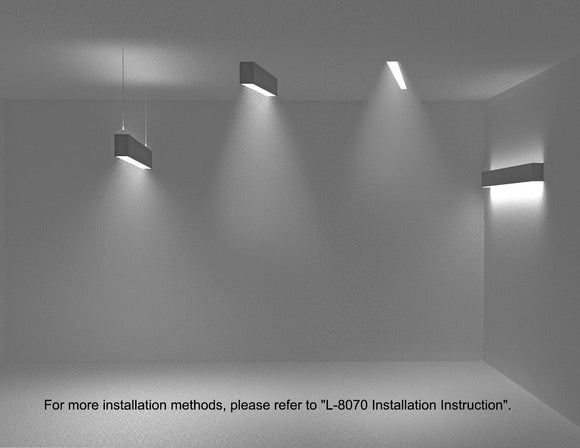

• Works well in suspended, surface, wall, or recessed mounting setups.
• Compatible with 0-10V dimming and offers selectable CCT (3000K–4000K) for adaptive lighting environments.

Documents

• LED Linear Light L8070 Specification
• 2FT Linear light-IES-File
• Linear Light Continuous Run - L-8070 Installation Instruction

View Accessories

Specification

Input Voltage		120-347VAC
Type		Milky Flat Lens 2ft	Milky Flat Lens 4ft	Milky Flat Lens 8ft	Milky Flat Lens L Shape	Milky Flat Lens 120° L Shape	Milky Flat Lens T Shape	Milky Flat Lens X Shape
Power	Up Light	20W	40W	70W	-	-	-	-
	Up & Down Light	25W	50W	100W	30W	50W	40W	50W
	Down Light	20W	40W	70W	20W	40W	30W	50W
Color Temperature (Changeable)		3000K/3500K/4000K
Milky Flat Lens Brightness(4000K)	Up Light	2300lm	4600lm	8050lm	-	-	-	-
	Up & Down Light	2875lm	5750lm	11500lm	3450lm	5750lm	4600lm	5750lm
	Down Light	2300lm	4600lm	8050lm	2300lm	4600lm	3450lm	5750lm
Efficacy(4000K)		115LM/W
Dimming		0-10V Dimming
CRI		90+
Location		Dry Location
Finish		Black, White

Q&A:

Q1: What type of light distribution does the linear light provide?

A: It delivers both direct and indirect lighting (typically 70% down and 30% up), offering ambient illumination in open interiors while maintaining visual comfort and flexibility in design.

Q2: How does the milky flat lens affect light quality and user comfort?

A: The milky flat polycarbonate diffuser spreads light evenly across the fixture, minimizing glare and hotspots, resulting in soft, uniform illumination ideal for environments focused on occupant comfort.

Q3: In which environments is the linear light with milky flat lens most effective?

A: It’s ideal for offices, classrooms, conference rooms, retail, hospitality, and healthcare spaces—anywhere modular direct‑indirect lighting with low-glare and high visual comfort is essential.
