31133 Recessed-Mounted Linear Light – infinite cutting, plug-and-play design with no soldering required; supports seamless connection. Featuring an angled light-emitting design with a recessed channel that conceals the light source, preventing direct glare to the eyes. Ideal for under-cabinet lighting in American-style cabinets, delivering comfortable and glare-free illumination.
Product Details
- Plug & play fast connection free of wire welding.
- Recessed mount design with angled light output, effectively hiding the light source and reducing glare.
- Channel structure conceals LED strip to avoid direct eye contact with the light source.
- High performance strip, every single LED chip cuttable to make precise length & reduce dark area.
- Popular anthracite finish color to fit high-end furniture.
This product includes:
· Recess Mount Solder Free LED Linear Light Aluminum Channel 31133 – 24"*1pc
· Recess Mount Solder Free LED Linear Light Aluminum Channel 31133 – 94"*1pc
· Strip Light L6.8-2025-150-3000-1500-WW-12W/M-24V 9.84ft*1pc
Applications

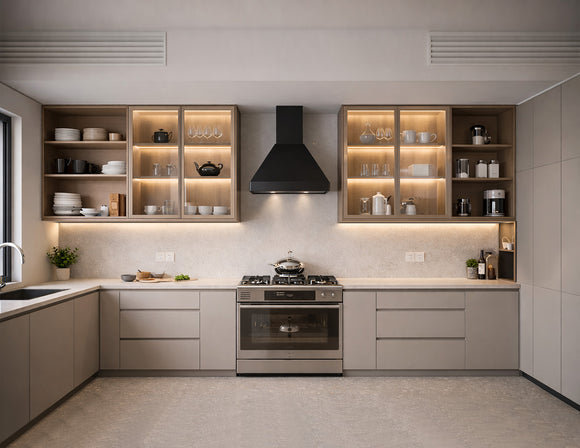

- Under cabinet.

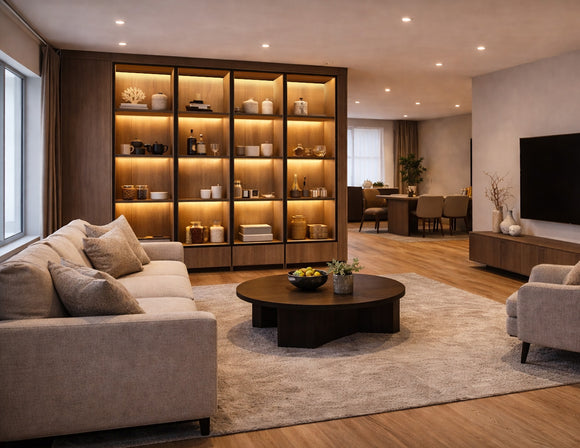

- Display shelves.

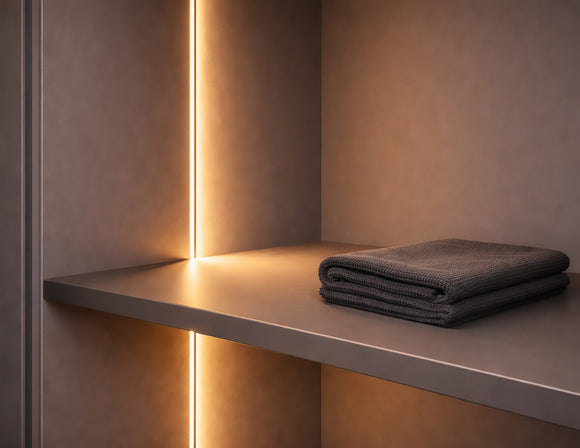

- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | 31133 | 31133C |
| Input Voltage | 24VDC | |
| LED Quantity | 45 LEDs/ft | |
| LED Chip | 2025 | |
| Color Temperature | 3000K/4000K/6500K | 3000K-6500K |
| Brightness(3000k) | 46lm/ft | |
| Light Efficacy(3000k) | 20.5lm/W | |
| Color Rendering Index (CRI) | 90+ | |
| Power Consumption | 3.6W/ft | |
| IP Rating | IP20 (Dry location) | |
| Certificate | UL listed | |
| Dimension | L: 94" W: 4/8" D: 3/8" | |
Documents
Recess Mount Solder Free LED Linear Light Aluminum Channel_31133_Specification
