GLQ1709 features a screw-fastened quick connector design, compatible with the full range of GL LED 10mm wide LED strips.
Compared with plug-in connections, the screw-locking structure provides stronger mechanical retention and more reliable electrical contact, enhancing overall system stability.
Compatible with a wide variety of GL LED 10mm wide LED strips in different brightness levels, color temperatures, and power ratings, it offers greater flexibility to meet project requirements and provides more options for cabinet lighting applications.
Product Details
- Plug & play fast connection free of wire welding, with optional sensor control for different application

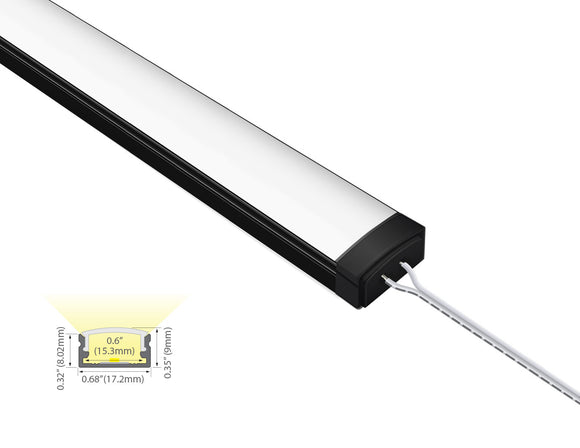

- Surface mounting W17.2*H9mm for easy DIY without drilling.
- High performance strip, every single LED chip cuttable to make precise length & reduce dark area.
This product includes:

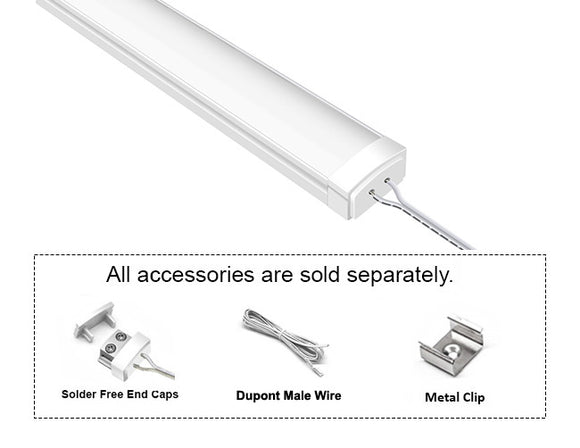

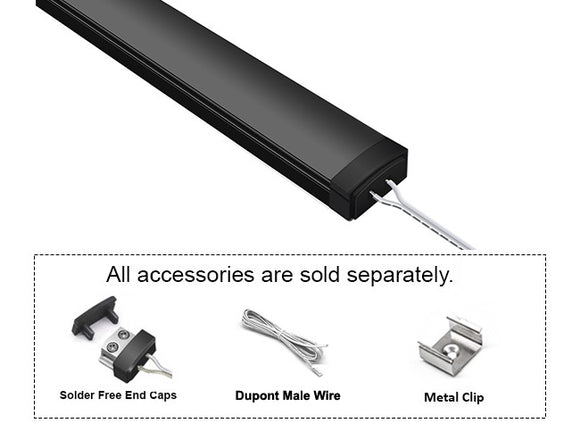

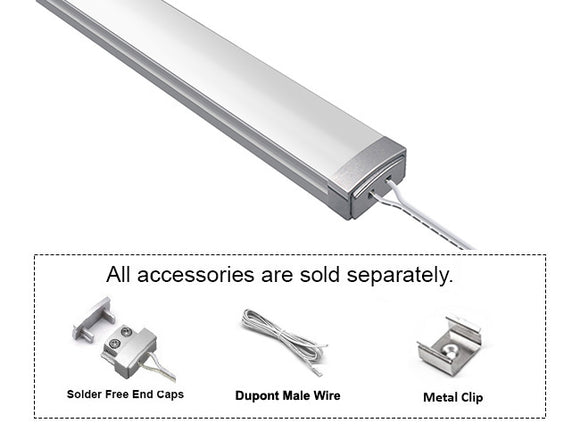

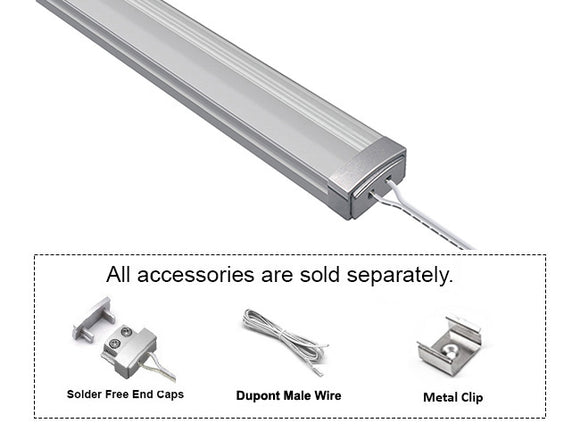

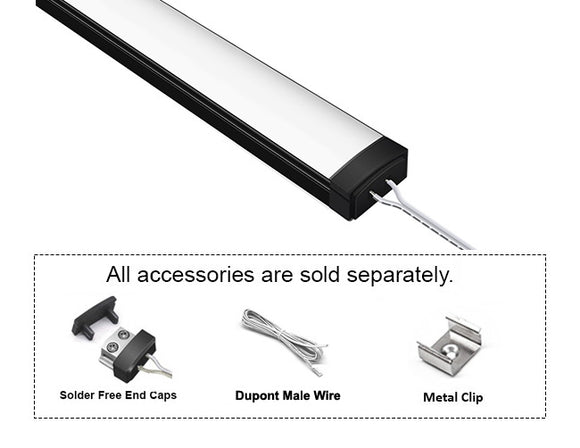

· Surface Mount Solder Free LED Linear Light Aluminum Channel 1709 – 24"*1pc
· Surface Mount Solder Free LED Linear Light Aluminum Channel 1709 – 94"*1pc
· Strip Light L6.8-2025-150-3000-1500-WW-12W/M-24V 9.84ft*1pc
Applications

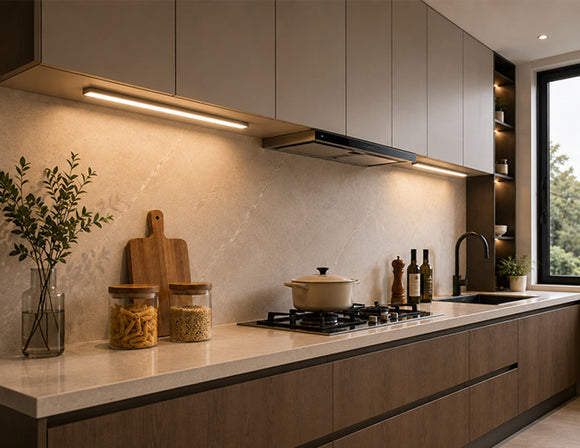

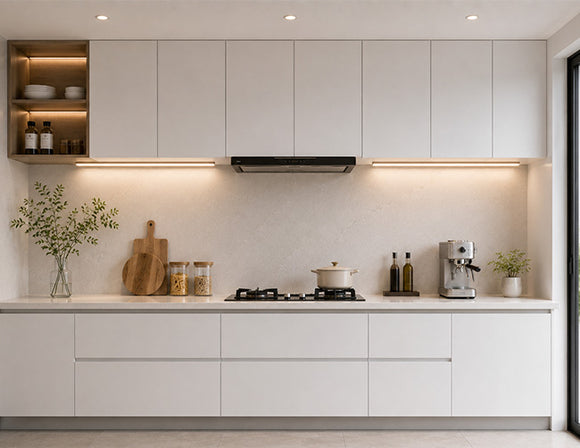

- Under cabinet.
- Display shelves.
- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | 1709-S | 1709-H | 1709-C |
| Input Voltage | 24VDC | ||
| LED Quantity | 45 LEDs/ft | 72 LEDs/ft | 45 LEDs/ft |
| LED Chip | 2025 | 2216 | 2025 |
| Color Temperature | 2700K/3000K/4000K | 2700K-4000K(Tunable White) | |
| Brightness | 138.2lm/ft | 255.1lm/ft | 138.2lm/ft |
| Light Efficacy | 40.1lm/W | 58.2lm/W | 40.1lm/W |
| Color Rendering Index (CRI) | 90+ | ||
| Power Consumption | 3.6W/ft | 4.4W/ft | 3.6W/ft |
| Max Run (ft.) | 19.7ft | 9.85ft | 19.7ft |
| IP Rating | IP20 (Dry location) | ||
| Certificate | UL listed | ||
| Dimension | L: 94" W: 0.68" D: 0.35" | ||
Documents
Instruction Video
Modular Cabinet Lighting - Cabinet Light |
