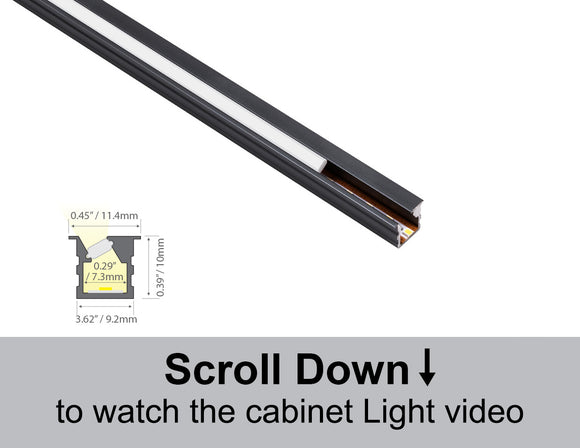

31133 Recessed-Mounted Linear Light – infinite cutting, plug-and-play design with no soldering required; supports seamless connection. Featuring an angled light-emitting design with a recessed channel that conceals the light source, preventing direct glare to the eyes. Ideal for under-cabinet lighting in American-style cabinets, delivering comfortable and glare-free illumination.
Product Details
- Plug & play fast connection free of wire welding.
- Recessed mount design with angled light output, effectively hiding the light source and reducing glare.
- Channel structure conceals LED strip to avoid direct eye contact with the light source.
- High performance strip, every single LED chip cuttable to make precise length & reduce dark area.
- Popular anthracite finish color to fit high-end furniture.
This product includes:
· Recess Mount Solder Free LED Linear Light Aluminum Channel 31133 – 24"*1pc
· Recess Mount Solder Free LED Linear Light Aluminum Channel 31133 – 94"*1pc
· Strip Light L6.8-2025-150-3000-1500-WW-12W/M-24V 9.84ft*1pc
Applications

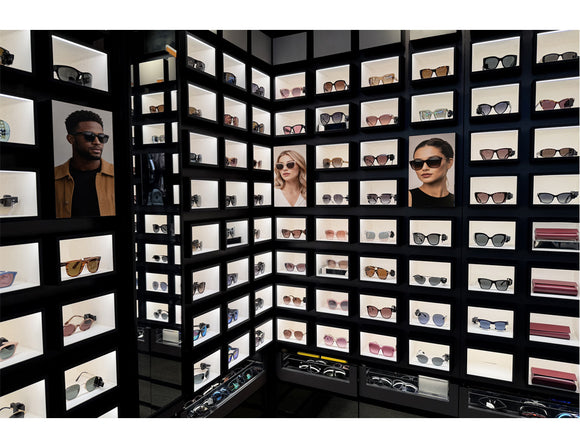

- Under cabinet.
- Display shelves.
- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | 31133-S | 31133-H | 31133-C |
| Input Voltage | 24VDC | ||
| LED Quantity | 45 LEDs/ft | 72 LEDs/ft | 45 LEDs/ft |
| LED Chip | 2025 | 2216 | 2025 |
| Color Temperature | 2700K/3000K/4000K | 2700K-4000K(Tunable White) | |
| Brightness | 62.9lm/ft | 116.2lm/ft | 62.9lm/ft |
| Light Efficacy | 18.3lm/W | 26.5lm/W | 18.3lm/W |
| Color Rendering Index (CRI) | 90+ | ||
| Power Consumption | 3.6W/ft | 4.4W/ft | 3.6W/ft |
| Max Run (ft.) | 19.7ft | 9.85ft | 19.7ft |
| IP Rating | IP20 (Dry location) | ||
| Certificate | UL listed | ||
| Dimension | L: 94" W: 0.45" D: 0.39" | ||
Documents
Recess Mount Solder Free LED Linear Light Aluminum Channel_31133_Specification
Instruction Video
Modular Cabinet Lighting - Build Your Own Light |
