Drawer Light is designed for drawer lighting applications, providing automatic on/off lighting when the drawer is opened or closed.

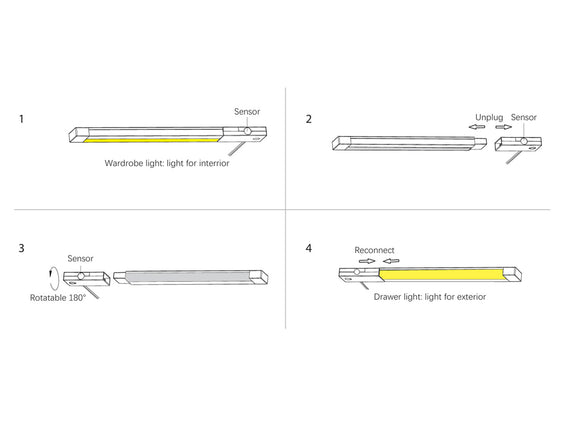

The detachable side sensor can be installed on either the left or right side of the fixture for flexible installation.
Features
Automatic Drawer Sensor: Light turns on when the drawer opens and off when closed.
Reversible Sensor Design: Detachable sensor can be installed on either side of the fixture.
2-Pin Low-Voltage Input: Can be connected to:
* Constant 24V Output or * Controlled Power Output when no master controller is used.
Ideal for cabinet, wardrobe, and furniture drawer lighting applications.
Product Details
- Slim aluminum profile only 0.39" height.
- Door sensor switch for smart control.
- Aluminum profile length customized.
Applications
- Drawer.
- Closet, wardrobe with sliding door.
Specifications
| Type | 20925A |
| Input Voltage | 24VDC |
| LED Quantity | 50 LEDs/ft |
| LED Chip | 2835 |
| Color Temperature | 3000K/4000K/6500K |
| Brightness | 162lm/ft |
| Light Efficacy | 45lm/W |
| Color Rendering Index (CRI) | 90+ |
| Power Consumption | 3.6W/ft |
| IP Rating | IP20 (Dry location) |
| Certificate | UL listed |
| Dimension | L:(customizable)" W: 1" D: 0.39" |
