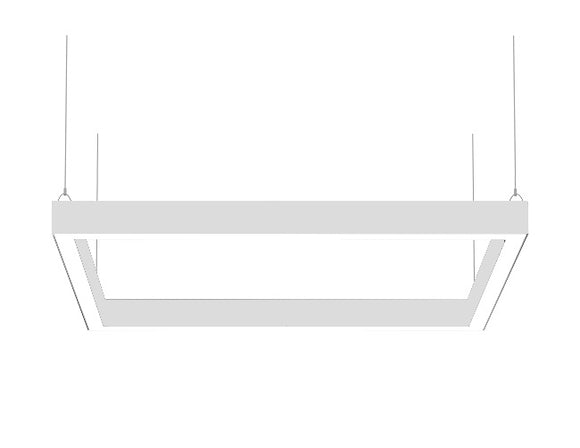

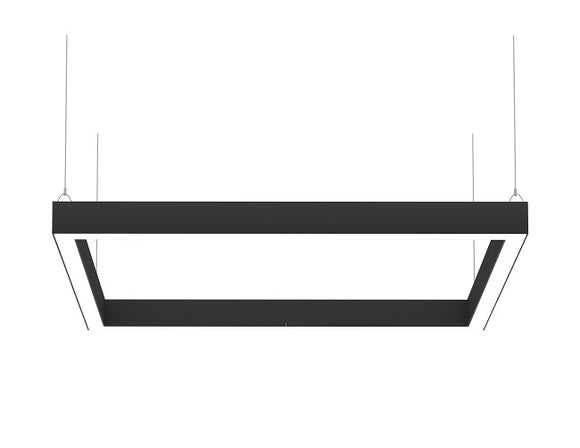

LED Linear Light - Continuous Run L8456 - Square
SKU: L-8456SQ-160-16-B-3000K
LED linear light is exclusively designed for designer and architect with imagination and personal style. LED linear light adopt premium aluminum profile, different dimension and size.
No need to worry about the transformer power rate, cutting tape light or any assembling work. They come in one piece as the finished product, very easy to install. The Continuous Run (L-8456) can interlock together up to 120ft and is compatible with our L shape and Cross shape to achieve different designs as needed.

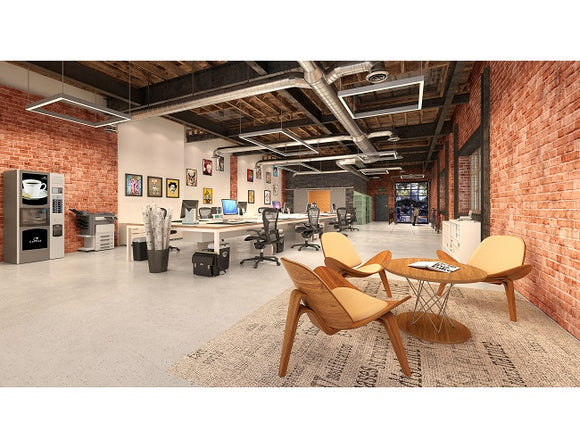

Suitable for hotels, conference rooms, factories, offices, commercial purposes, institution buildings, schools, colleges, universities, hospitals and other places.

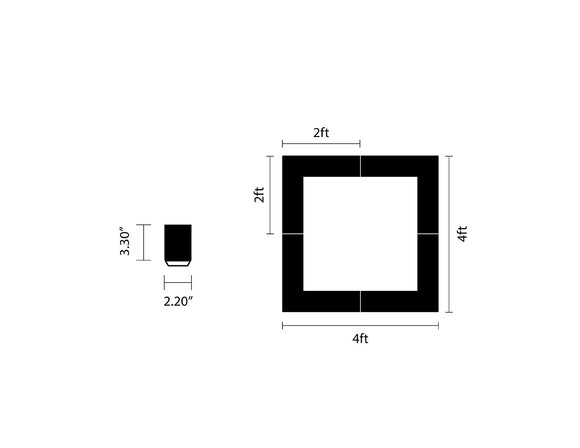

Include: 4pcs LED Linear Light Continuous Run L8456 L Shape.
End caps are not included, click here to order if needed.
L8456 Series RUN UP TO 120 FEET

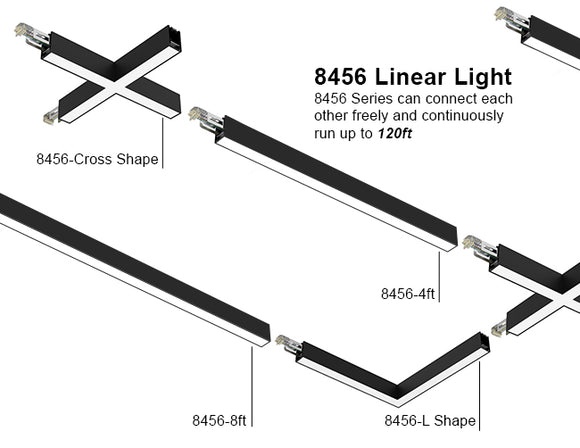

A magical and beautiful fixture, the 8456 series is a modular and magical design that requires only one AC input to connect up to 120 feet continuously using 4ft, 8ft, L shape and cross shape.
The combination of L-shaped, cross-shaped and linear fixtures make creative and noteworthy designs very easy, assuring your project looks unique and innovative.
Each continuous line needs one power connection kit.
Features:
• Suitable for home, office and any appropriate indoor space
• Continuous run up to 120ft
• Linear, L shape and Cross shape can be connected for different design
• Connect to line voltage (100-277VAC) directly
• 0-10V Dimming
• UL listed
• 5 years warranty
 |
 |

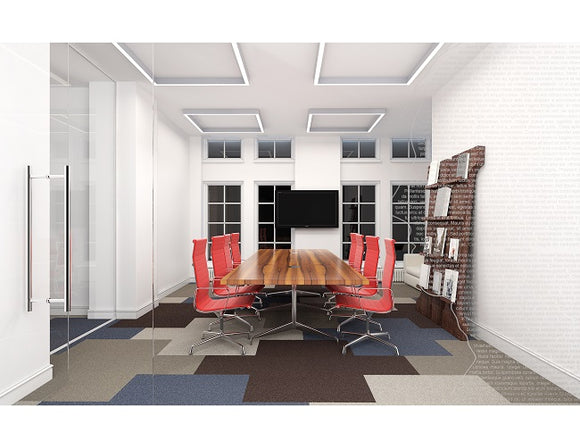

EXAMPLES OF POSSIBLE LIGHT FORMS
Continuous seamless run when connected.
Continuous Run Linear Light L8456:
|
Model
|
L8456 Square
|
||||
 |
|
 |
 |
 |
|
|
Input
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
|
Color Rendering
|
CRI>=80
|
CRI>=80
|
CRI>=80
|
CRI>=80
|
CRI>=80
|
|
Length
|
4ft
|
8ft
|
2ft+2ft
|
2ft*2ft
|
4ft*4ft
|
|
Power
|
40w
|
75w
|
40W
|
40W
|
160W
|
|
Dimmable
|
0-10V
|
0-10V
|
0-10V
|
0-10V
|
0-10V
|
|
Lamp Body Color
|
Black/ White/ Gray
|
Black/ White/ Gray
|
Black/ White/ Gray
|
Black/ White/ Gray
|
Black/ White/ Gray
|
|
Light Color Temperature
|
3000K/ 4000K/ 5000K
|
3000K/ 4000K/ 5000K
|
3000K/ 4000K/ 5000K
|
3000K/ 4000K/ 5000K
|
3000K/ 4000K/ 5000K
|
|
Lumen
|
4120LM/ 4280LM/ 4320LM
|
7650LM/ 7725LM/ 7875LM
|
4080LM/ 4120LM/ 4280LM
|
4240LM/ 4320LM/ 4400LM
|
16320LM/ 16480LM/ 17120LM
|
|

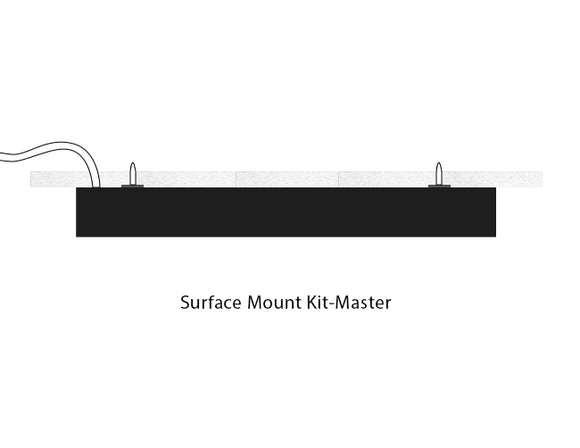

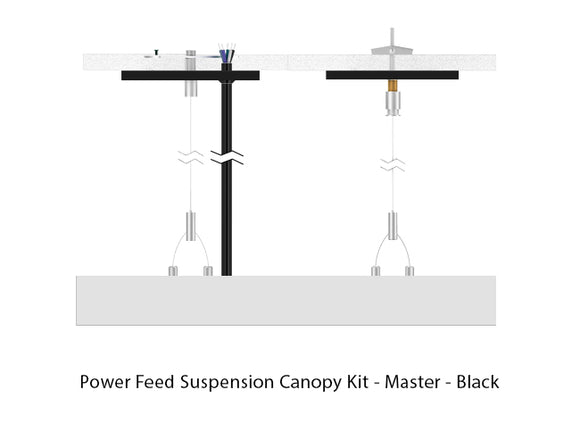

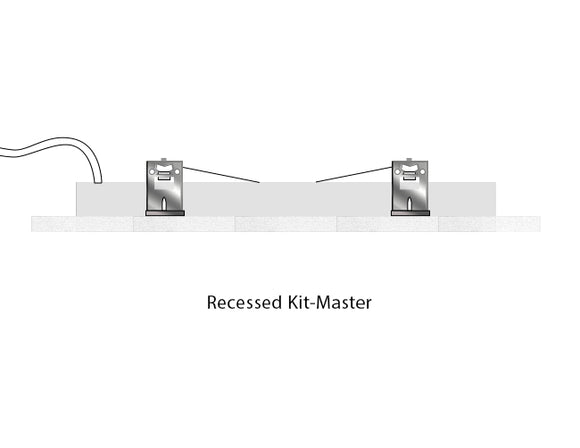

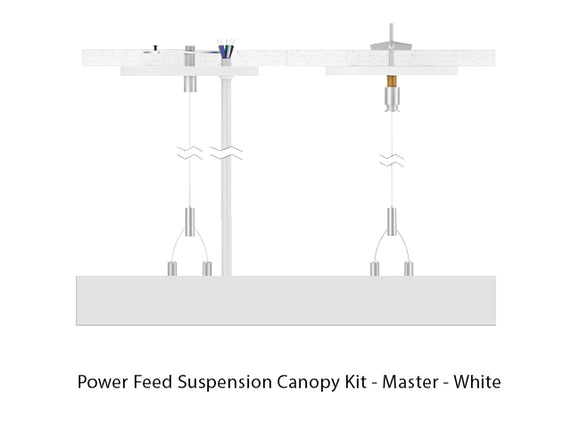

Installation Type
|

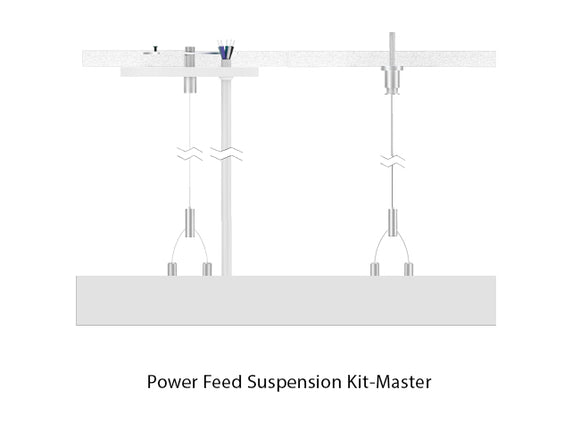

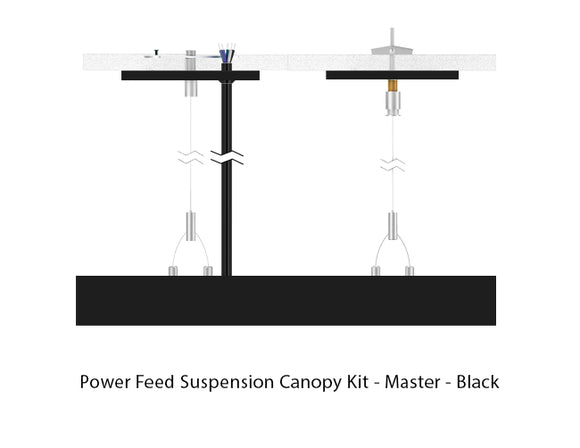

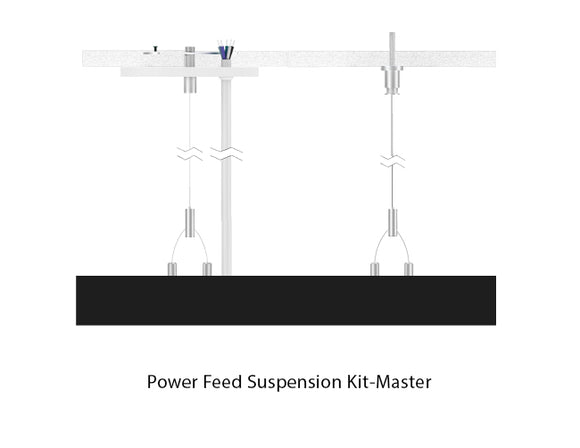

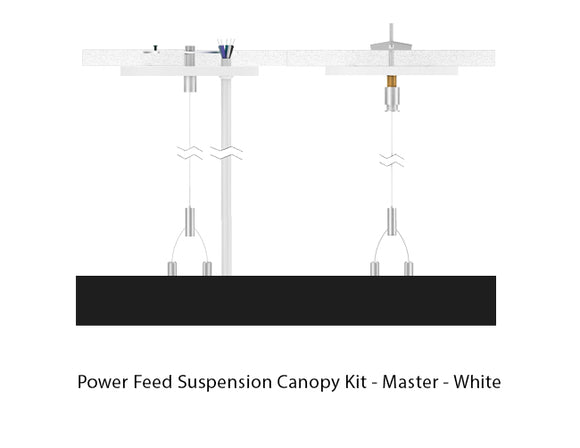

Suspension/

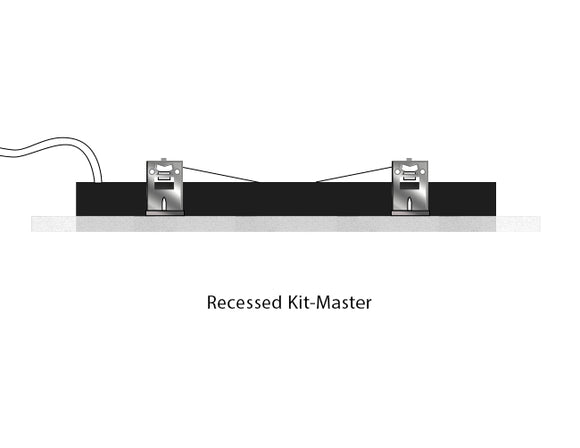

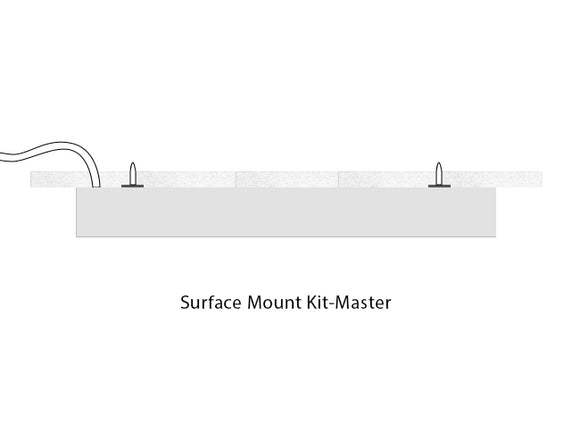

Surface installation/ Recessed installation |
Suspension/
Surface installation/ Recessed installation |
Suspension/
Surface installation/ Recessed installation |
Suspension/
Surface installation/ Recessed installation |
Suspension/
Surface installation/ Recessed installation |
Note: Body color Grey and Color temperature 5000K will need to be special ordered only.
Emergency Option:
 |
| Emergency Driver |
