LED Linear Light - Continuous Run L8456 - 8ft

LED linear light is exclusively designed for designers and architects with imagination and personal styles.

GL LED L8456 8ft LED linear light fixture is a one-piece and plug-and-play product that exhibits a sleek and modern design. It features a durable aluminum case and a polycarbonate diffuser, with high quality LED emitters inside to produce even and anti-glare lights. It has a high color rendering index CRI>80, different color temperature options (3000K, 4000K & 5000K), and an output power of 75W to produce 7875 lumens of down light at 5000K. The LED linear light can be easily dimmed with a 0-10V dimmer switch (not included).

The continuous run LED linear light fixture can be easily connected to each other or with other shapes (4ft straight, L-shaped, and X-shaped) to form stylish lighting designs, and they can run up to 120ft long with a single AC power input. The flexibility and versatility of the LED linear light make creative and noteworthy designs very easy, assuring your project looks unique and innovative.

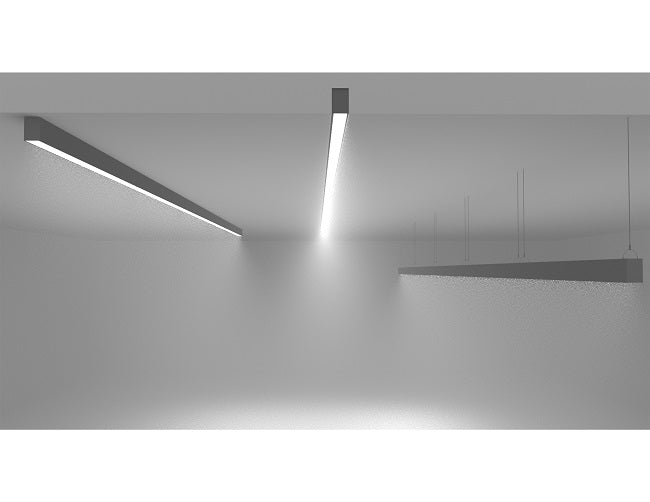

This L8456 8ft LED linear light fixture can be suspended from ceilings to work as a linear pendant light or a linear chandelier light, surfaces mounted to ceilings when room height is limited, or ceiling recessed to fit low ceiling environment. Corresponding compatible kits are available (sold separately) to simplify the installations.

GL LED L8456 LED linear lights are ideal for an indoor setting of residential, commercial, or industrial applications (such as hotels, hospitals, factories, offices, conference rooms, schools, retail stores, or malls etc.).

L8456 Series Light fixtures can be connected to each other and RUN UP TO 120 FEET

Features:
• Suitable for home, office and any appropriate indoor space
• Continuous run up to 120ft
• Linear, L shape and Cross shape can be connected for different design
• Connect to line voltage (100-277VAC) directly
• 0-10V Dimming
• UL listed
• 5 years warranty

EXAMPLES OF POSSIBLE LIGHT FORMS
Continuous seamless run when connected.

Continuous Run Linear Light L8456:

Model	L8456-4ft	L8456-8ft	L8456L	L8456R	L8456 Square
Input	100-277VAC	100-277VAC	100-277VAC	100-277VAC	100-277VAC
Color Rendering	CRI>=80	CRI>=80	CRI>=80	CRI>=80	CRI>=80
Length	4ft	8ft	2ft+2ft	2ft*2ft	4ft*4ft
Power	40w	75w	40W	40W	160W
Dimmable	0-10V	0-10V	0-10V	0-10V	0-10V
Lamp Body Color	Black/ White/ Gray	Black/ White/ Gray	Black/ White/ Gray	Black/ White/ Gray	Black/ White/ Gray
Light Color Temperature	3000K/ 4000K/ 5000K	3000K/ 4000K/ 5000K	3000K/ 4000K/ 5000K	3000K/ 4000K/ 5000K	3000K/ 4000K/ 5000K
Lumen	4120LM/ 4280LM/ 4320LM	7650LM/ 7725LM/ 7875LM	4080LM/ 4120LM/ 4280LM	4240LM/ 4320LM/ 4400LM	16320LM/ 16480LM/ 17120LM
Installation Type	Suspension/ Surface installation/ Recessed installation	Suspension/ Surface installation/ Recessed installation	Suspension/ Surface installation/ Recessed installation	Suspension/ Surface installation/ Recessed installation	Suspension/ Surface installation/ Recessed installation

Note: Body color Grey and Color temperature 5000K will need to be special ordered only.

Emergency Option:

Emergency Driver

More LED Linear Lights:

Single Run Linear Light	Continuous Run Linear Light	Up and Down Illuminate Linear Light

Frequently bought together:

Continuous Run Linear Light	LED Linear Light Accessories

Q&A:

What is the difference between LED linear lights and LED strip lights?

LED linear lights and LED strip lights are both types of linear LED lighting solutions that offer various benefits in terms of energy efficiency, durability, and versatility. However, there are some differences between the two that are worth noting.

LED linear lights are typically larger and more robust than LED strip lights. They often have a more substantial housing, which allows for better heat dissipation and protection against physical damage. LED linear lights also tend to be brighter and have a higher output than LED strip lights, making them suitable for use in commercial and industrial settings.

On the other hand, LED strip lights are generally more flexible and adaptable than LED linear lights. They come in a roll or a reel, allowing for easier installation and customization. LED strip lights can be cut to length, making them ideal for use in tight spaces or irregularly shaped areas. They are also available in a wider range of colors, color temperatures, and brightness levels, making them ideal for a variety of applications, including residential and commercial lighting.
