LED Linear Light - Continuous Run L8456 - L Shape

SKU: L-8456L-40-4-B-3000K

Login to view price

LED linear light is exclusively designed for designers and architects with imagination and personal styles.

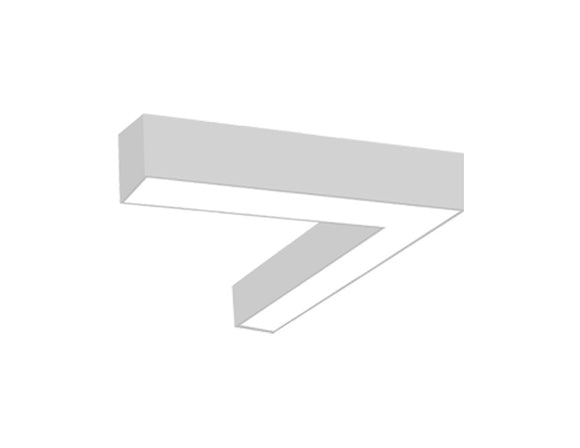

GL LED L8456 L-shaped LED linear light fixture is a one-piece and plug-and-play product that exhibits a sleek and modern design. It features a durable aluminum case and a polycarbonate diffuser, with high quality LED emitters inside to produce even and anti-glare lights. It has a high color rendering index CRI>80, different color temperature options (3000K, 4000K & 5000K), and an output power of 40W to produce 4280 lumens of down light at 5000K. The LED linear light can be easily dimmed with a 0-10V dimmer switch (not included).

Each arm of the L-shaped linear light is 2” long, and it can not only bridge other L8456 LED linear light pieces to make a right angle turn and form a more stylish lighting appearance, but also work individually (single run) to present an aesthetics simplicity. The flexibility and versatility of the LED linear light make creative and noteworthy designs very easy, assuring your project looks unique and innovative.

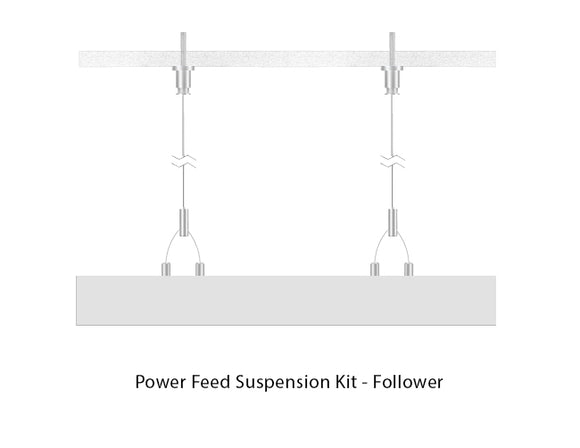

This L8456 L-shaped LED linear light fixture can be suspended from ceilings to work as a linear pendant light or a linear chandelier light, surfaces mounted to ceilings when room height is limited, or ceiling recessed to fit low ceiling environment. Corresponding compatible kits are available (sold separately) to simplify the installations.

GL LED L8456 LED linear lights are ideal for an indoor setting of residential, commercial, or industrial applications (such as hotels, hospitals, factories, offices, conference rooms, schools, retail stores, or malls etc.).

End caps are not included, click HERE to order if needed.

L8456 Series Light fixtures can be connected to each other and RUN UP TO 120 FEET

Features:
• Suitable for home, office and any appropriate indoor space
• Continuous run up to 120ft
• Linear, L shape and Cross shape can be connected for different design
• Connect to line voltage (100-277VAC) directly
• 0-10V Dimming
• UL listed
• 2 years warranty

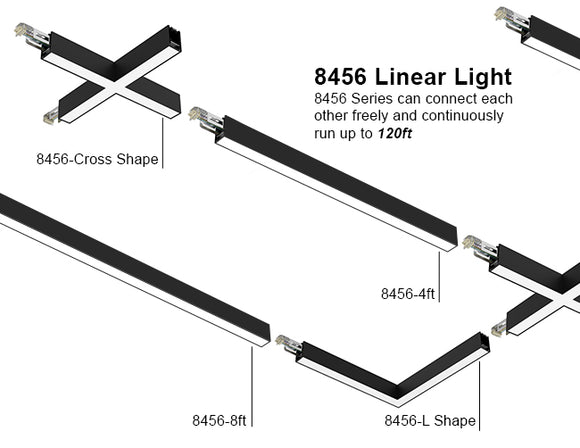

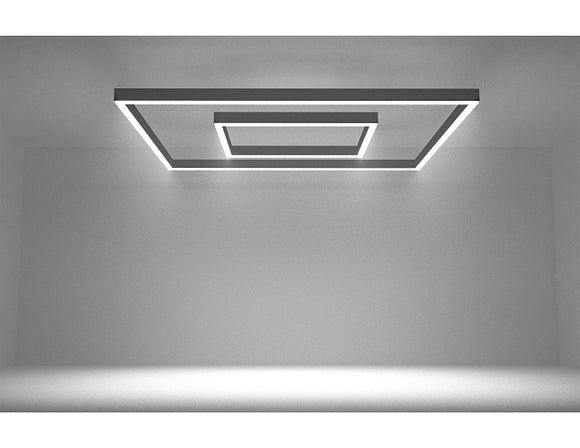

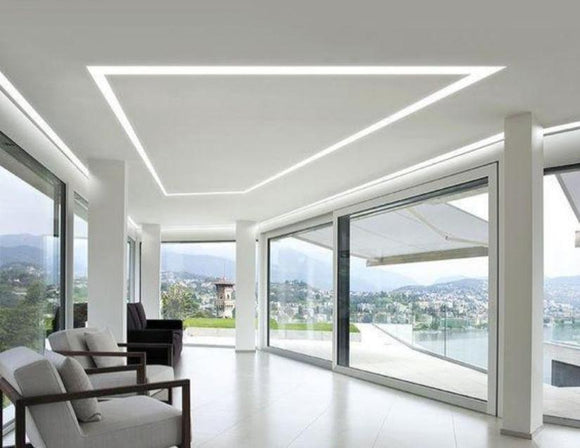

EXAMPLES OF POSSIBLE LIGHT FORMS
Continuous seamless run when connected.

Continuous Run Linear Light L8456:

Model
L8456L

Input
100-277VAC
100-277VAC
100-277VAC
100-277VAC
100-277VAC
Color Rendering
CRI>=80
CRI>=80
CRI>=80
CRI>=80
CRI>=80
Length
4ft
8ft
2ft+2ft
2ft*2ft
4ft*4ft
Power
40w
75w
40W
40W
160W
Dimmable
0-10V
0-10V
0-10V
0-10V
0-10V
Lamp Body Color
Black/ White/ Gray
Black/ White/ Gray
Black/ White/ Gray
Black/ White/ Gray
Black/ White/ Gray
Light Color Temperature
3000K/ 4000K/ 5000K
3000K/ 4000K/ 5000K
3000K/ 4000K/ 5000K
3000K/ 4000K/ 5000K
3000K/ 4000K/ 5000K
Lumen
4120LM/ 4280LM/ 4320LM
7650LM/ 7725LM/ 7875LM
4080LM/ 4120LM/ 4280LM
4240LM/ 4320LM/ 4400LM
16320LM/ 16480LM/ 17120LM
Installation Type
Suspension/
Surface installation/
Recessed installation
Suspension/
Surface installation/
Recessed installation
Suspension/
Surface installation/
Recessed installation
Suspension/
Surface installation/
Recessed installation
Suspension/
Surface installation/
Recessed installation

Note: Body color Grey and Color temperature 5000K will need to be special ordered only.

More LED Linear Lights:

Single Run Linear Light Continuous Run Linear Light Up and Down Illuminate Linear Light

Frequently bought together:

Continuous Run Linear Light Continuous Run Linear Light Accessories


Q&A:

What is the difference between LED linear lights and LED strip lights?

LED linear lights and LED strip lights are both types of linear LED lighting solutions that offer various benefits in terms of energy efficiency, durability, and versatility. However, there are some differences between the two that are worth noting.

LED linear lights are typically larger and more robust than LED strip lights. They often have a more substantial housing, which allows for better heat dissipation and protection against physical damage. LED linear lights also tend to be brighter and have a higher output than LED strip lights, making them suitable for use in commercial and industrial settings.

On the other hand, LED strip lights are generally more flexible and adaptable than LED linear lights. They come in a roll or a reel, allowing for easier installation and customization. LED strip lights can be cut to length, making them ideal for use in tight spaces or irregularly shaped areas. They are also available in a wider range of colors, color temperatures, and brightness levels, making them ideal for a variety of applications, including residential and commercial lighting.


Instruction Video: Linear Light Recess Installation

Instruction Video: Linear Light Recess Uninstallation

Instruction Video: Continuous Run Linear Light Extension Installation

  • Model No.: Continuous Run L8456 - L Shape, SKU: L-8456L-40-4-X-xxxxK
  • Input Voltage: AC 100-277V
  • Power: 40W
  • Brightness/Lumens: 3000K, 4080lm; 4000K, 4120lm; 5000K, 4280lm
  • LED Type: 2835

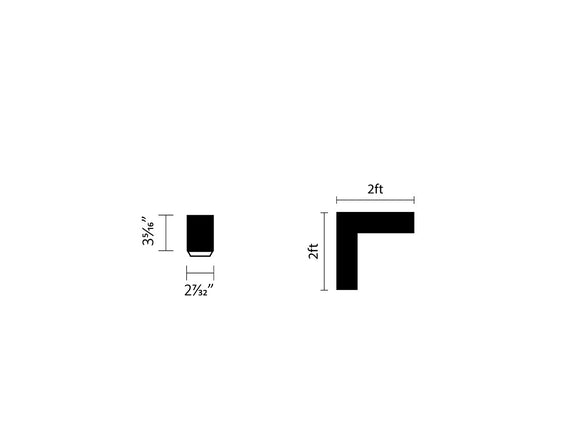

  • Dimension: L 23.62" + 23.62", W 2.2", H 3.3"
  • Body Color: Black, White, Grey
  • Dimmable: 0-10V
  • Color Rendering Index (CRI): >80
  • Color Temperature (CCT): Warm White (3000K), Natural White (4000K), Cold White (5000K)
  • IP Rate: IP40 (Non-waterproof)
  • Net Weight: 7.26lbs
  • Limited 2 years warranty

Linear Light Continuous Run - L-8456 Specification
Linear Light Continuous Run - L-8456 Installation Instruction

Separate accessories are available

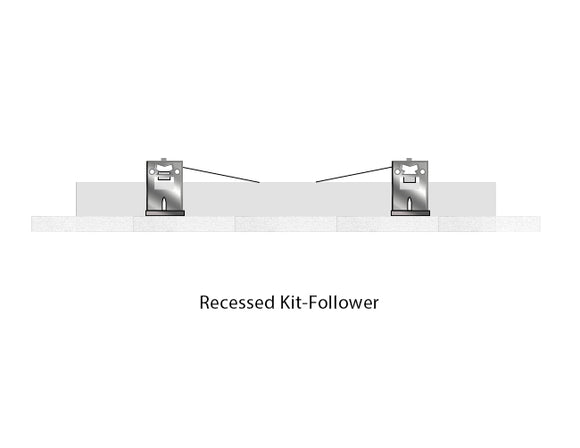

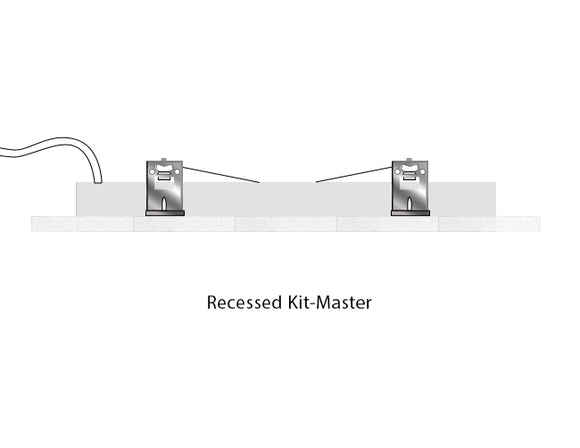

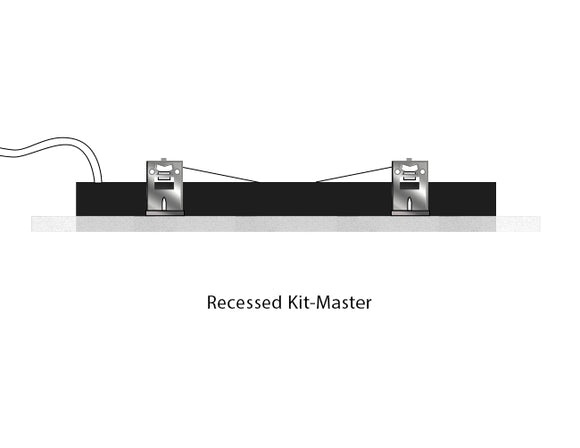

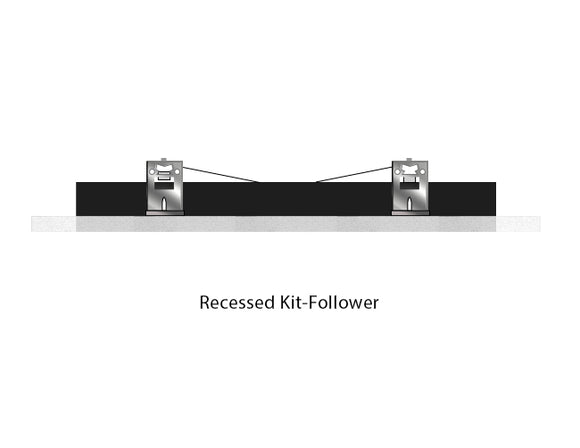

Recessed Kit

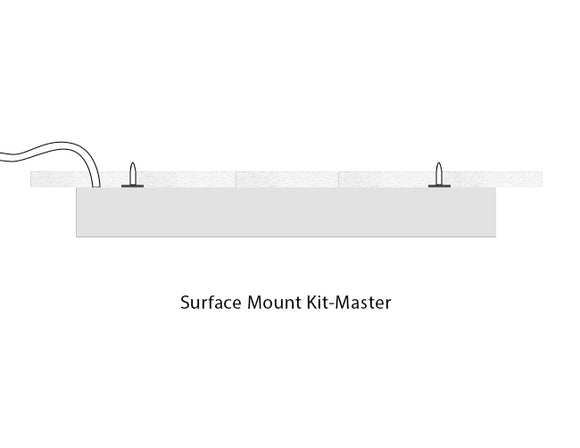

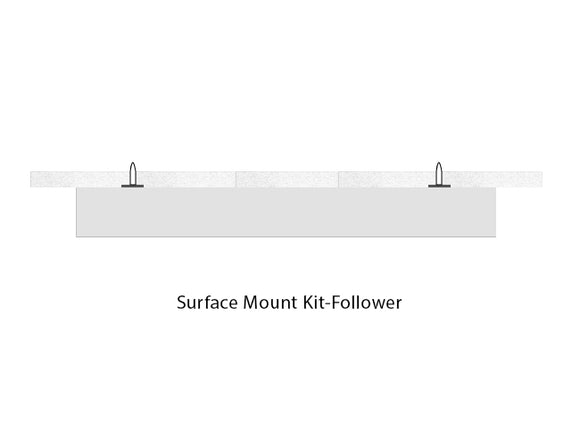

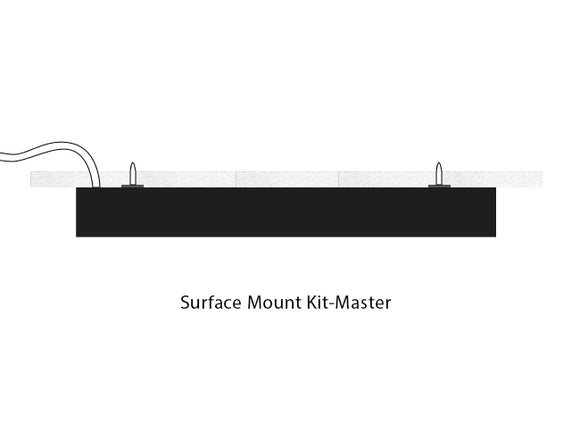

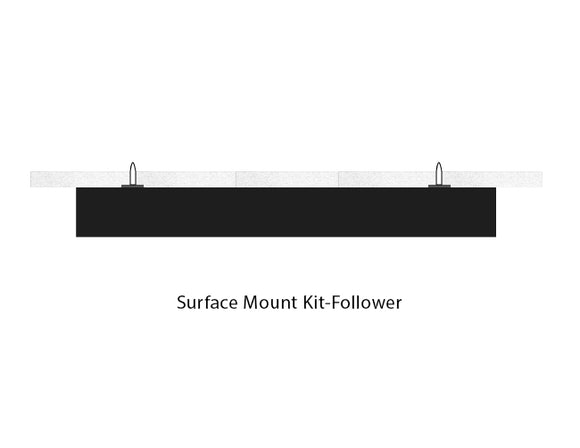

Surface Mount Kit

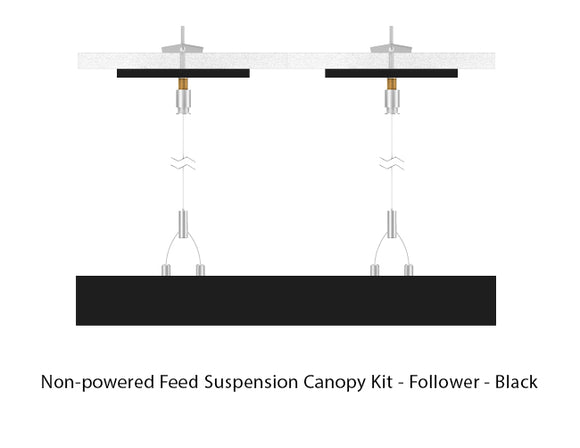

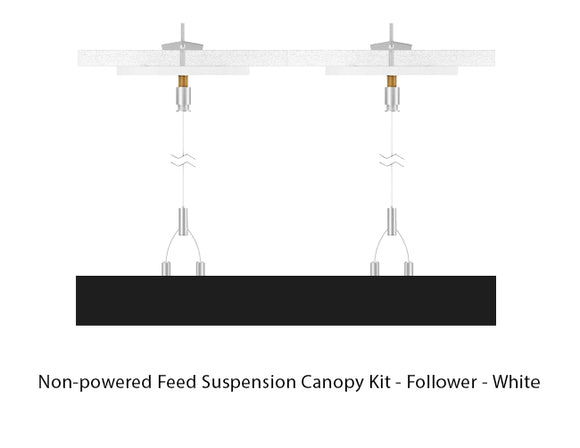

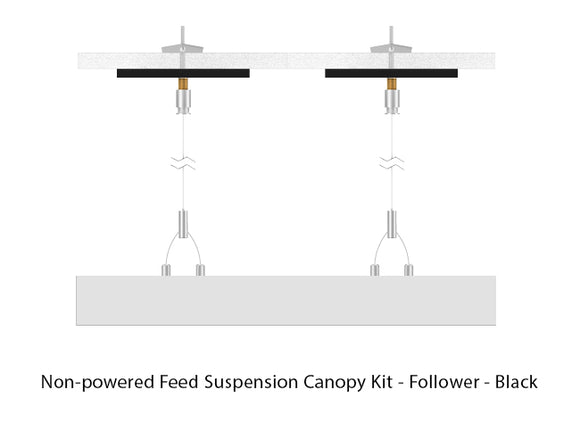

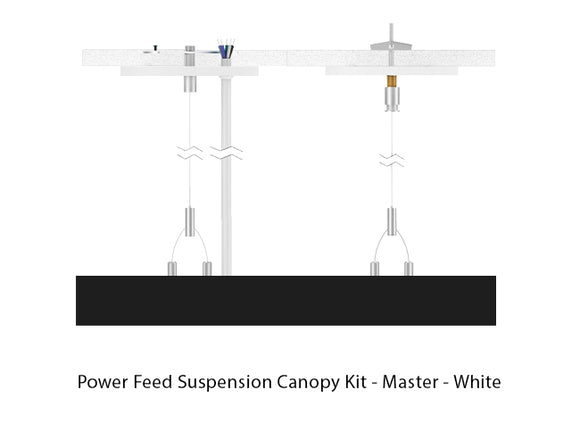

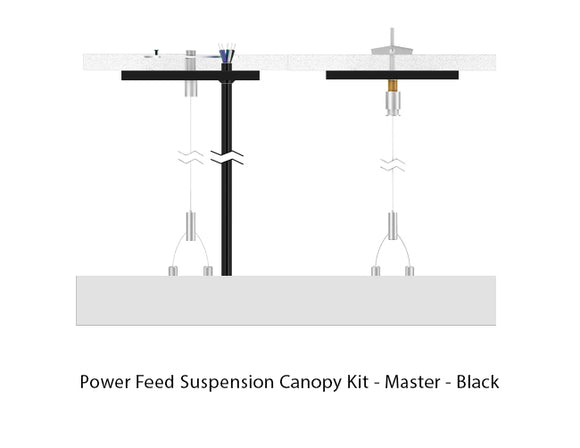

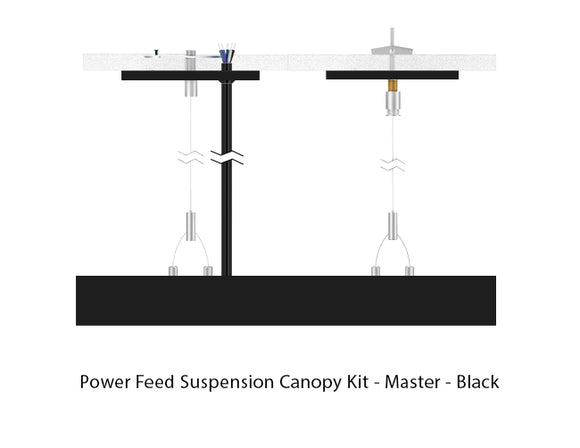

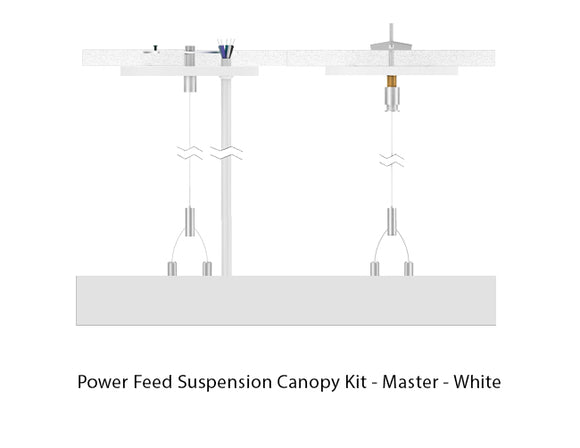

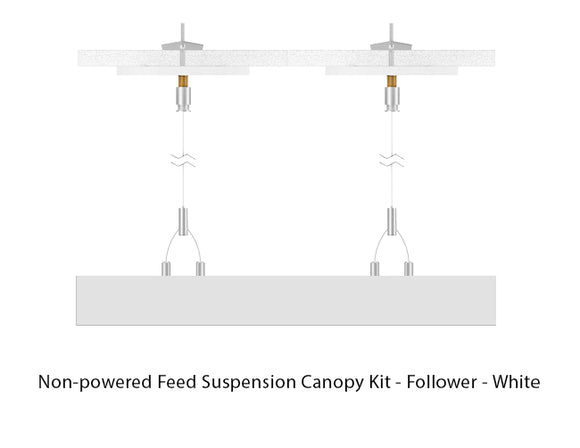

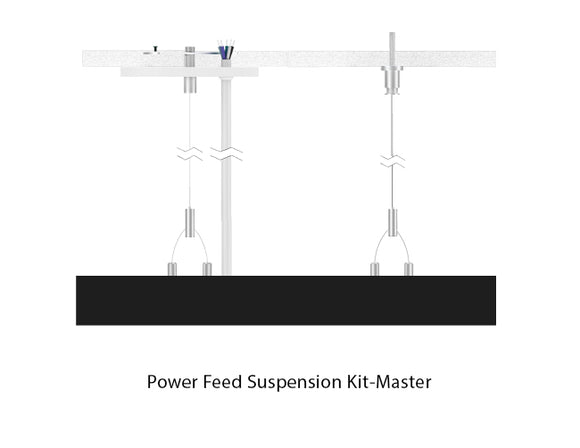

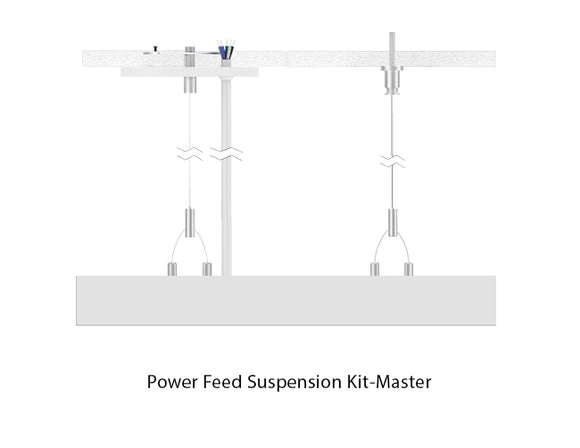

Suspension Canopy Kit

Each continuous line needs one Master Kit, which includes a power connection kit.
