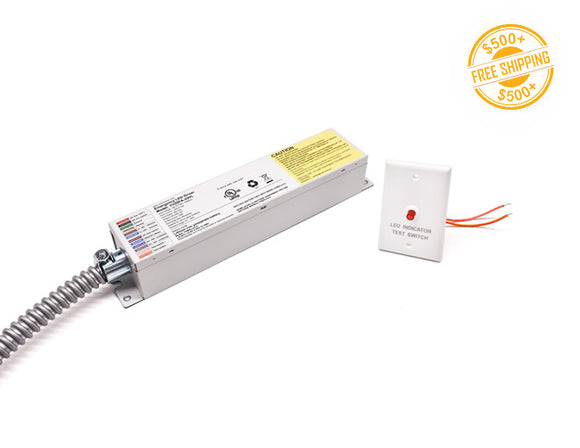

Emergency LED Driver 25W

SKU: YH29FA-25VL

Login to view price

The emergency LED driver works as a backup power supply for LED lights to keep them lit for a certain duration if the original power supply to the fixtures fail. It helps to maintain a safe environment for people to either repair the fixtures or evacuate a building during a power outage.

- Suit for 10W to 200W lamp with internal or external led driver,
25W-200W lamp must be with 0-10V dimming function.
10W-24W lamp could be without 0-10V dimming function.
- Used with LiFePO4 battery.
- 200VDC/120VAC output (Sinusoid).
- LED emergency converter that can transfer standard LED fitting into emergency LED fitting.

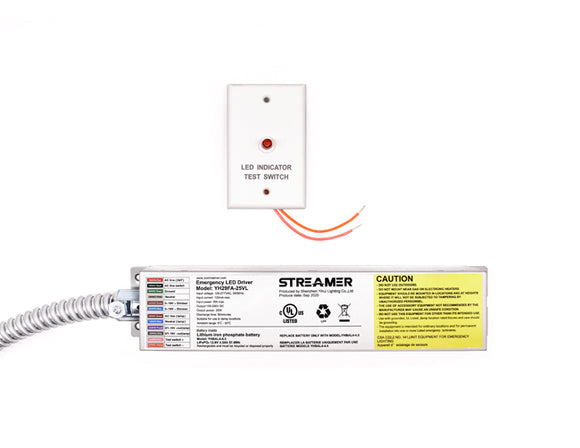

- Accessory test switch and charge indicator.

LED Low Voltage Light System

  • Model No: YH29FA-25VL
  • Input Voltage: 100-277VAC
  • Output Voltage: 150-200V
  • Wattage: 25W
  • Battery Pack: LiFePO4 12.8V 4.5Ah
  • Duration (E.M mode): 90 minutes

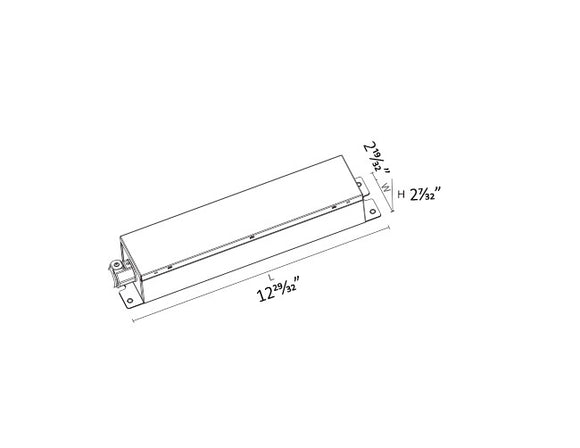

  • Dimension: L 12.9", W 2.6", H 2.2", 6lb
  • Work Environment / IP Rating : IP20 (Non-Waterproof)
  • Installation Options: Surface Mounted
  • Working Temperature: 32 ~ 122℉
  • Certification: UL
  • Warranty: 5 Years

Emergency LED Driver Specification

Separate accessories are available

T Grid Mount Bracket
