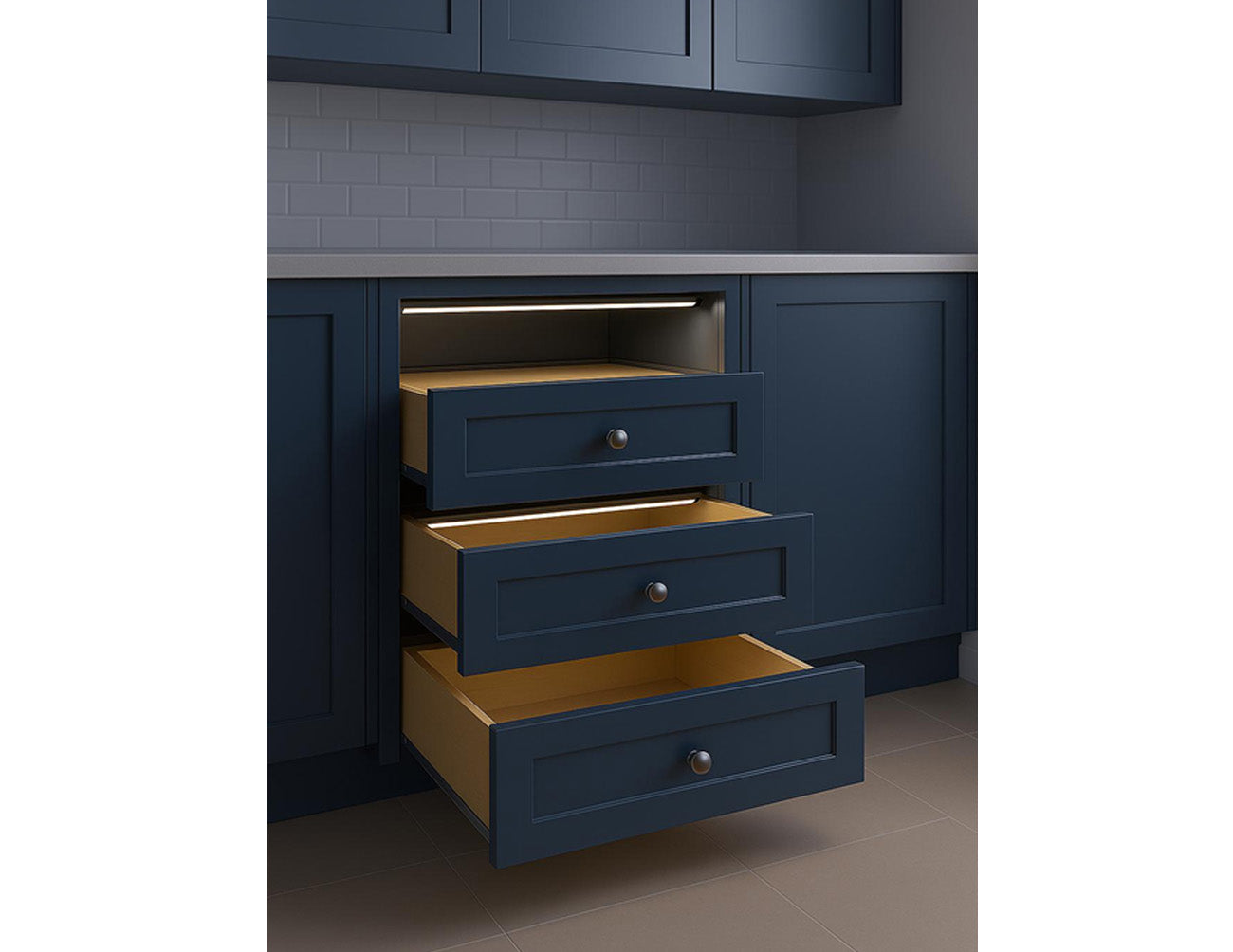

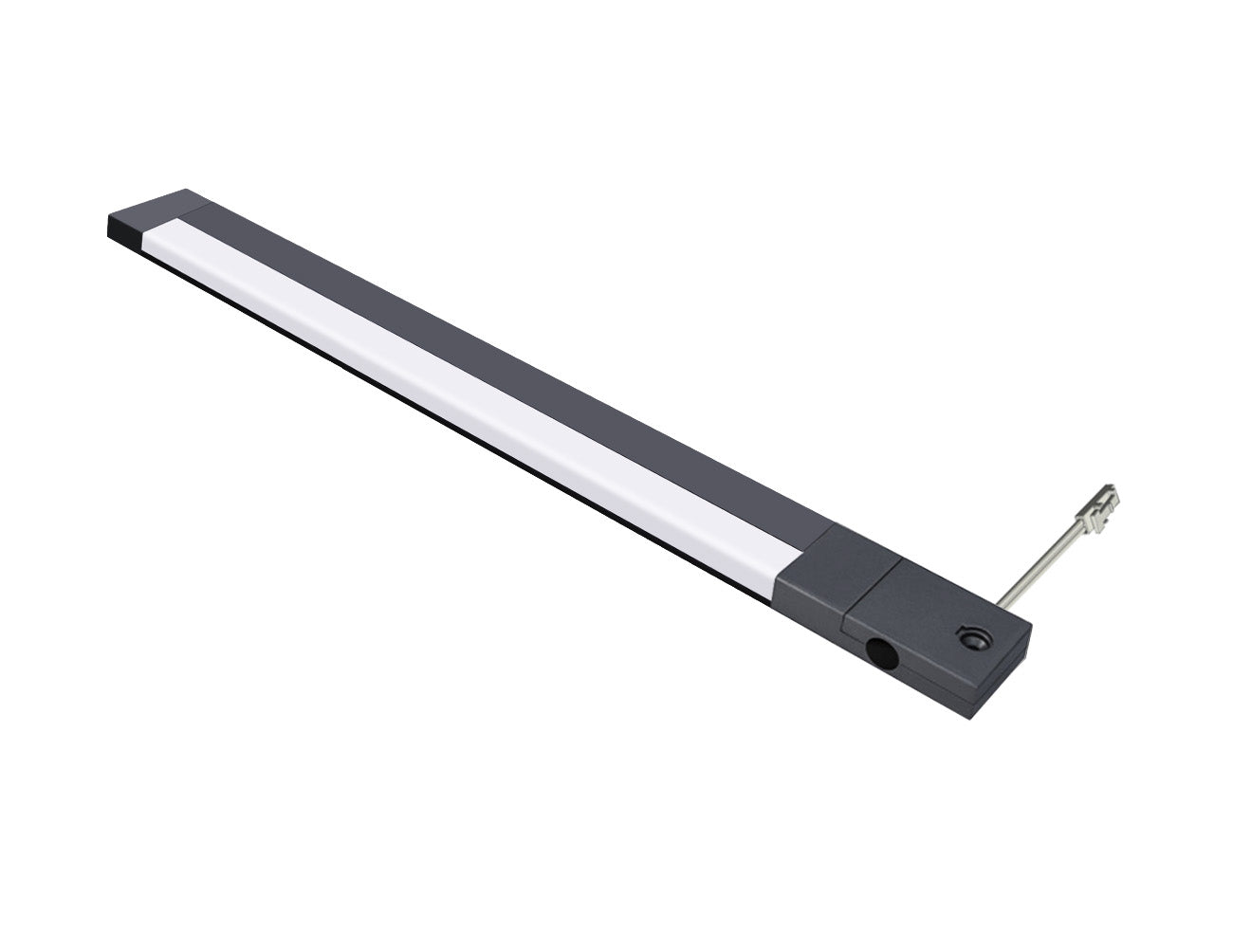

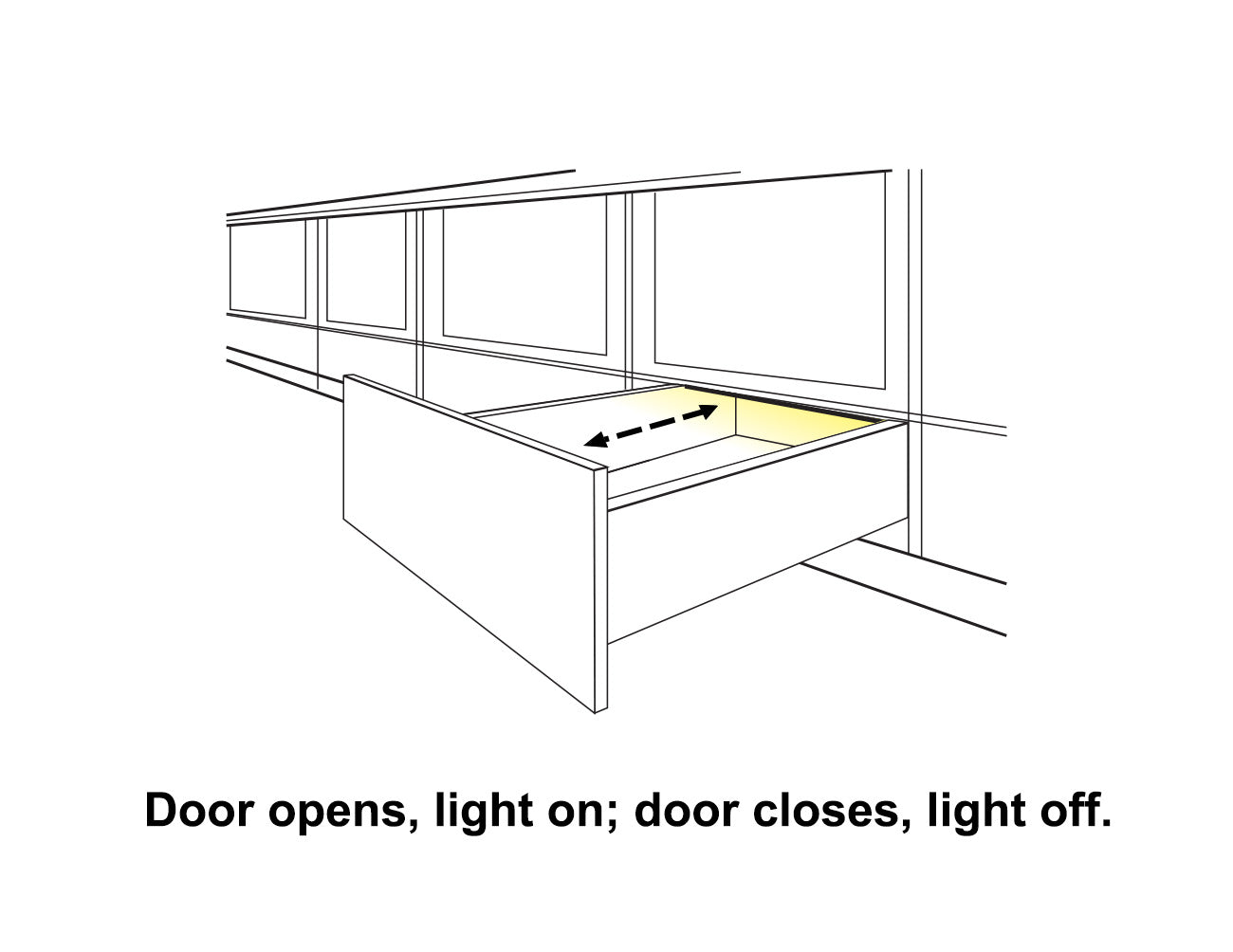

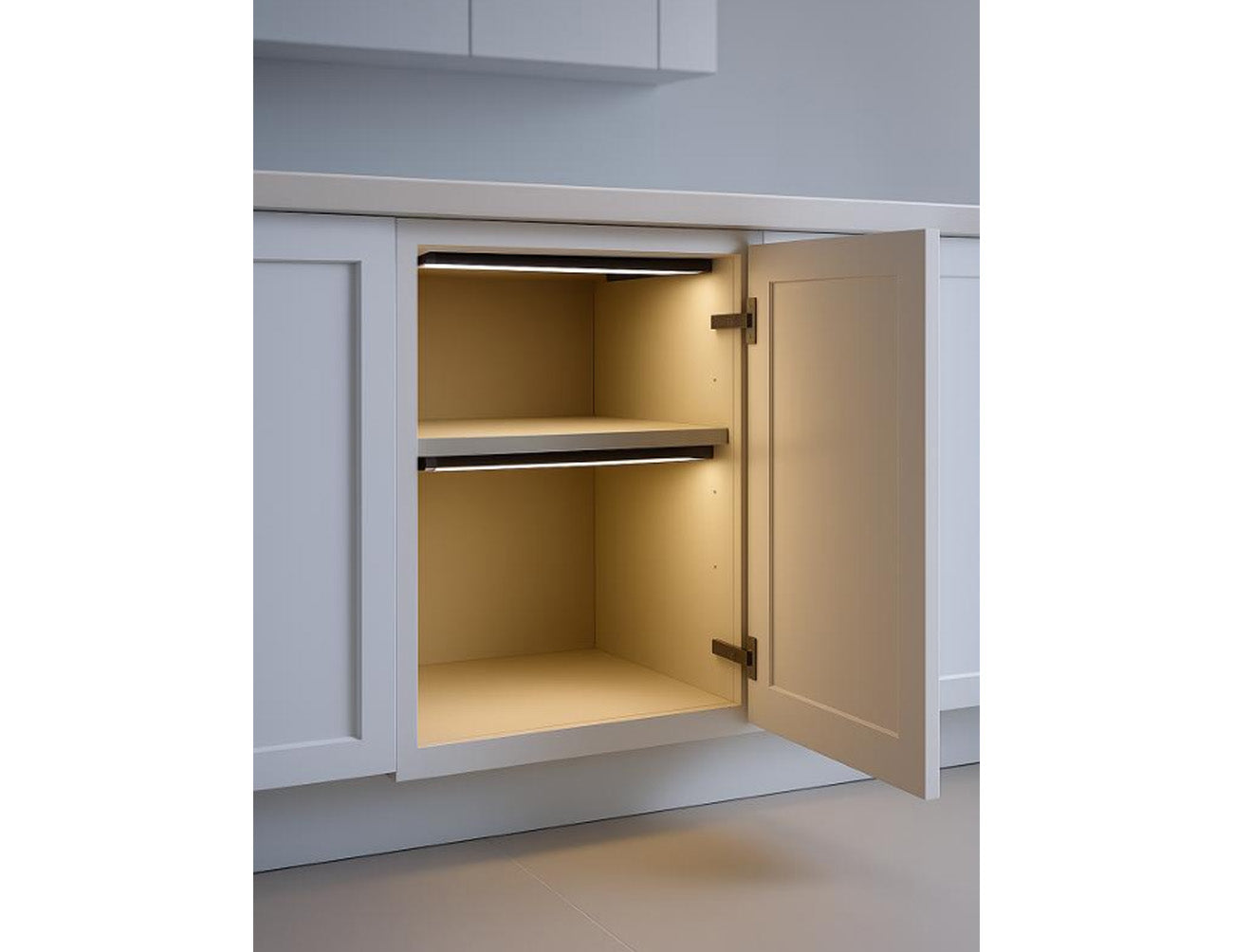

20925 Series Door-Sensor Linear Light: this light turns on when the door opens and off when the door closes. It is widely used for drawer lighting and base cabinet interior lighting—when installed in drawers, the light shines outward, and when installed in base cabinets, the light shines inward—typically mounted on the top panel of drawers or the underside of base cabinet shelves.
Product Details
- Slim aluminum profile only 13/32" height.
- Door sensor switch for smart control.
- Aluminum profile length customized.
Applications
- Drawer.
- Closet, wardrobe with sliding door.
Specifications
Type | 20925 |
Input Voltage | 24VDC |
LED Quantity | 50 LEDs/ft |
LED Chip | 2835 |
Color Temperature | 3000K/4000K/6500K |
Brightness(3000k) | 162lm/ft |
Light Efficacy(3000k) | 45lm/W |
Color Rendering Index (CRI) | 90+ |
Power Consumption | 3.6W/ft |
IP Rating | IP20 (Dry location) |
Certificate | UL listed |

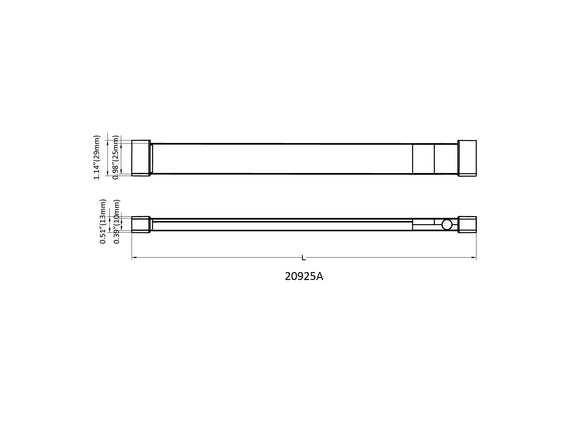

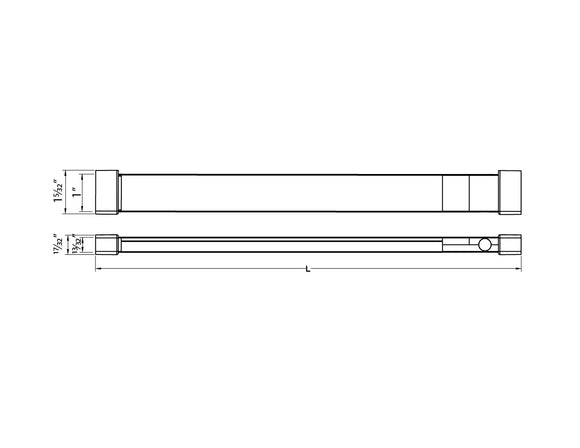

Dimension | L:(customizable)" W: 1" D: 13/32" |
