The Puck Light is a standalone low-voltage LED fixture widely used in cabinets, wardrobes, and display lighting, delivering a clean and refined point light effect. Designed for flexibility, it supports both recessed and surface-mount installation to fit different application needs.
The front-mounted CCT adjustment switch allows quick and convenient color
temperature selection.

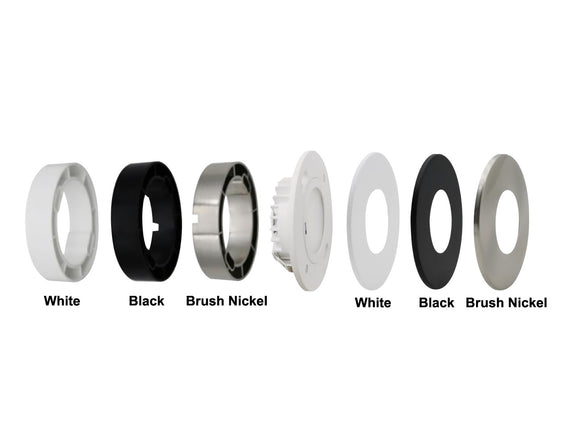

Interchangeable Trim & Ring options in multiple colors make it easy to match
different cabinet finishes and interior styles.
Product Details
-

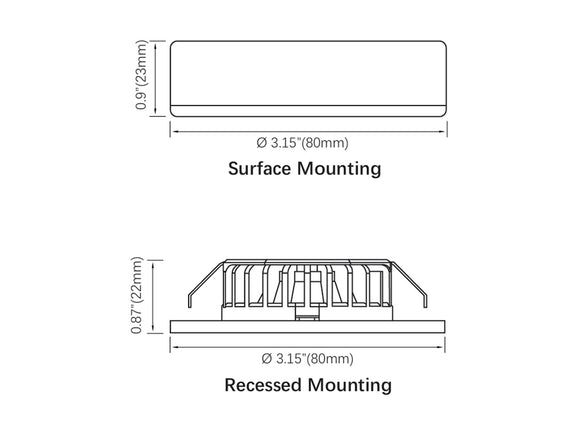

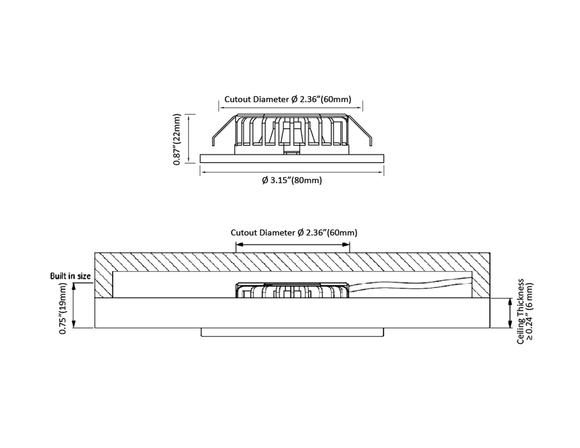

Recessed / Surface Mount:
Supports both recessed and surface-mount installation. -
Front CCT Adjustment:
Front-mounted DIP switch for easy color temperature adjustment. -

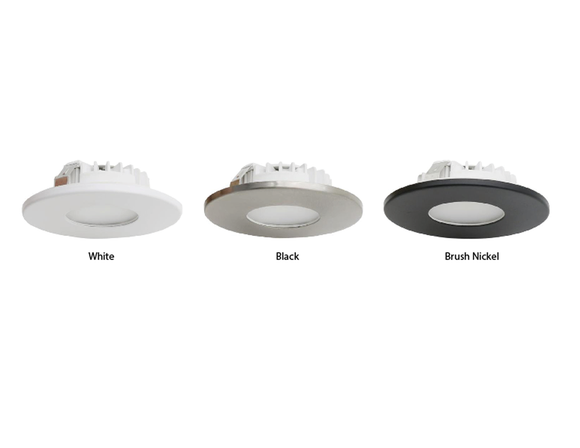

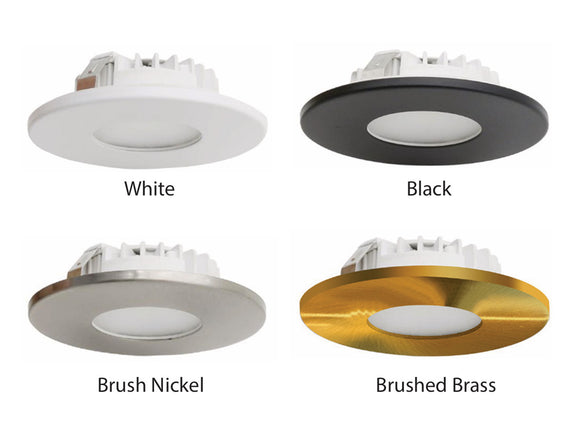

Interchangeable Trim & Ring:
Multiple color options available for customized appearance. -
2-Pin Low-Voltage Input:
Simple and reliable 2-pin low-voltage connection.
Can be connected to:
* Constant 24V Output or * Controlled Power Output when no master controller is used.

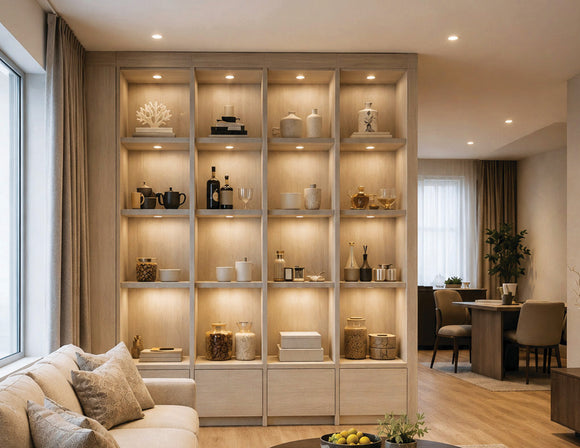

Ideal for kitchen cabinets, wardrobes, display cases, and similar lighting applications.
Applications
- Under cabinet.
- Display shelves.
- Closet, wardrobe.
- Cloakroom.
Specifications
| Type | WD-UL008 CCT |
| Input Voltage | 24VDC |
| Color Temperature | 2700K/3000K/4000K |
| Brightness | 200Lm |
| Power Consumption | 3W |
| Beam Angle | 120° |
| CRI | 90+ |
| IP Rating | IP20 (Dry location) |
